In General


Location / Name:
    Savage MD

What's Here:
     former B&O RR Bollman Truss Bridge

Data:
     GPS Coordinates: 39.134586, -76.825080
     Foundry St, Savage MD
     ZIP: 20723

Access by train/transit:
     None

The Scoop:

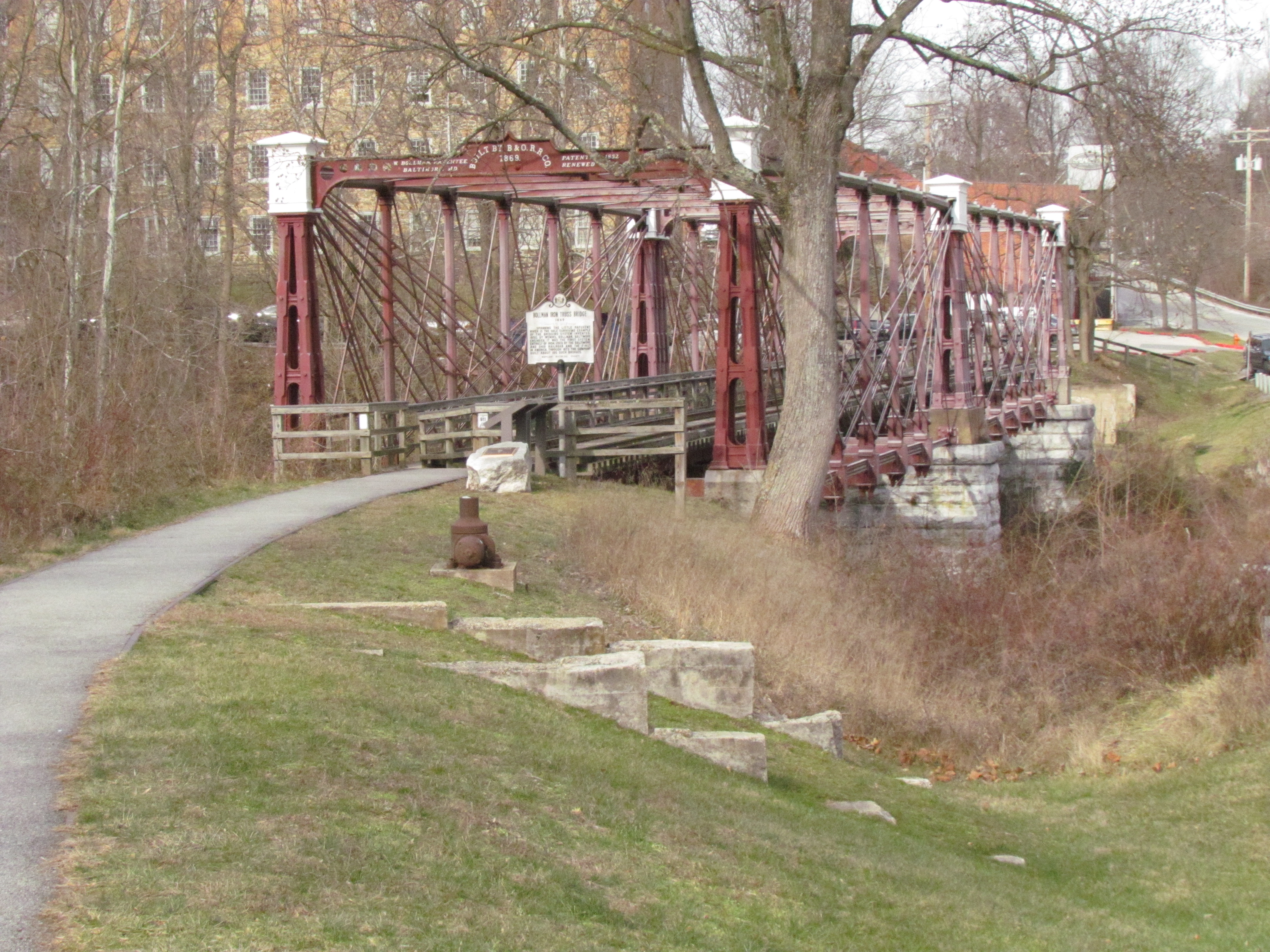

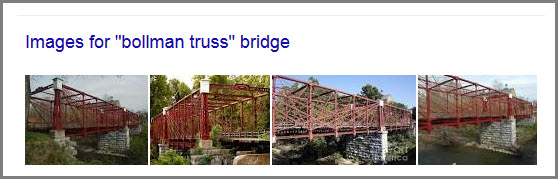

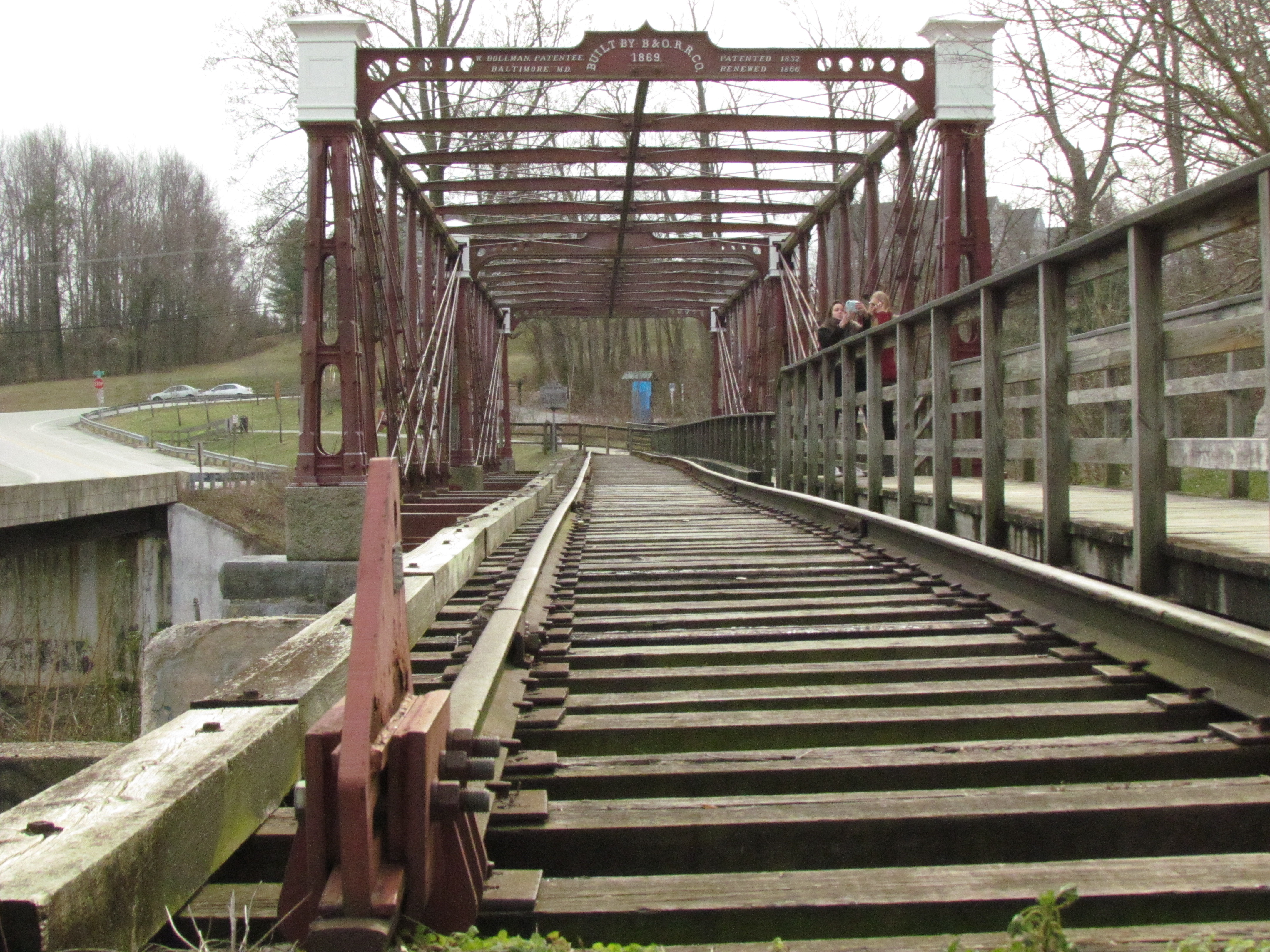

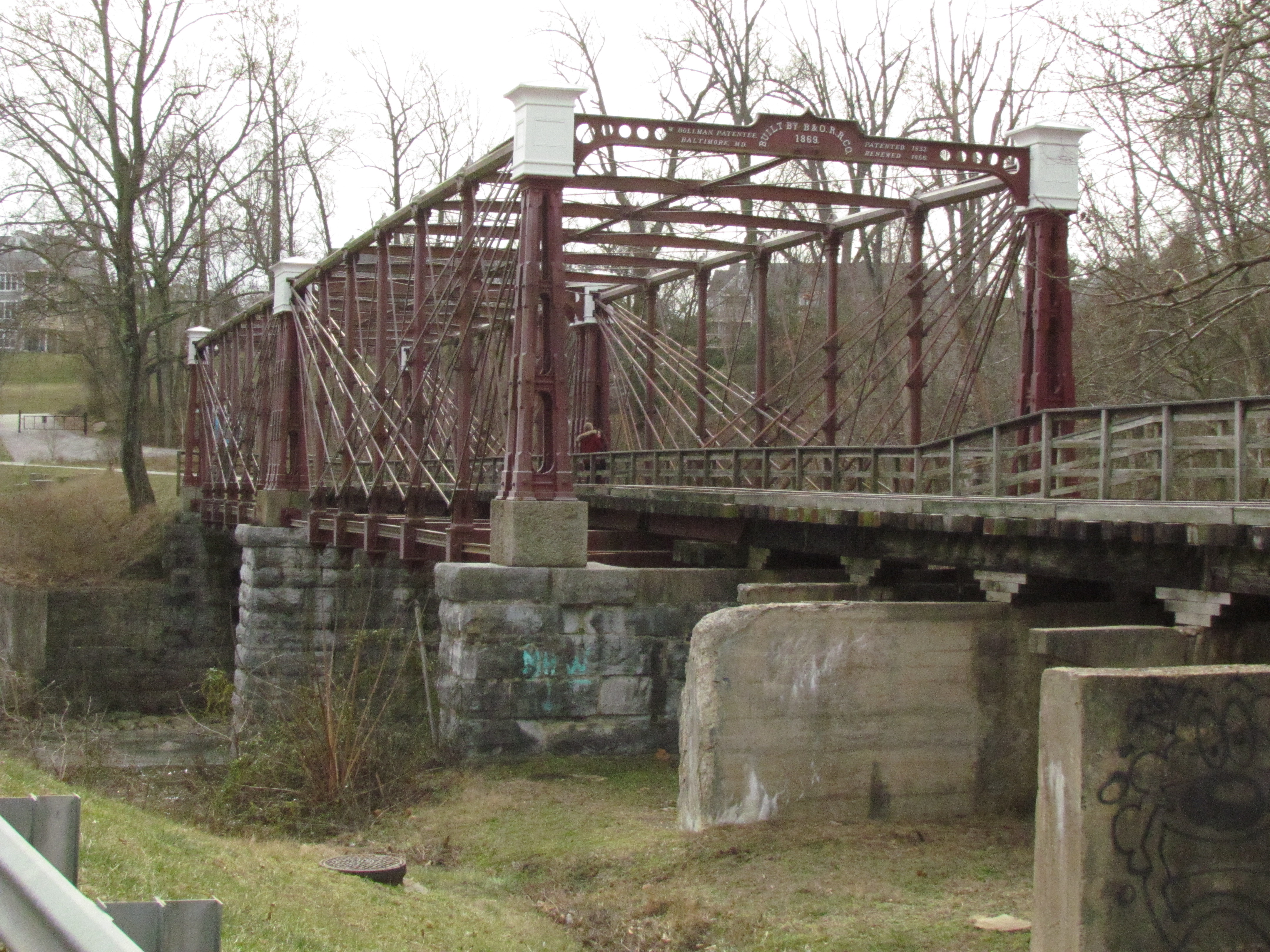

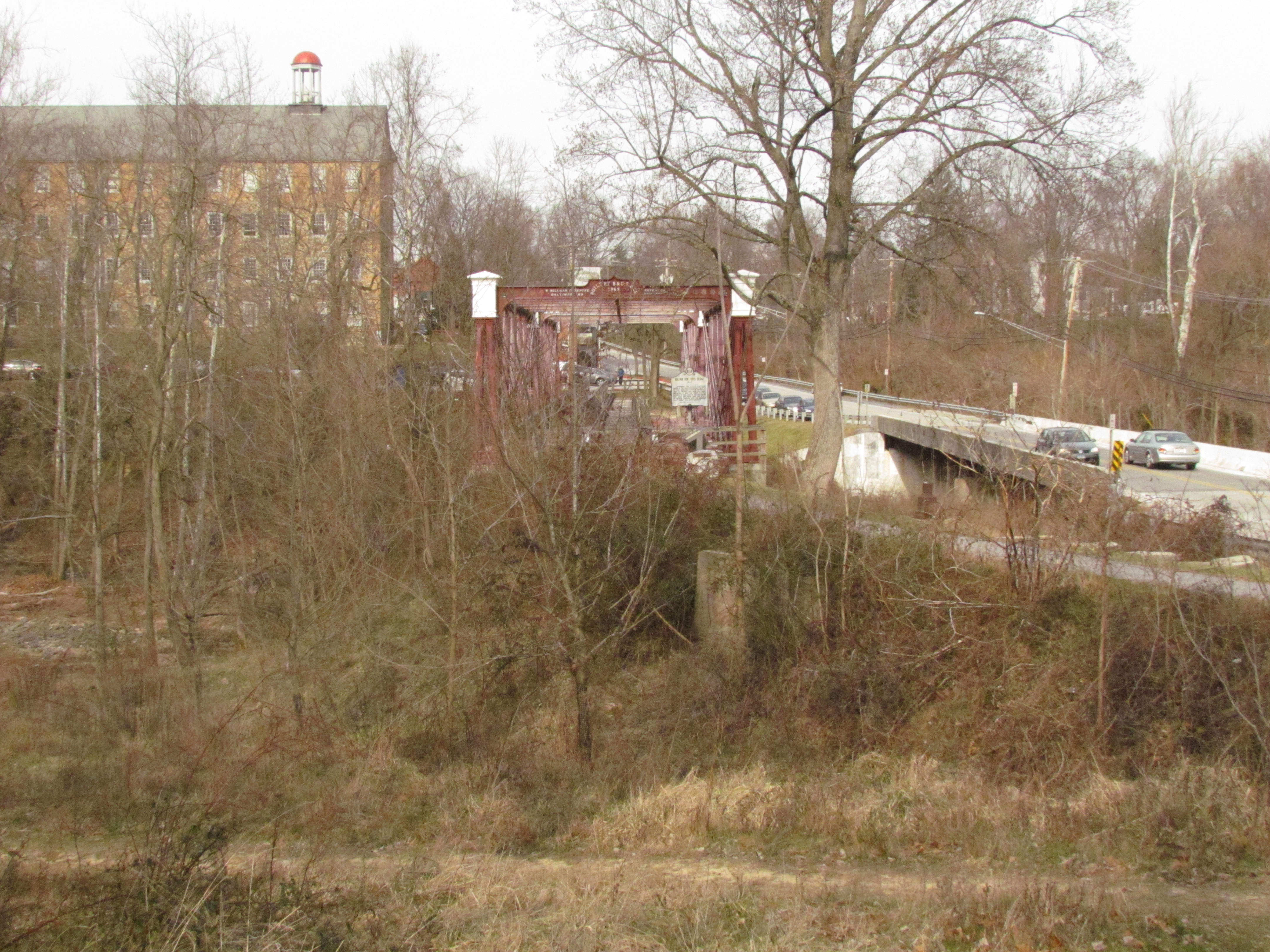

Here in Savage MD is probably the only surviving example of a Bollman Truss type bridge.  During the 1800's, they were all over the place, and not all of them were located "on the railroad" -- for example, not too far from where I grew up in Ruxton, at the south end of Lake Roland, was a lighter weight version of the bridge to cross over the waters of Jones Falls, after it spilled over the dam.  Picture below.

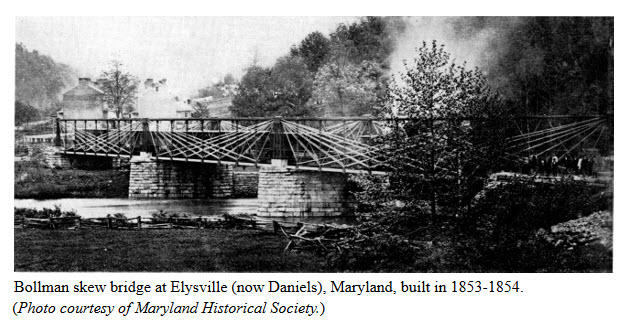

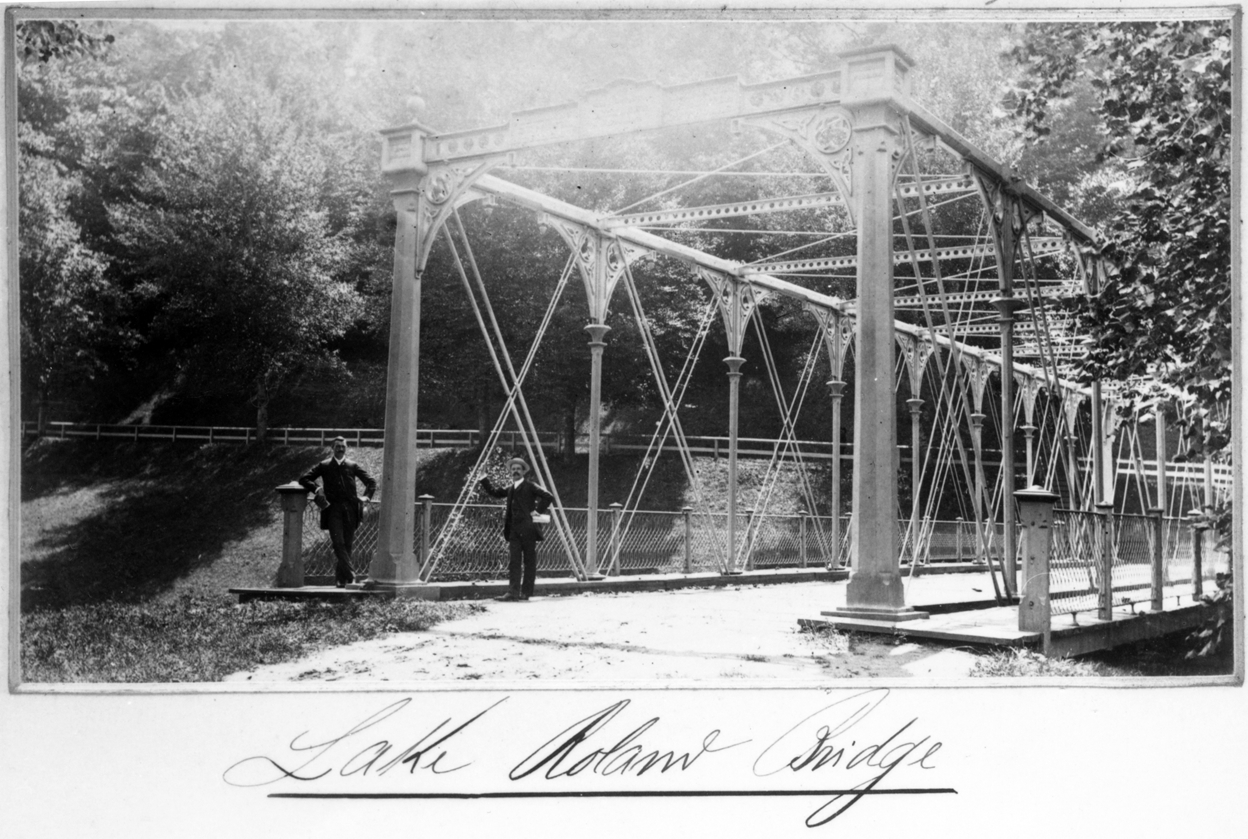

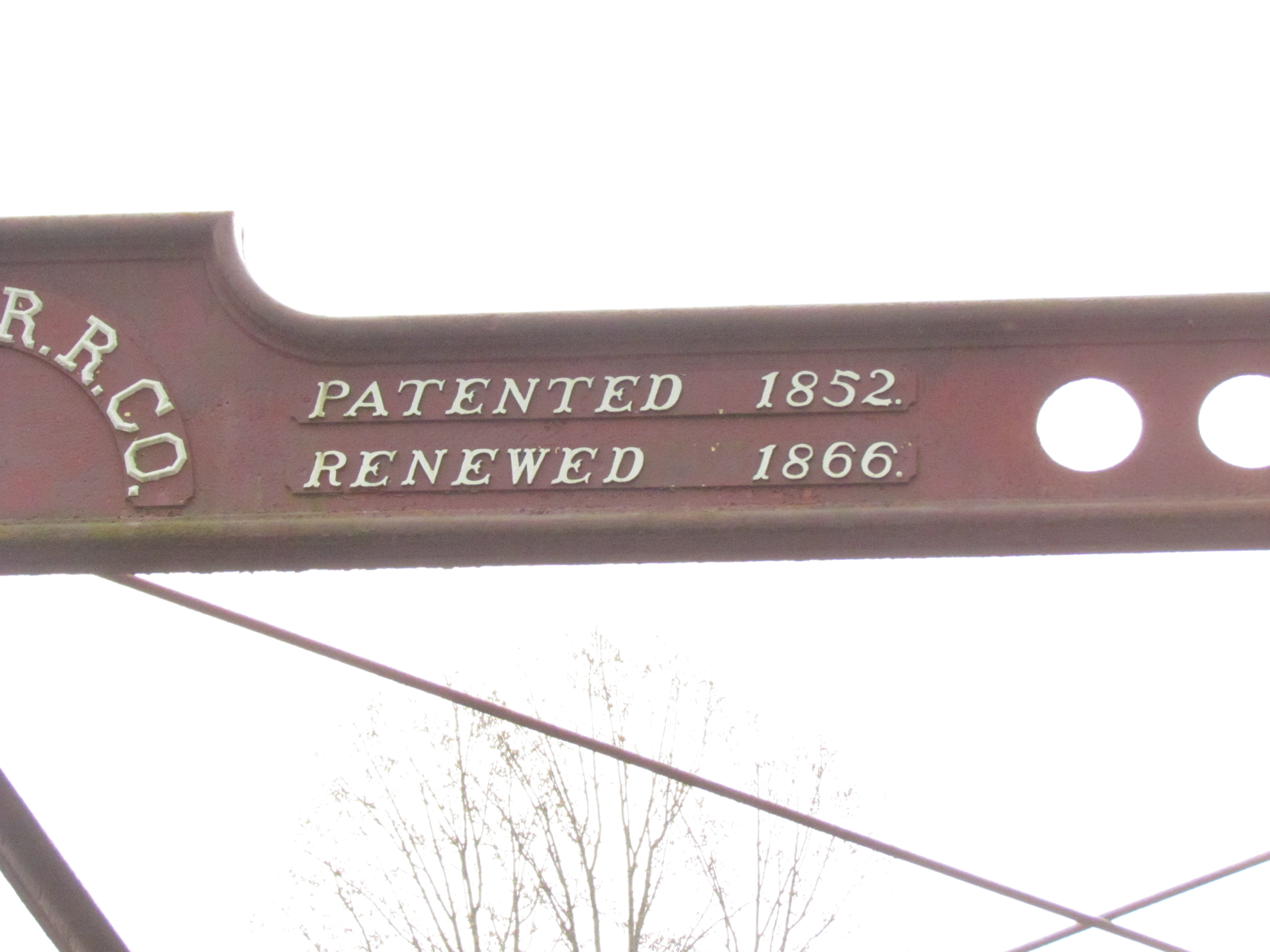

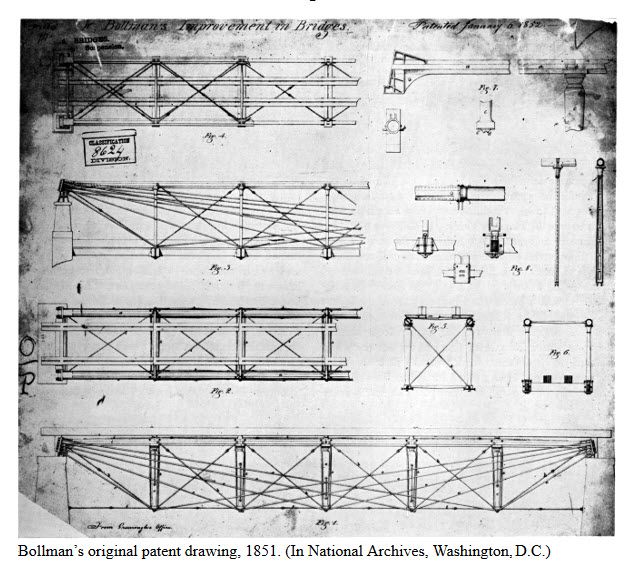

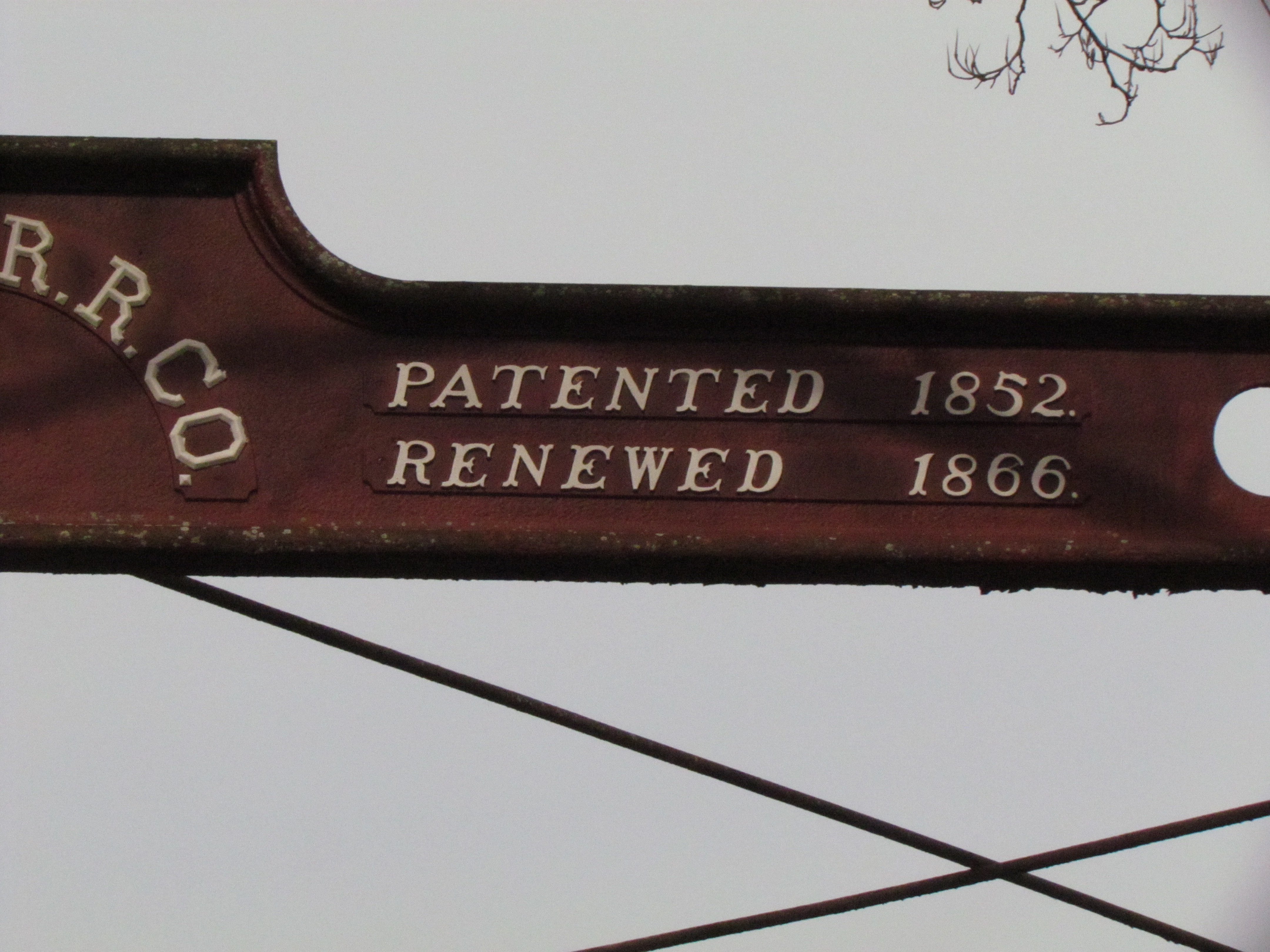

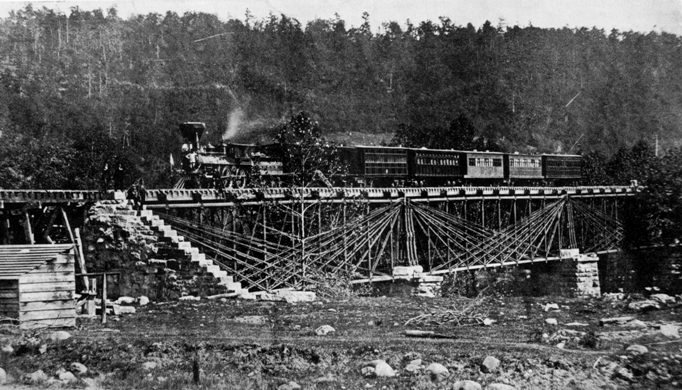

From the ASCE page: The design of the Bollman Truss Bridge-patented in 1852 and one of the first to use iron exclusively in all essential structural elements-was critical in the rapid expansion of American railroads in the 19th century.  Replacing wooden bridges, which  were cumbersome to build and vulnerable to decay, the Bollman Truss Bridge could be built relatively quickly and inexpensively, while providing the long-lasting qualities associated with metal.  This allowed new rail lines to be built over long distances in a short period of time.

Wendel Bollman, the design's creator, was a self-educated engineer who apprenticed as a carpenter.  He adapted the technique of "trussing" from the practice of strengthening  wooden beams using tension rods.  More than 100 Bollman Truss bridges were built between 1850 and 1875, the majority for the Baltimore & Ohio Railroad.  The only example remaining-a double-span through truss extending 160 feet-was used on a spur across the Little Patuxent River at Savage, Maryland.  It was restored in 1968 and is now part of the Historic Savage Mill Marketplace.

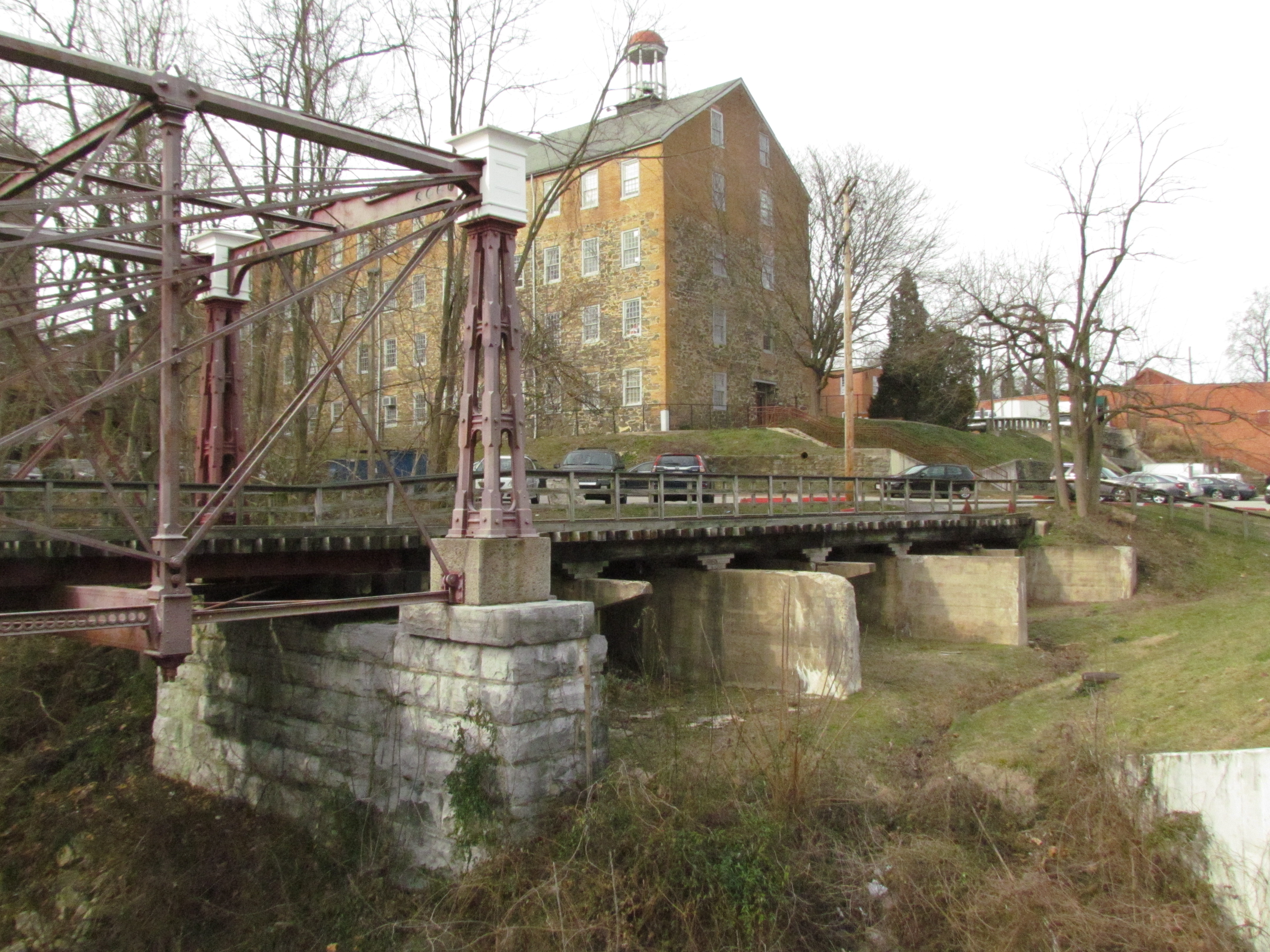

Around 2000, or so, the county did an excellent job restoring the bridge - including new planking so you can walk across it.  It sits adjacent to the Savage Mill, an eclectic collection of shops.  More info on the bridge can be found here: http://en.wikipedia.org/wiki/Bollman_Truss_Railroad_Bridge.

The bridge was built for an unknown location on the main line of the Baltimore and Ohio Railroad in 1852, and was moved to its present location, spanning the Little Patuxent River on the spur to the Savage Mill, in 1887.  This spur line dates to around 1840 and originally crossed the river on a stone arch bridge; however, due to alterations to the mill in the 1880s and topographical restrictions, a replacement bridge was needed.  The bridge remained in service until the mill closed in 1947.

Facts (From bridgehunter.com (slightly edited))

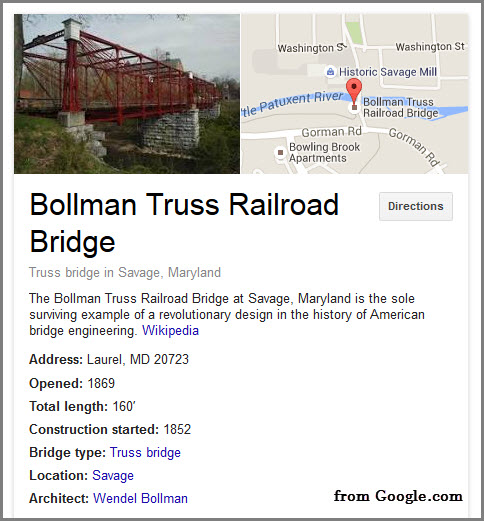

Overview
    Bollman through truss bridge over Little Patuxent River in Savage, near the intersection of Goman Road and Foundry Street
Location
    Savage, Howard County, Maryland
Status
    Open to pedestrians
History

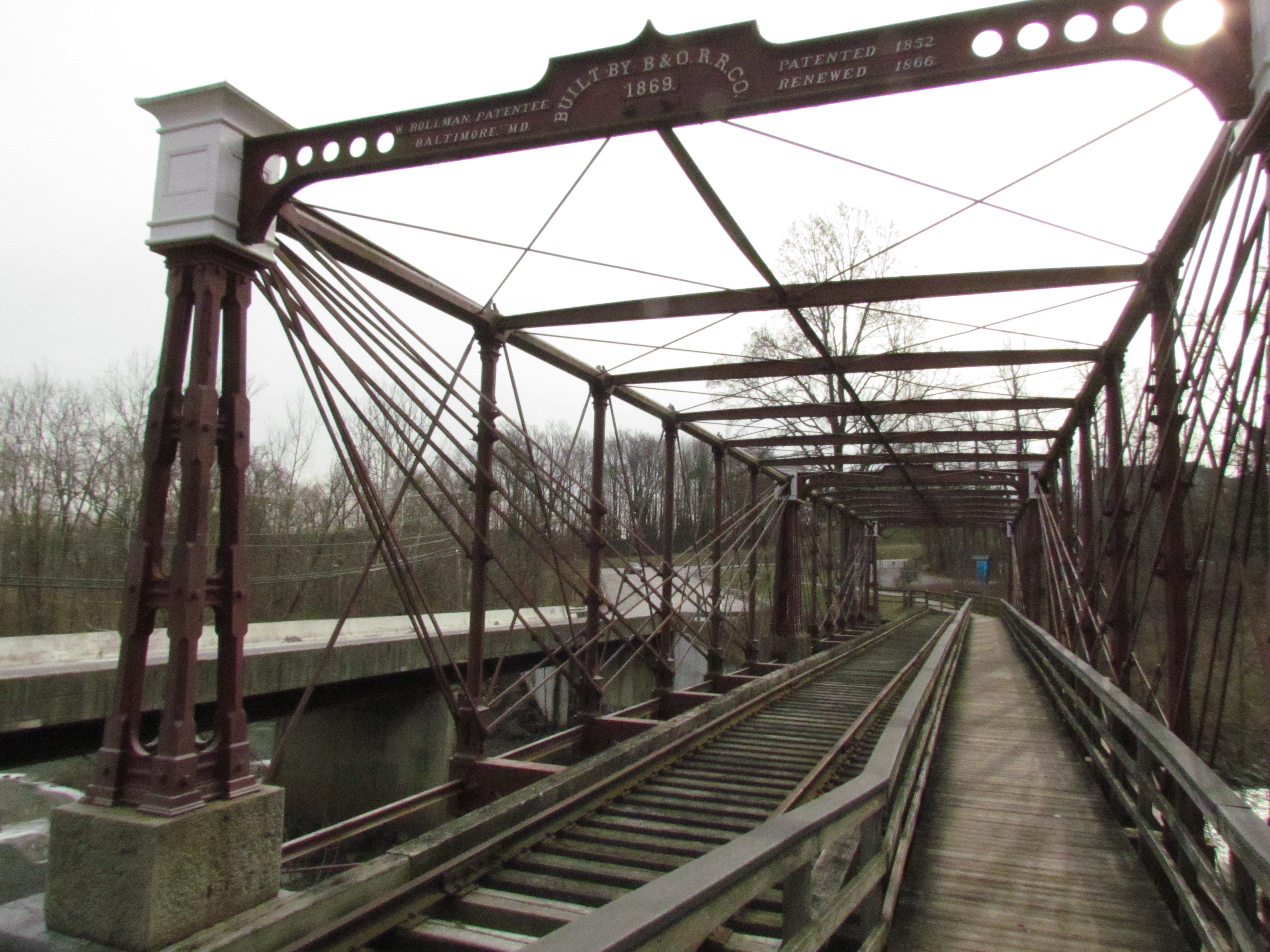

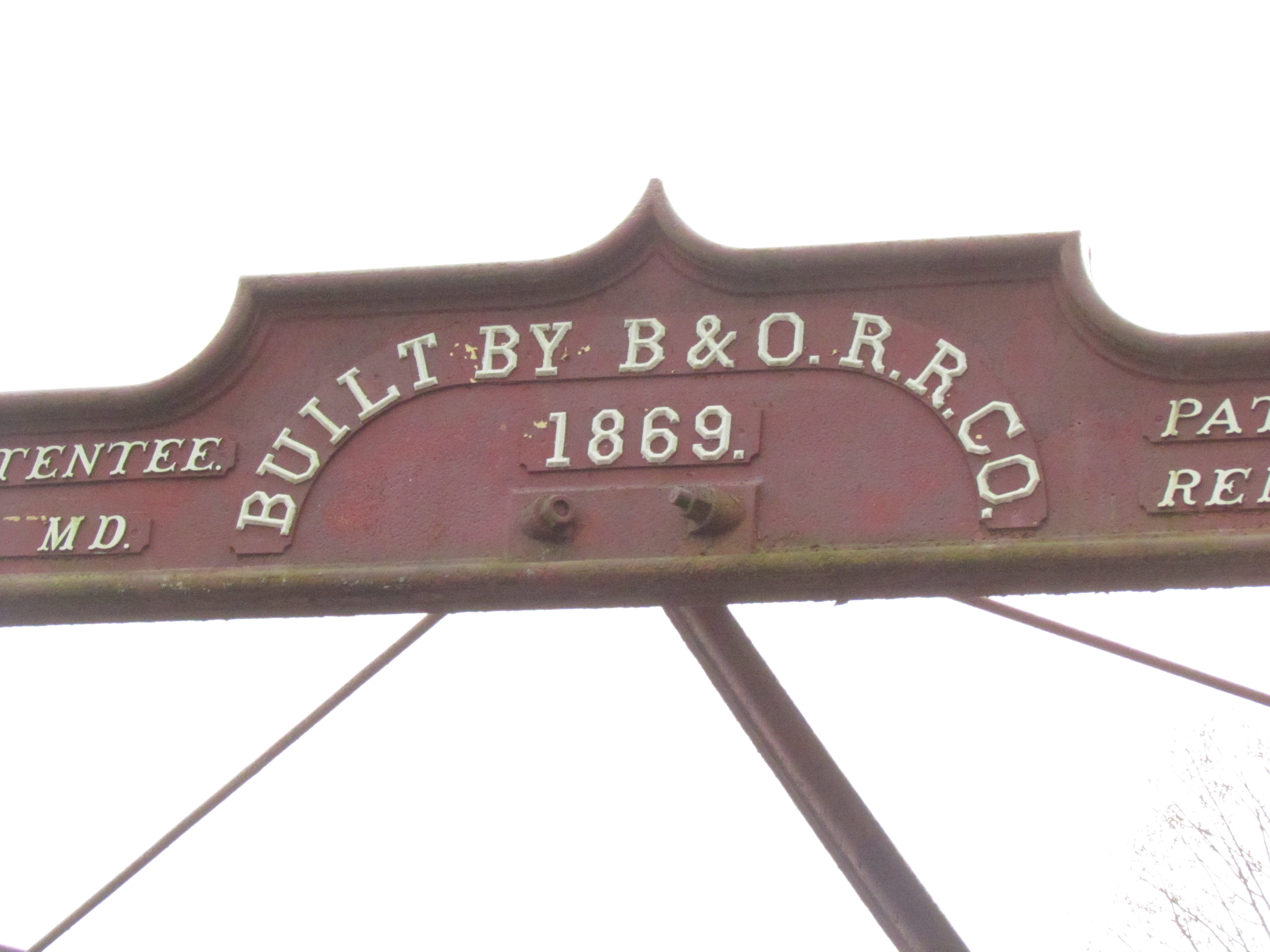

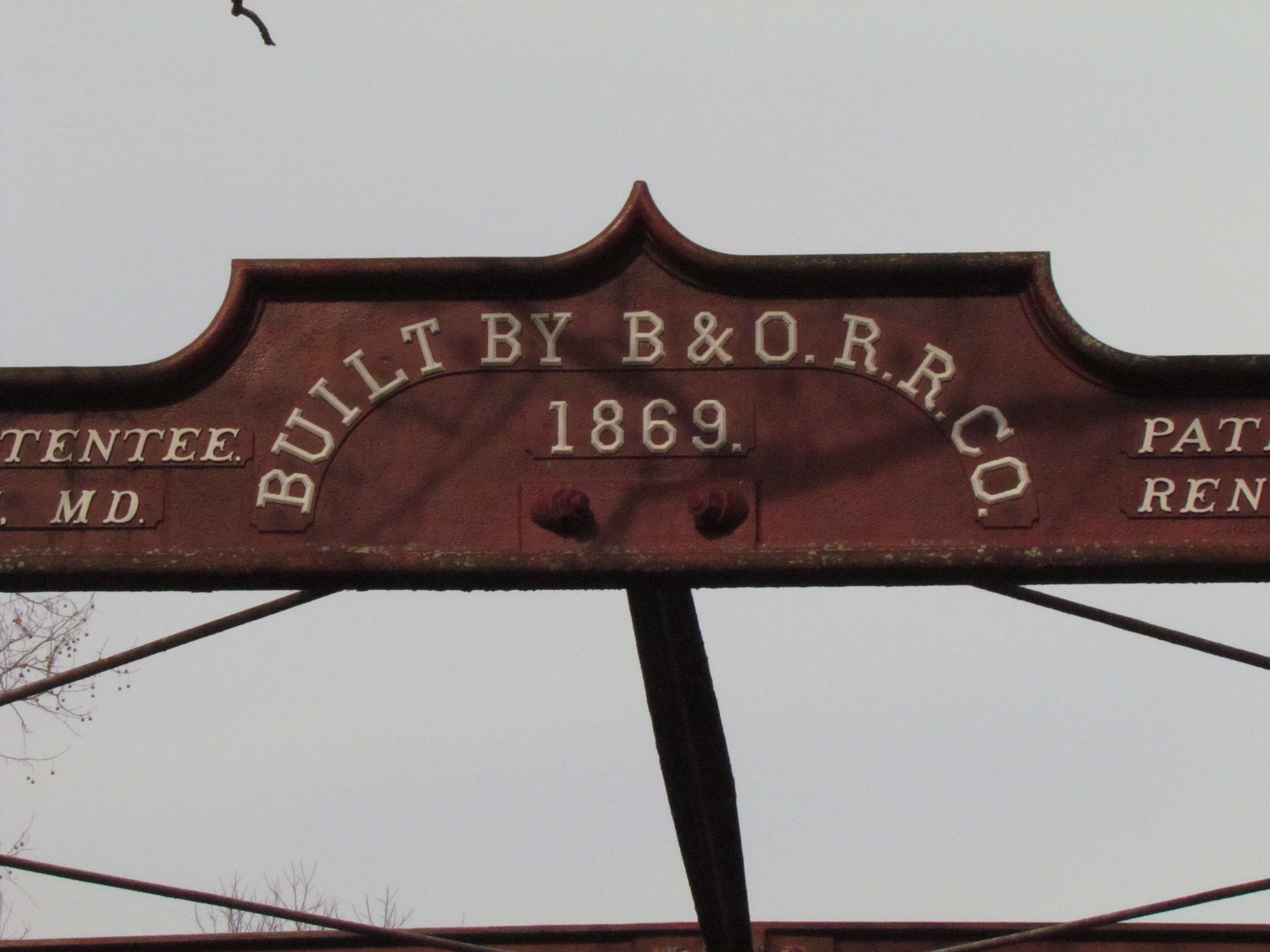

    Built for the main line of the B&O Railroad in 1869. Moved to present location around 1887. Remained in service until 1947. Restored in 1968 (perhaps 1983).
Builder
    Wendel Bollman of Baltimore, Maryland
Railroad/Owner
    Originally: the B&O Railroad
    Now: Howard County rail-trail
Design
    Bollman through truss
Dimensions
    Total length: 160.0 ft.
    Deck width: 25.5 ft.
Recognition
    Posted to the National Register of Historic Places on October 18, 1972
Also called
    Bollman Truss Railroad Bridge
Approximate latitude & longitude:
    +39.13481, -76.82503
    39°08'05" N, 76°49'30" W  (degrees°minutes'seconds")
Approximate UTM coordinates
    18/342262/4333322 (zone/easting/northing)
Quadrangle map:
    Savage (Laurel quadrangle if you go back to the early 1900's)
Inventory numbers
    NRHP 72000582 (National Register of Historic Places reference number)
    BH 36379 (Bridgehunter.com ID)

Websites and other additional information sources of interest for the bridge:
http://www.basiccarpentrytechniques.com/Technology%204/The%20Engineering%20Contributions%20of%20Wendel%20Bollman/The%20Engineering%20Contributions%20of%20Wendel%20Bollman.html
http://www.mdcoveredbridges.com/northbranchpot.html
https://en.wikipedia.org/wiki/Bollman_Truss_Railroad_Bridge
http://www.howardcountymd.gov/bollmantrussbridge.htm
http://historicbridges.org/bridges/browser/?bridgebrowser=maryland/bollman/
http://mysite.du.edu/~jcalvert/tech/bolltrus.htm
http://www.sha.maryland.gov/Index.aspx?PageId=258
http://bridgehunter.com/md/howard/bollman/
http://www.asce.org/project/bollman-truss-bridge/

Aerial shots were taken from either Google Maps or www.bing.com/maps as noted.  Screen captures are made with Snagit, a Techsmith product... a great tool if you have never used it!

Getting Here

Using I-95 between the Baltimore and DC Beltways, take exit 38, RT 32, and go east.  Go one exit and get off at the next exit (exit 12), which is US Route 1, and go south on it till you reach Gorman Road.  There is a Wendy's and Exxon gas station on the corner (as of 2016).  Take a right, and the bridge will be on your right in about a quarter of a mile.

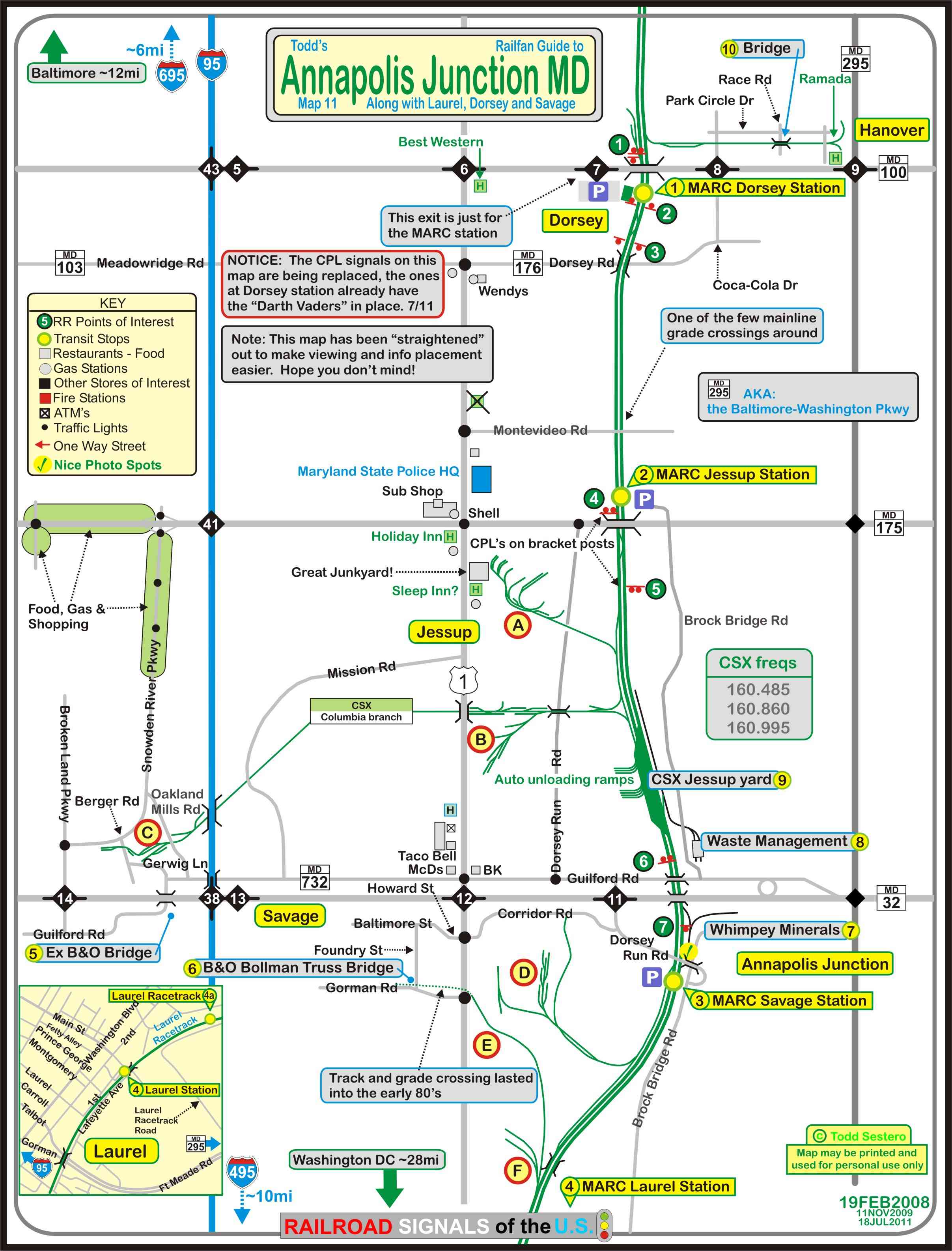

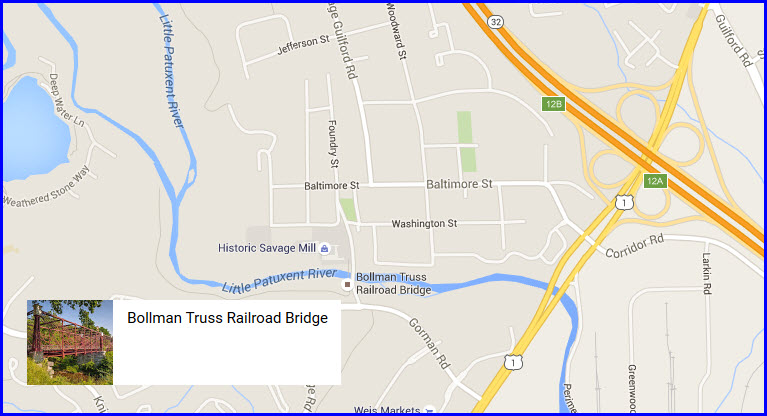

Map




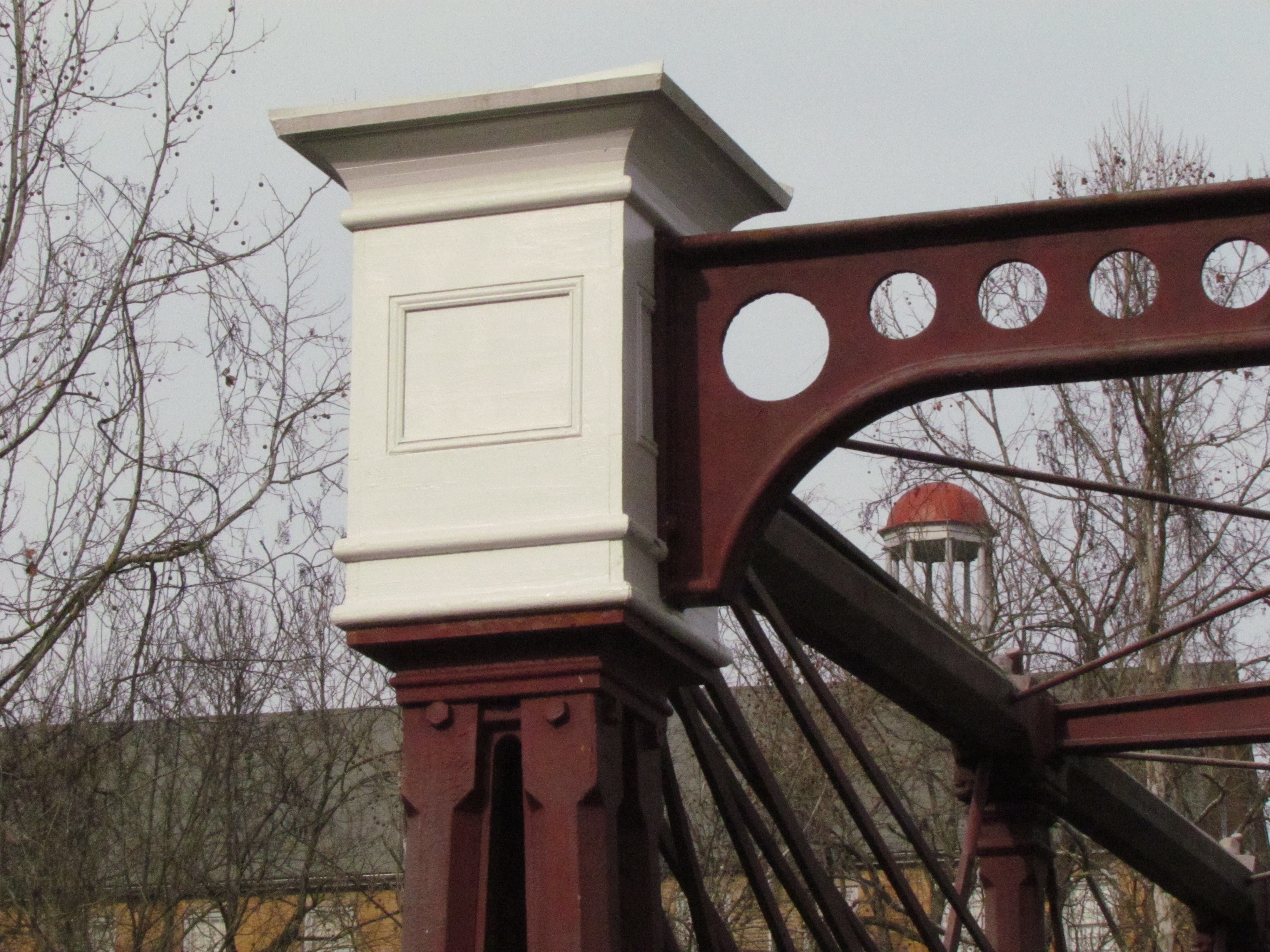

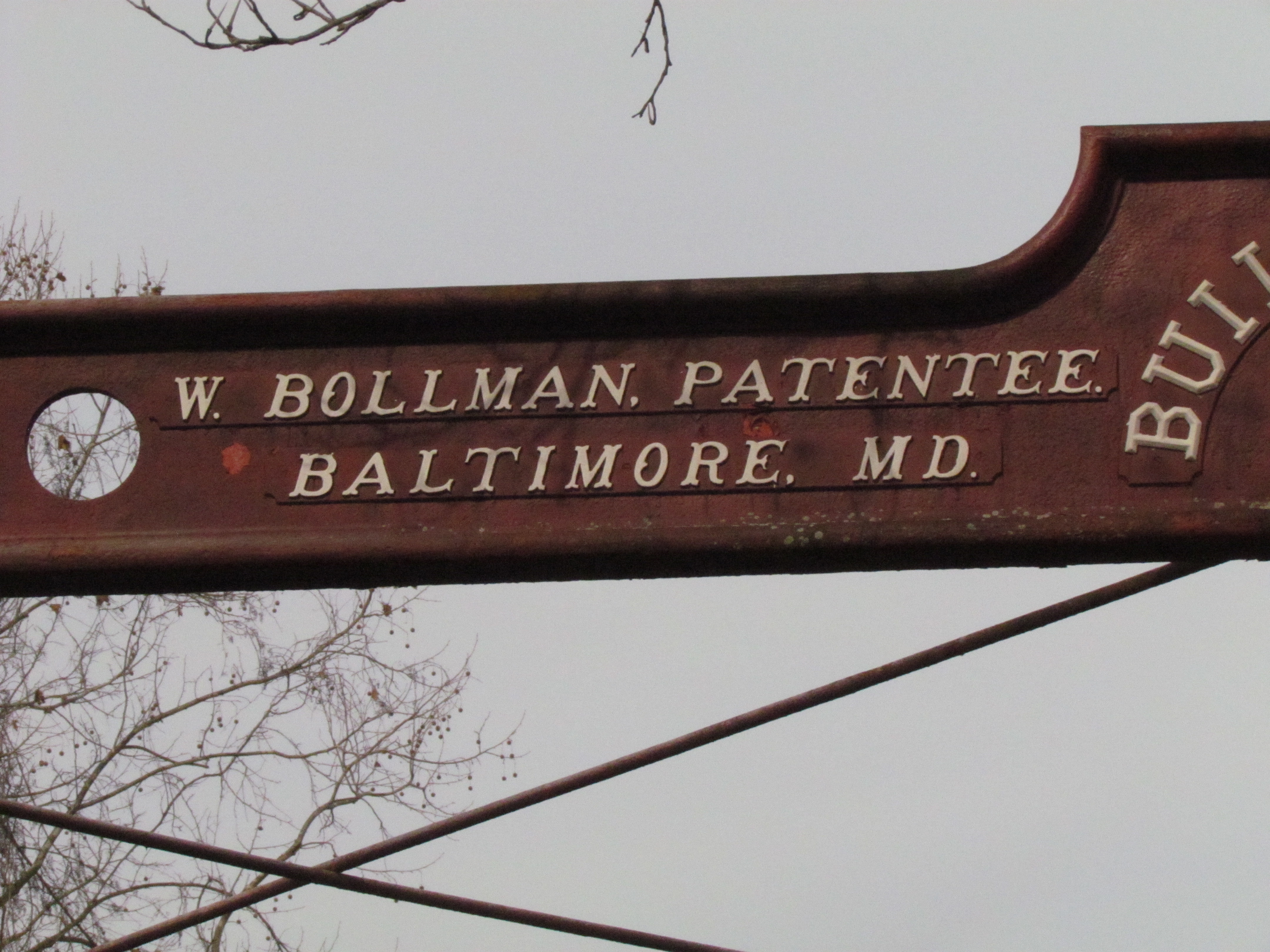

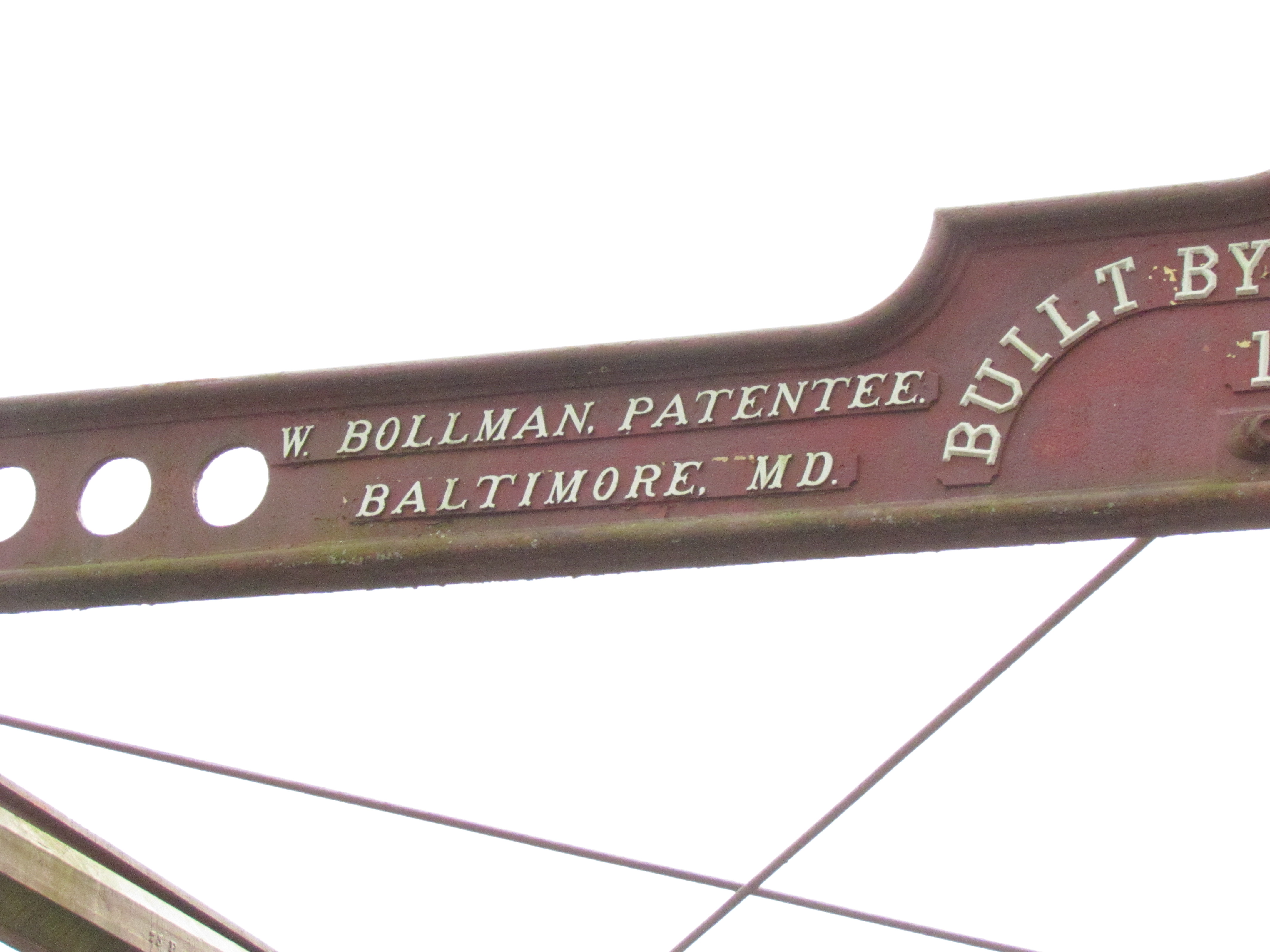

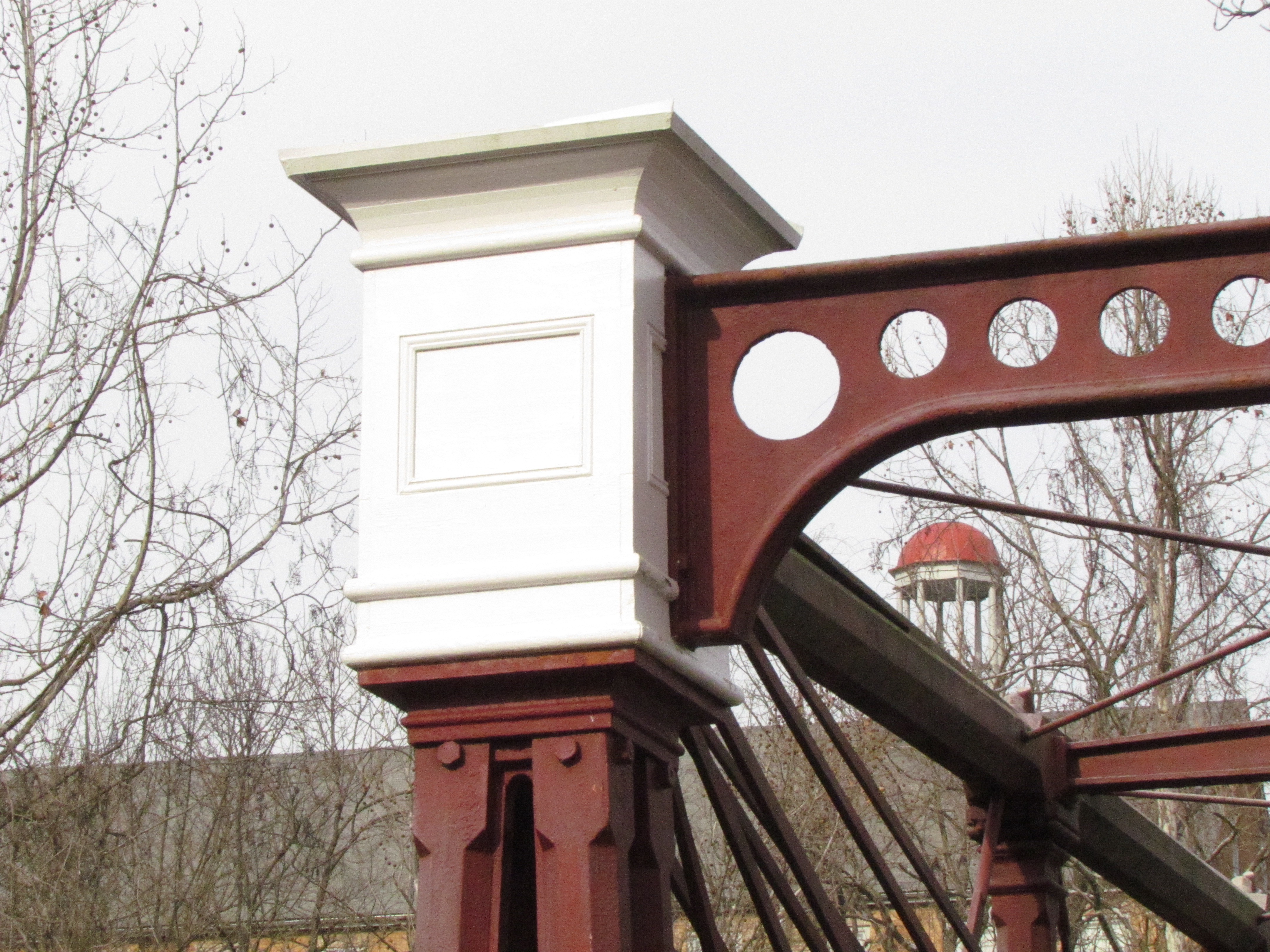

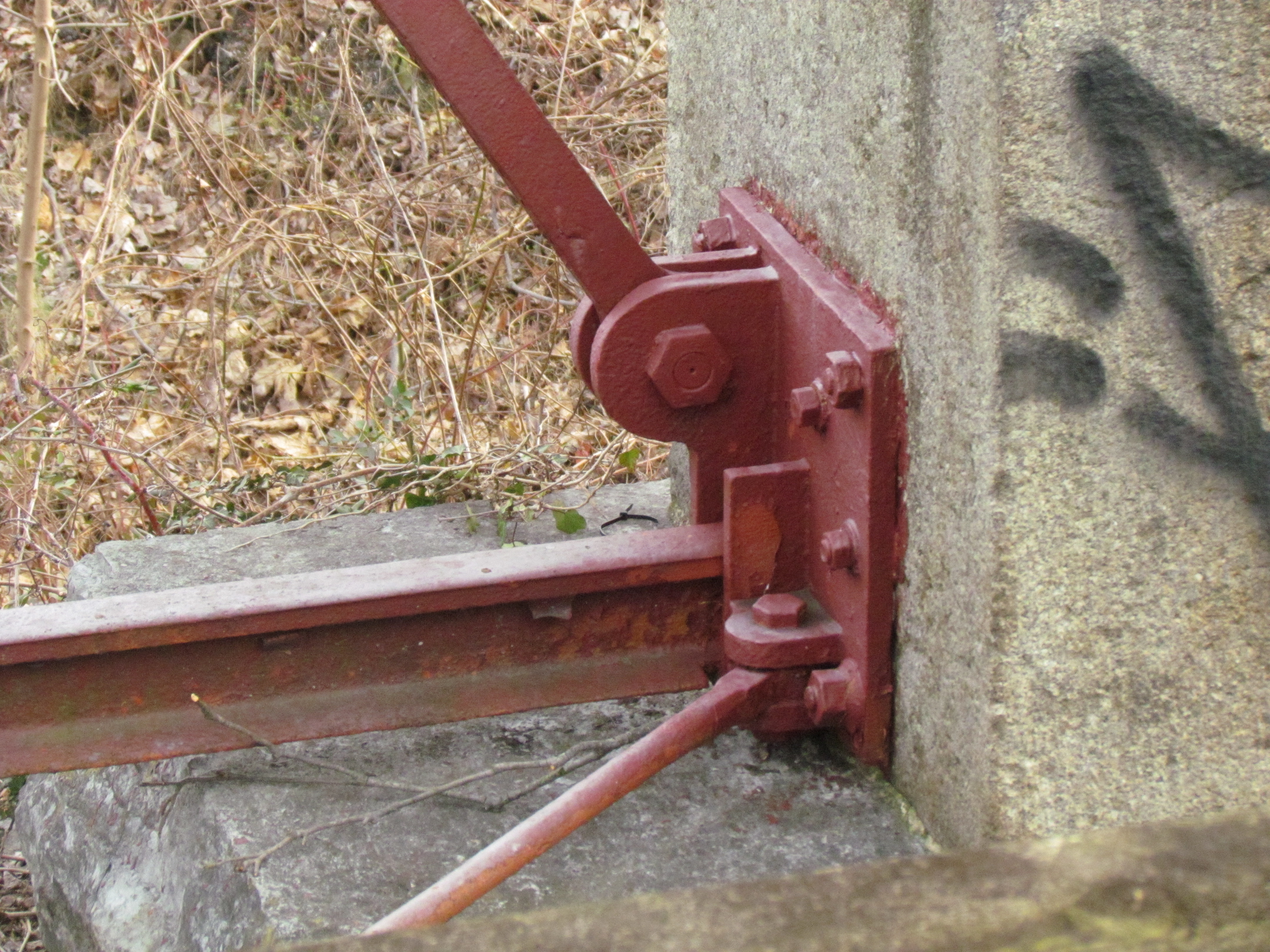

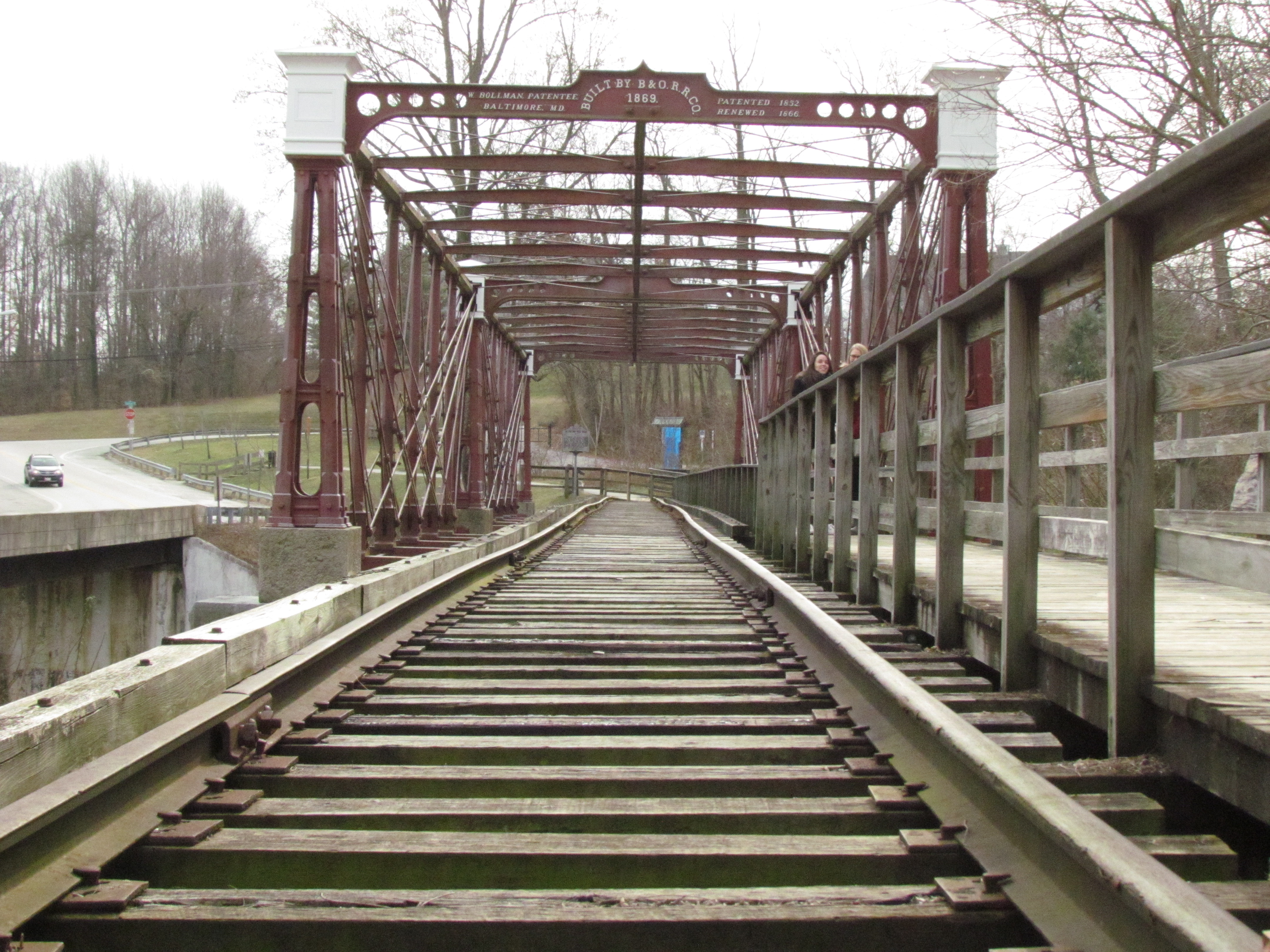

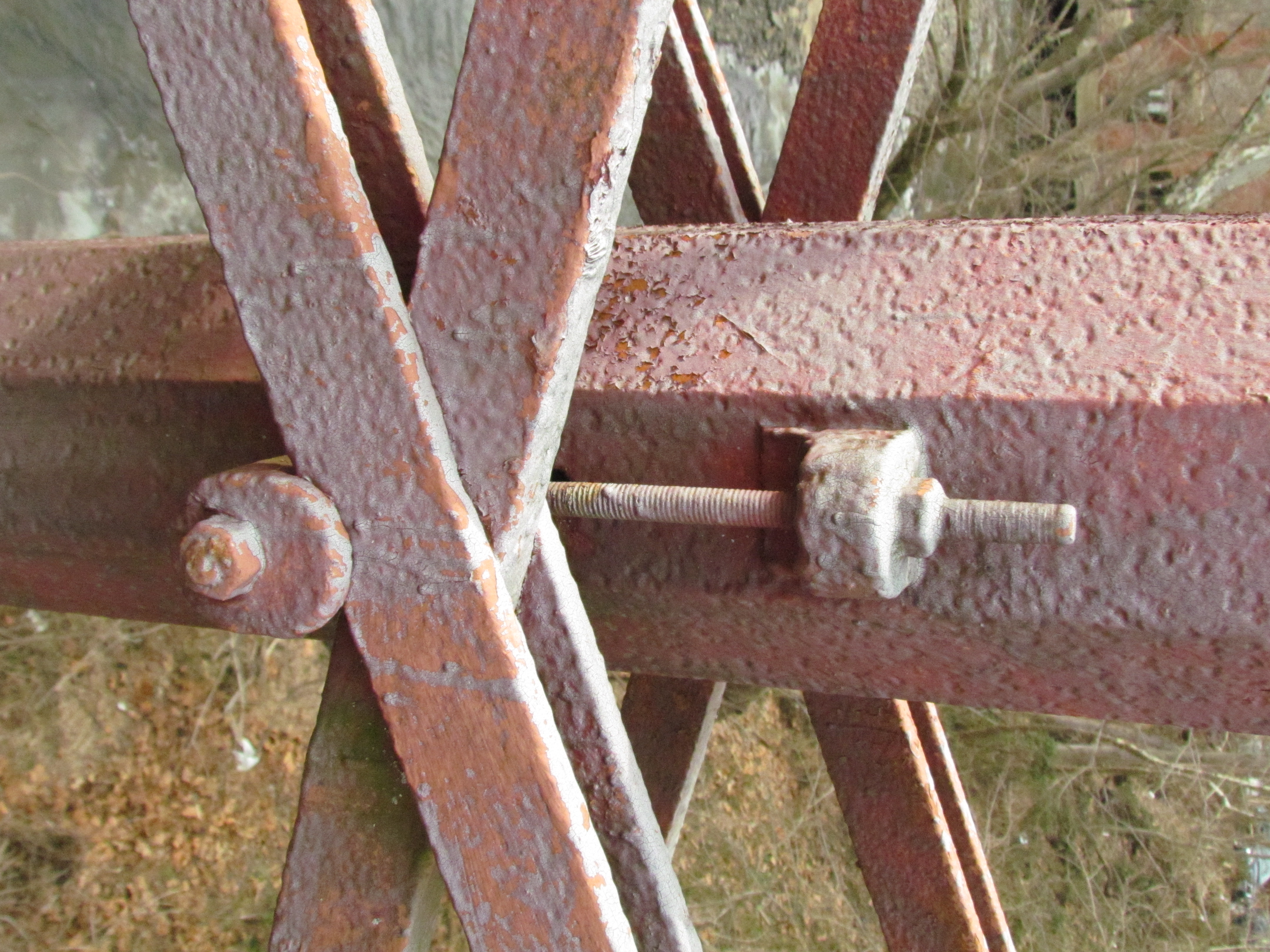

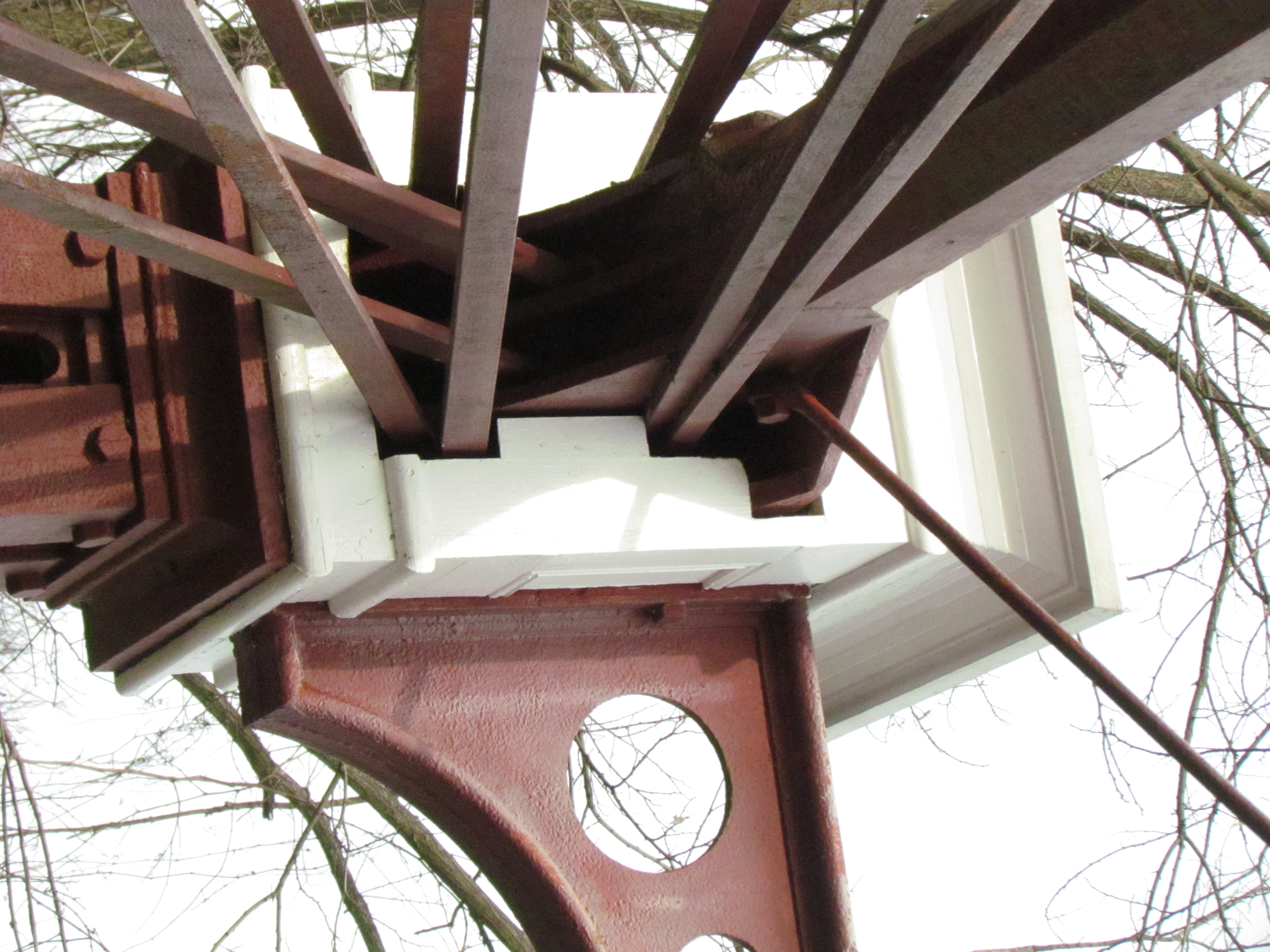

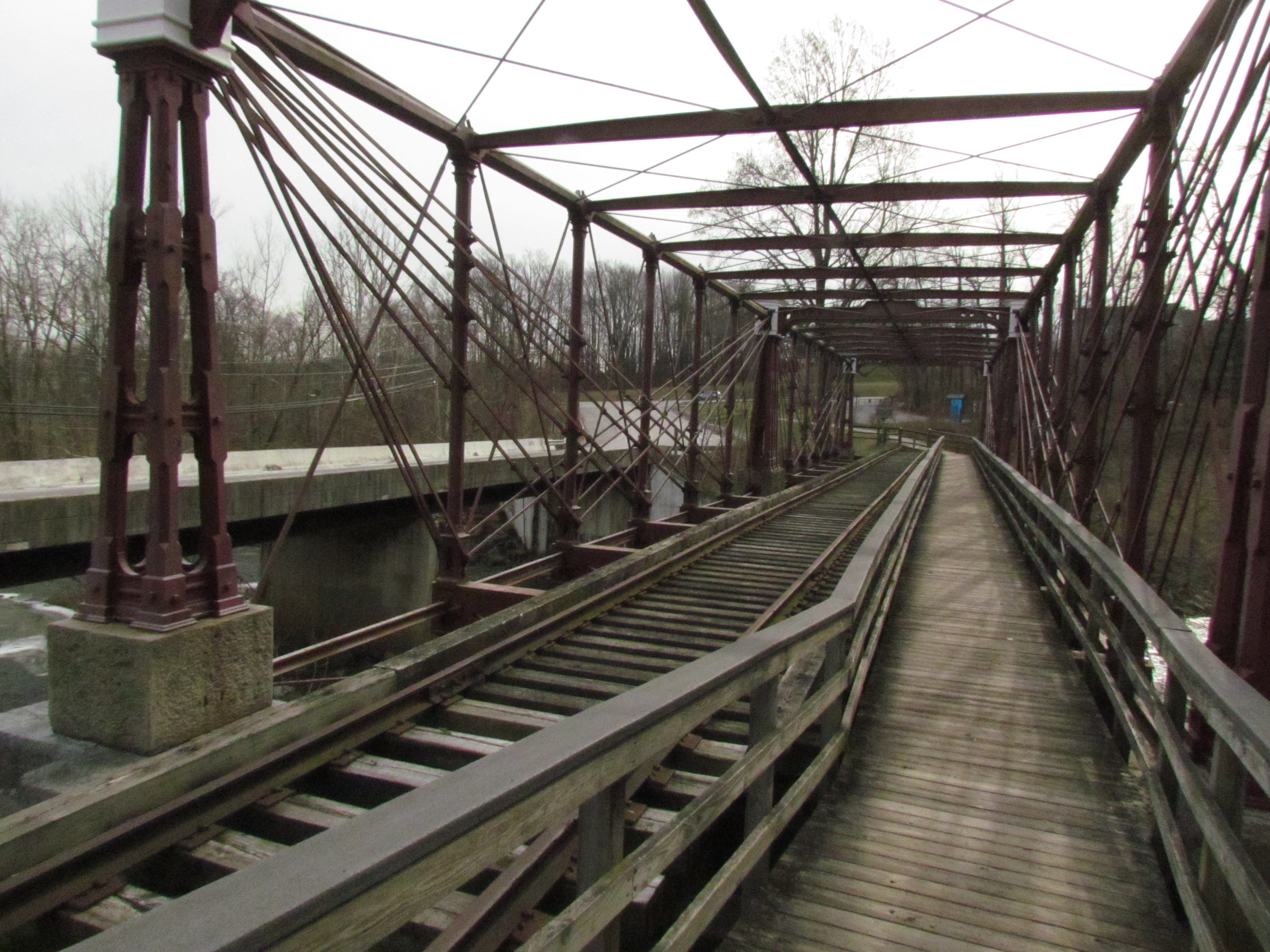

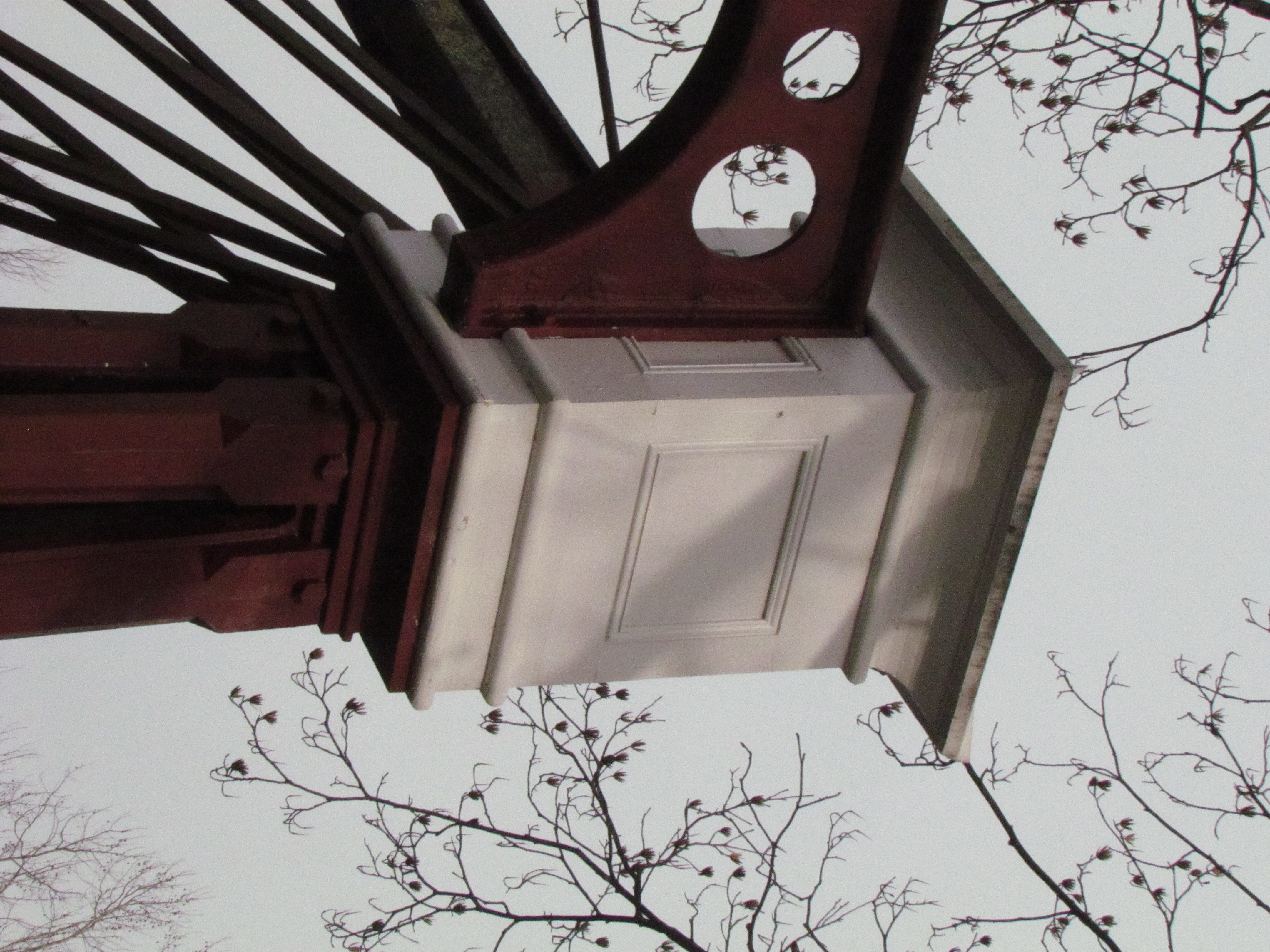

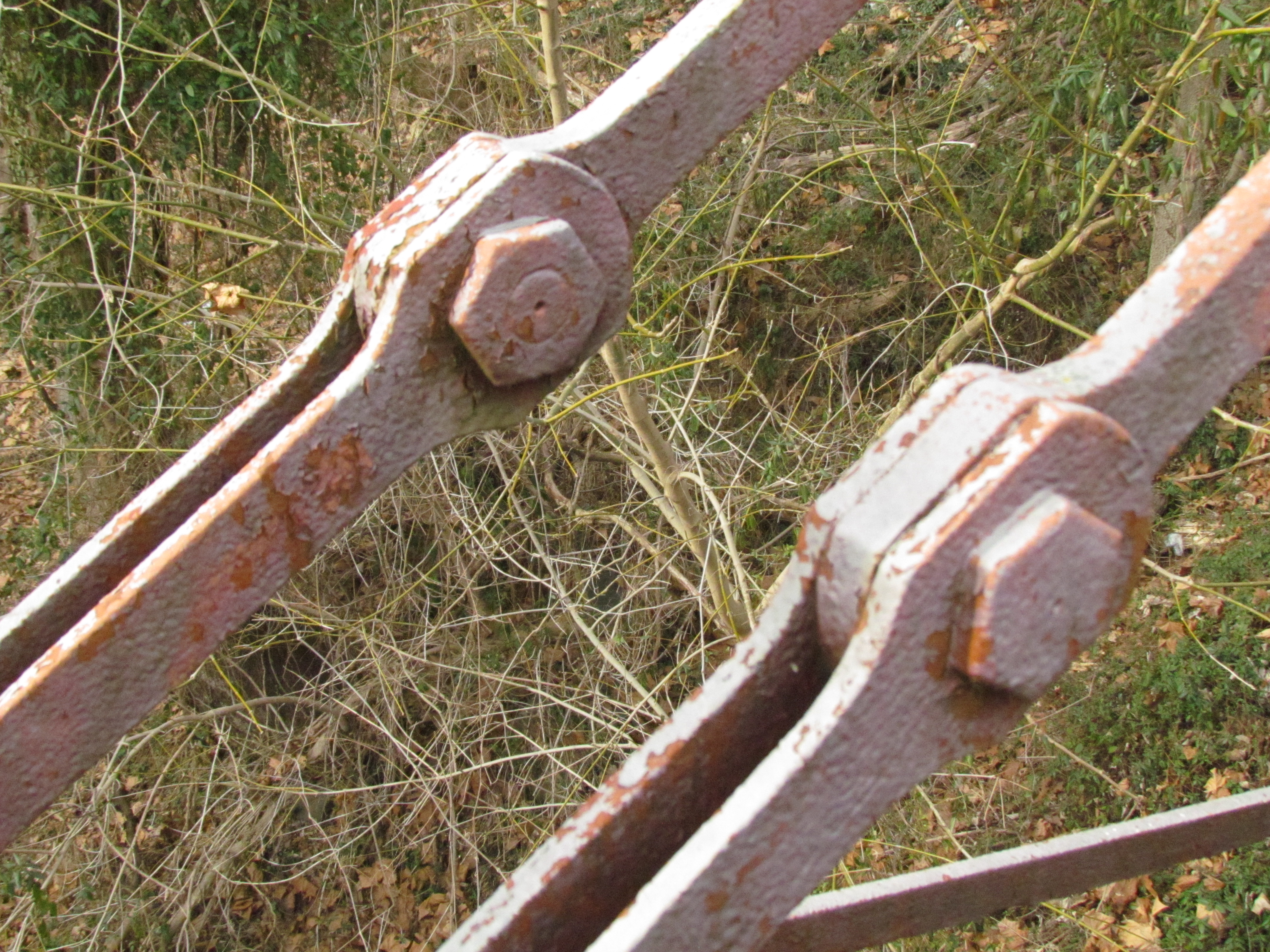

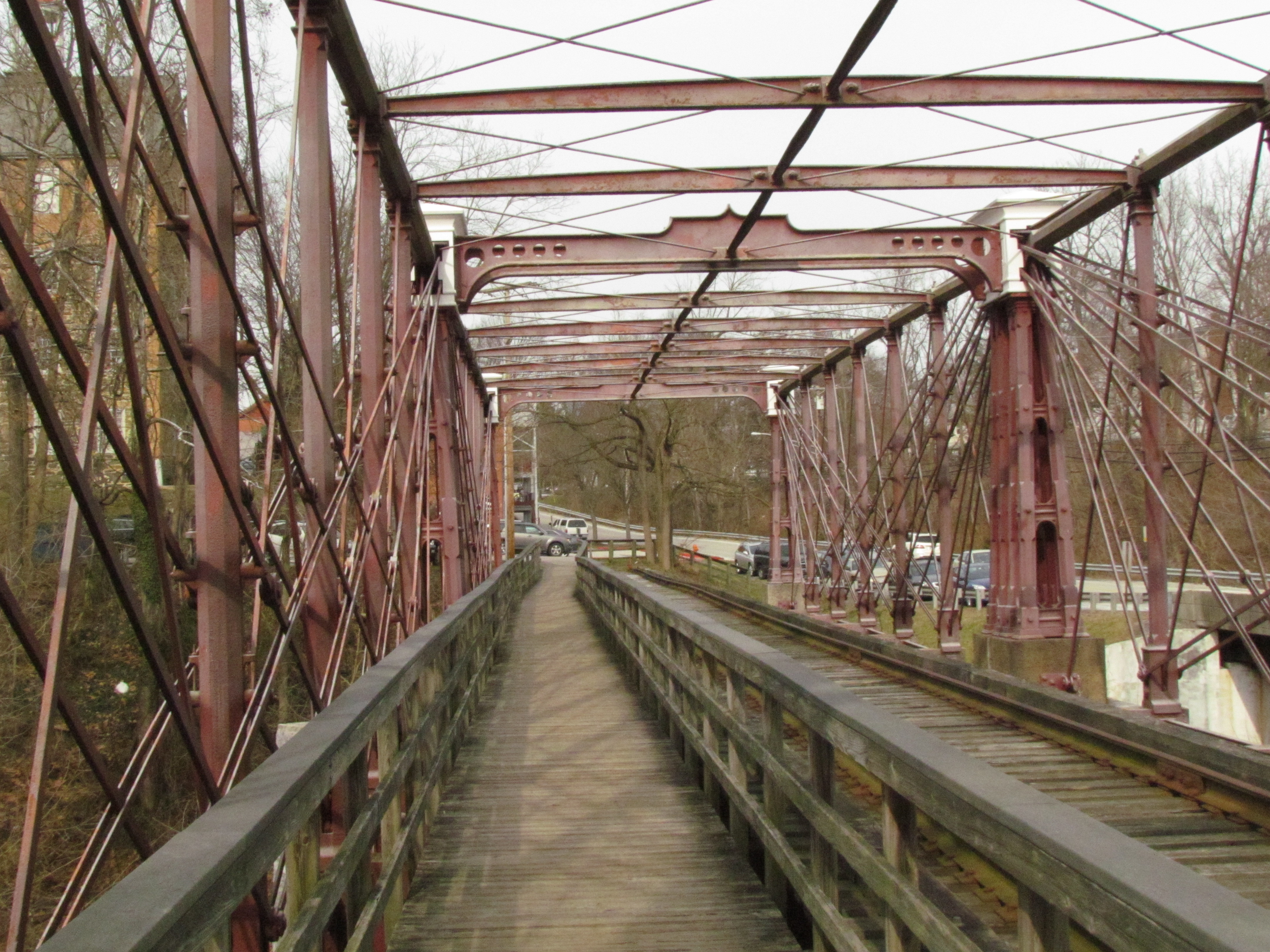

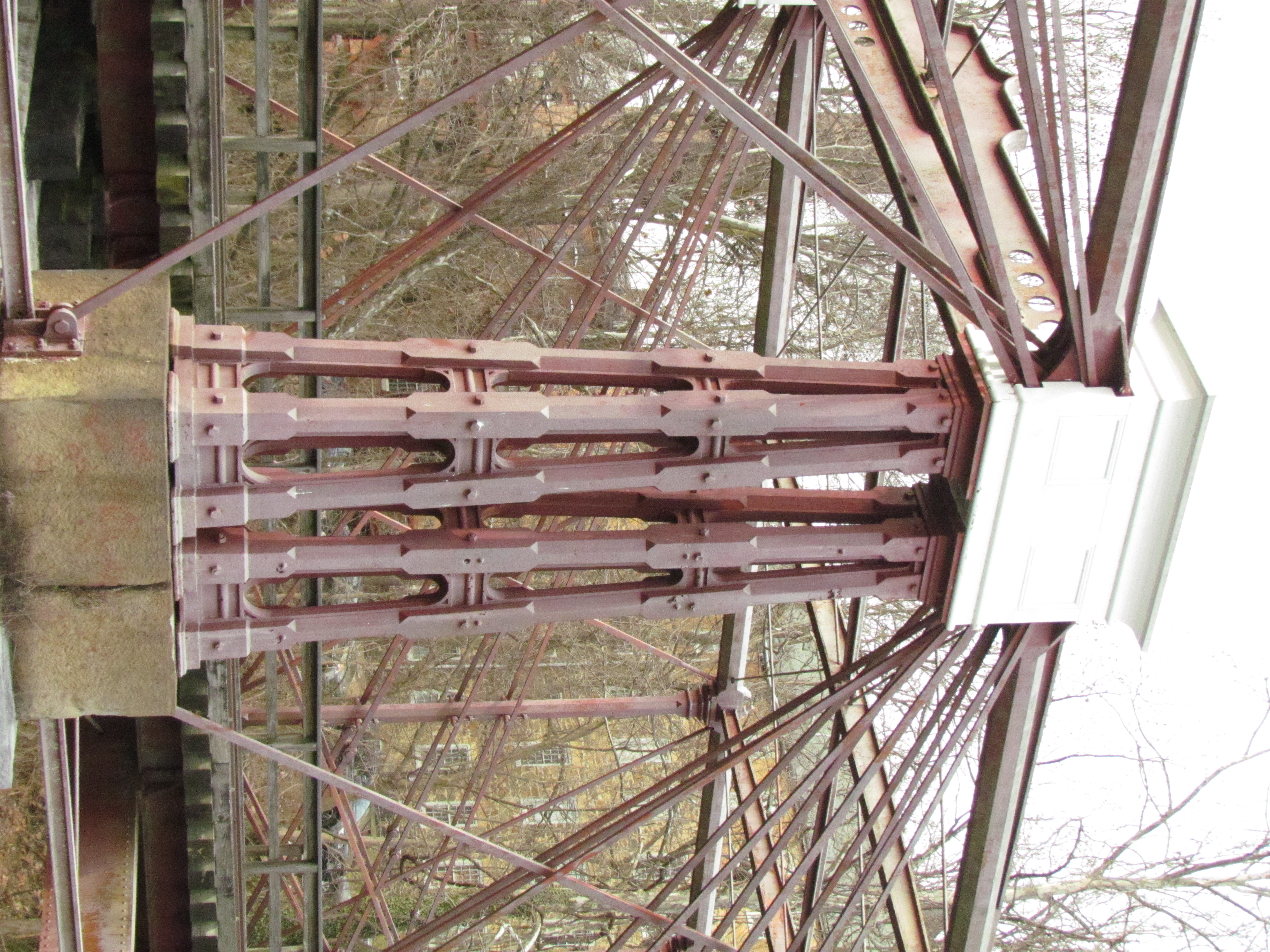

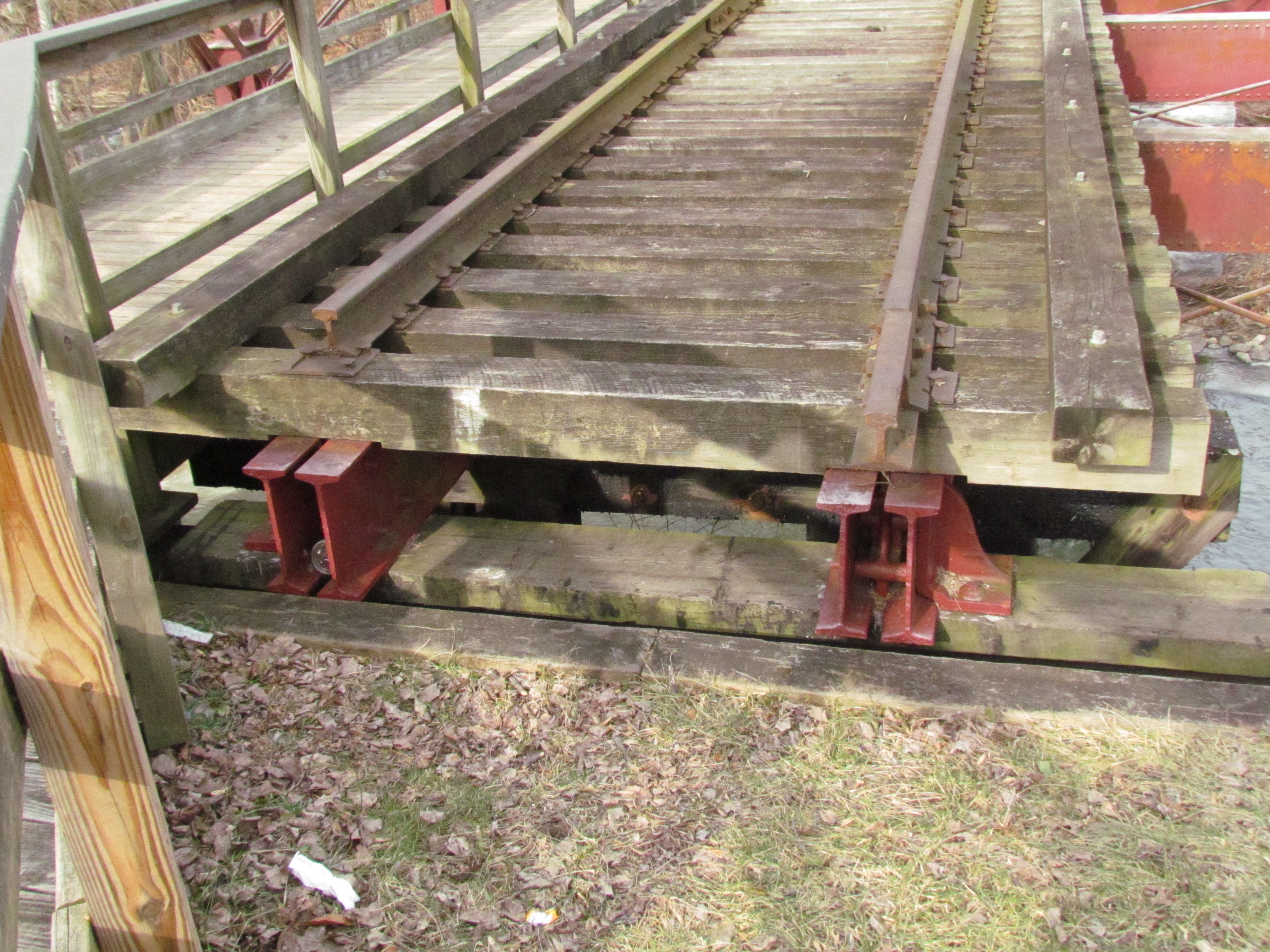

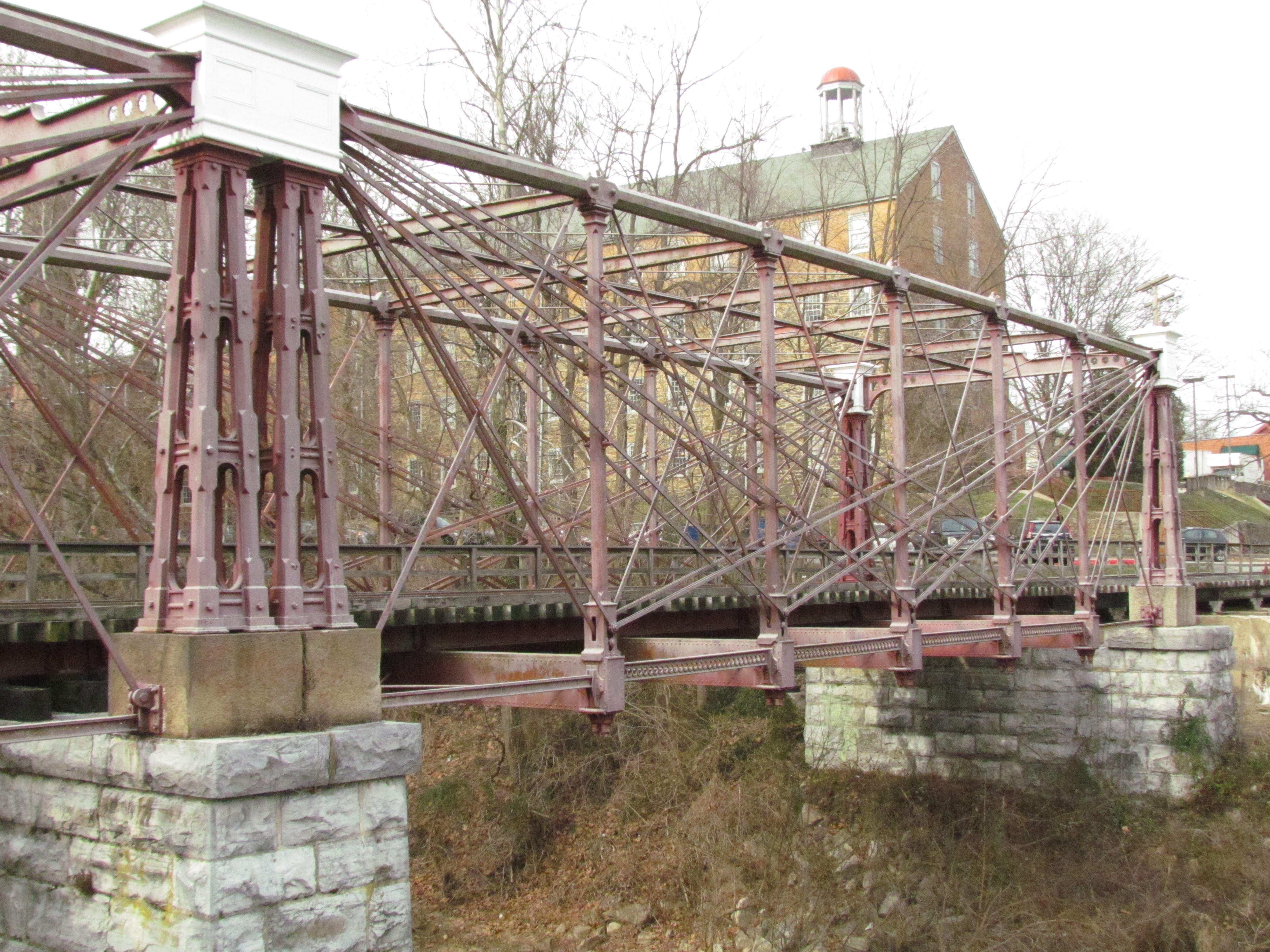

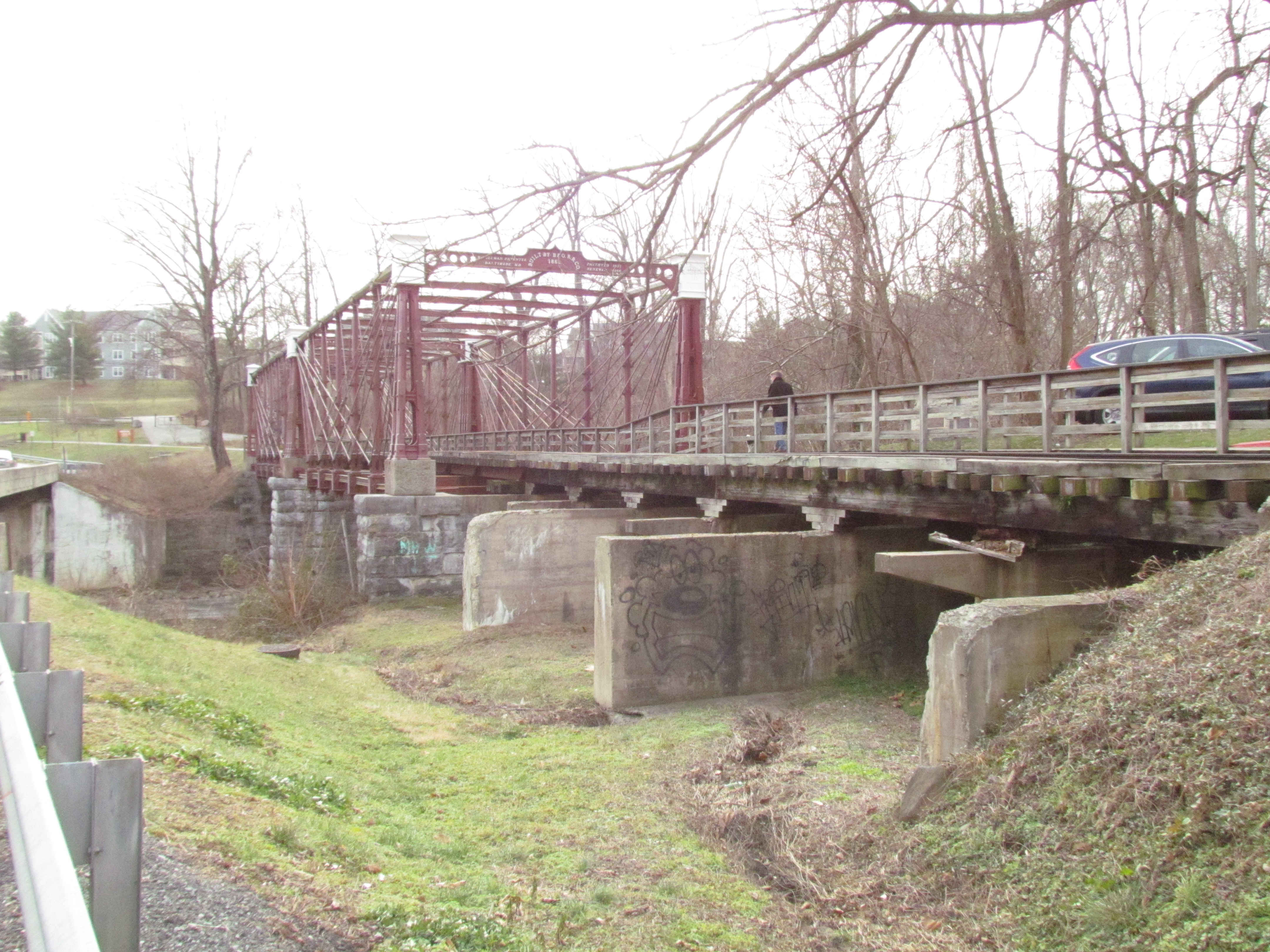

Pictures

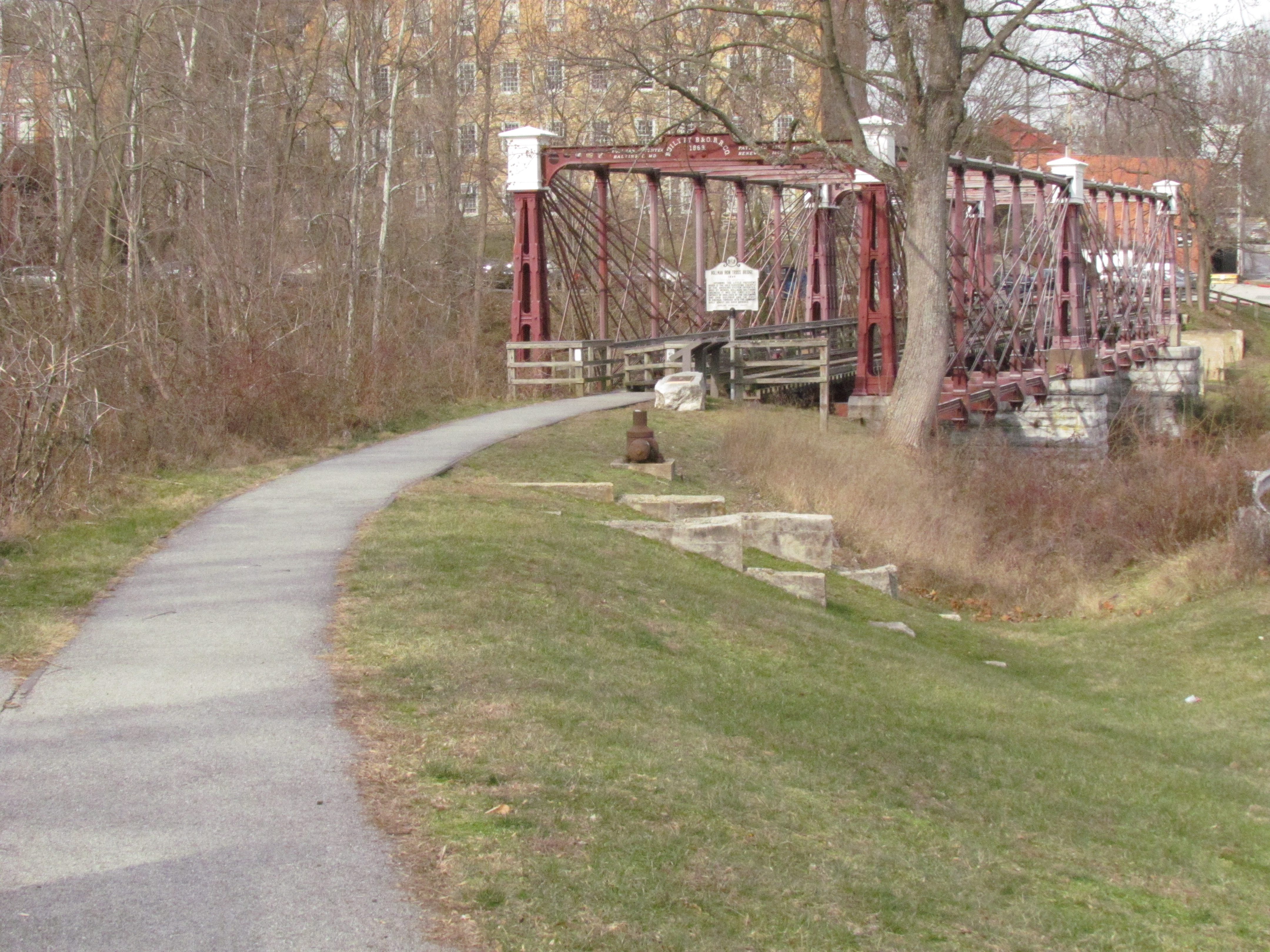

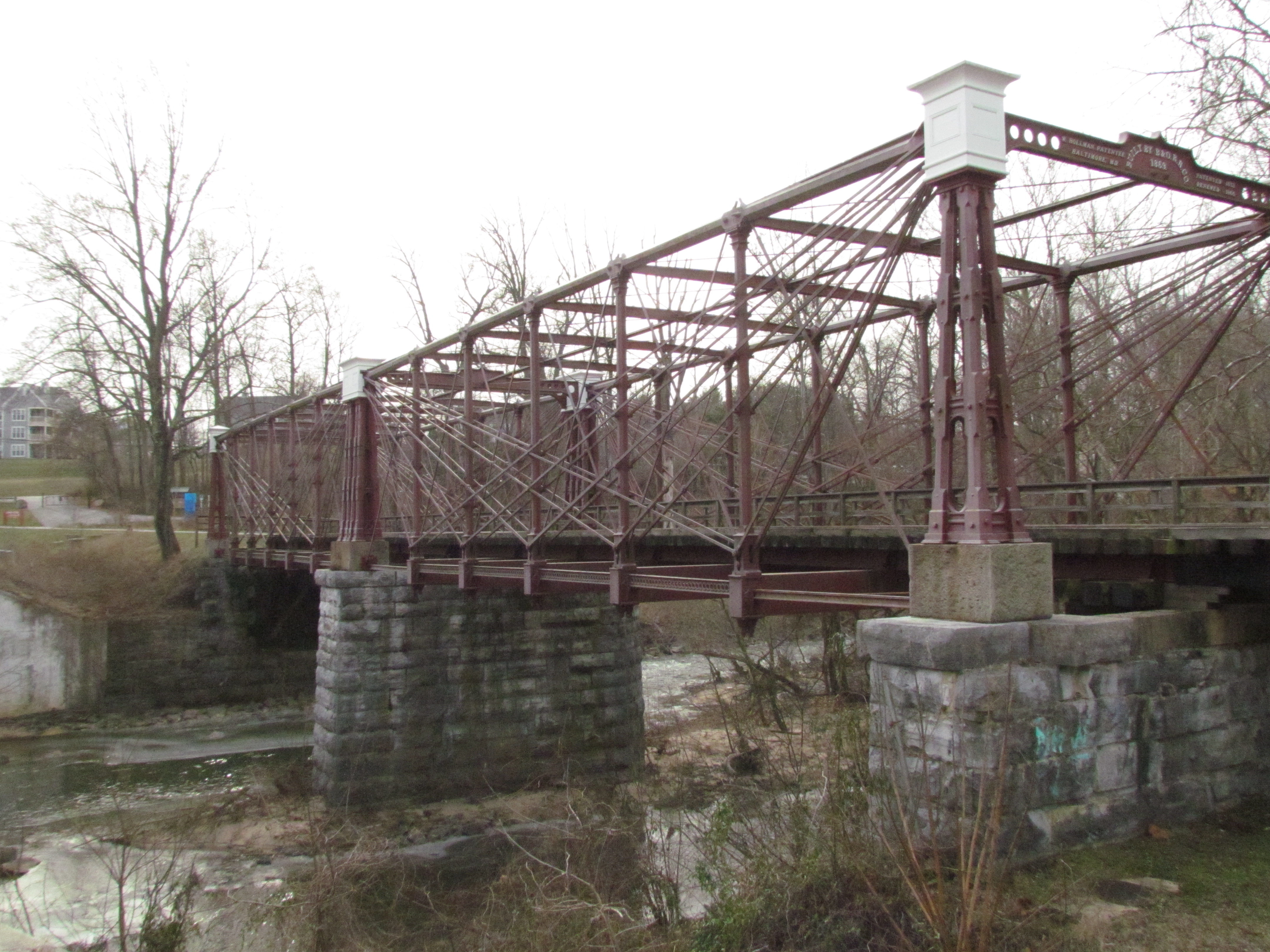

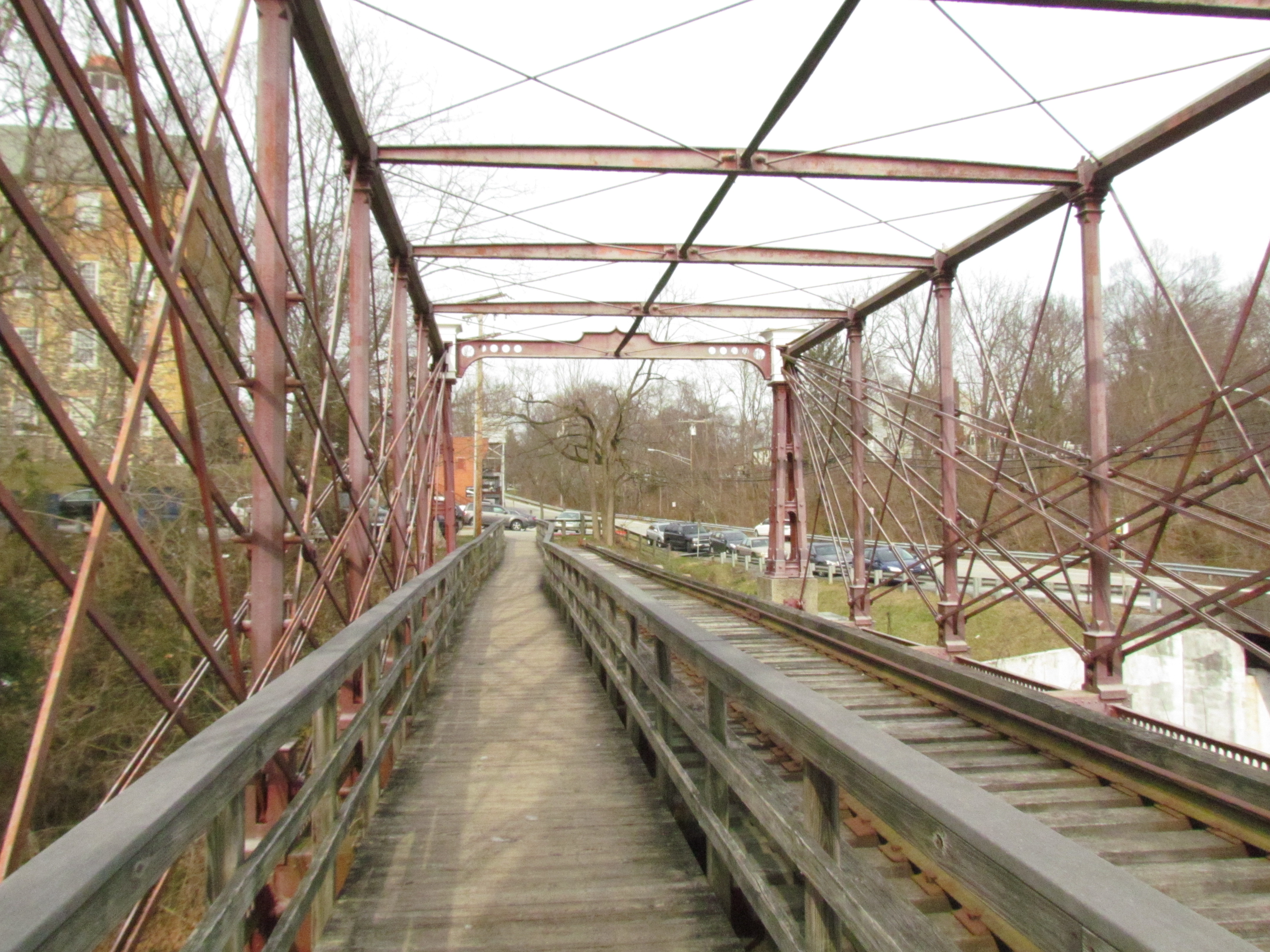

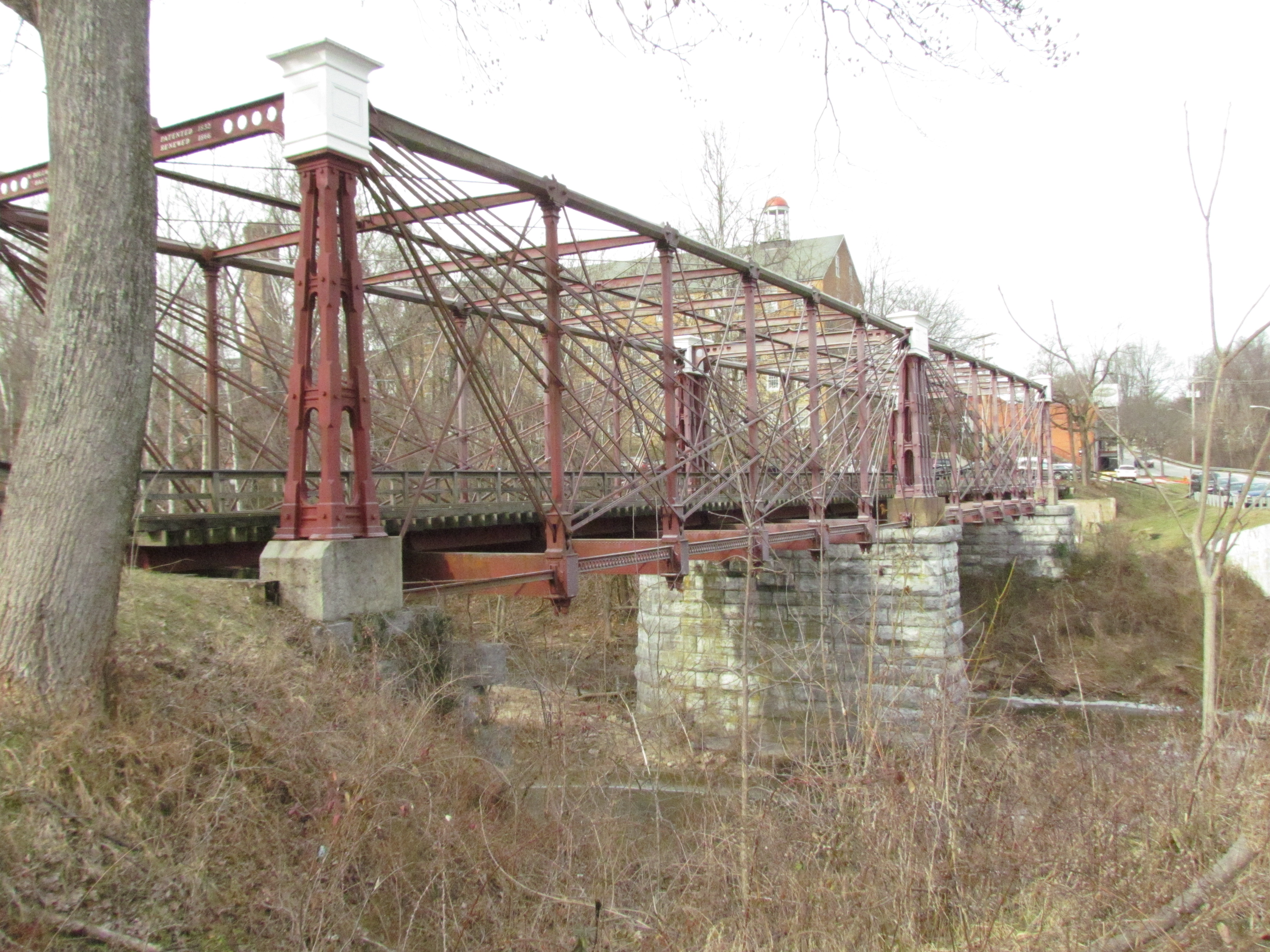

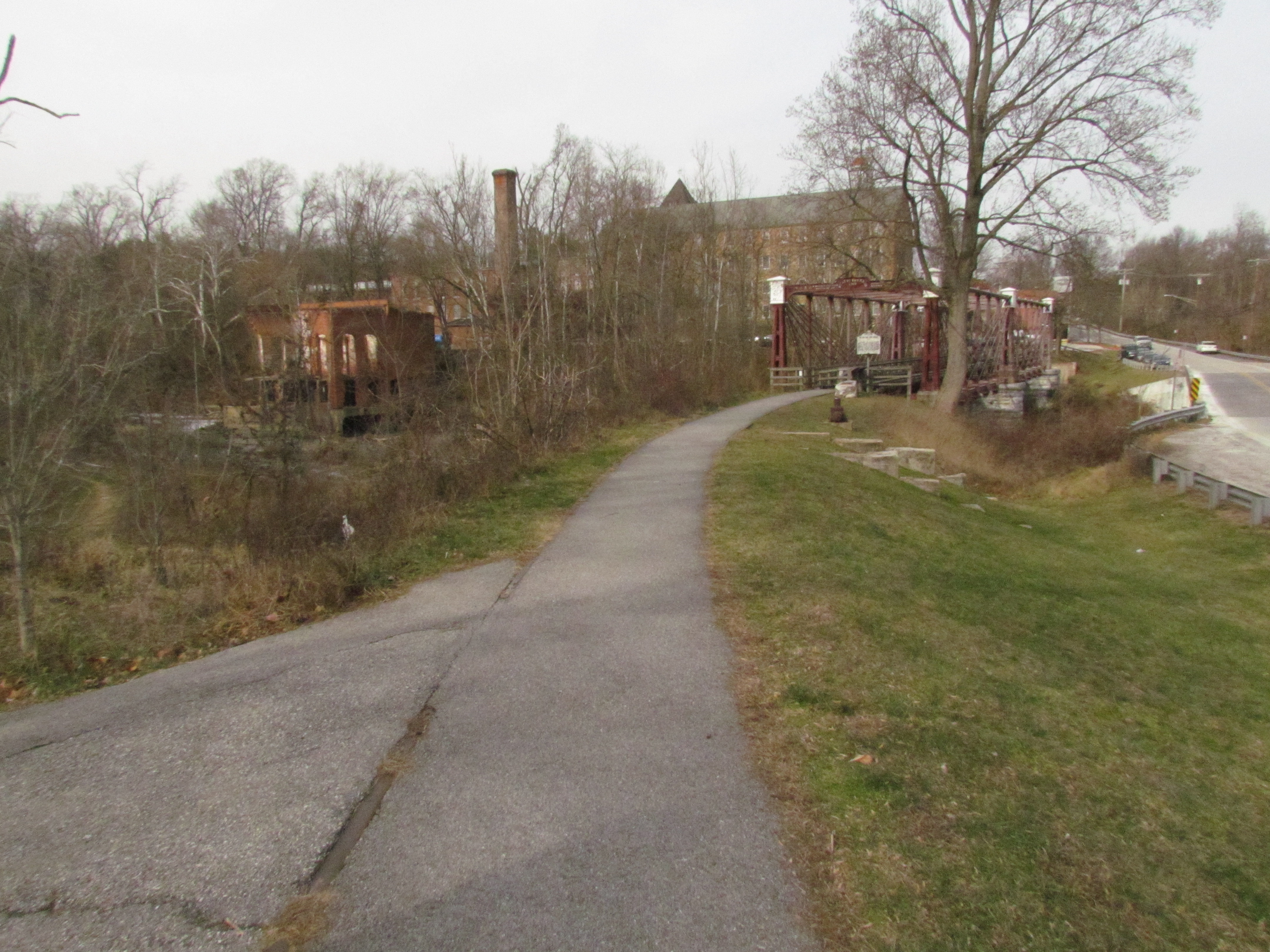

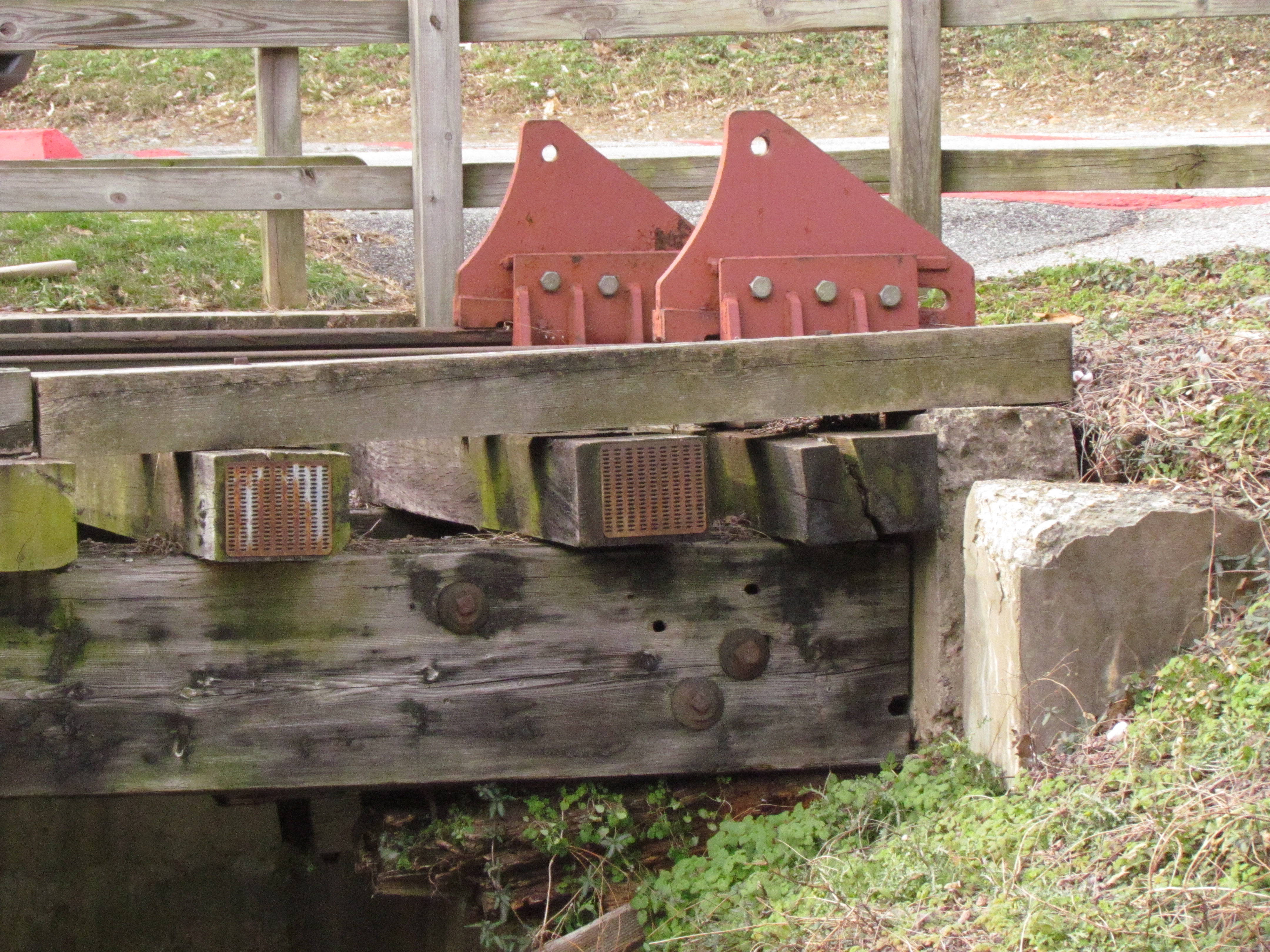

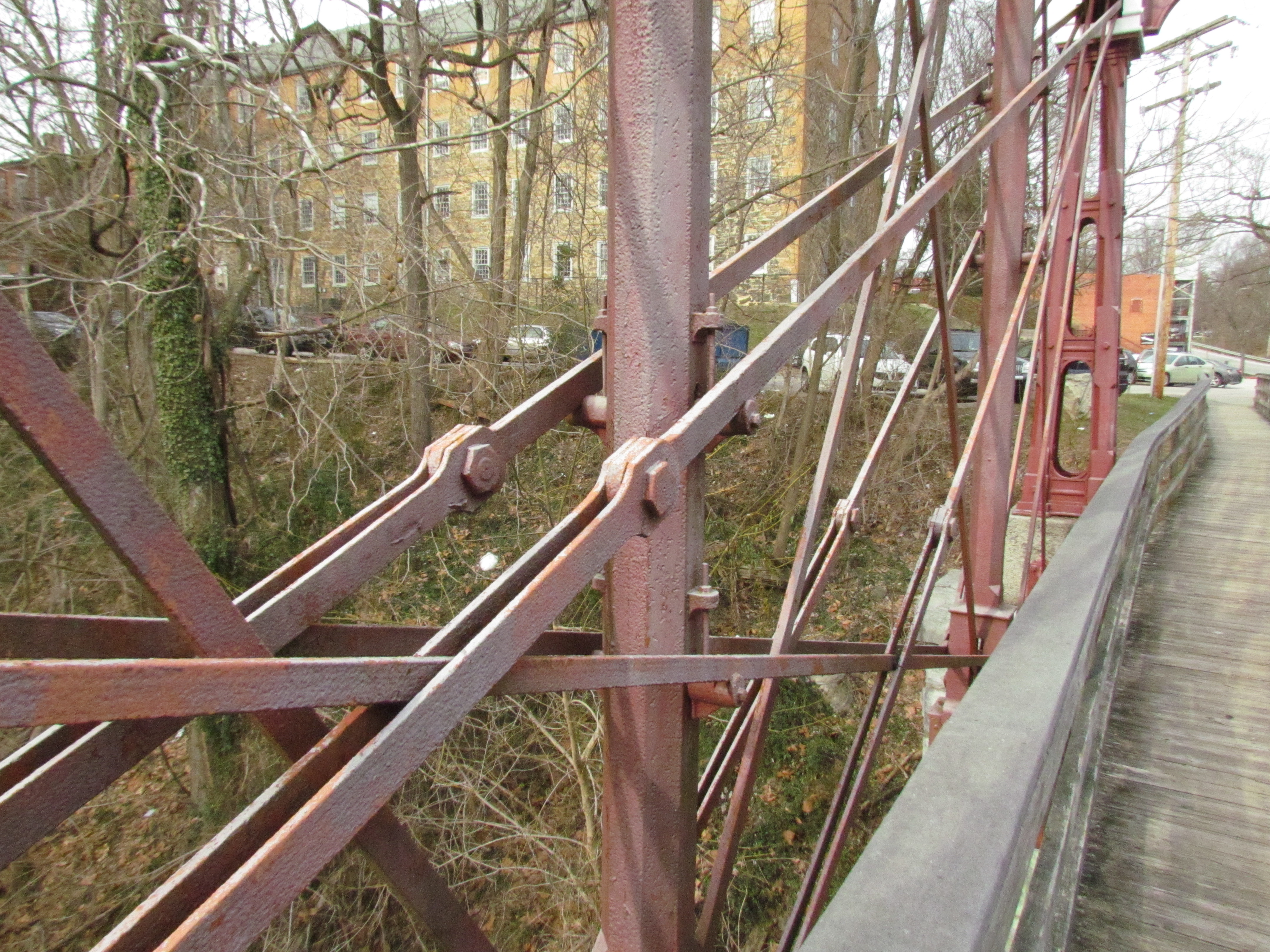

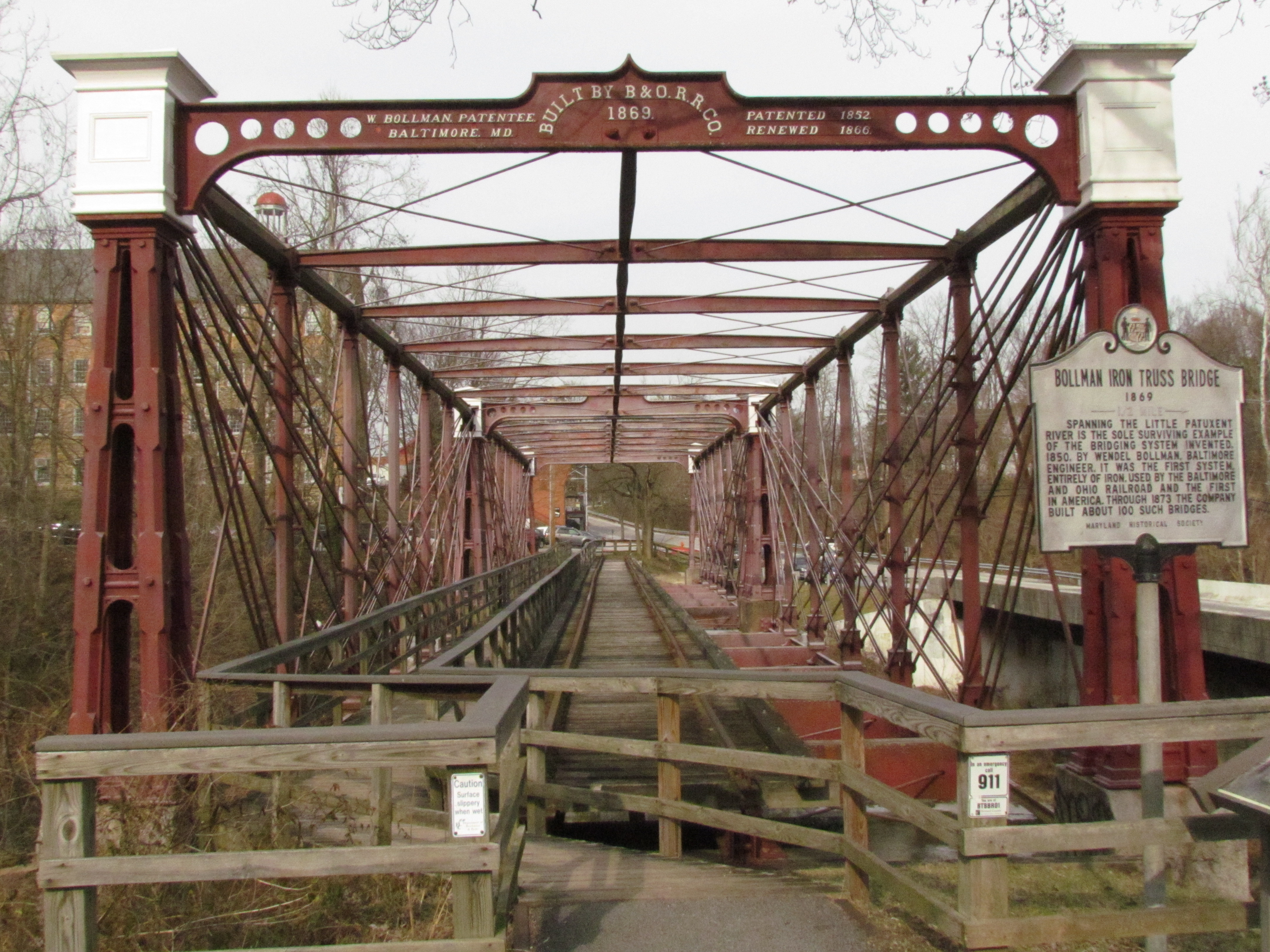

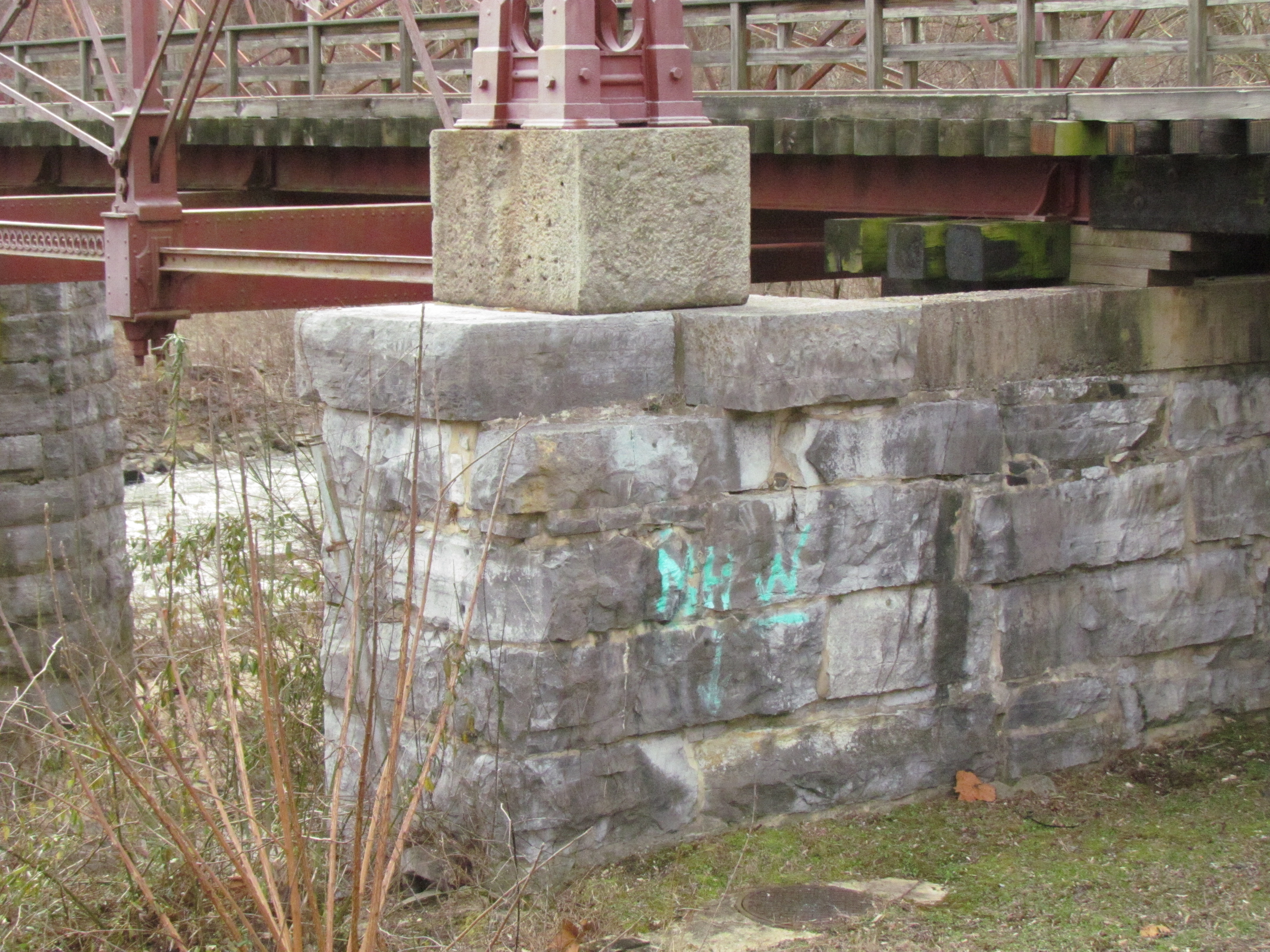

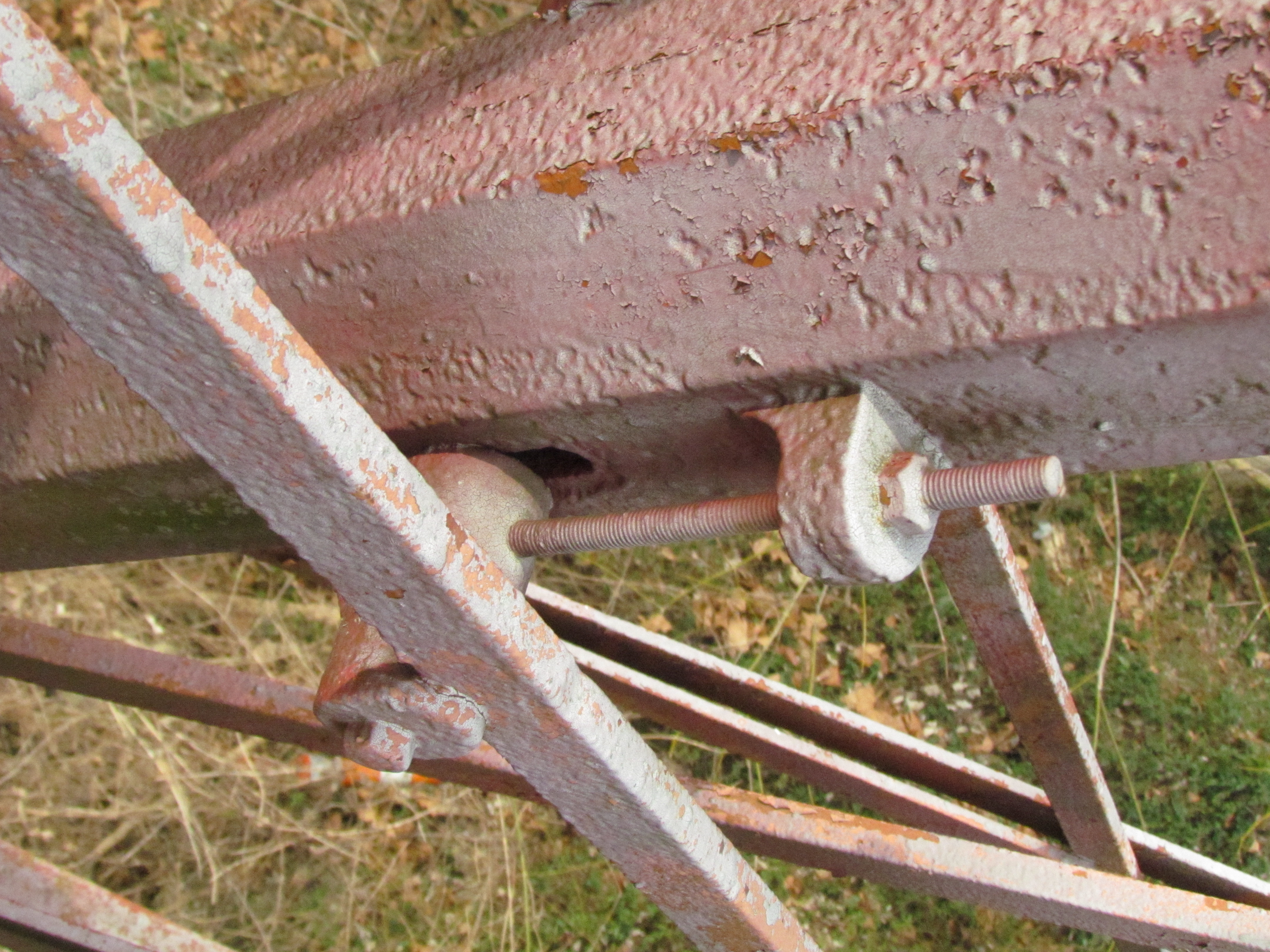

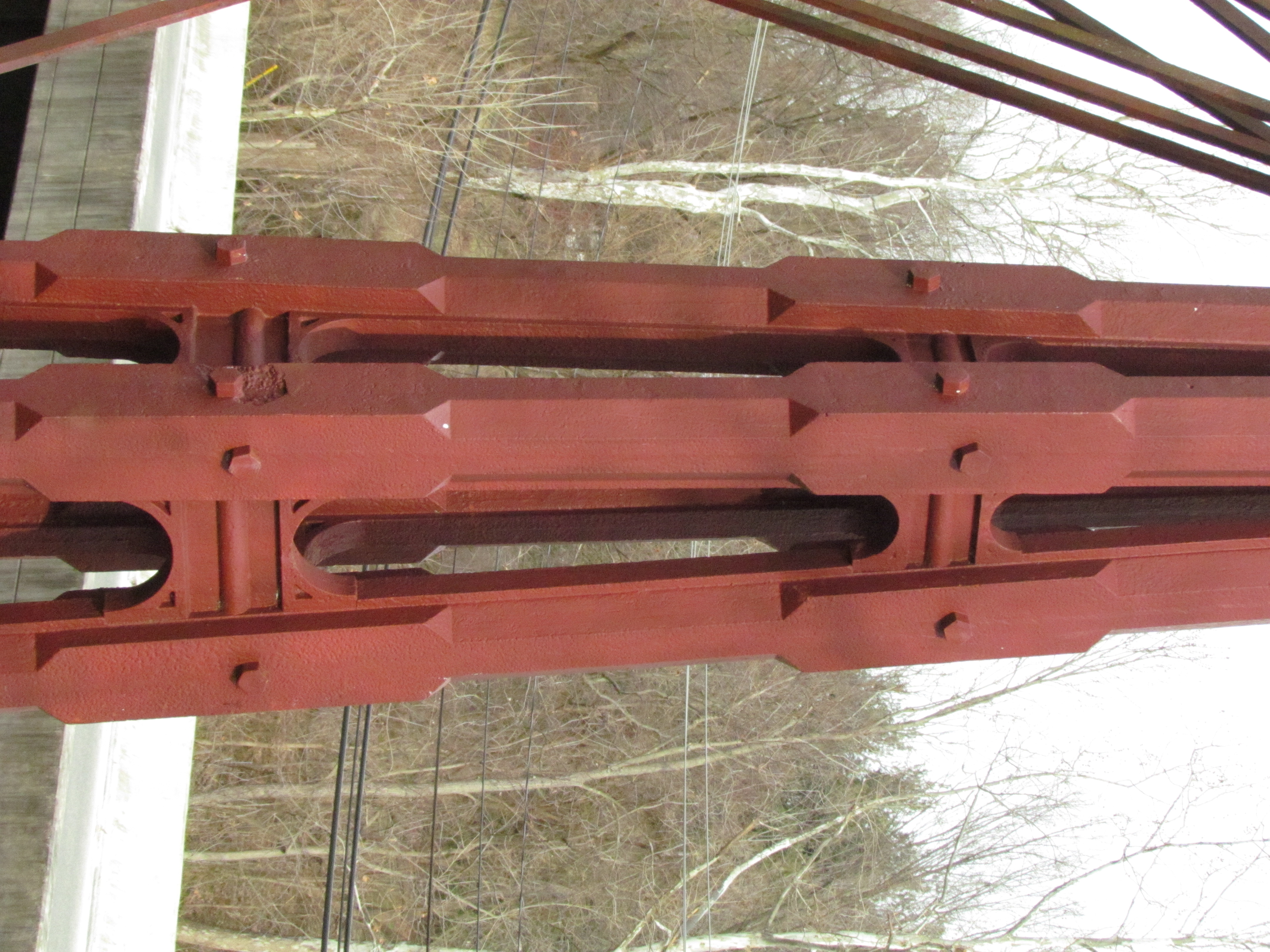

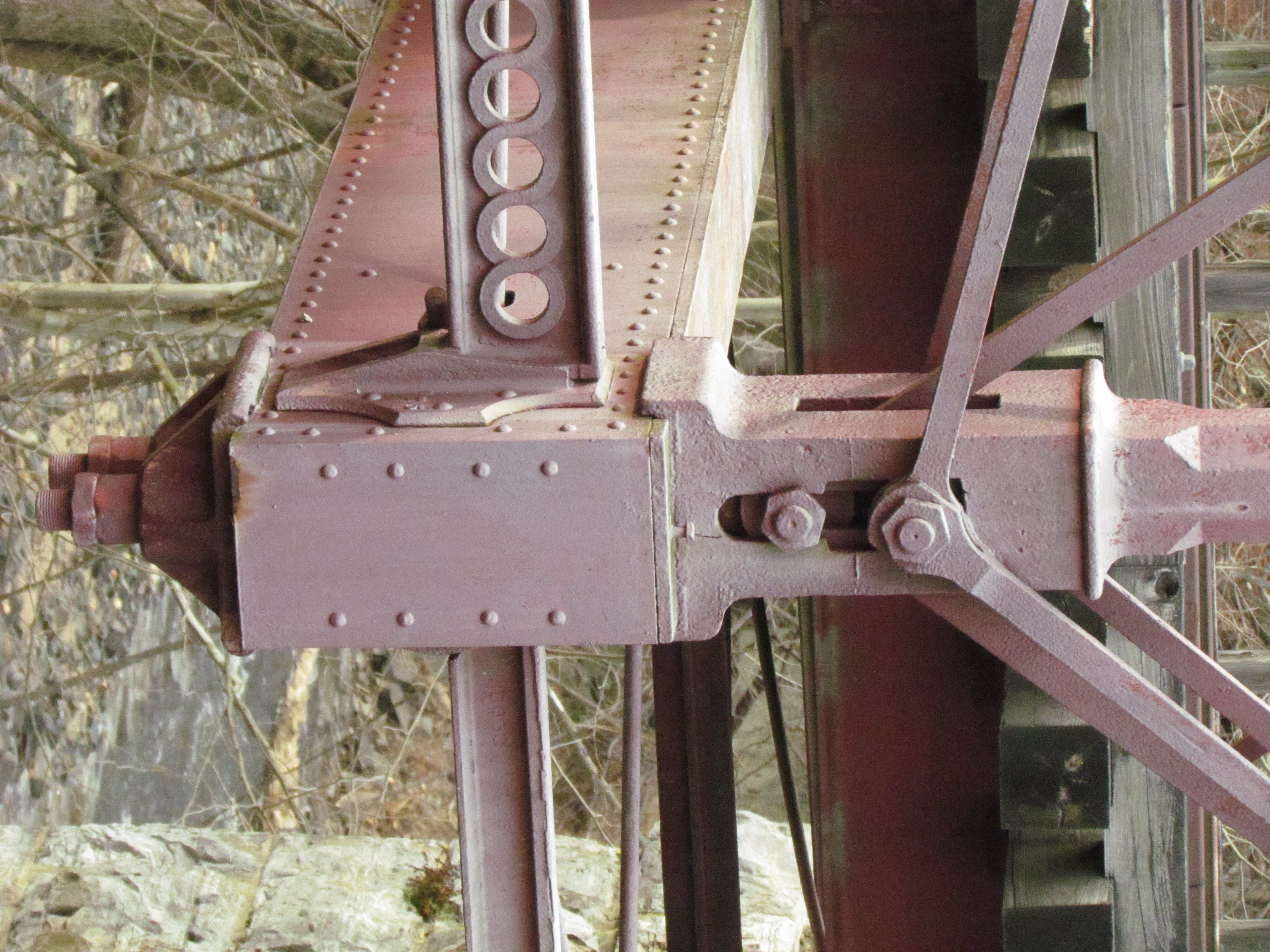

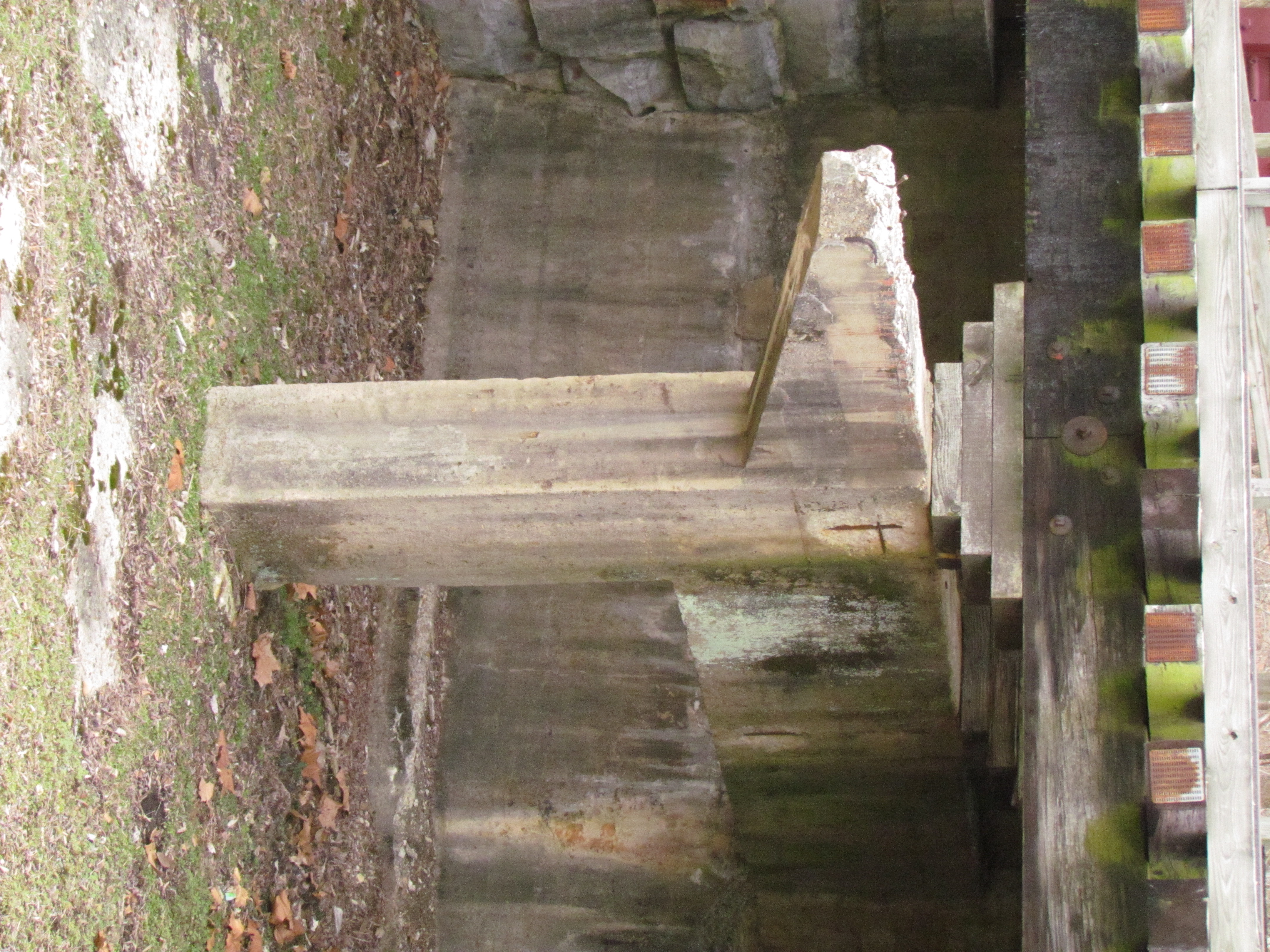

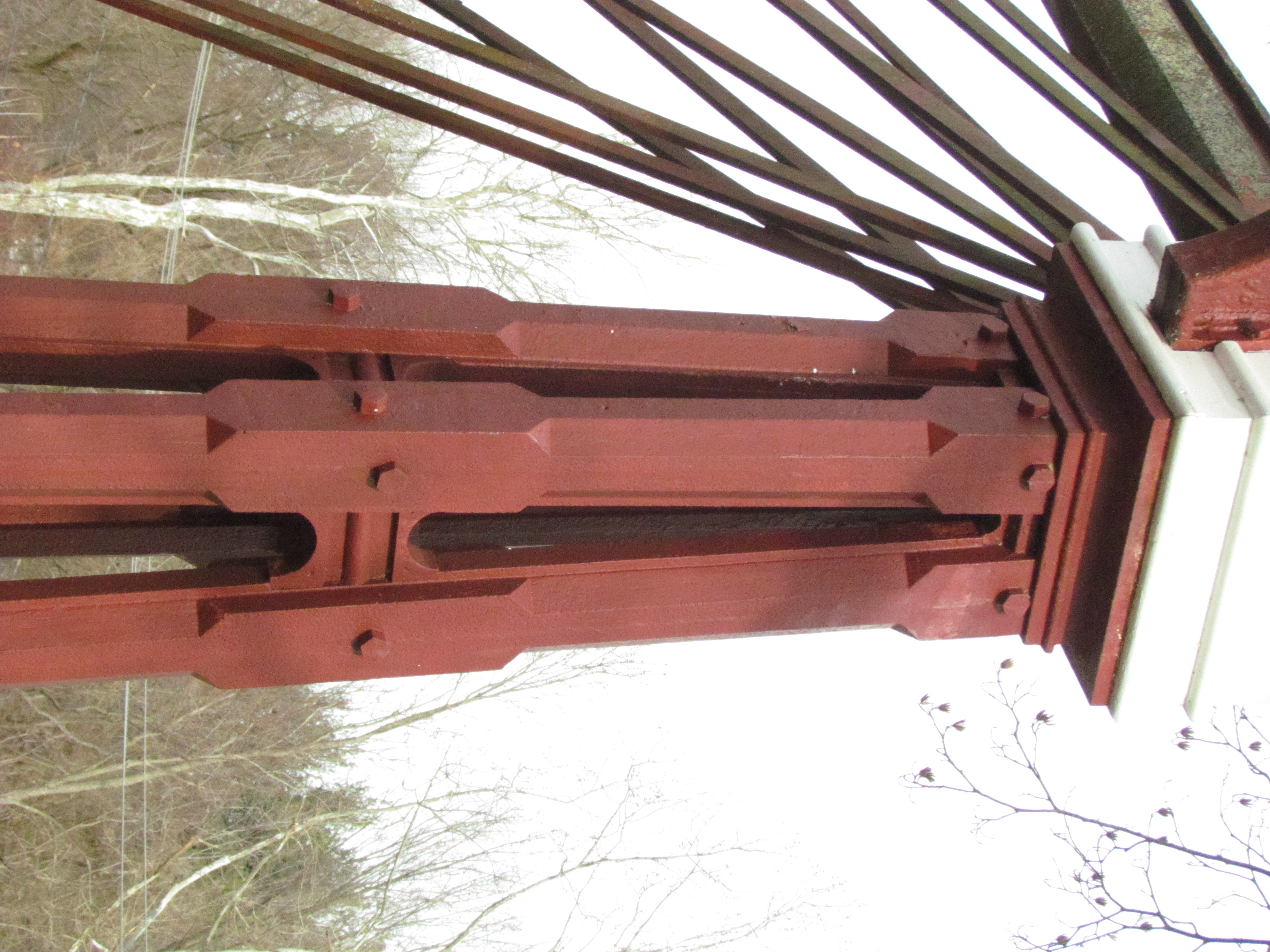

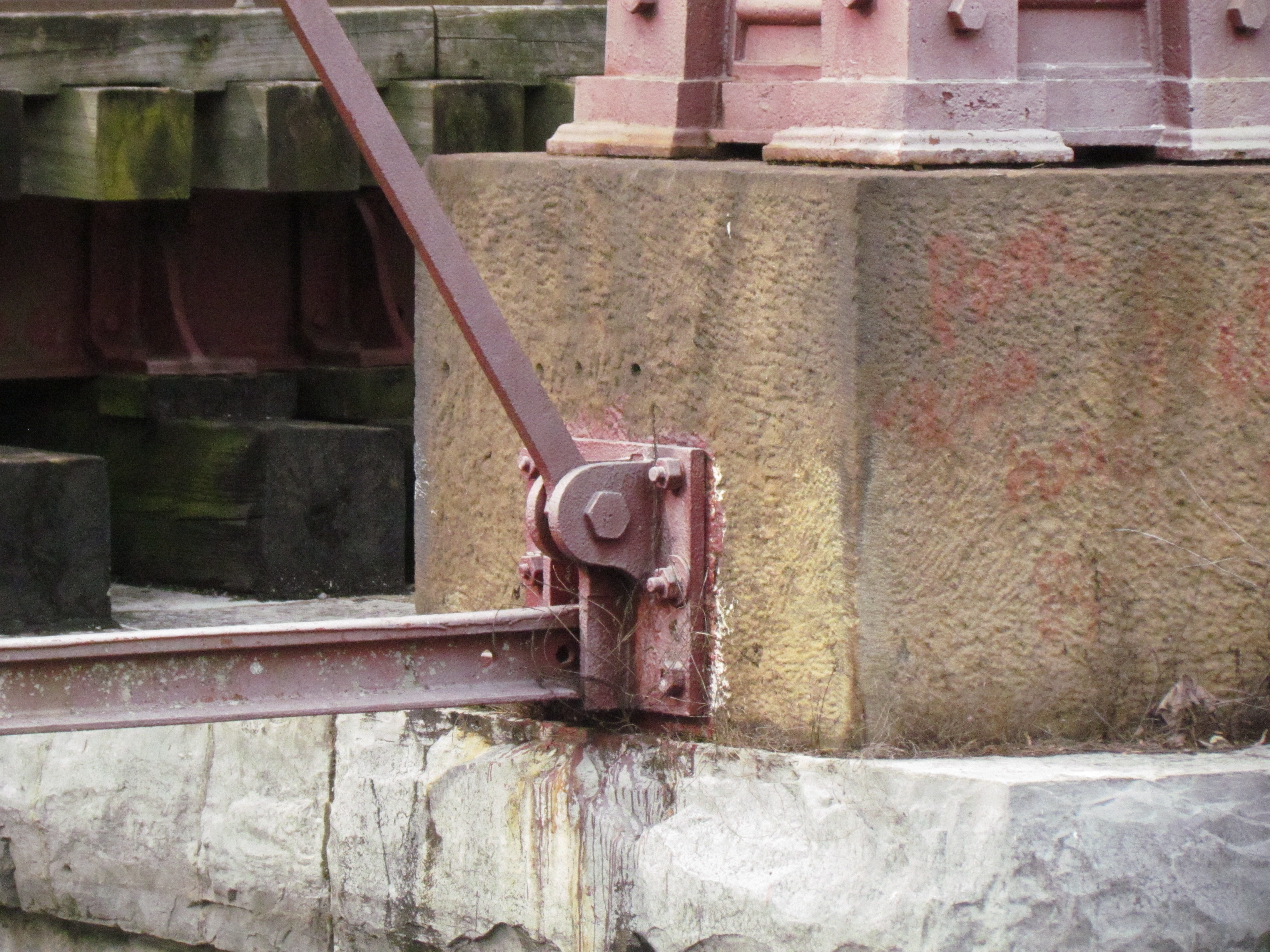

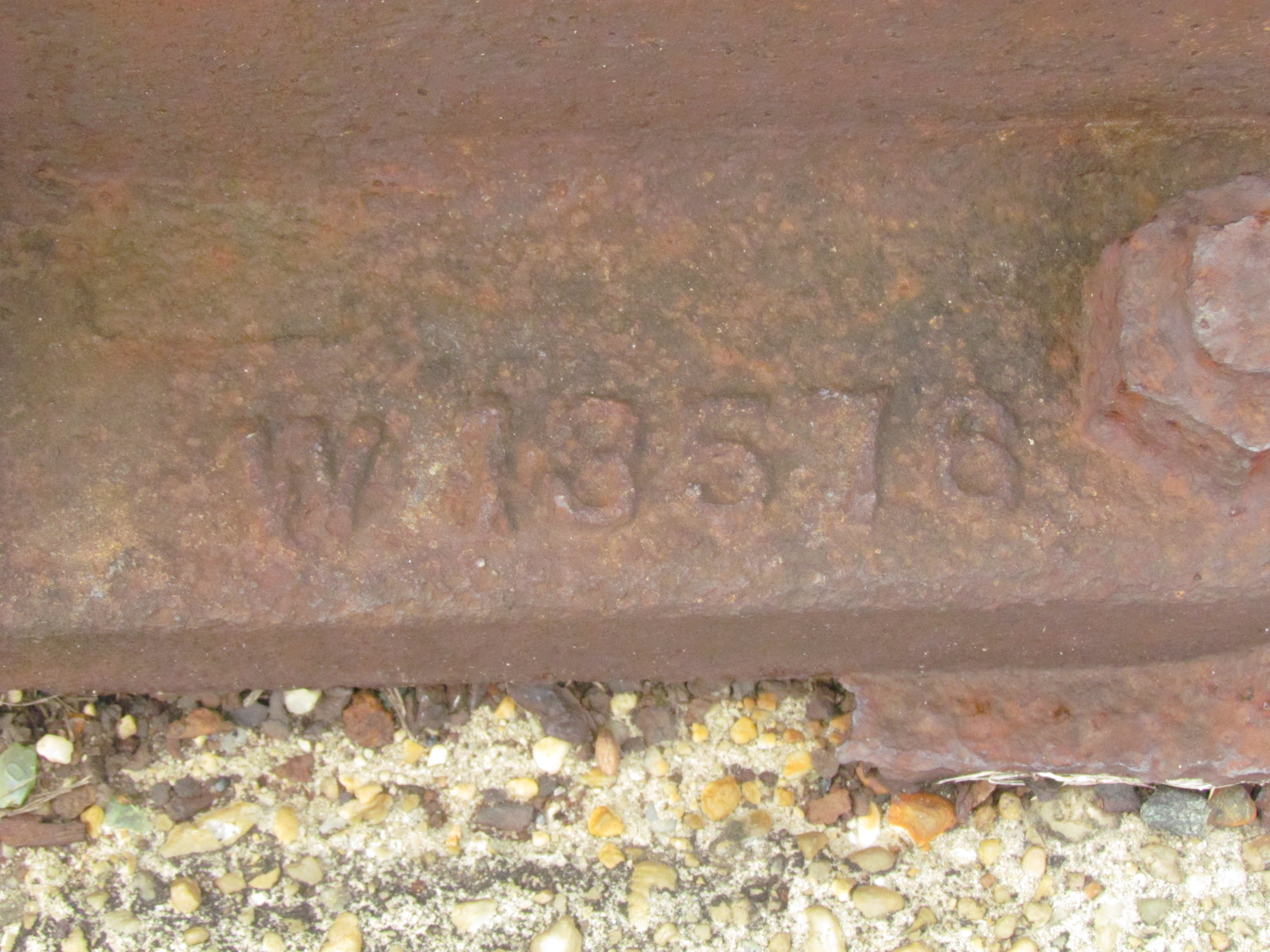

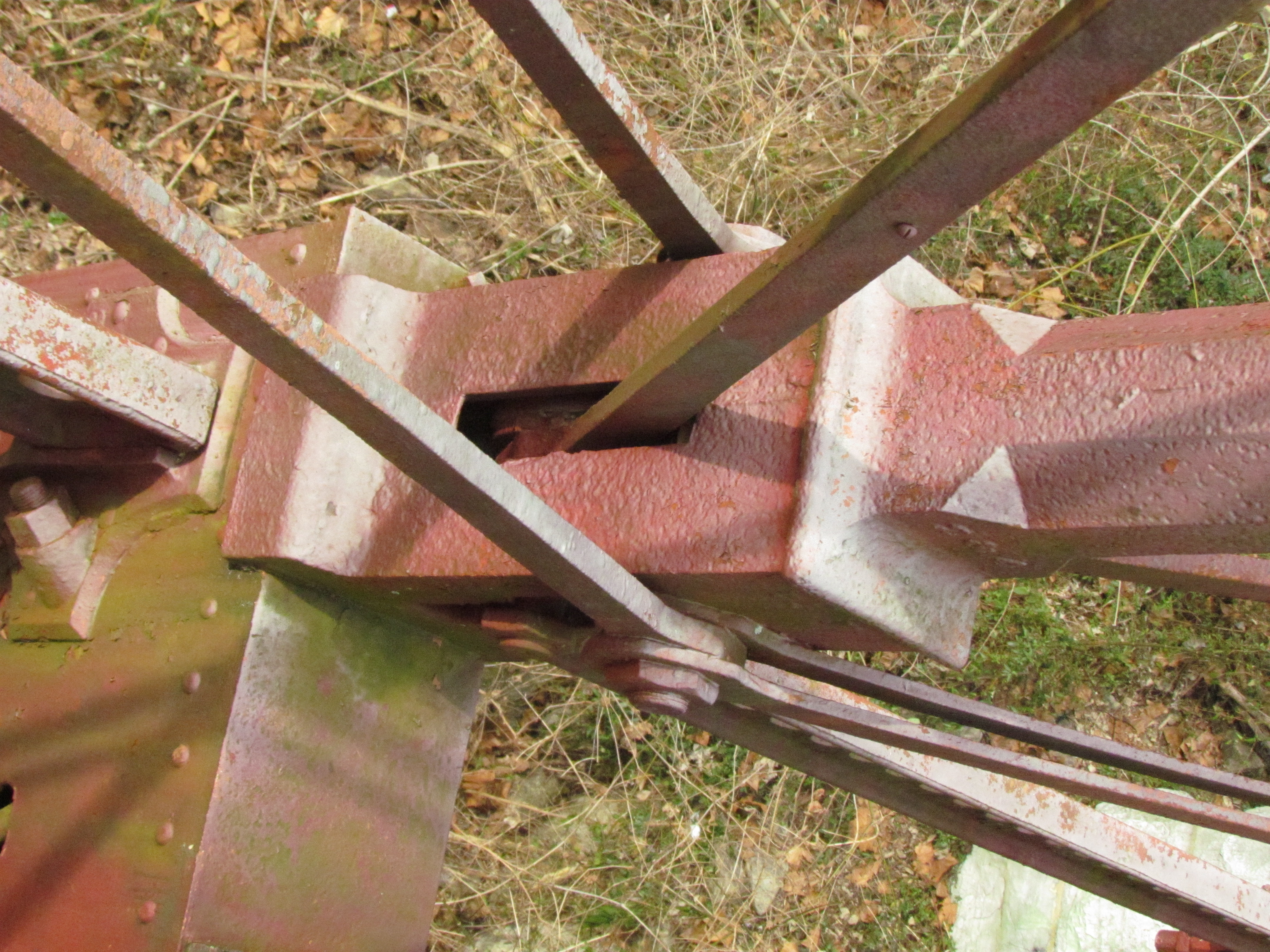

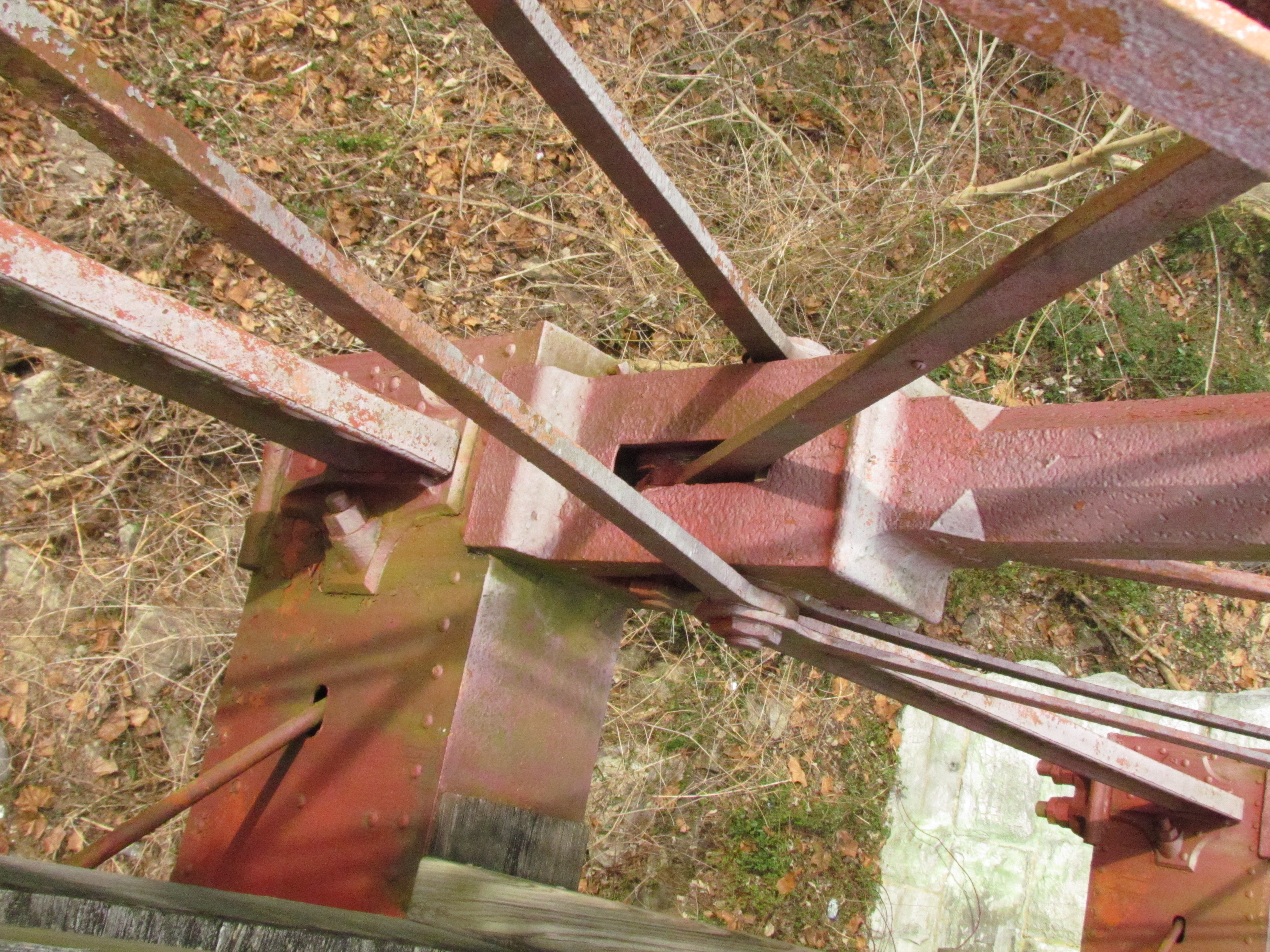

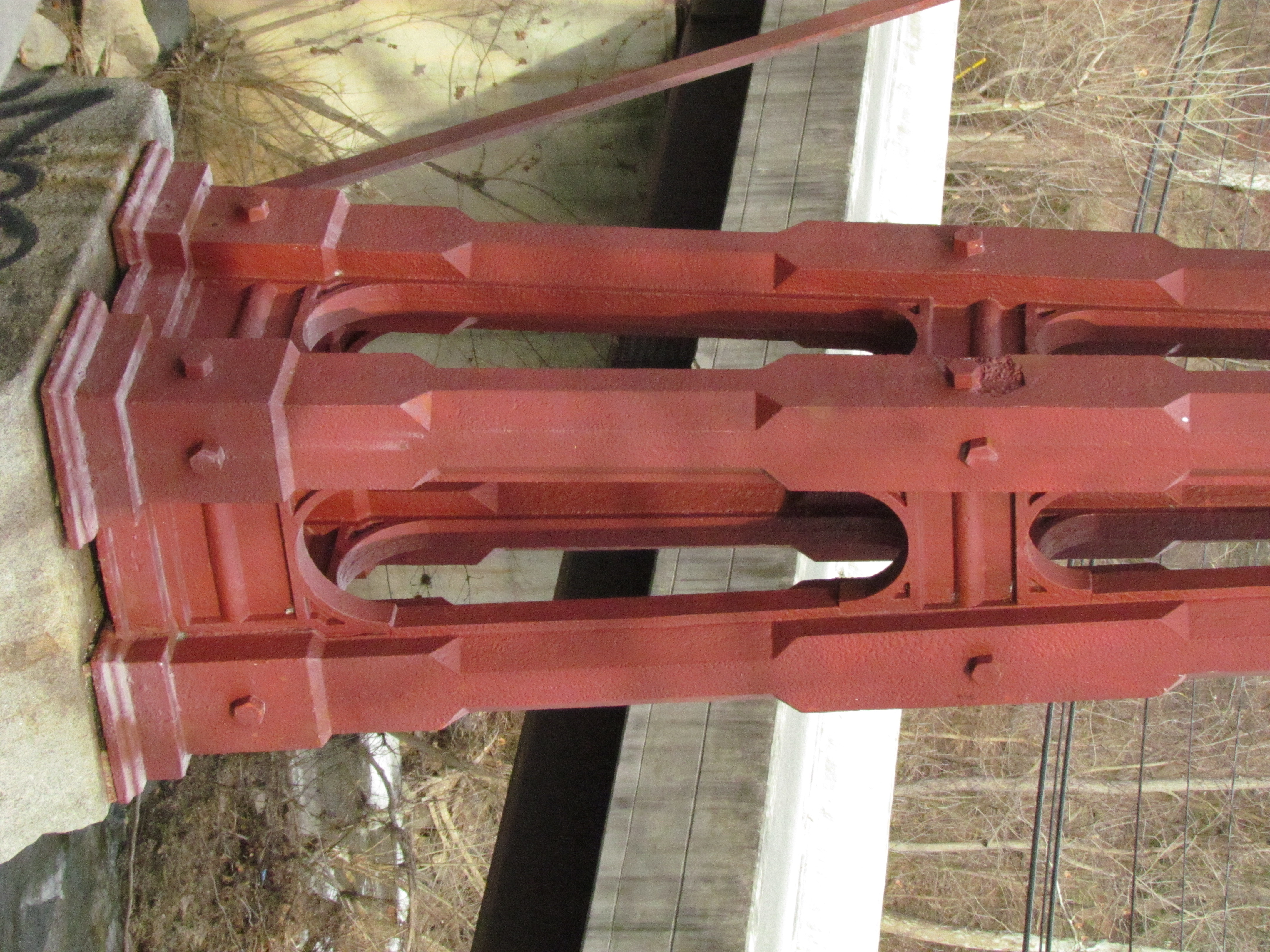

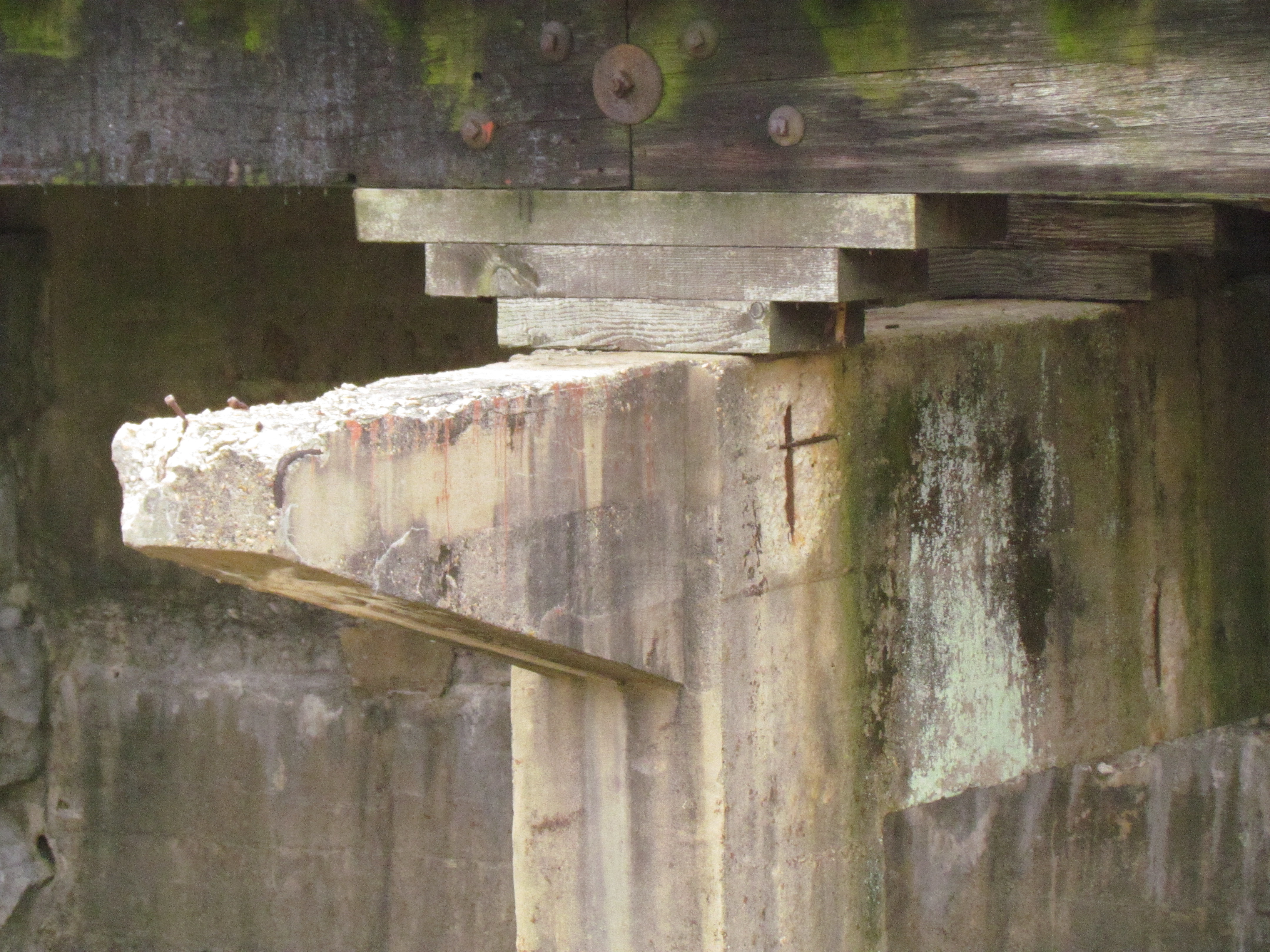

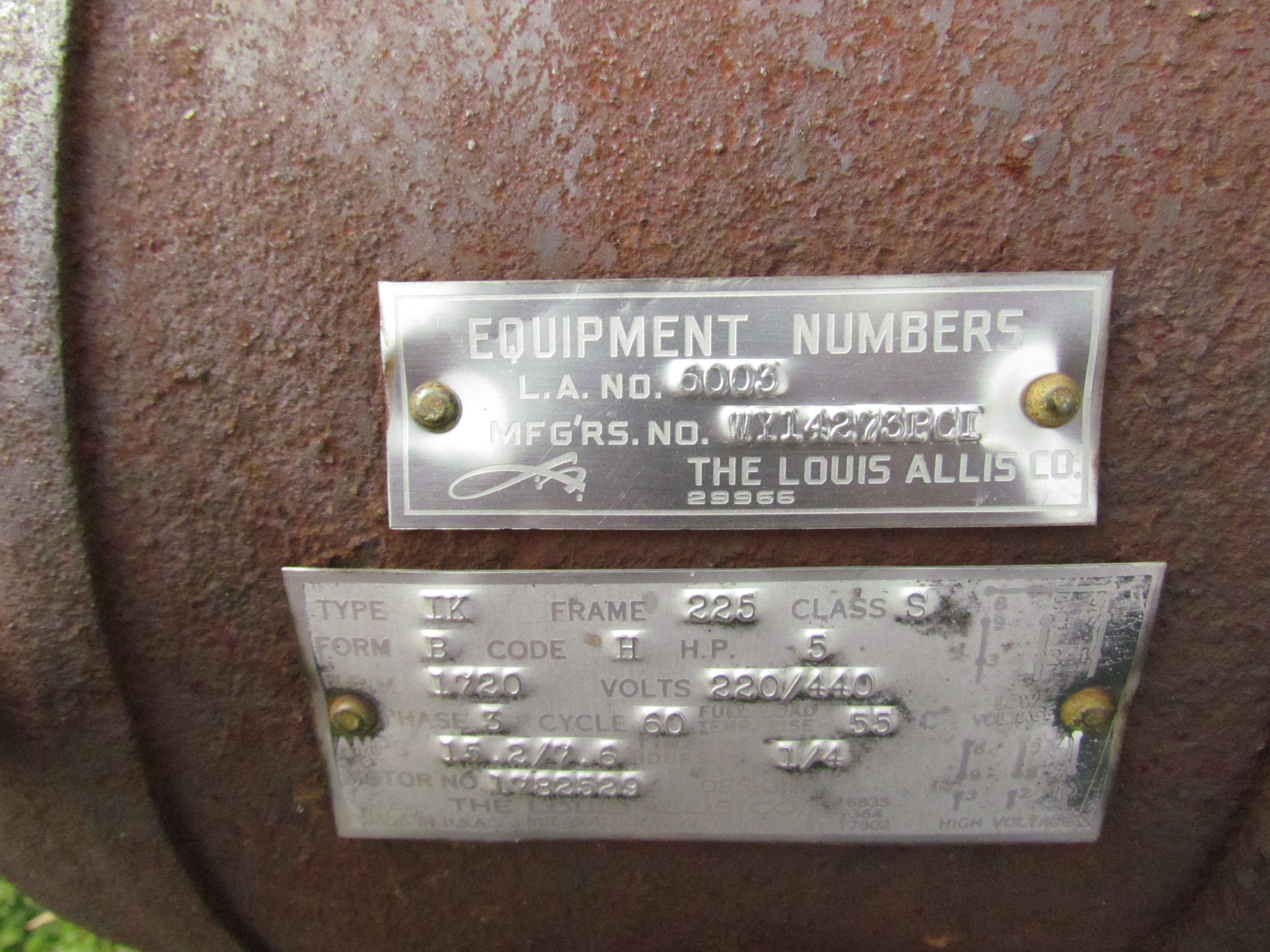

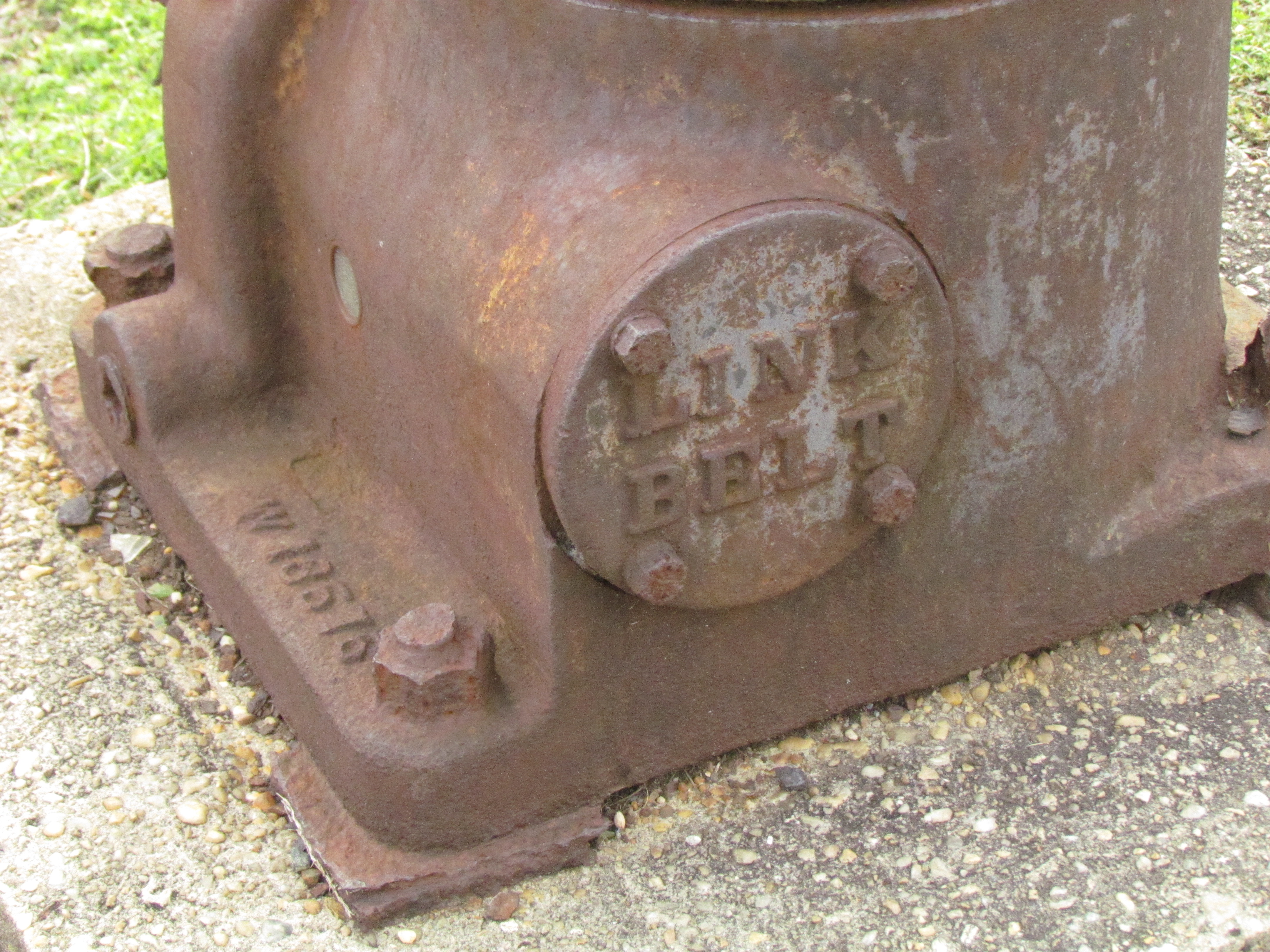

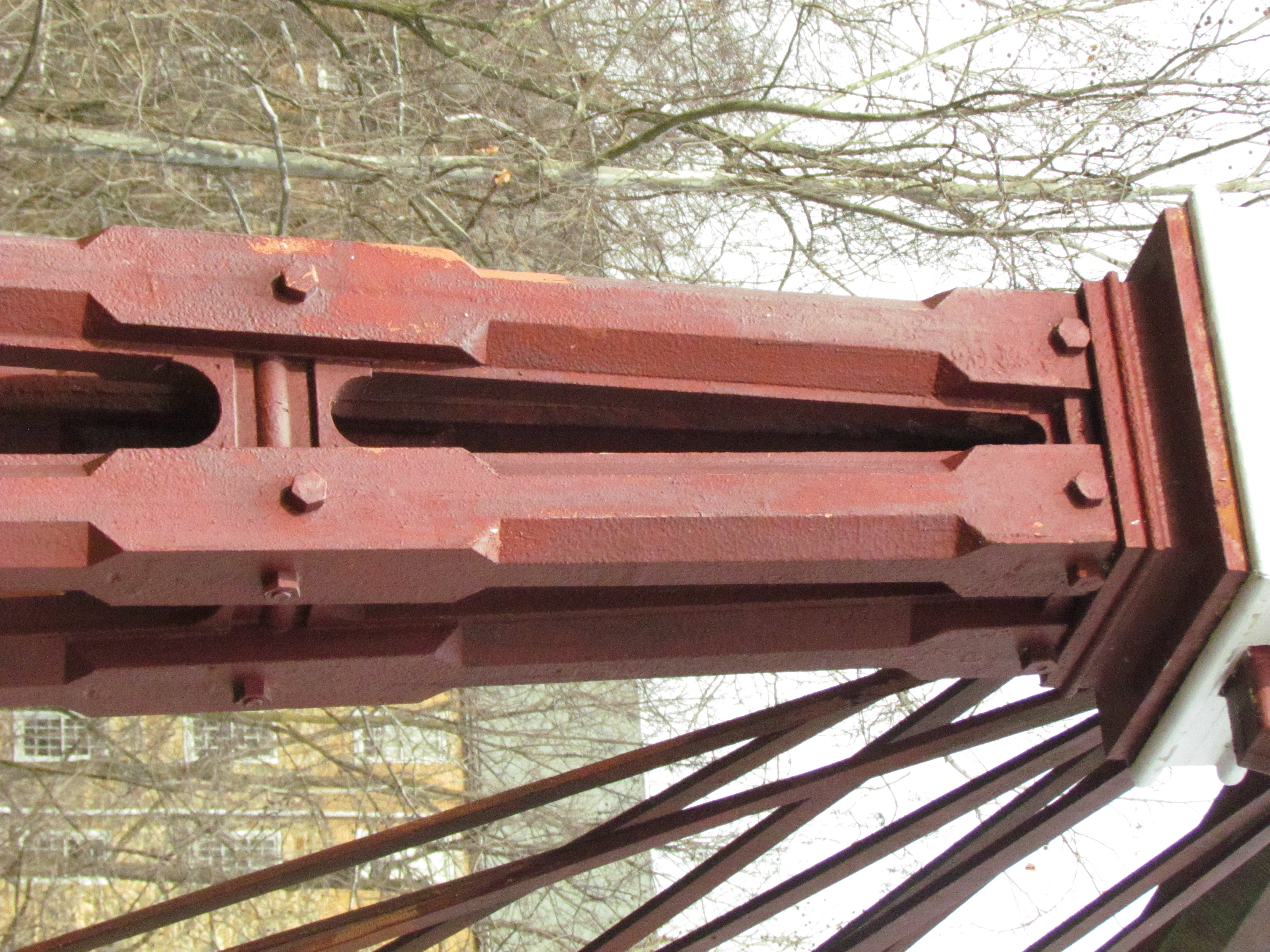

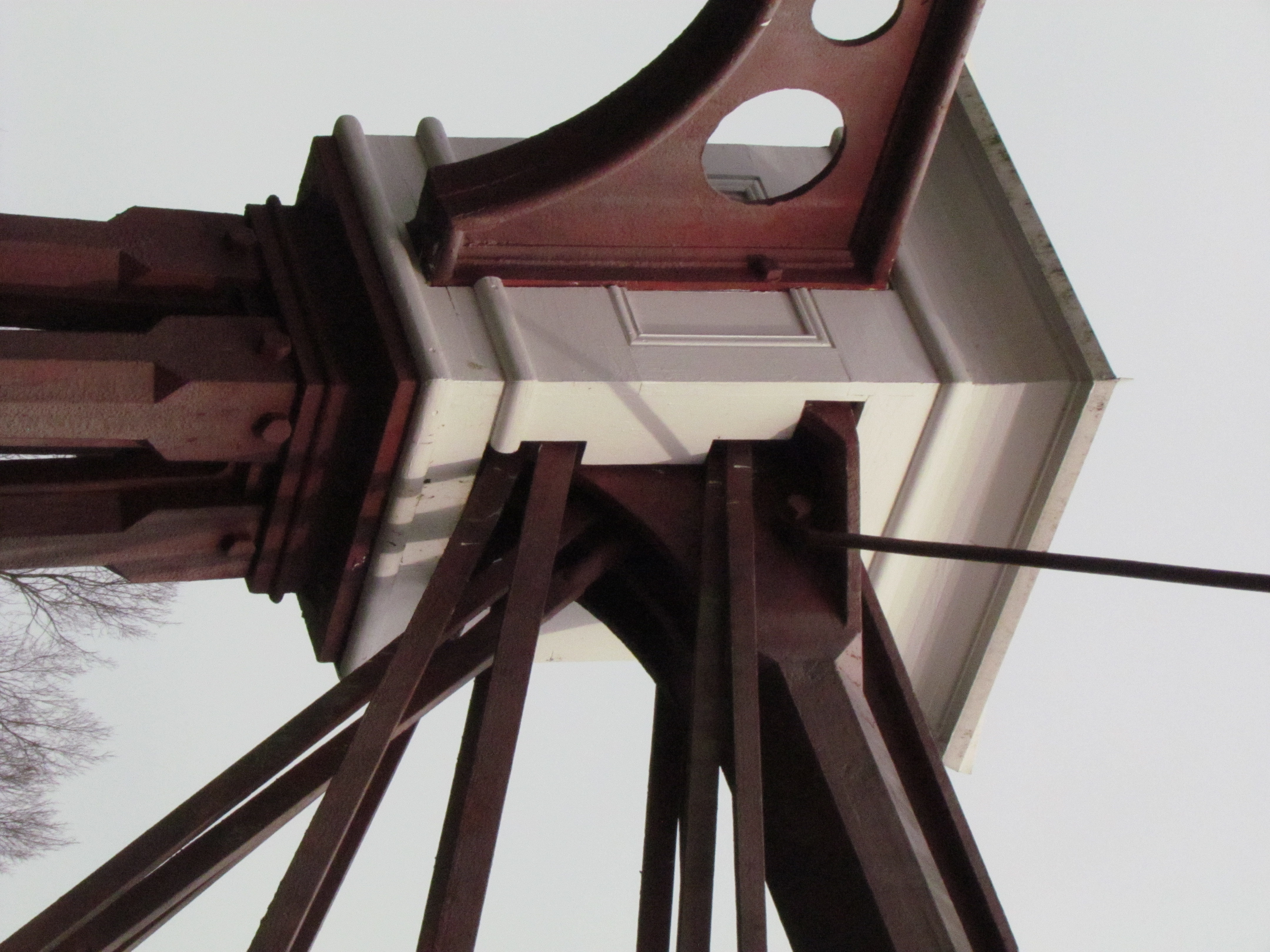

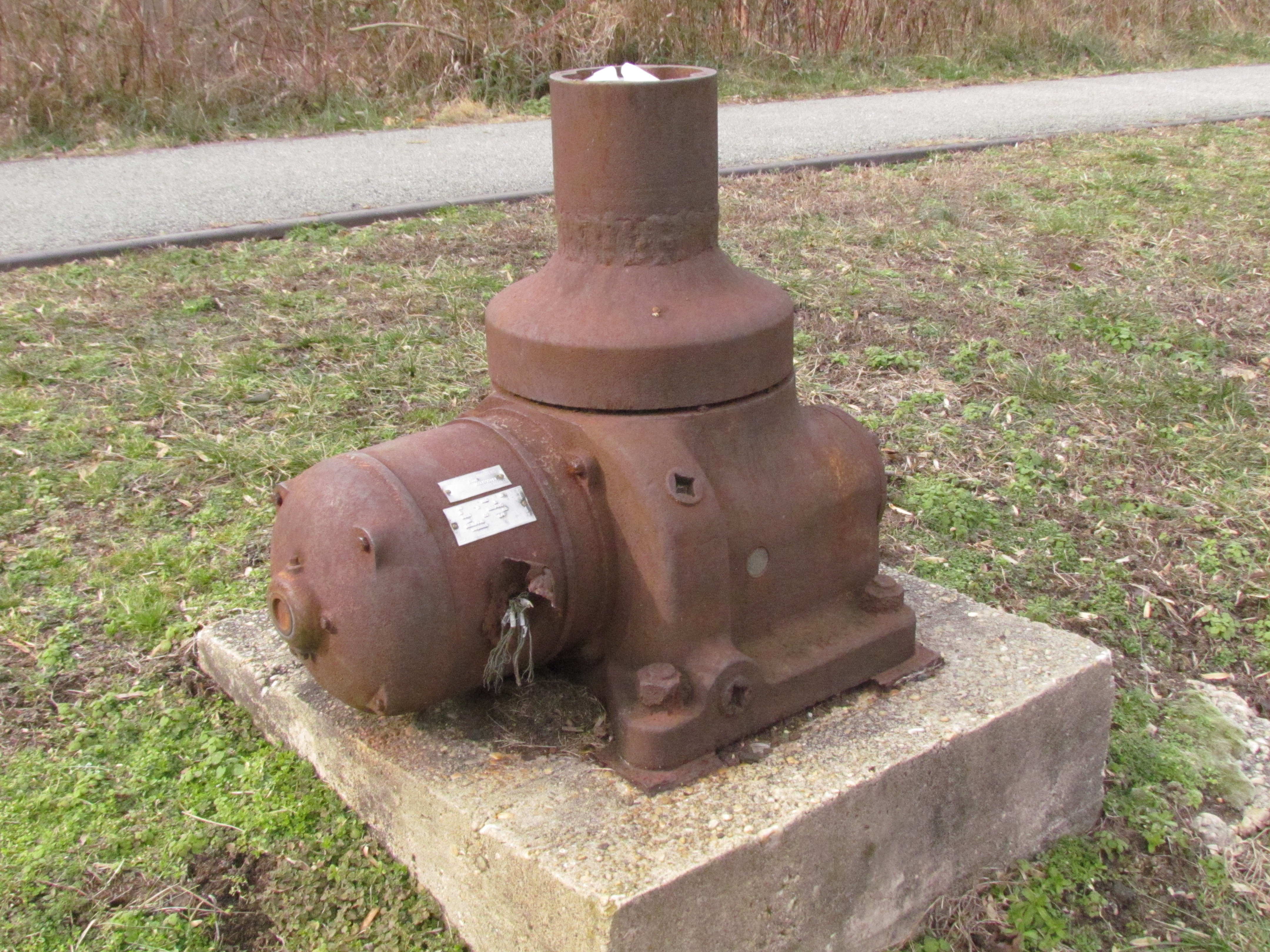

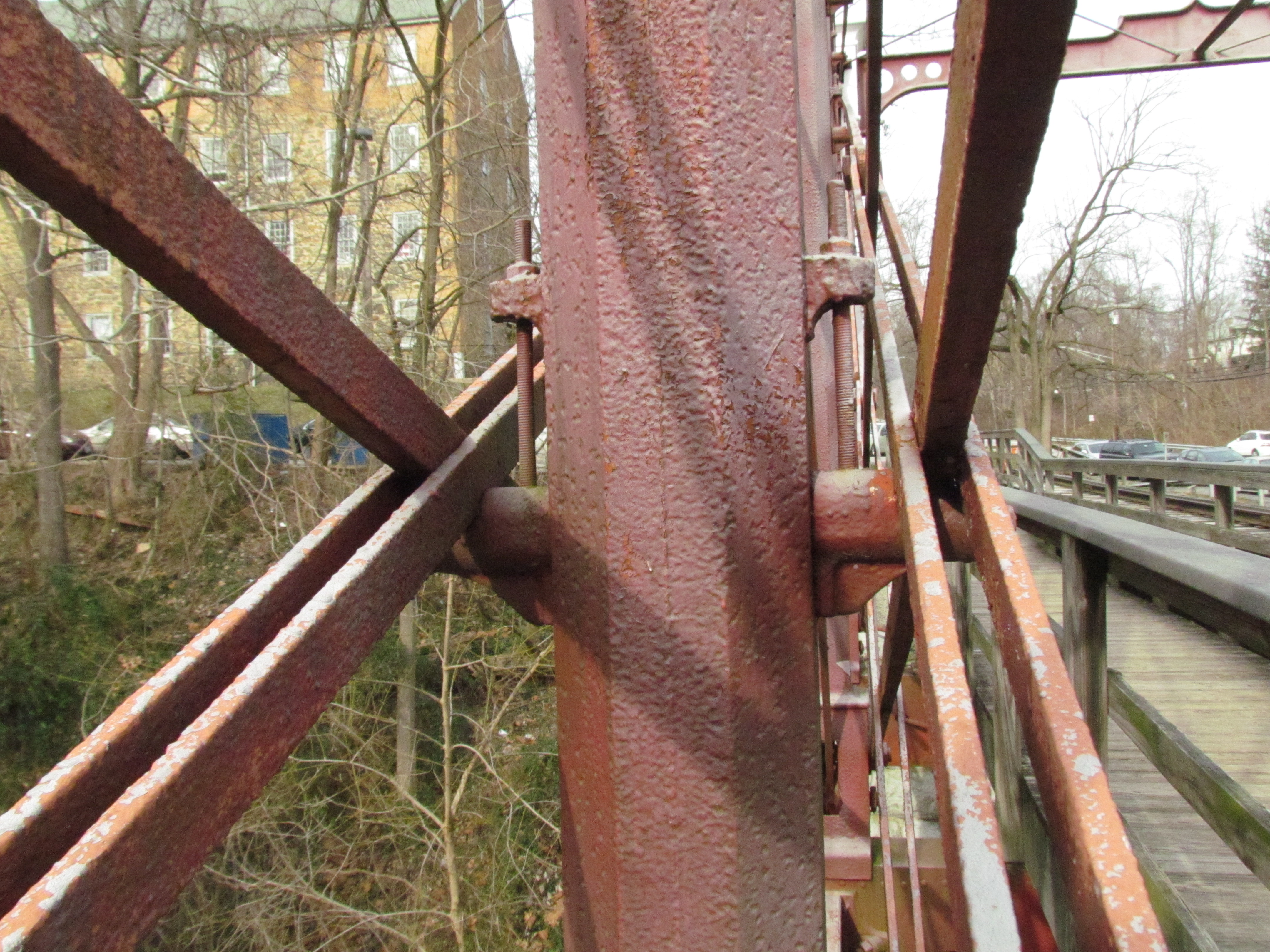

Detail pictures were taken January 2016

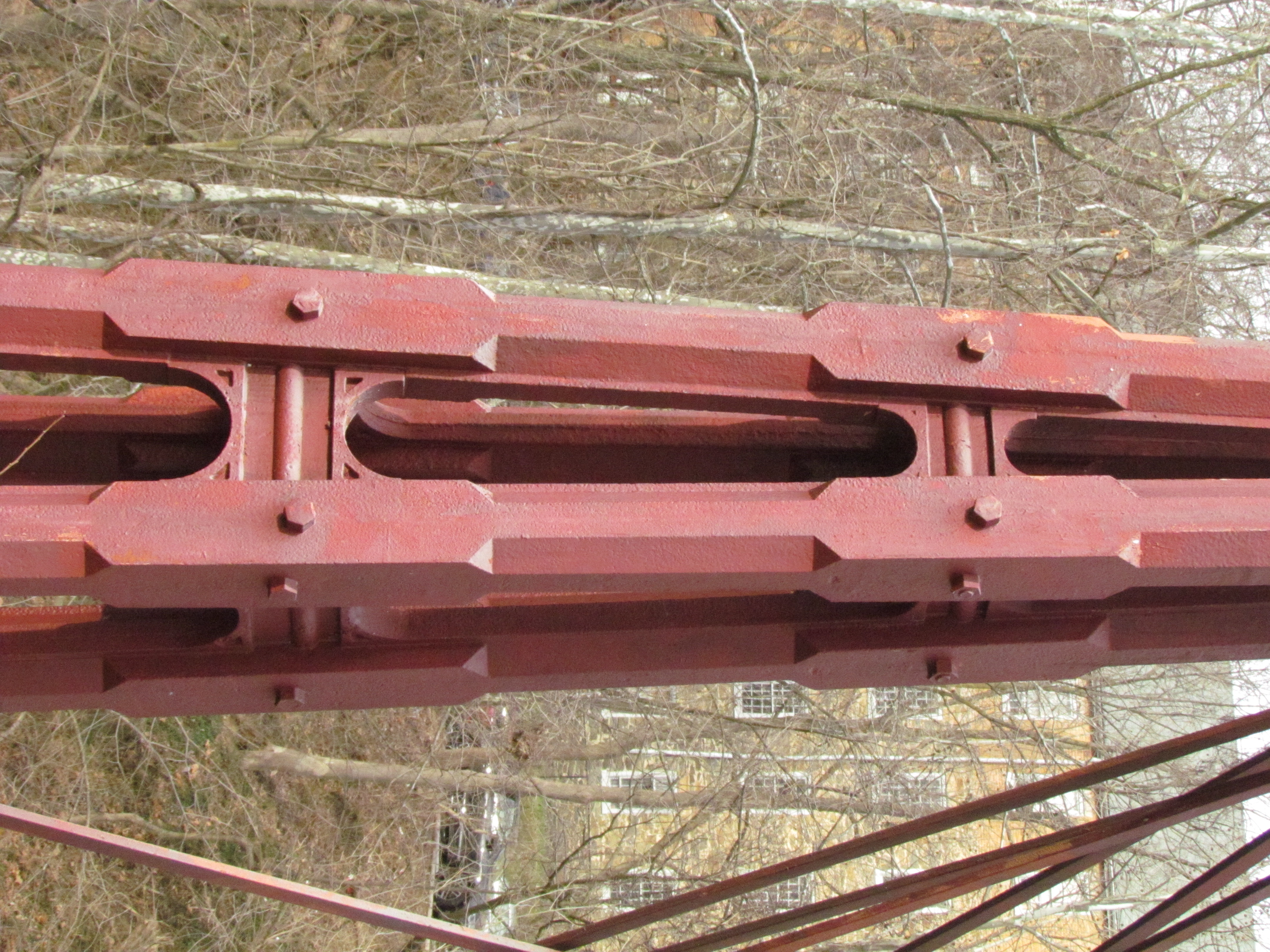

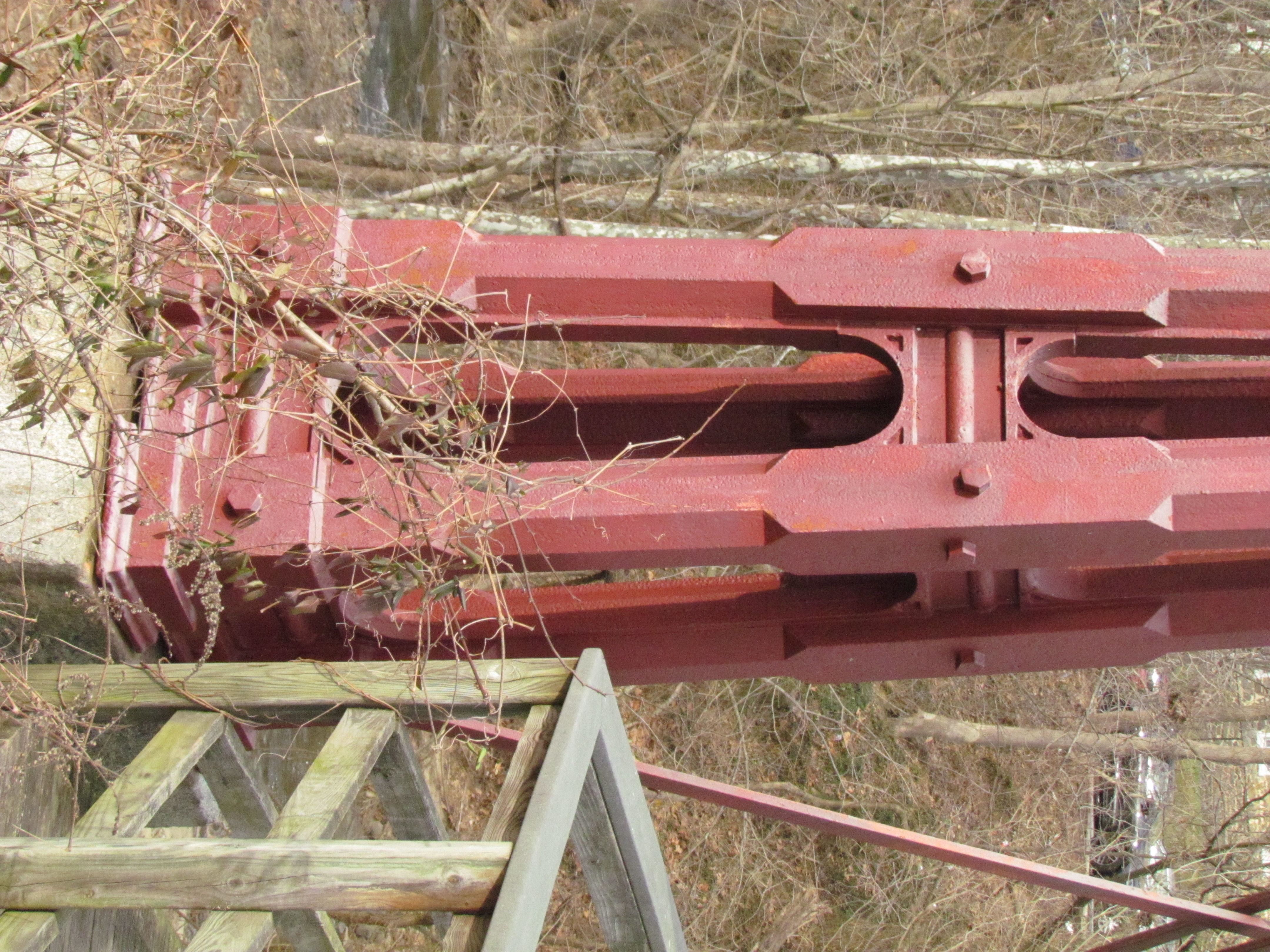

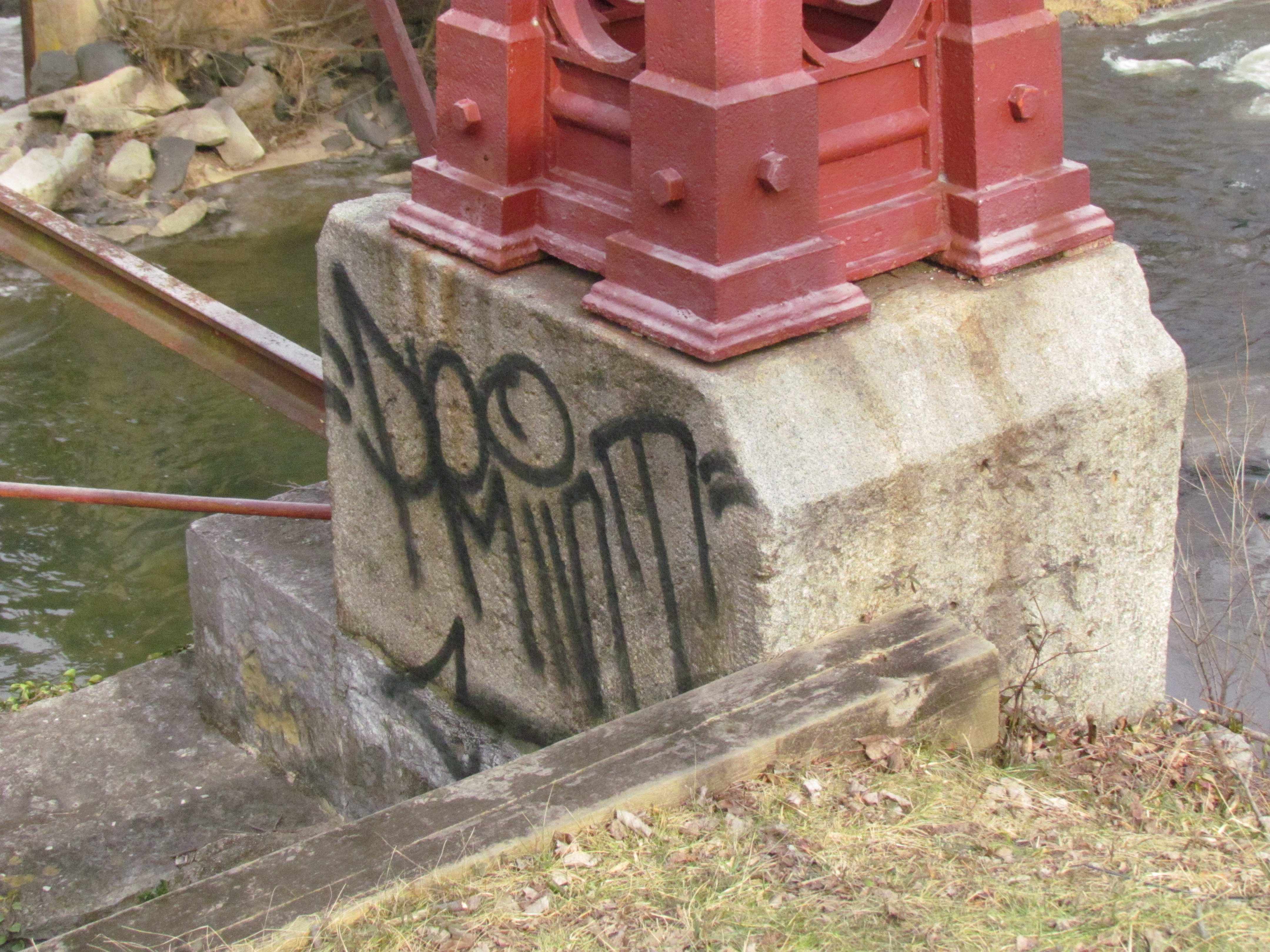

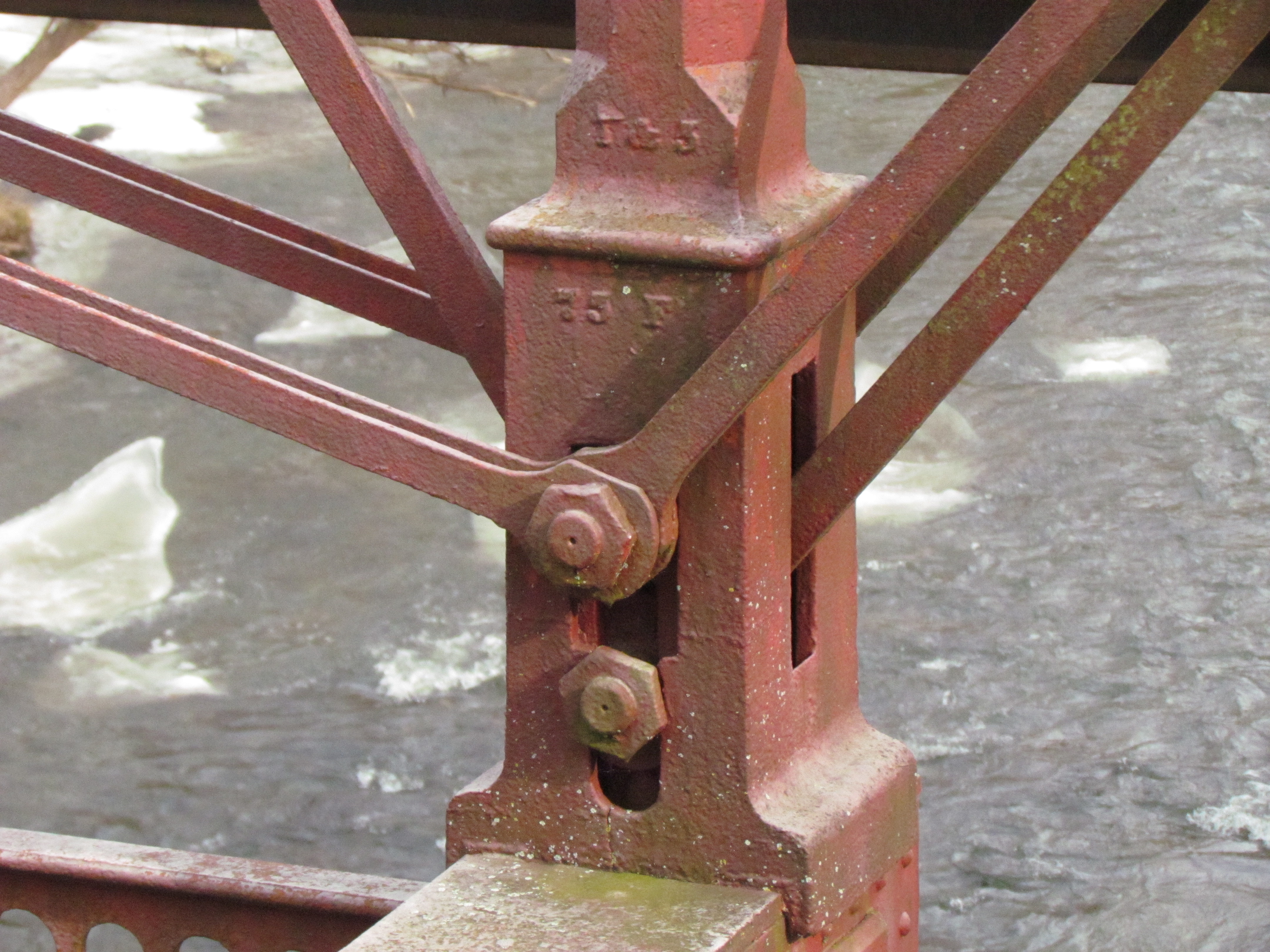

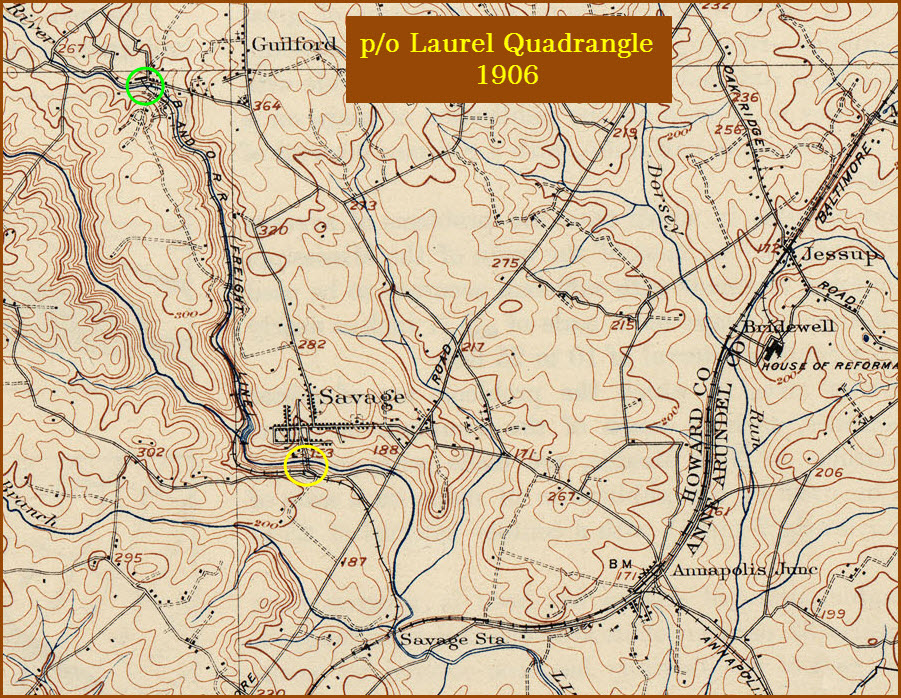

Historical USGS Maps


Courtesy of the University of Texas Library, click here for their index page.

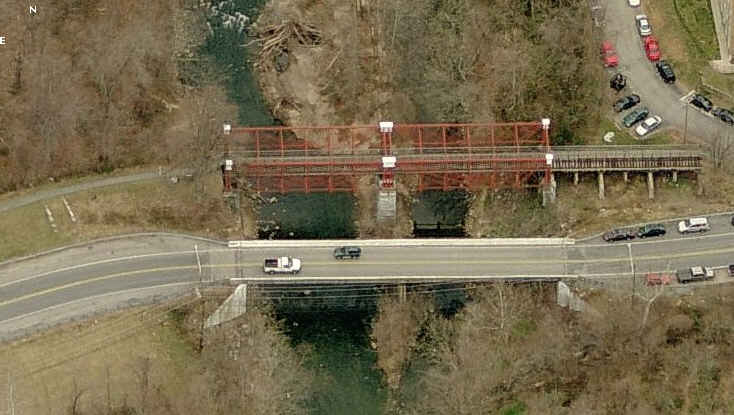

The green circle shows you where another bridge is located, and has been restored by Howard County as part of a rail-trail.  More info and pix are here
