In General


Location / Name:
Isle of Wight, UK

What's Here:
the 8 Mile Long Island Line
the Isle of Wight Steam Railway

Data:
GPS Coordinates: as needed
Phone A/C: +44 1983

Access by train/transit:
Ferry from the Mainland
Hovercraft from the Mainland at Southsea

The Scoop:

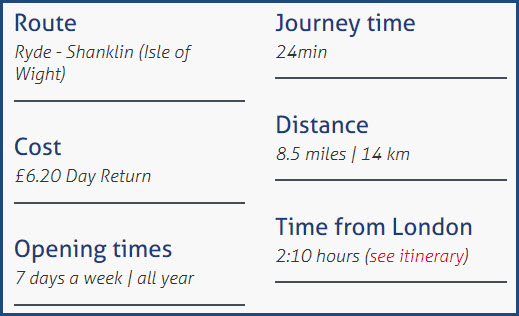

In American terms, this is a subway line.  The line is about 8 miles long, having been longer at one point, going all the way to Ventnor.  Travel time from end to end is 23/24 minutes.

One of the unique things about this line is the use of "old" equipment from the London Underground, used because of the tunnel on the line, which is about 10 inches too short to use a standard type transit car.  They are the oldest cars in service in the UK.

The cars currently in use, as of 2019, are 1938 vintage BR type 438 cars.  Because of the age of the cars, little things like the doors may not be functioning at peak performance.  One of the videos about the line says that they brought 9 of the cars, one for spare parts, and the other 8 run in "married" pairs.  The cars were converted for use on the Island Line in 1989/1990.  The trains run on 660VDC.  I'm guessing one of the things they had to do to convert them was to make them operate from three rails instead of four, as the London Underground uses four rails for running on and power (see below in the floobydust section).

Another unique feature of the line, is that it goes out into the water by almost a half a mile to service the ferry terminal.  There are two tracks that go out this far, there used to be four.

Due to the cars age, it is not known how much longer they will survive, get em while you can!

Trains run from 6am until midnight, 7 days a week.

At Smallbrook Junction, the station is a transfer point to the Isle of Wight Steam Railway.  Trains only stop here when the steam trains are running.  It is the newest station on the line, having been built in 1987.

Brading station has a heritage centre and restored signalbox.

Fares vary depending on package

Fares

One way: 4.70

Evening return: Travel after 1800 for just 3.30 between Ryde Esplanade and Shanklin.

Hover Rover Rail (to the Isle of Wight): The excitement of traveling on a hovercraft, plus one day's unlimited travel on the Island Line trains, all for 23.20 (11.65 for children or 71.30 for a family).

Hover Liner: Travel to Portsmouth and Southsea via Hovertravel Hovercraft service, starting from Shanklin, Lake, Sandown, Brading and Ryde St Johns Road Stations. Just 18.10 for an Adult Day Return (9.05 for Children aged 5-15), including your bus journey between the Hovercraft terminal and Portsmouth City Centre (or Gunwharf Quays). Buy your ticket from Shanklin ticket office or onboard the train.

Island Liner: A joint ticket for travel on the Island Line and the Isle of Wight Steam Railway. Just 16 for adults (8 for children aged 5-14), for a day's unlimited travel. Buy your ticket from Ryde Esplanade and Shanklin ticket offices, or on board the train. Only available on Steam Railway operating dates; visit the Isle of Wight Steam Railway website for details.

Day Ranger: Unlimited day travel on the Island Line for just 6.50 (3 for children) or take the family (2 adults, 3 children) for just 17! See everything the island has to offer!

Isle of Wight Steam Railway

A fantastic day out can be had at the Isle of WIght steam railway where you can enjoy a ride in restored Victorian and Edwardian carriages pulled by steam locomotives. The journey takes you on a five and half mile route from Wotton to Smallbrook junction. Young children(0-4 years) travel for free, children's tickets start at 5 and adults at 9.50. Tickets give a days unlimited travel.

Acknowledgements:
Nigel Dymock
Denver Todd (he and Nigel provided the seed to do this page)
Roger Templeton
Phil Marsh
The various videos listed below
Google Maps

Websites and other additional information sources of interest for the area:
https://www.youtube.com/watch?v=W1IO6xF_I5k&feature=youtu.be video by Rachael Matt/Train Plane Hub from 2015
https://www.youtube.com/watch?v=L5Zb5S9dPLY video by David Henderson from 2014 and 2017
https://www.youtube.com/watch?v=qAoPKpL0_jE narrated video by Andy Carter from 2016
https://en.wikipedia.org/wiki/Isle_of_Wight_Railway
https://www.iwsteamrailway.co.uk/
https://www.scenicrailbritain.com/lines/island-line
http://www.isleofwightholidays.com/isle_of_wight_trains.html


Getting Here

Getting to the Isle of Wight is fairly simple.  Your only real choice, unless you are a pilot, is to take the ferry or Hovercraft from the mainland.

The Hovercraft can be caught at Southsea.

Ferries to the Isle of Wight can be found at Portsmouth, Southampton, and Lymington.

In order to get to the Isle of Wight from London, passengers need to catch one of the regular trains to Portsmouth.  South Western Railway run the most direct service between Waterloo and Portsmouth Harbour, with most journeys only an hour and 40 minutes long.

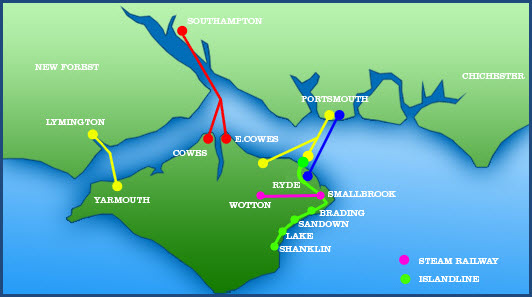

  Ferry options

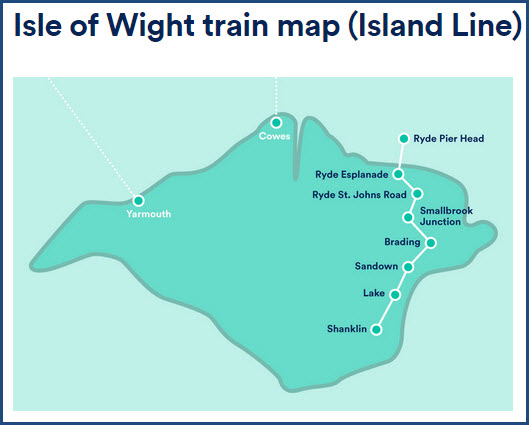

Map











Station by Station

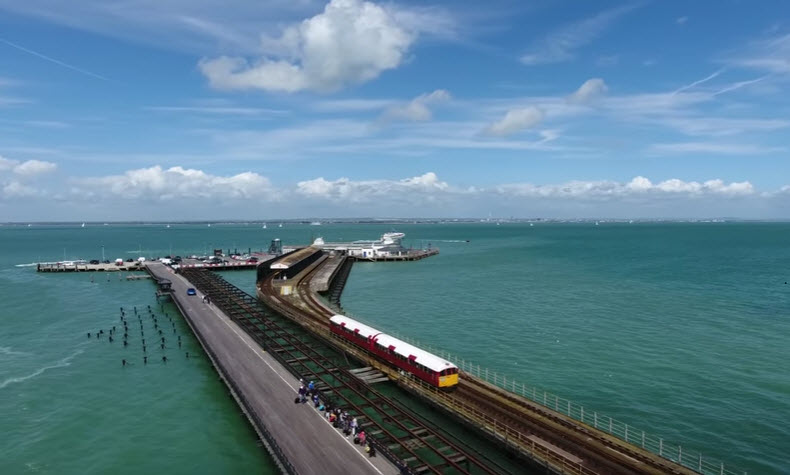

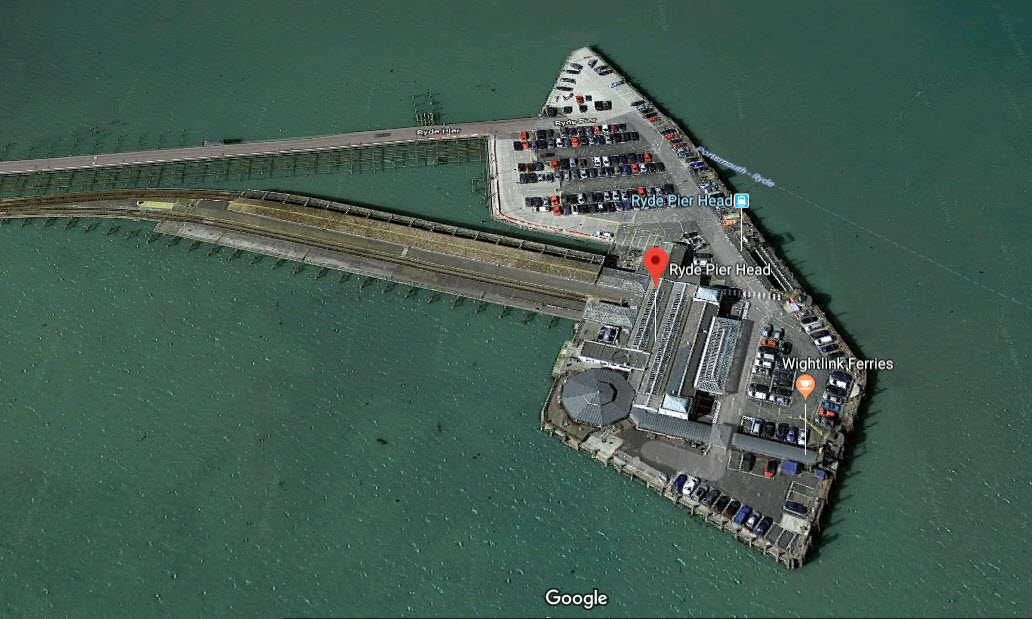

Ryde Pier Head

GPS Coordinates: 50.739131, -1.160327
At the end of the Ryde Pier.
Post: Ryde PO33 2HF, UK
Parking: yes-kinda, while waiting for the ferry (pay)
Double track at and leading up to the station.
This is the northern most station on the line, and connects with the ferries coming from the mainland.

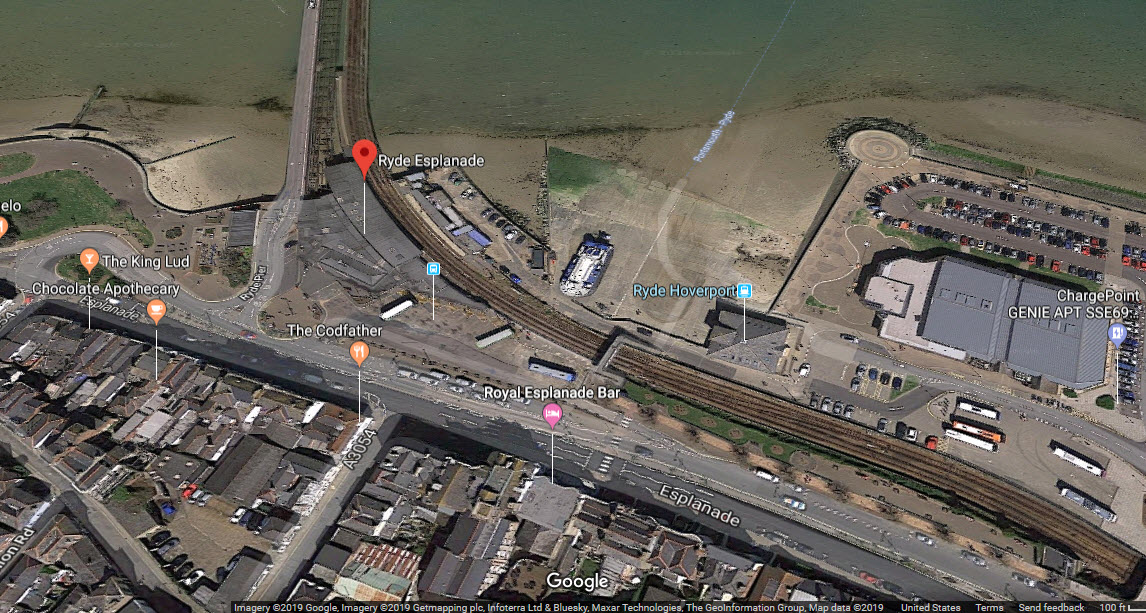

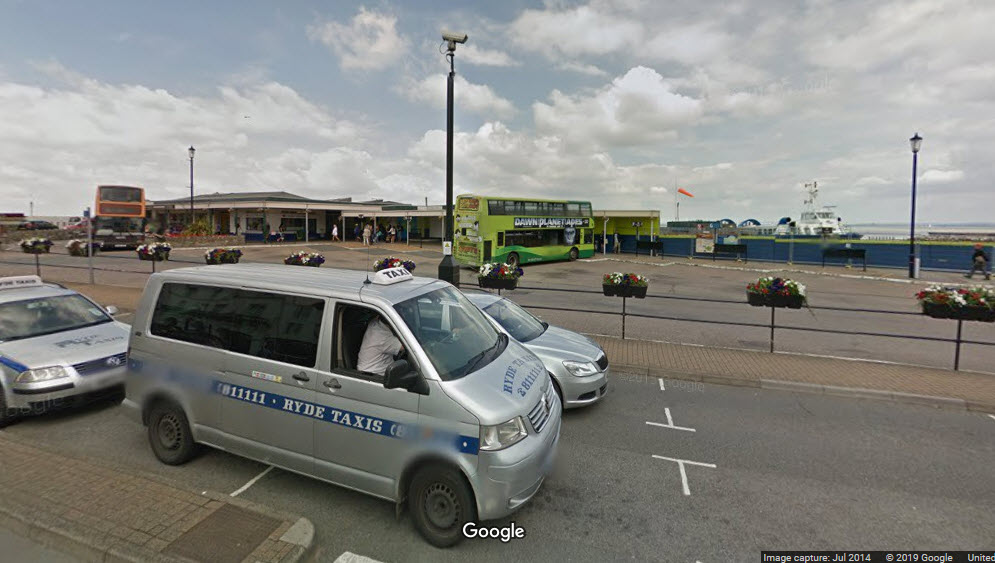

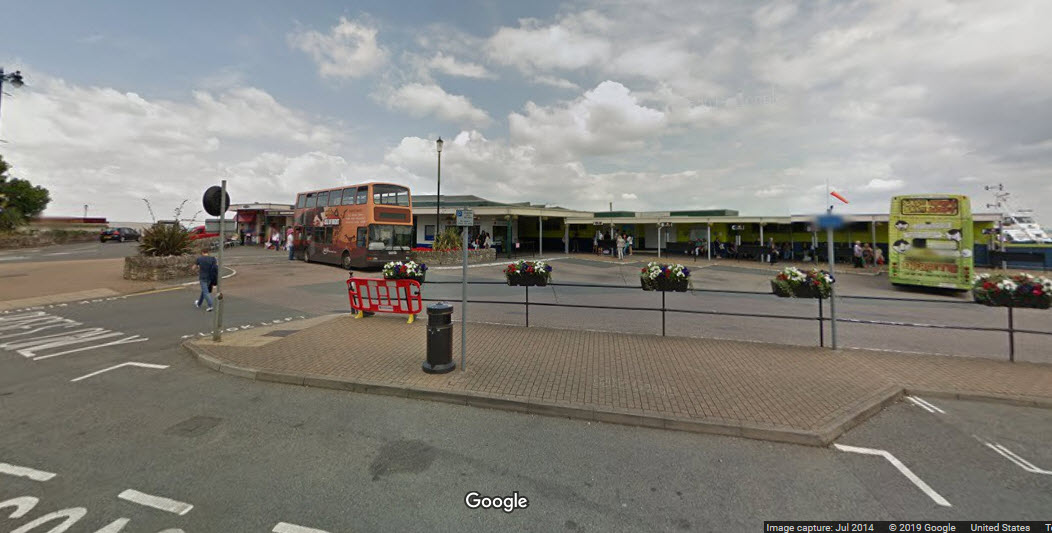

Ryde Esplanade

GPS Coordinates: 50.733031, -1.159786
Esplanade at Ryde Pier
Post: Ryde PO33 2HF, UK
Parking: yes
Double track thru the station.
The causeway to Rydes Pier Head starts here.
The Hoverport is also located adjacent to the station.
The facility is more like a Transportation Center than a station, for it is a main bus depot too.

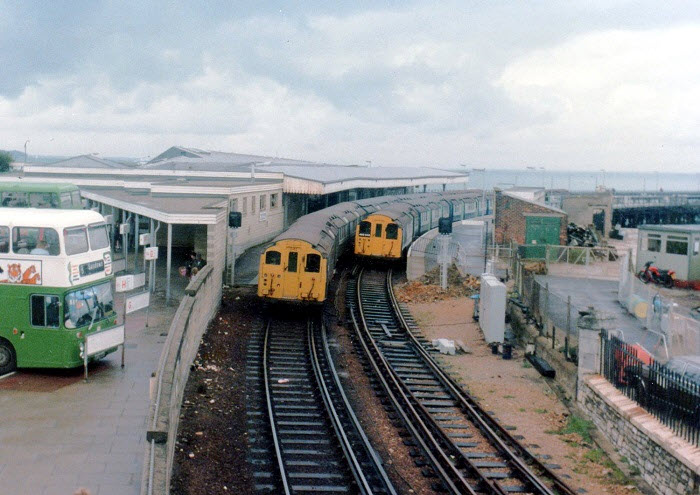

  photo by Phil Marsh, 1985

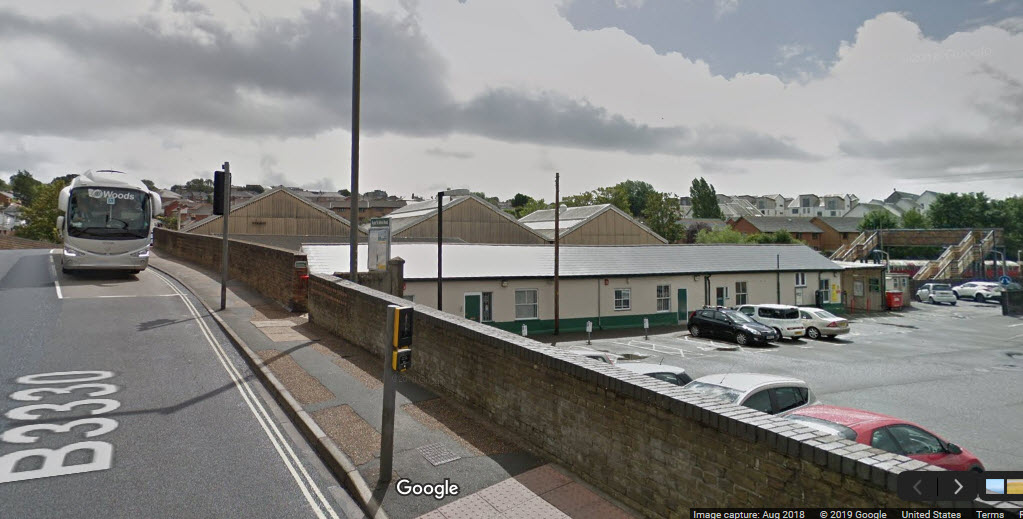

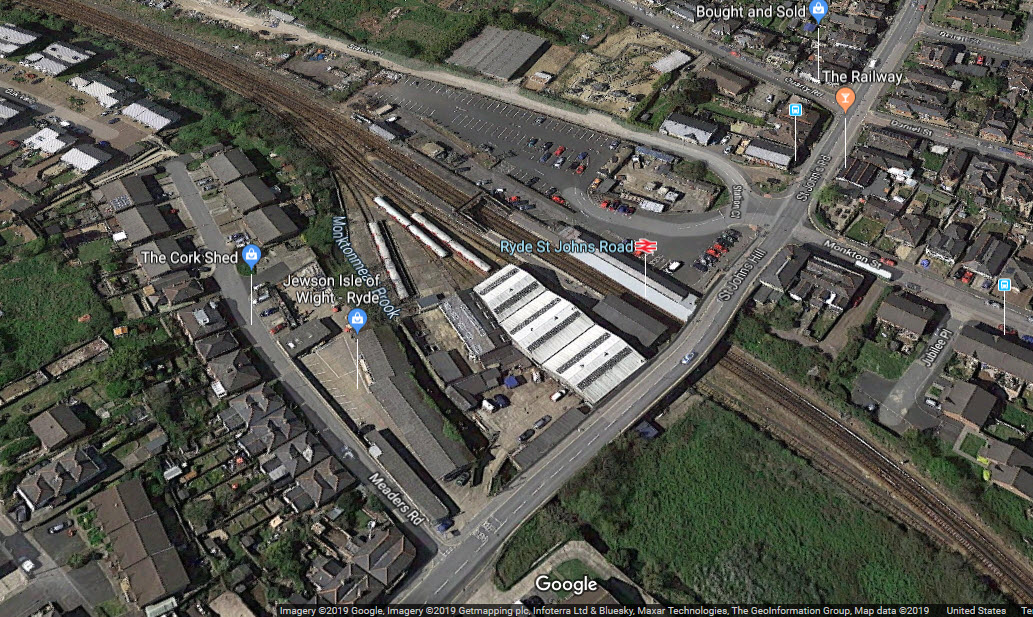

Ryse St John's Road

GPS Coordinates: 50.724305, -1.156712
St Johns Road at Monkton Street
Post: Ryde PO33 2BA, UK
Parking: yes
Double track thru the station.
The shops is co-located here.

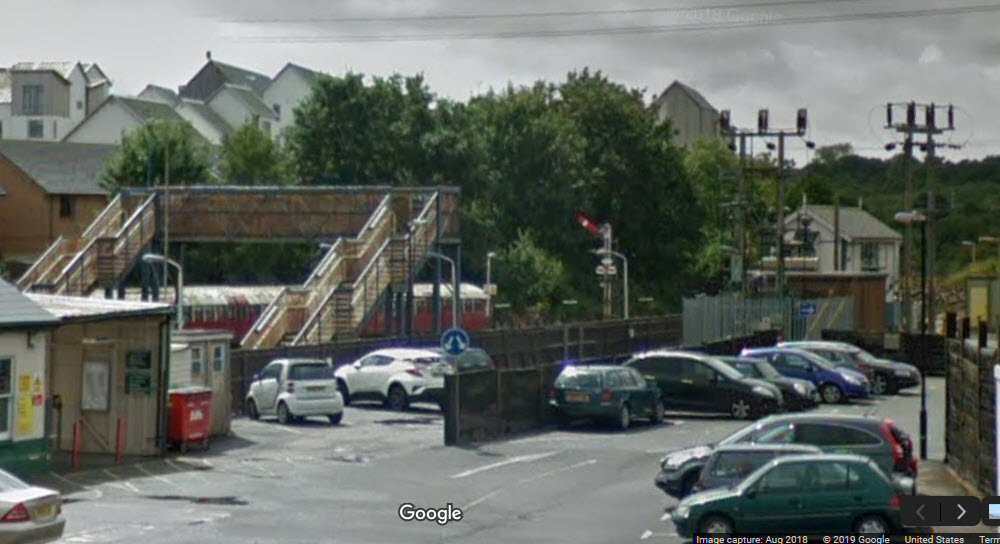

Operating semaphore at the south end of the station.

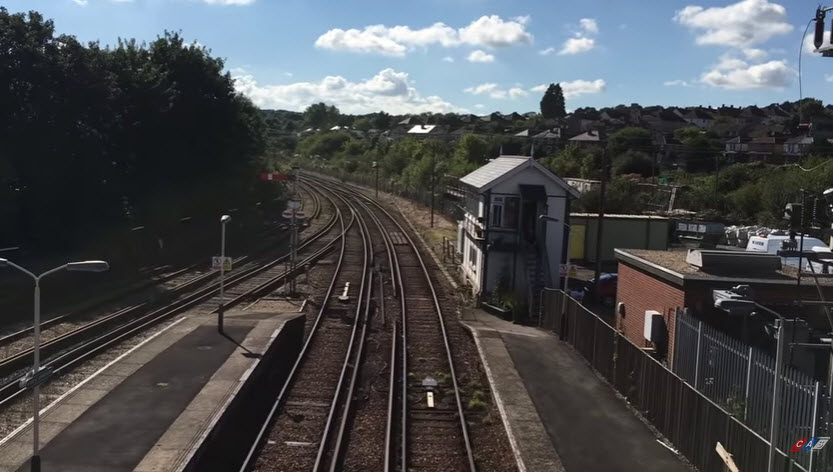

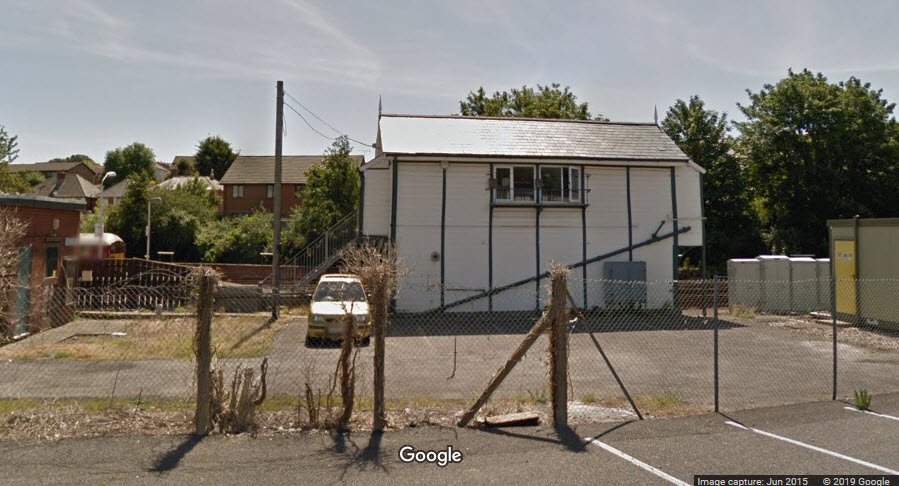

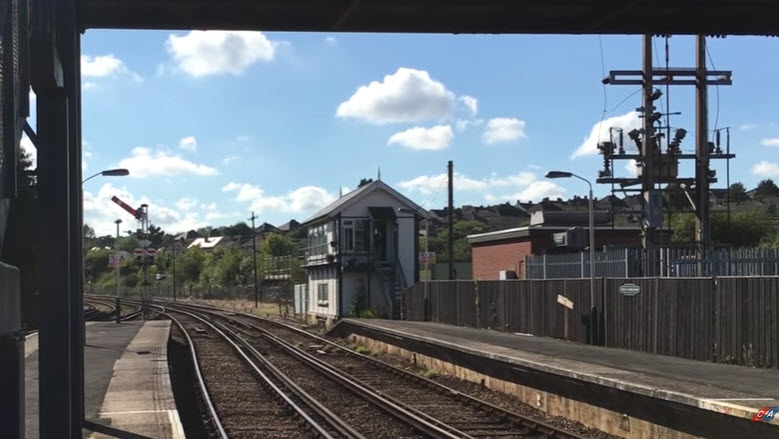

Cabin at the south of the station.







The only tower, or Cabin, is located at the south end of the interlocking here at St Johns.





  Notice the semaphore on your left!

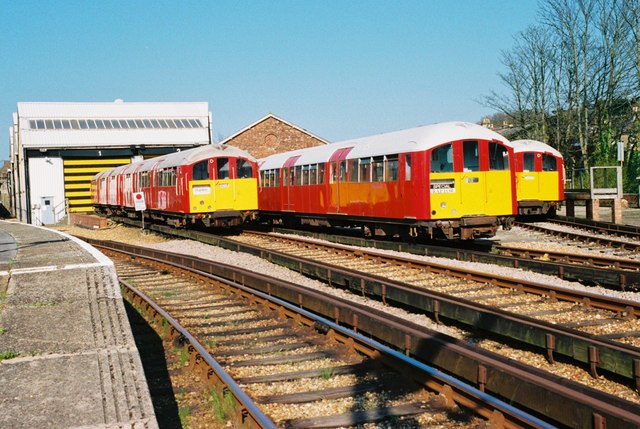

  Storage tracks and shops, photo by Roger Templeton.

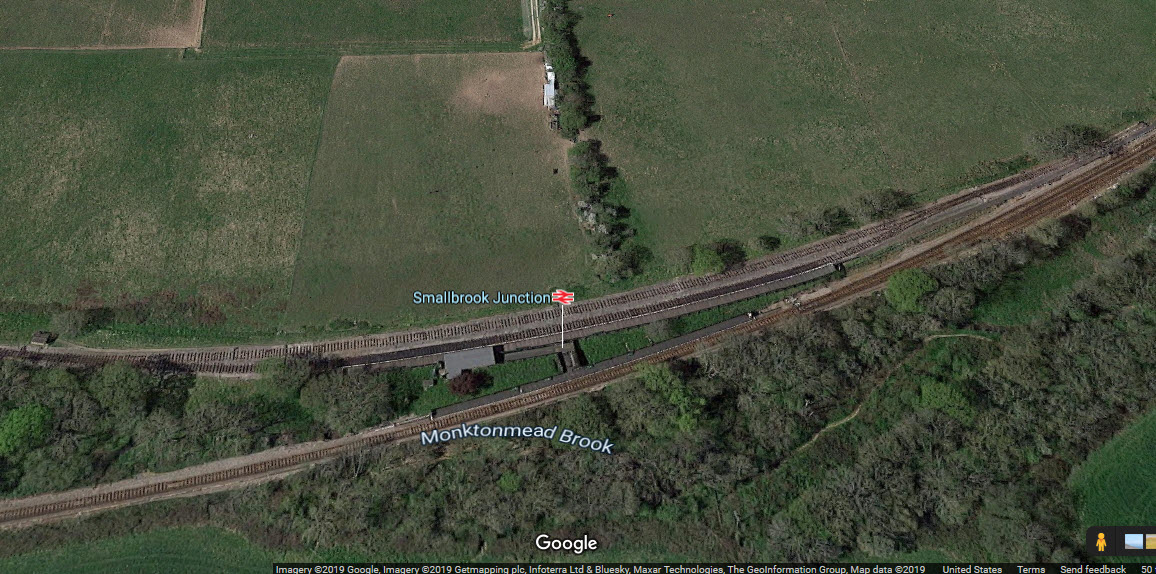

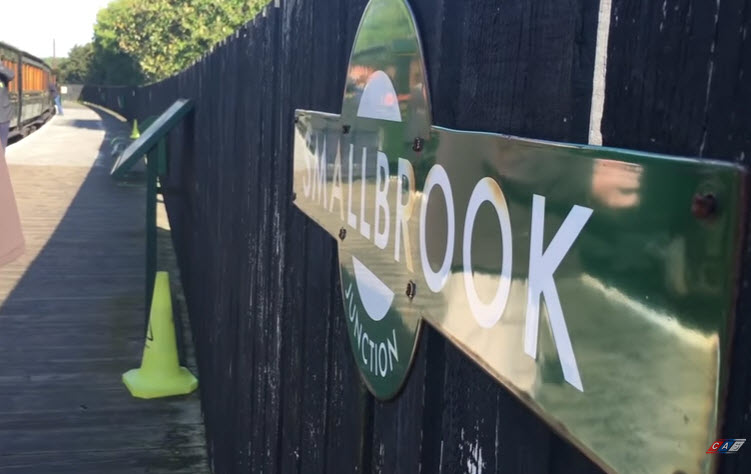

Smallbrook Junction

GPS Coordinates: 50.711385, -1.155039
NOTE: No street access
Post: Ryde PO33 4BE, UK
Parking: none
Single track thru the station, but go to double track just north of the station, for the remainder of the trip north.
Transfer to the Isle of Wight Steam Railway.
Station only active when the steam trains are running.
This is the newest station of the line, having been built I believe in 1987.

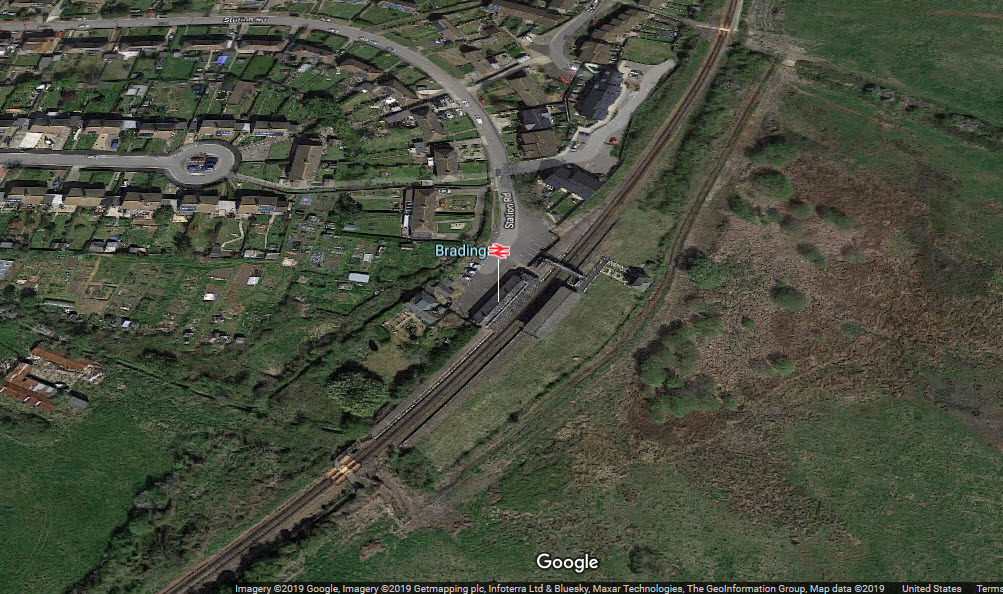

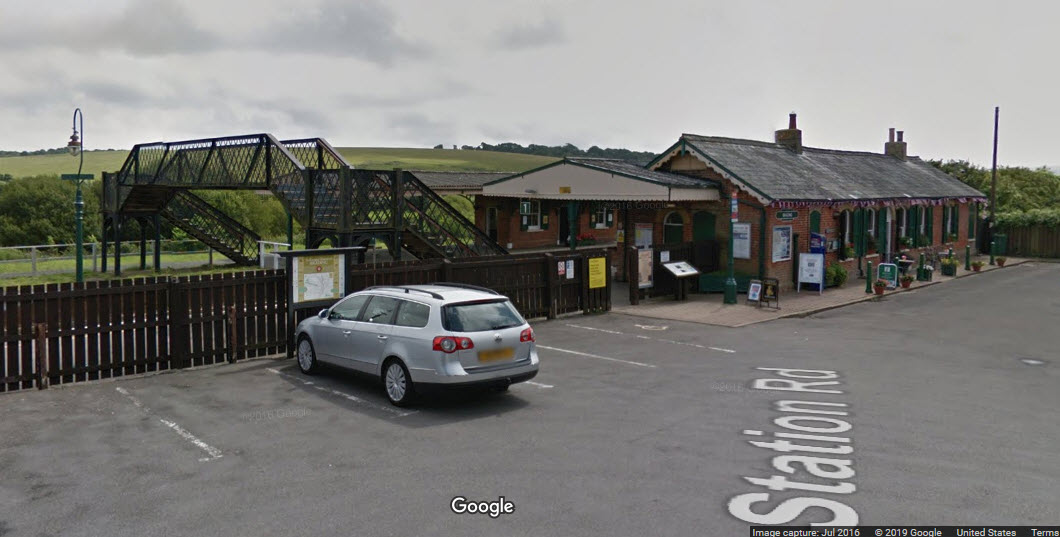

Brading

GPS Coordinates: 50.678372, -1.138658
Station Road
Post: Brading, Sandown PO36 0EB, UK
Parking: yes
Single track thru the station.

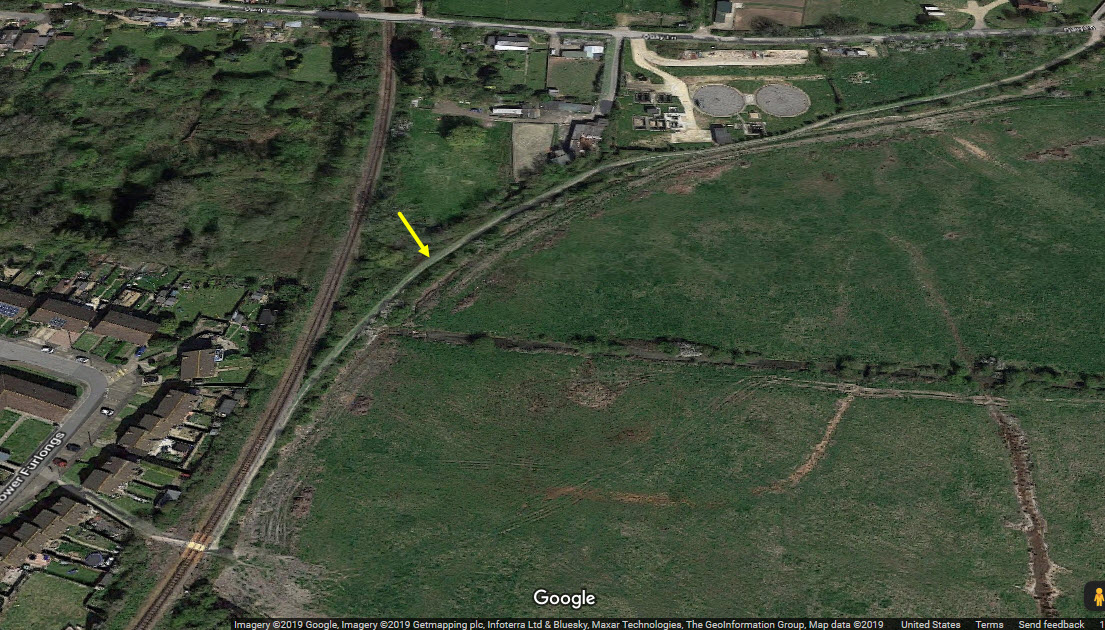

Former interchange for the branch to Helens Station and Bembridge.

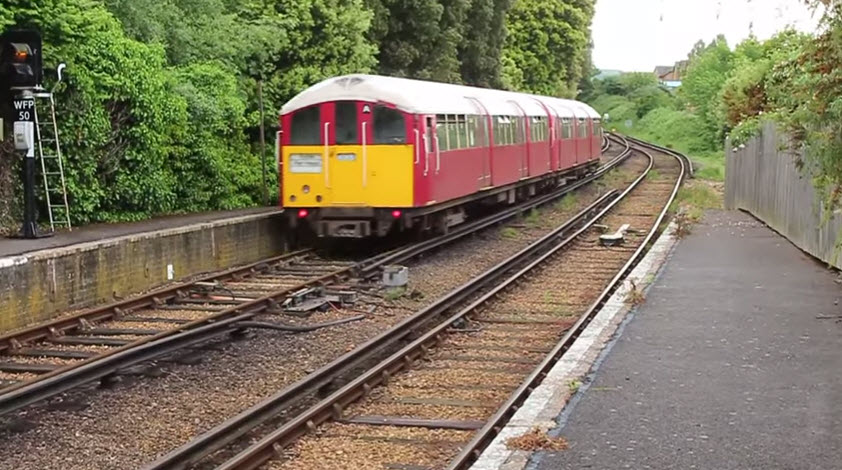

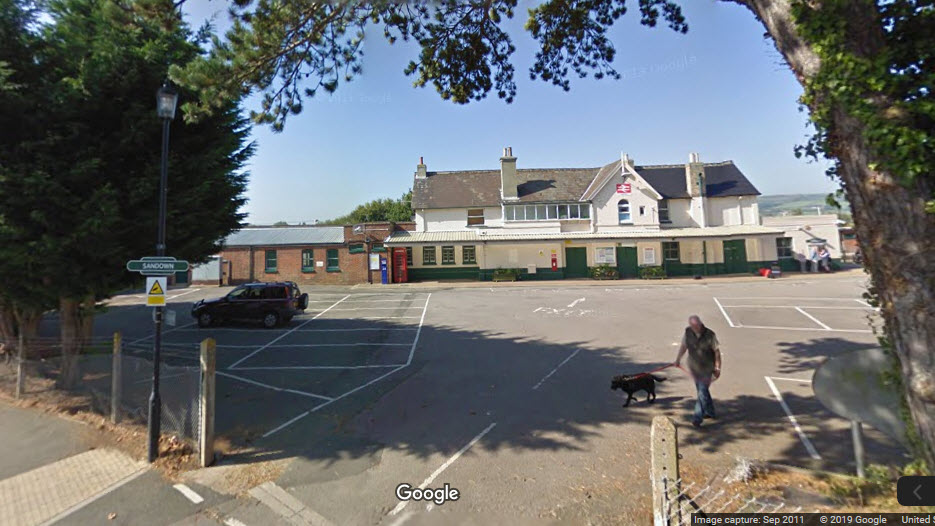

Sandown

GPS Coordinates: 50.656971, -1.162272
Simeon Path at Nunwell Street
Post: Sandown PO36 9FE, UK
Parking: yes
Double track thru the station, about 1,235 feet of it.

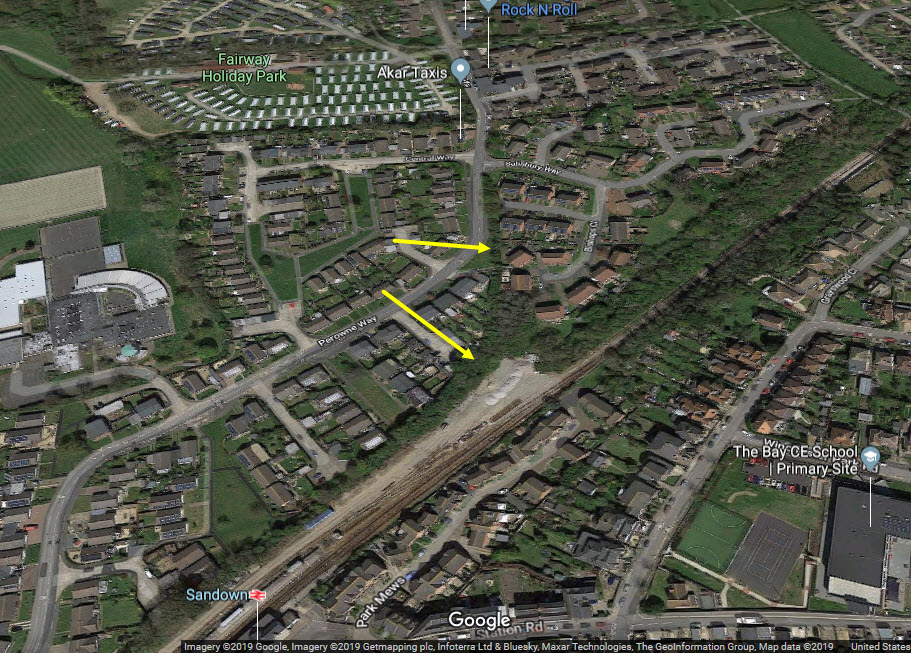

In the picture below, you can see where the line to Alverstone took off.  The extra trackwork here is probably part of the old interchange.

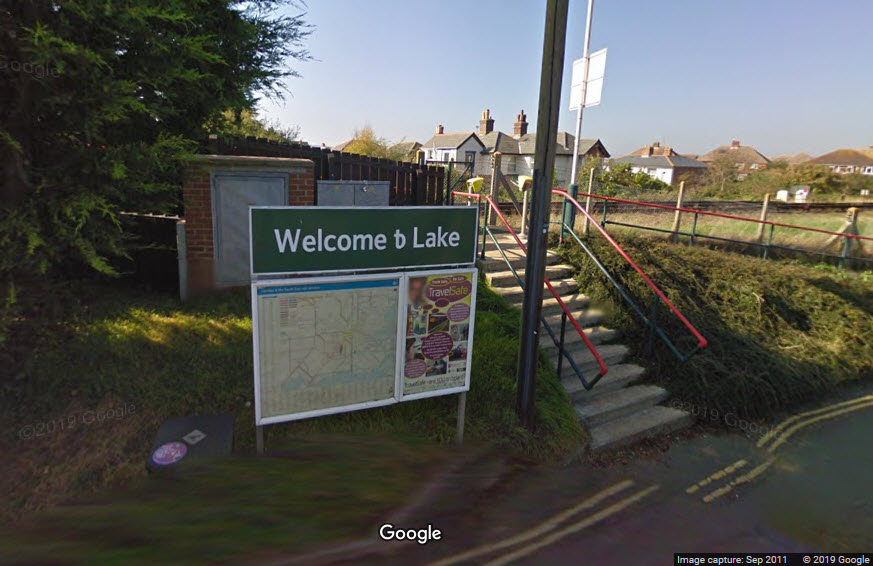

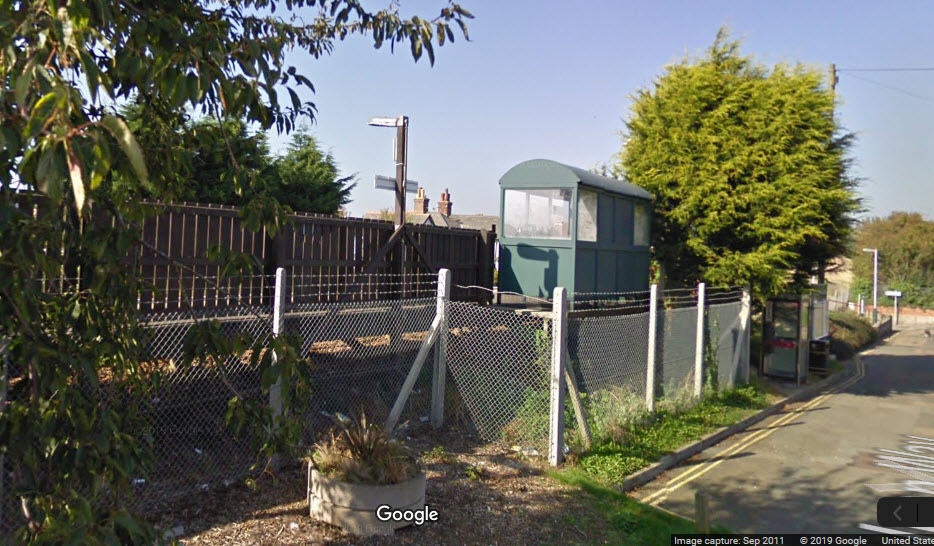

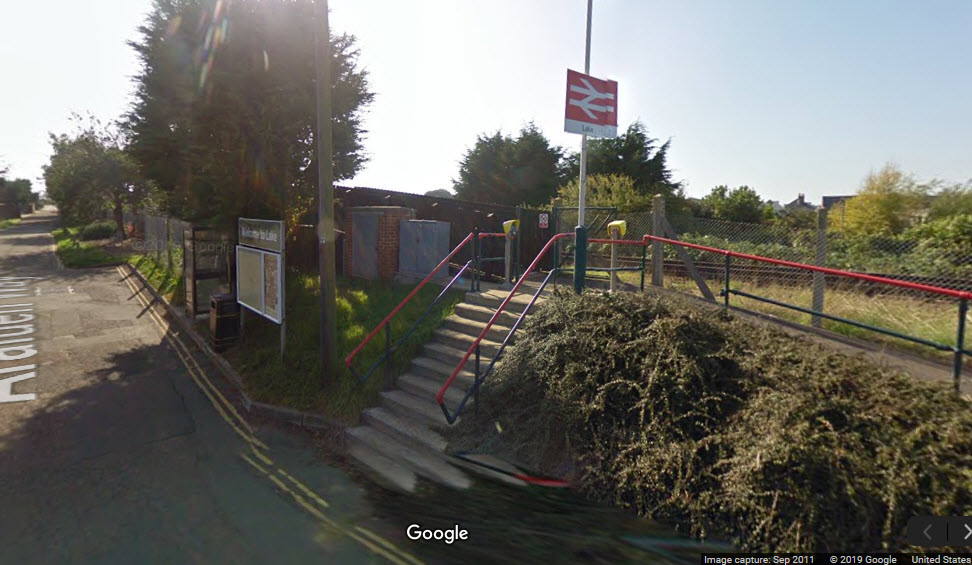

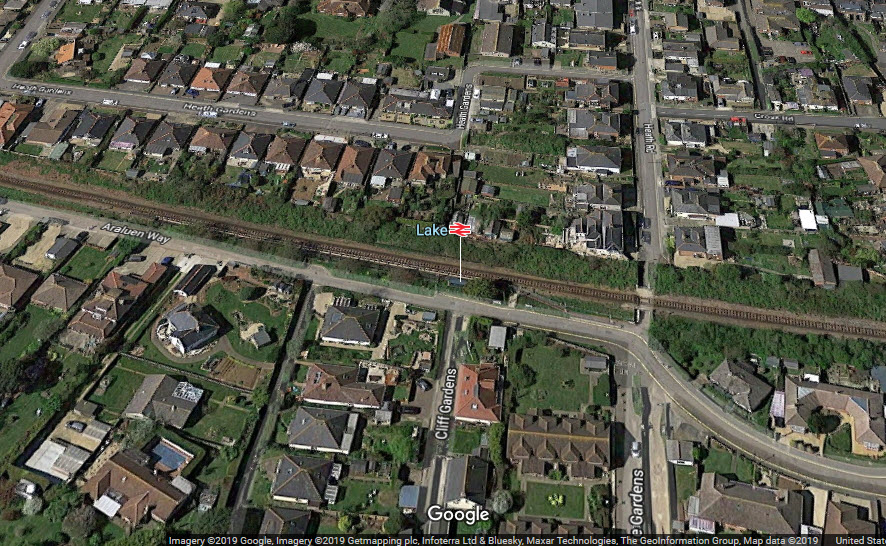

Lake

GPS Coordinates: 50.646440, -1.166319
Araluen Way at Cliff Gardens
Post: Sandown PO36 8PJ, UK
Parking: no
No formal station, only a single bus type shelter.
Single track here.

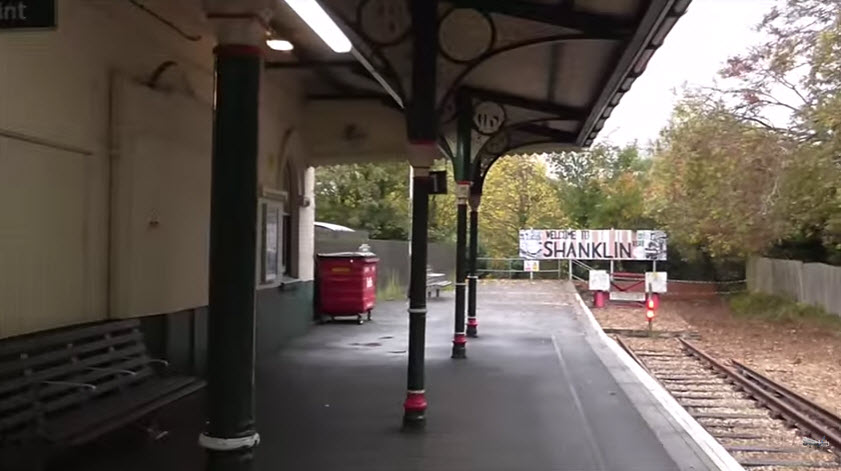

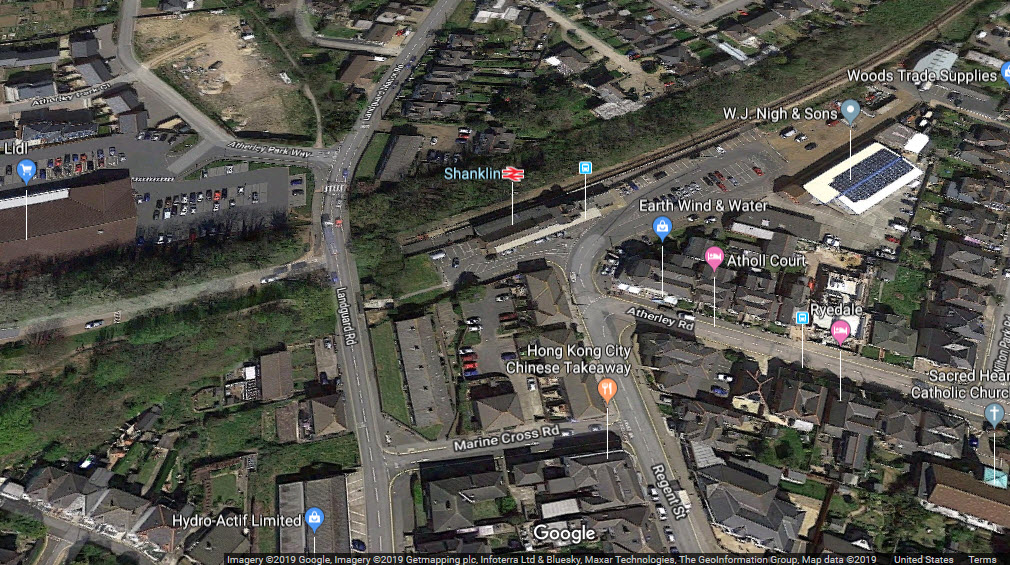

Shanklin

GPS Coordinates: 50.633775, -1.179915
Regent Road at Atherley Road
Post: Shanklin PO37 7AR, UK
Parking: yes
This is the southernmost station on the line. The tracks going beyond here were taken up years ago.
Single track here.

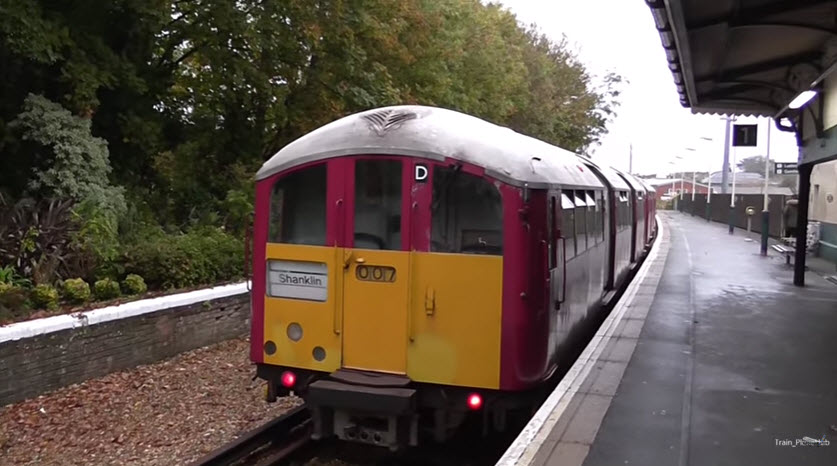

  End of the line



Bridges & Tunnels


The Ryde Pier Bridge

GPS Coordinates: 50.739131, -1.160327 (northern end)

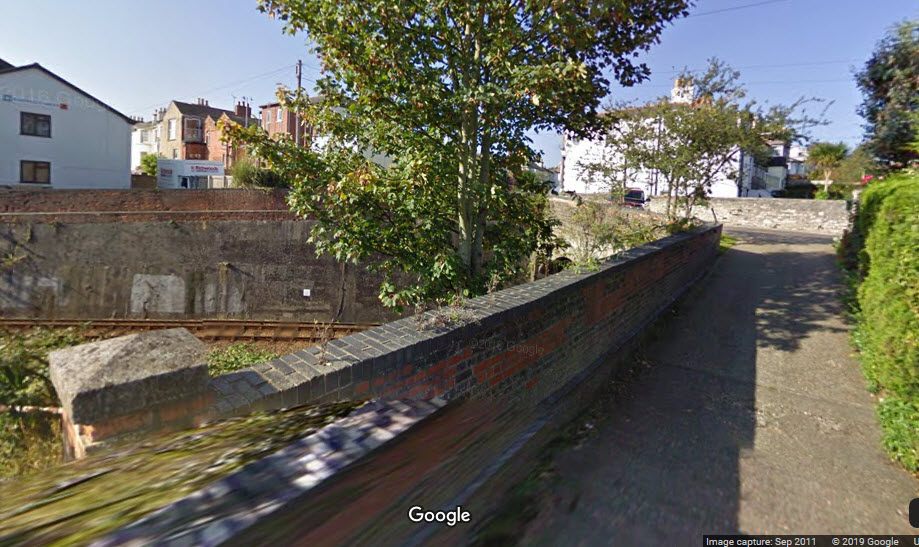

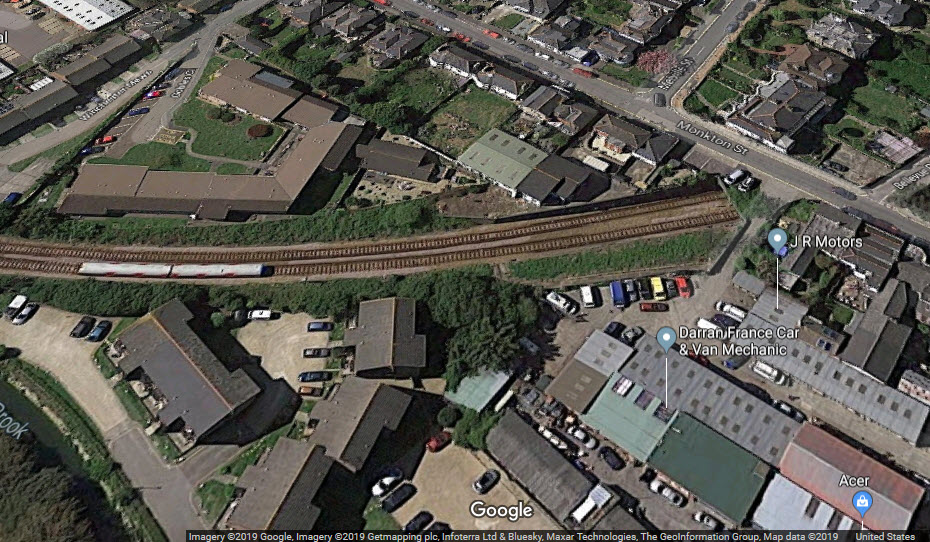

Tunnel

GPS Coordinates: 50.732013, -1.157191 (northern portal)
GPS Coordinates: 50.729374, -1.154396 (southern portal)

  Northern portal

  Southern portal

  Southern portal

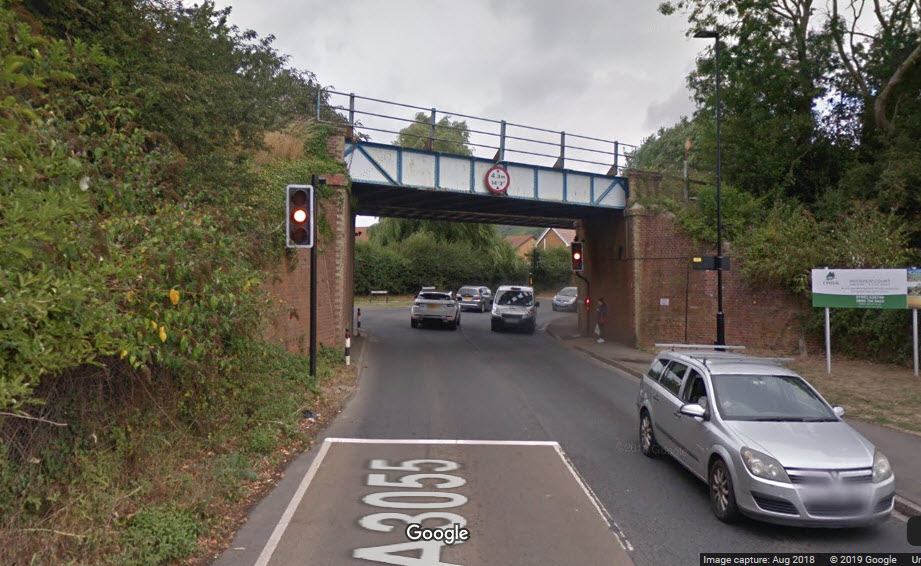

Girder Bridge over Avenue Road/A3055

GPS Coordinates: 50.663591, -1.152788





The unused girder bridge is on the Morton Commons side.





Girder Bridge over Lake Hill/A3055

GPS Coordinates: 50.650230, -1.165756





Signals

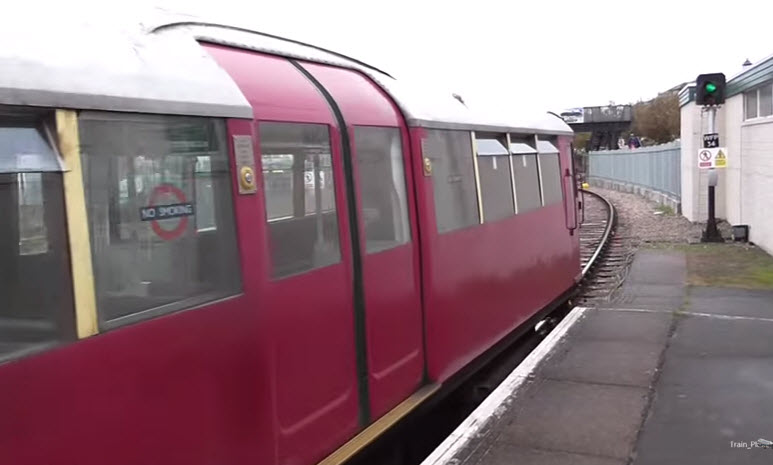

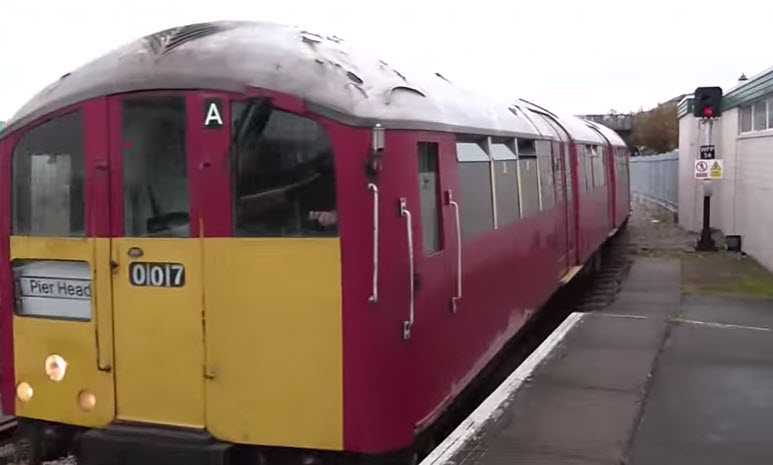

Near as I can tell, the line uses two aspect red/green signals.  I am basing this on one of the videos, where you can see a signal change as a train approaches the photographer.  Looks like the signal clears with the train passing the signal going away from it, giving us a clear as soon as the train gets out of the previous block.







Floobydust


Did U Know?

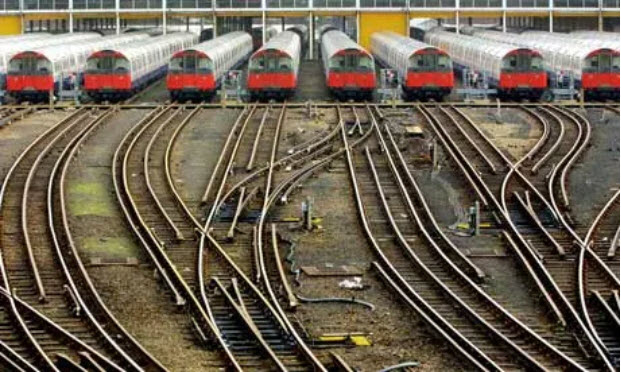

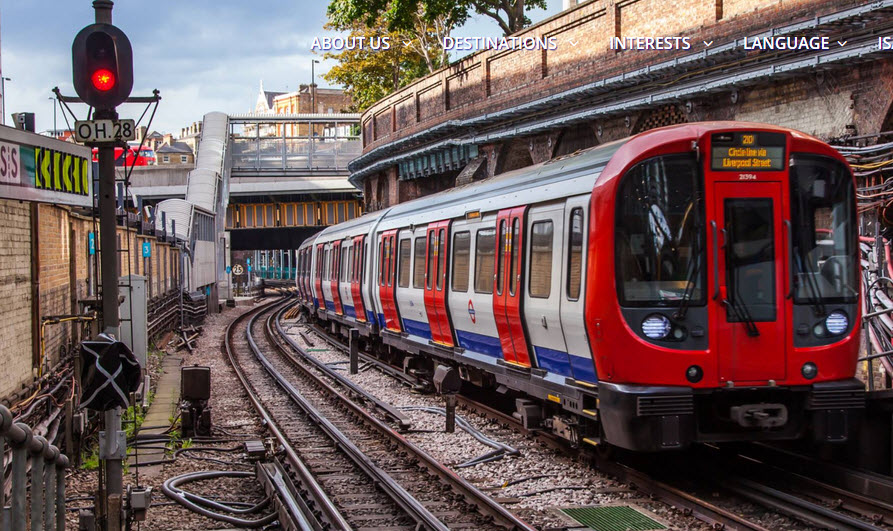

The London Underground trains use a four rail system, compared to the Island Line, and most other subway/metro systems.  The forth rail is used as a power return instead of relying on the running rails for the return.  Originally, it was used to help keep the voltage drop to 7 volts in each section.  This was intended to reduce problems caused by stray currents causing electrolysis affecting utility pipes and cables
