Location / Name:
Downtown Houston TX, Harris County

What's Here:
Tower 26:
    Diamond Crossing
    3 Interchange Tracks
    Extensive Signaling

GPS Coordinates: 29.774775, -95.346123
Phone A/C: 713
ZIP: 77026

Access by train/transit:

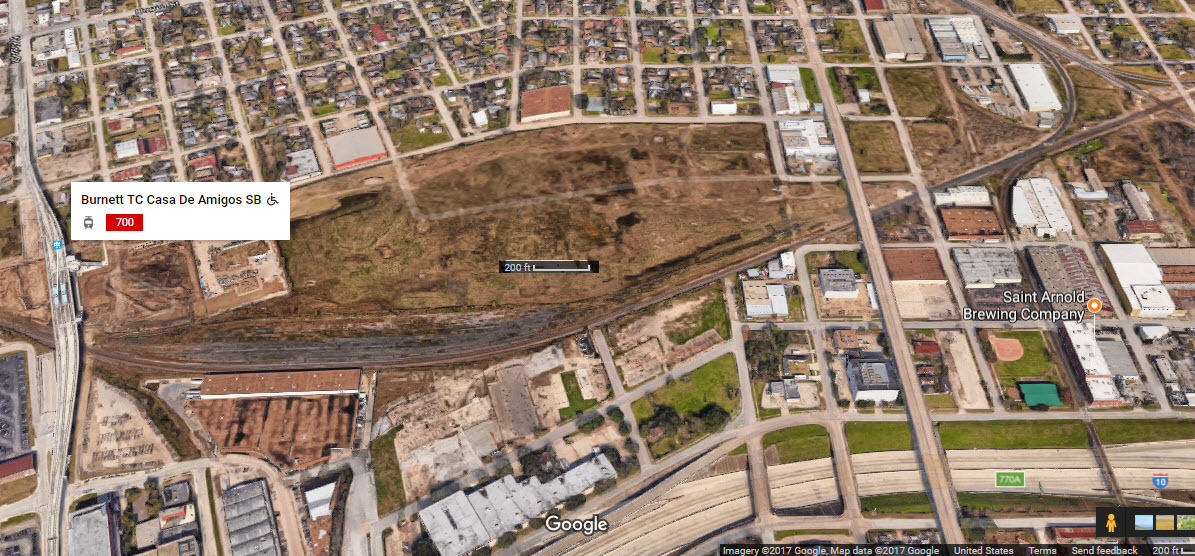

The MetroRail Red Line Burnett TC station is about a 3/4 mile walk from the diamond.

The Scoop:

The Tower 26 area is rich in history.  Back in the early part of the 1900's, there were three towers doing their part to protect this complicated interlocking: 25, 26, and 207.  Tower 26 became the major player when it took over the operations of 25 and 207.  Both Towers 25 and 26 began operations in September of 1903.  Tower 26 was relocated in 1927 - it took over the operations of Tower 25, and Tower 25 was decommissioned.  Tower 26 was rebuilt in 1959.  Tower 26 assumed the operation of Tower 71 in 1930, Tower 210 in 1961, Tower 13 in 1966, and possibly Tower 207 in the 60's.  Tower 26 was taken out of service and came down on Nov 10th, 2001.

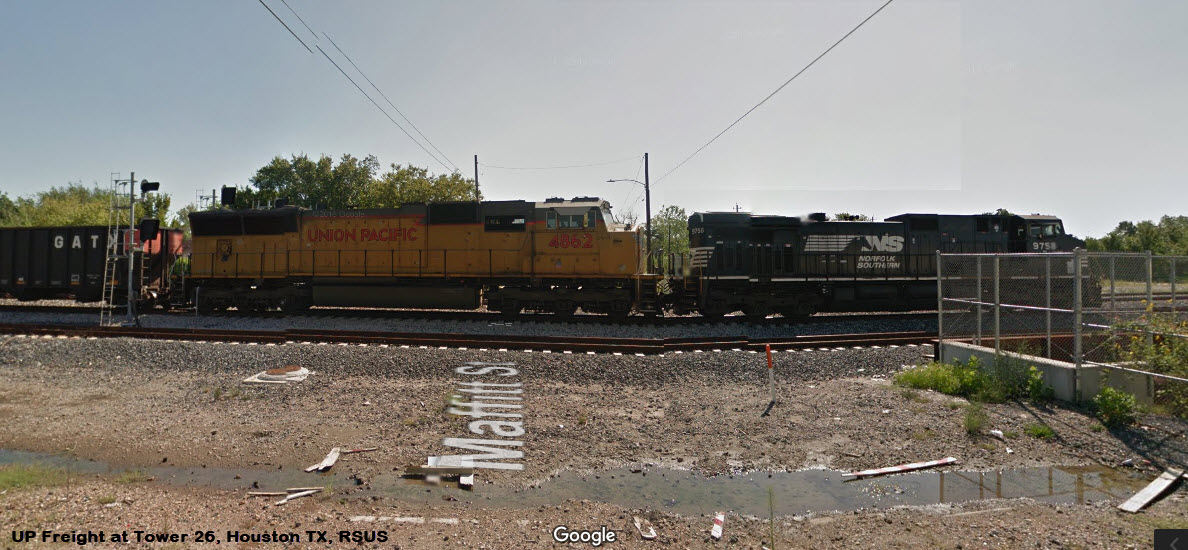

What will you will see here?.... although the tracks are owned by the Union Pacific, you will also see BNSF, KCS, and Amtrak rolling thru.

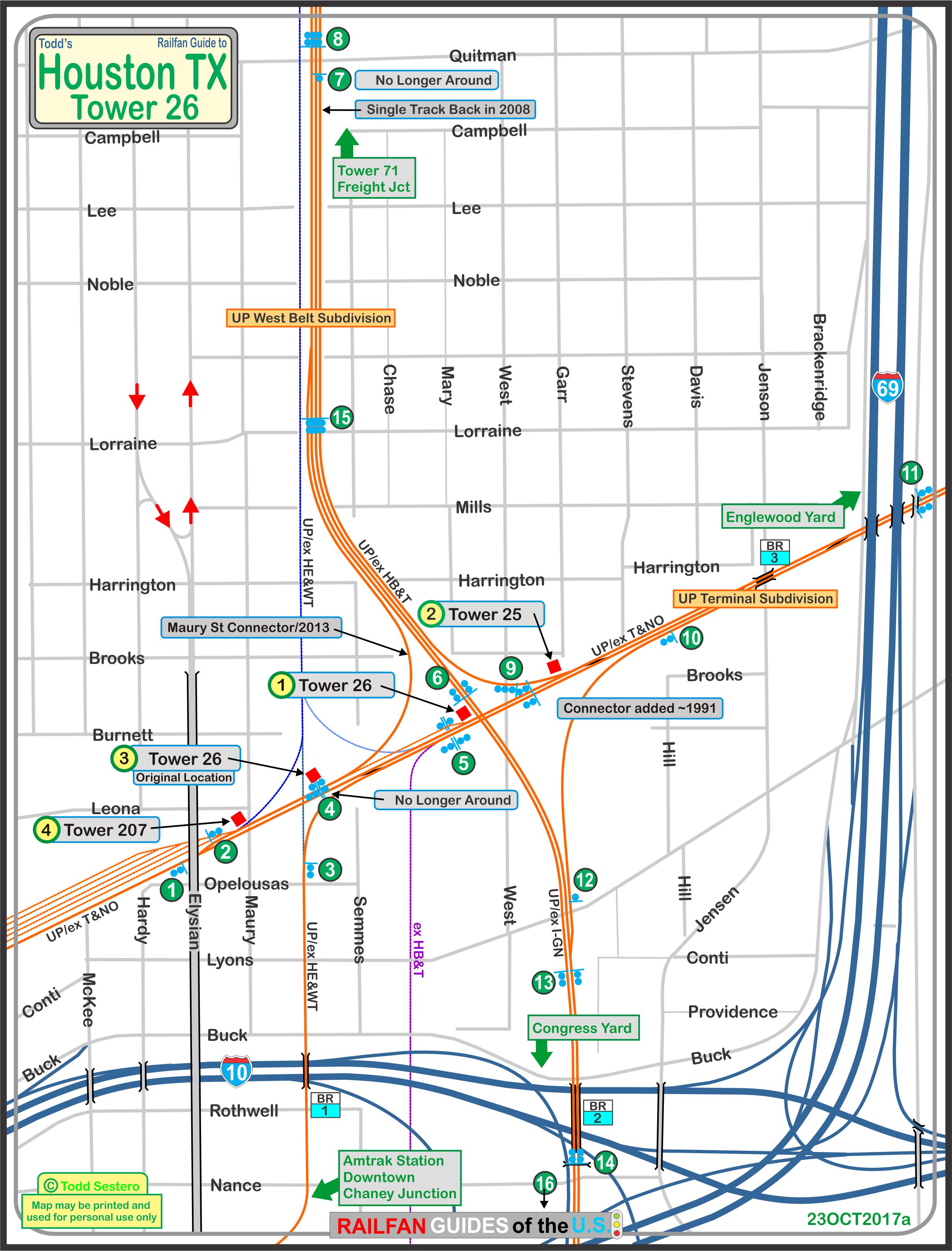

As far as I can guess, the whole interlocking was upgraded and resignaled around 2013/2014.  A new connector was added, going from the north to the west, and the north to east connector was given its own track past Quitman.  The ex HE&WT trackage (in blue) was removed in its entirety.

It is tough to get pictures from any one spot of all of the action going on here because of the distances involved, I found this out when I visited in 1998 and again in 2007.

According to the DOT crossing reports (below), there are approximately 20+ trains a day going north-south on the West Belt Sub, including the Amtrak trains, and around 70+ trains a day on the east-west Terminal Sub, 40 of which are thru trains.  These numbers do not include trains traversing the east-south connector.  Trains are limited to 30MPH E/W and 20MPH N/S.

Safety:  Use caution, not the best neighborhoods, railfan with a buddy or two.

Bonus:  The Burnett TC has a pocket track!

Texas Railroad History
Jersey Mike
Denver Todd
Kenneth L. Anthony
Joe R. Thompson/Railroad and Heritage Museum
John W Barriger III National Railroad Library

Websites and other additional information sources of interest for the area:

Getting Here

From I-10 WB, take exit 769B after the junction with I-69, this is for San Jacinto St/Main St.  This exit will put you on Providence St.  Get over to your right as quickly as you can, and take a right onto Walnut St.  Take another right onto Conti St in a block, and this will take you into the west side of the interlocking.

From I-10 EB, take exit 770B for Jenson Dr/Meadow St/Gregg St.  The first street is Jenson Dr.

If you are northbound on I-69, take the exit for Lyons Ave/Quitman St, just after the junction with I-10.  Take a left onto either of those streets.
SB on I-69?, you have an exit for the same two streets, although it appears that Quitman will be behind you once you exit.

If you go straight on Providence, it will take you to Main St, where you will find the Light Rail running.  If you decide to visit by light rail and make the 3/4 mile trek, make sure there are at least two of you!

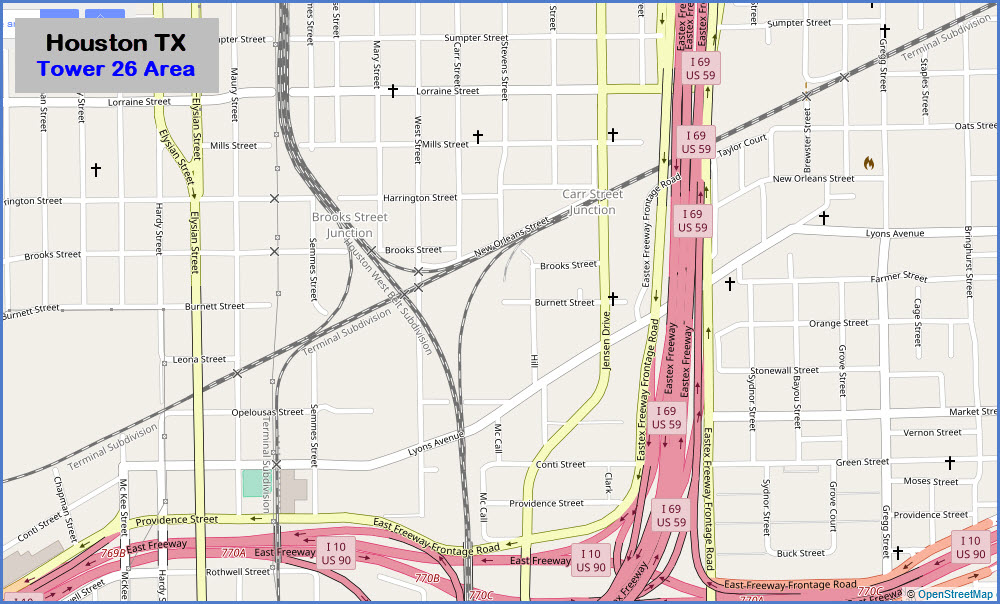

the above map in PDF format is here

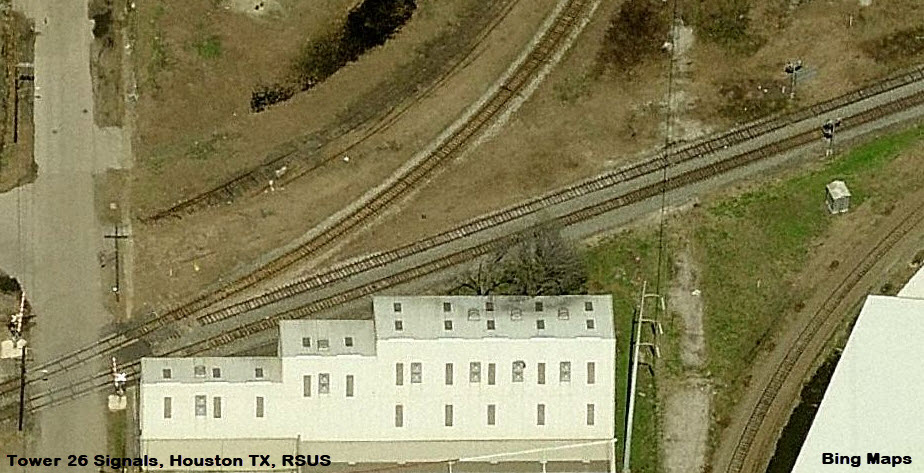

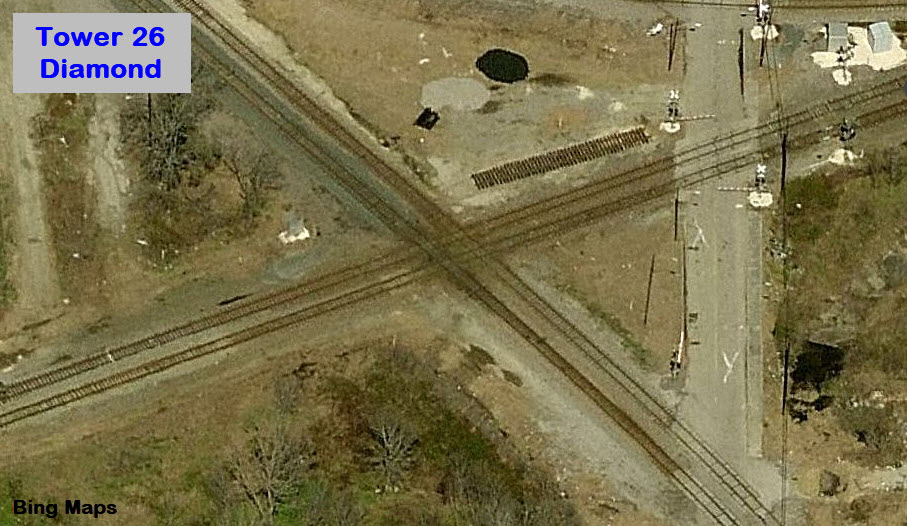

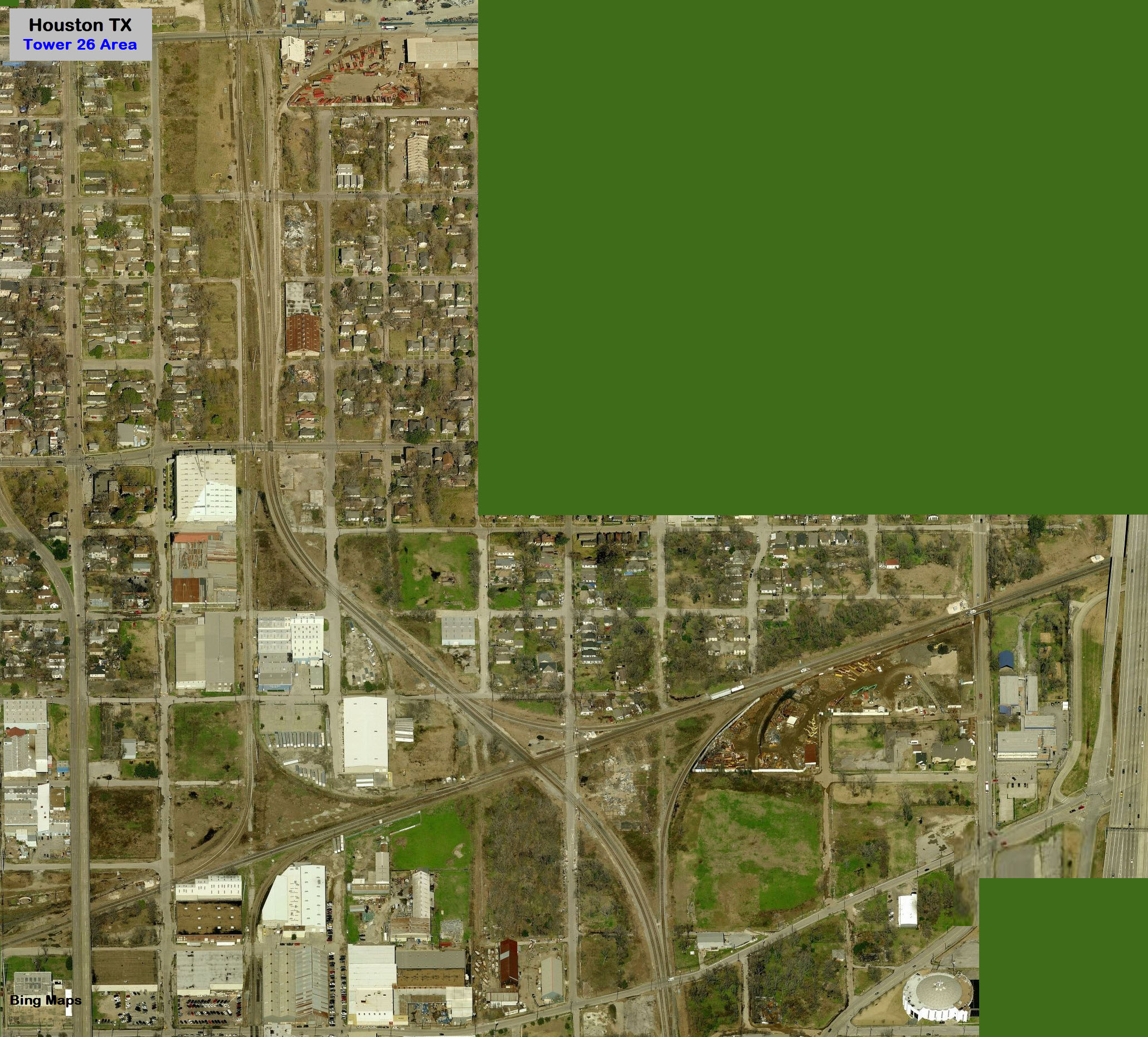

The aerial view from Bing below shows the interlocking before Union Pacific upgraded the track and signals.

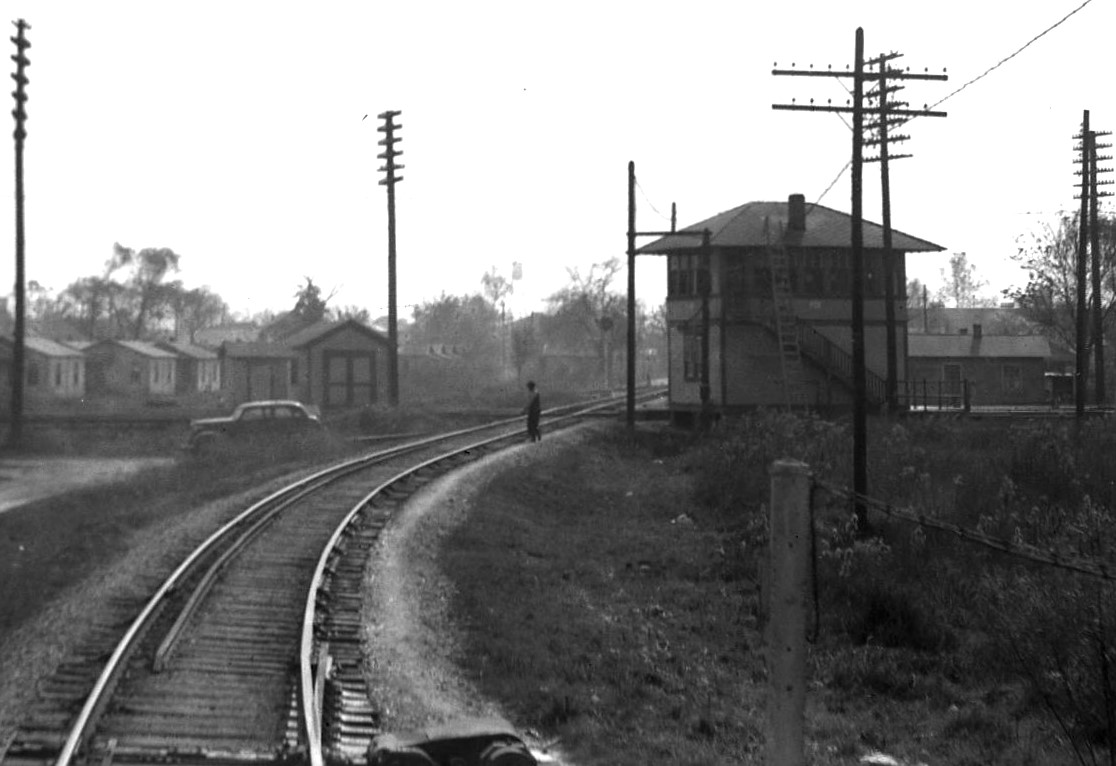

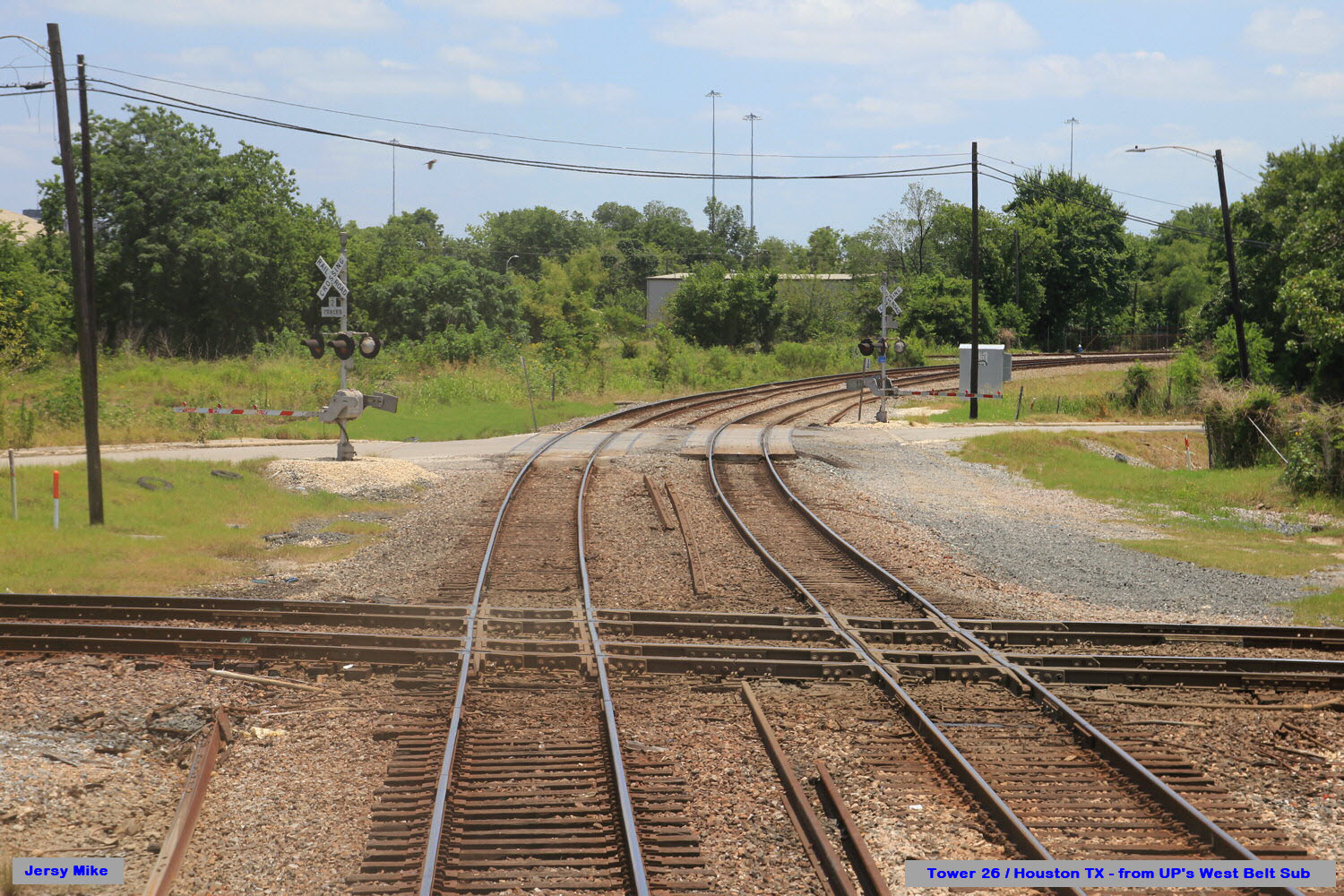

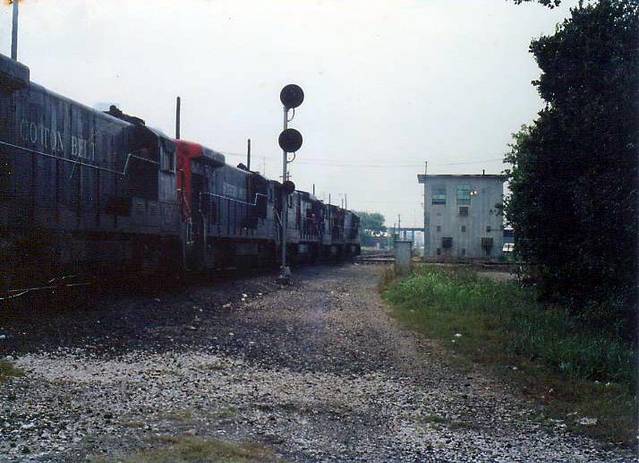

  Tower 26 and the Diamond

  Jersey Mike

  Jersey Mike

  Joe Thompson/TxRRHistory

  National RR Library/TxRRHistory

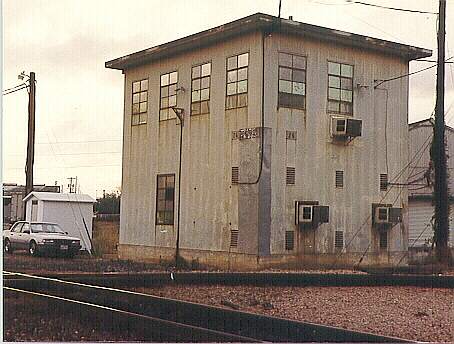

  Paul Fafrak/TxRRHistory

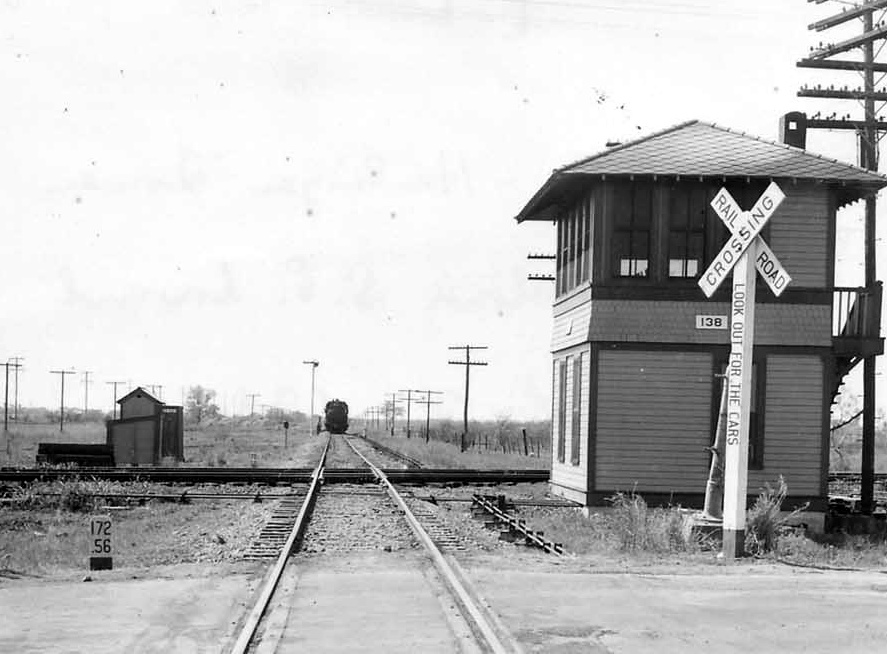

  Picture of Tower 138 shows the similar design of SP towers/TxRRHistory


Need pictures

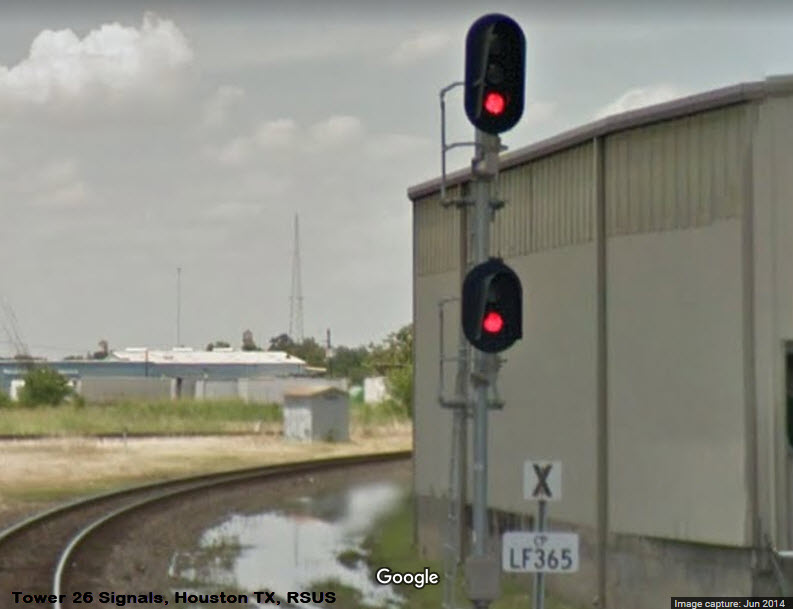

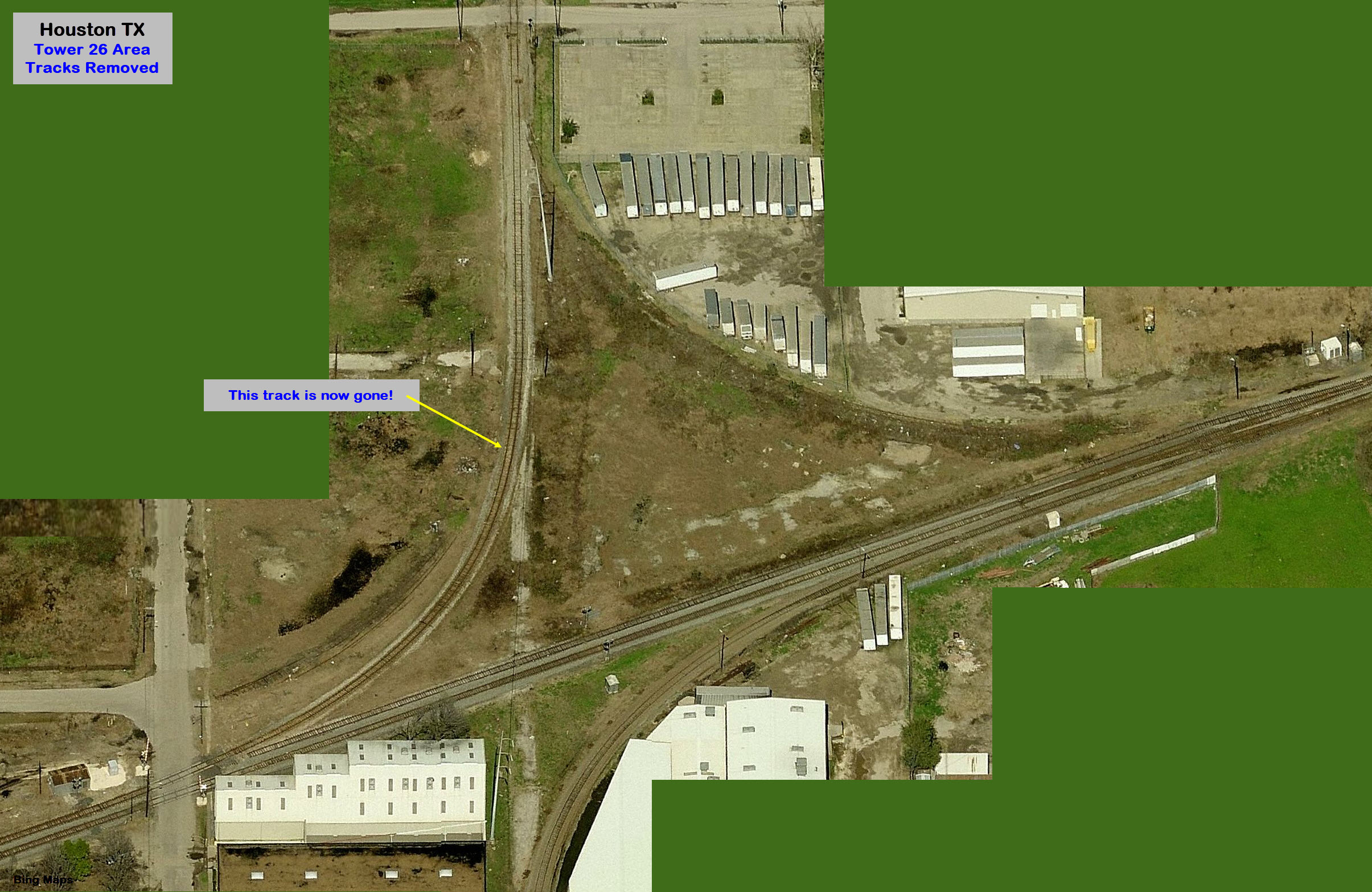

The picture below is before Union Pacific upgraded the signals at Tower 26.  Need current pictures.

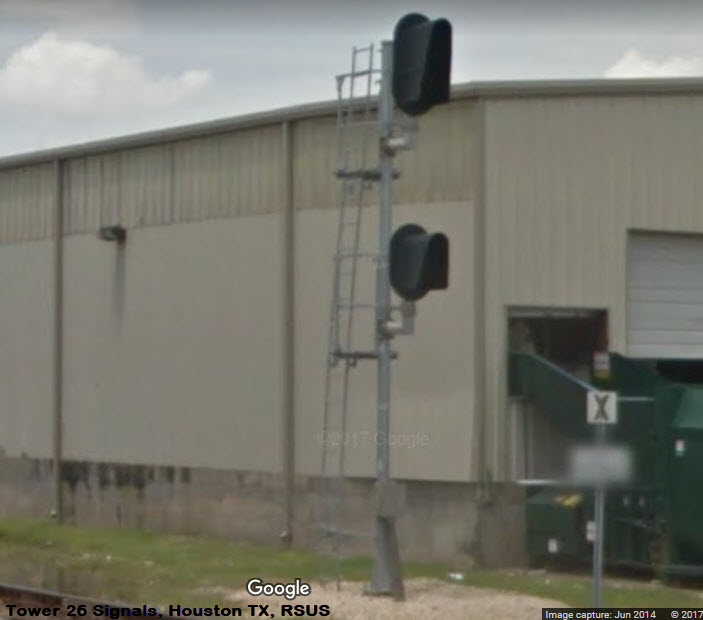

The signals in this picture no longer exist, they may have been left over from the diamond that was taken out in the late 60's.
These signals only show up on Bings birds eye view.

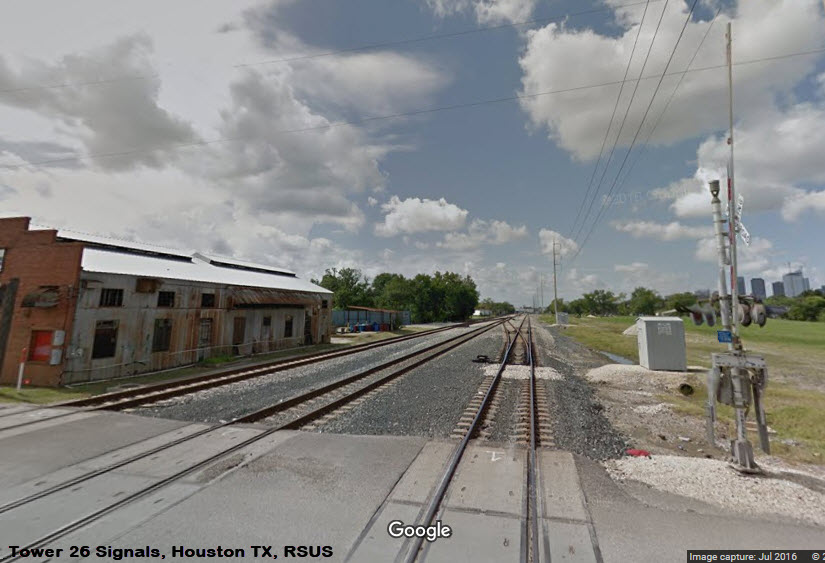

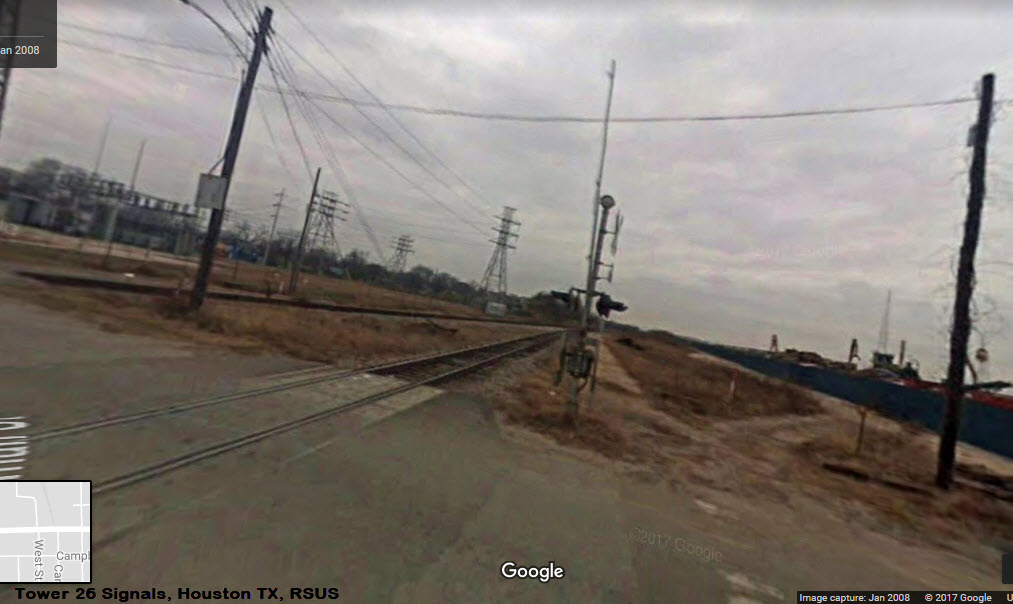

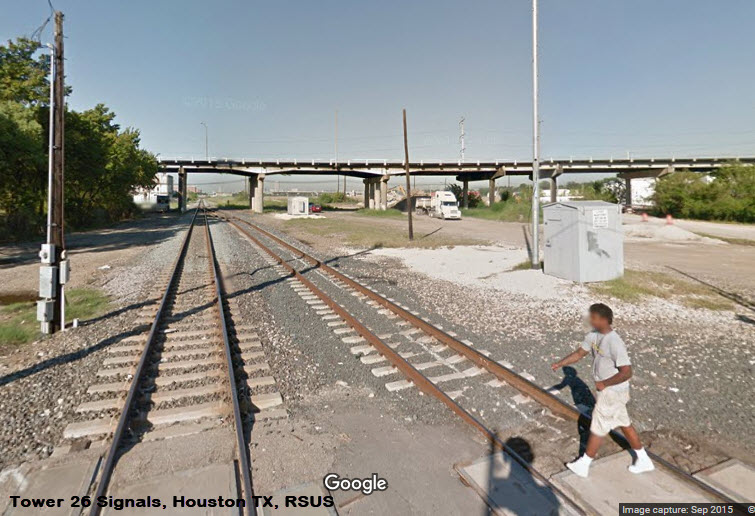

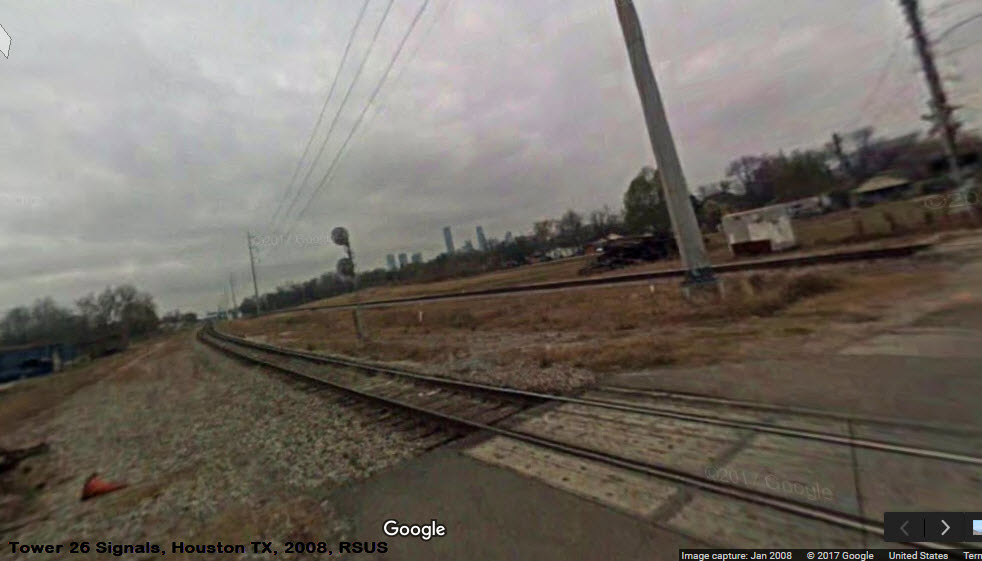

We are lucky once again that Google and Bing don't clean off their servers as much as they would like.  This shot of the crossing at Quitman looking south shows the single track that that used to be here along with a lone searchlight type NB signal and the T&NO track on the other side of the pole line.

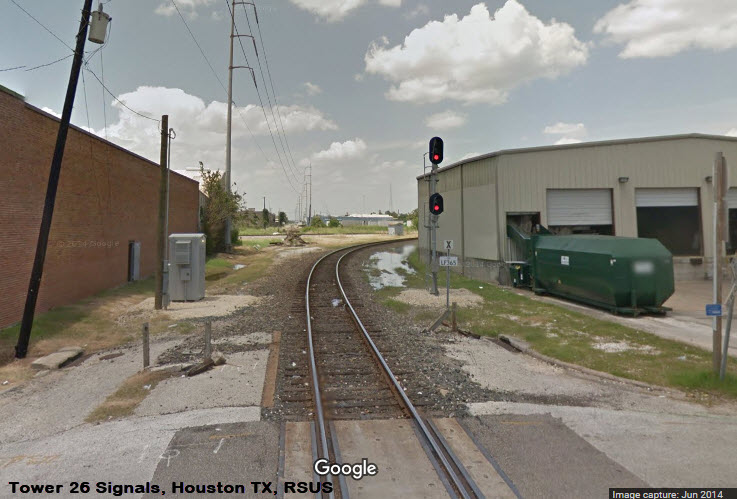

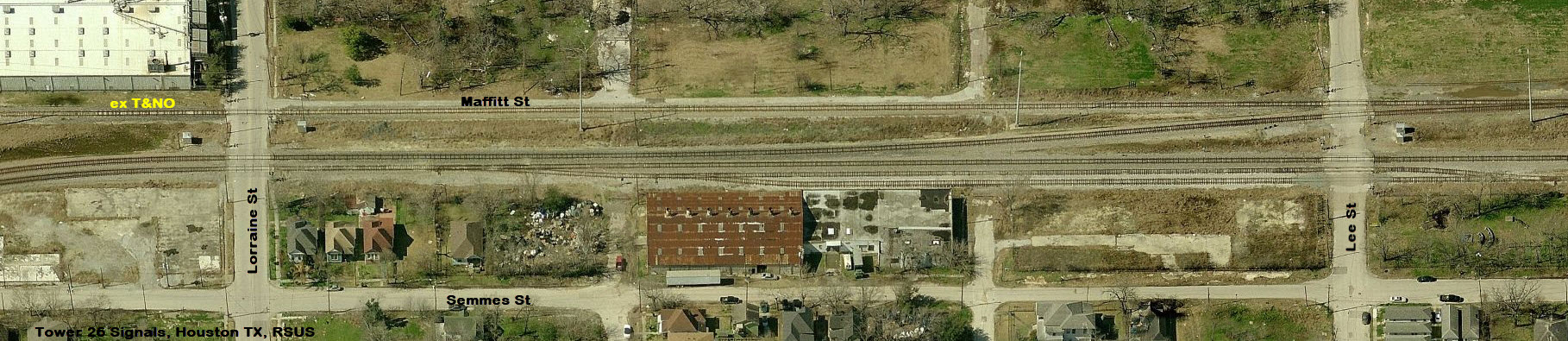

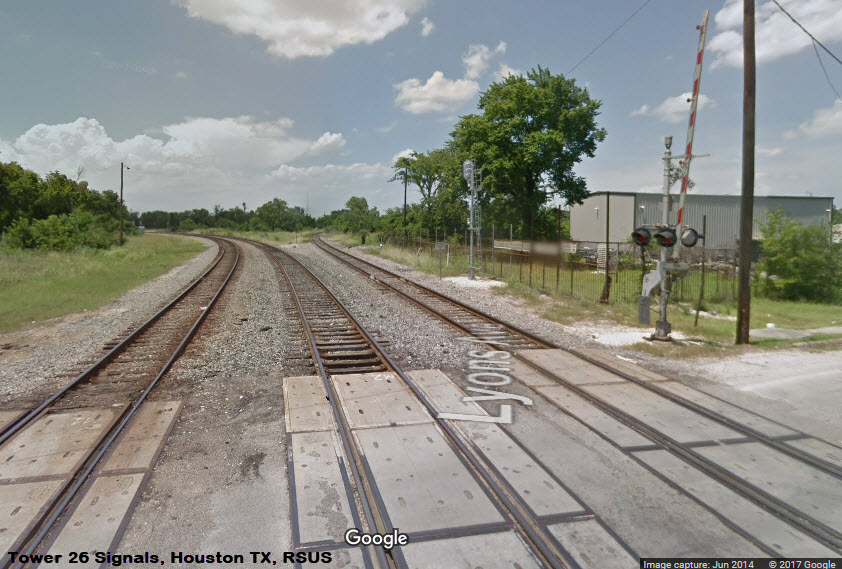

The picture below is again, from before the UP upgraded the interlocking.....

 Quitman St

  from 2008

Need pictures

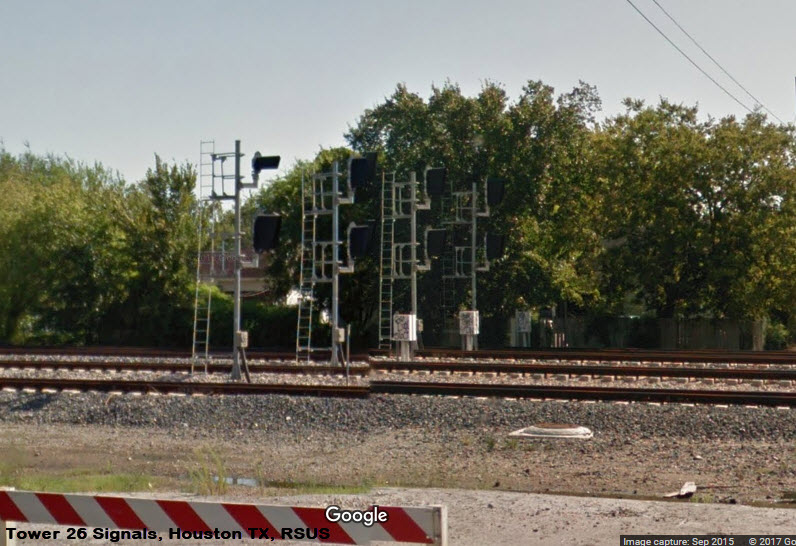

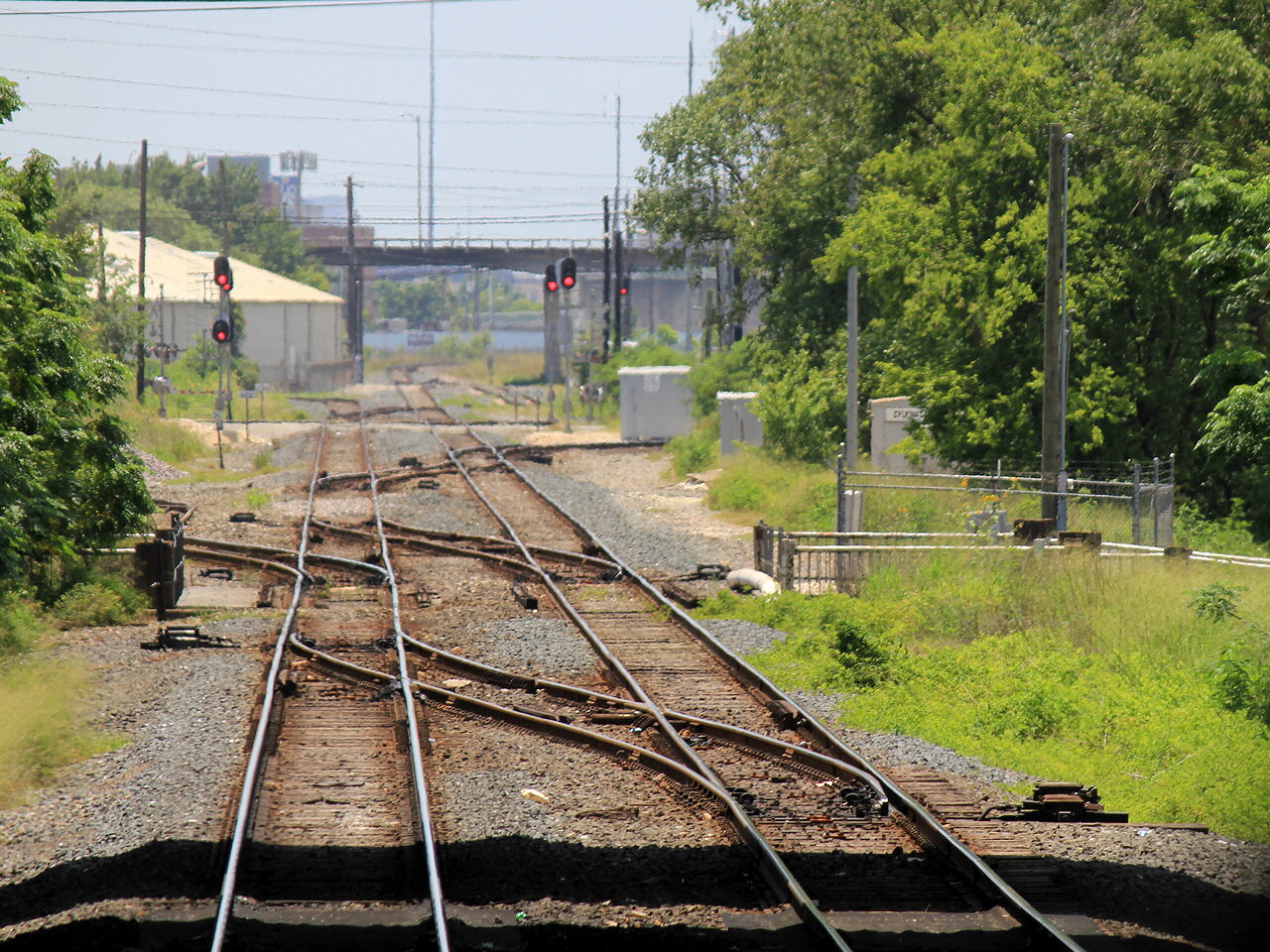

Need much better close-up pictures

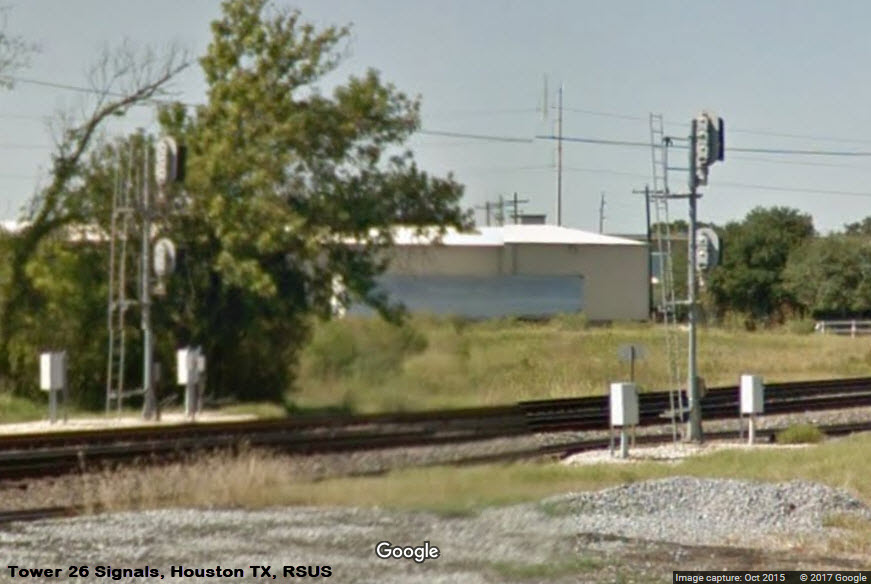

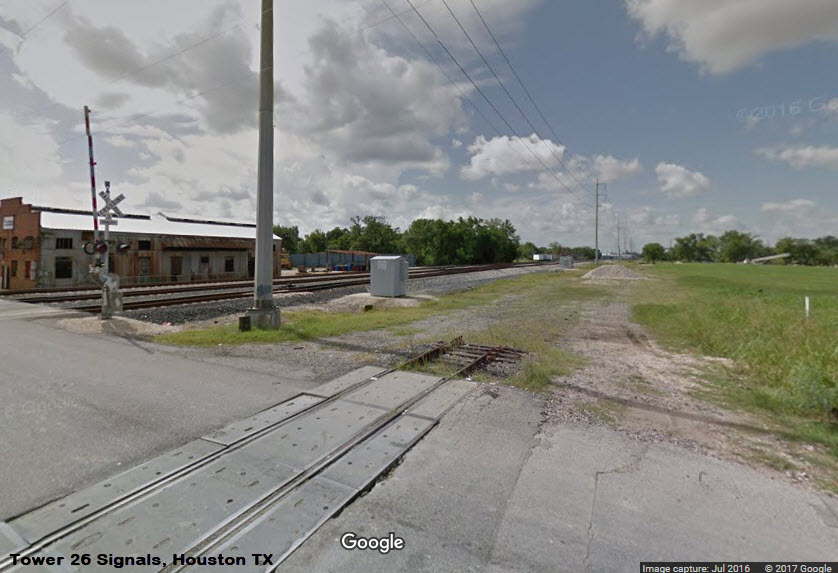

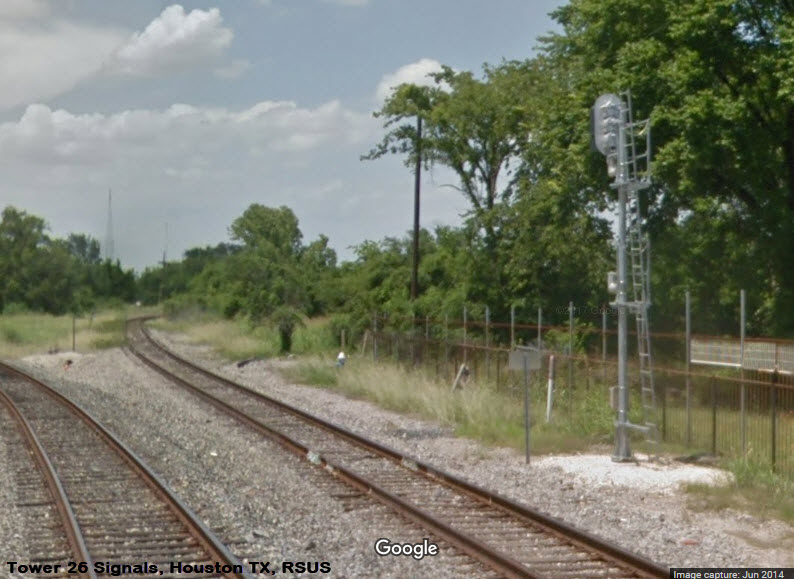

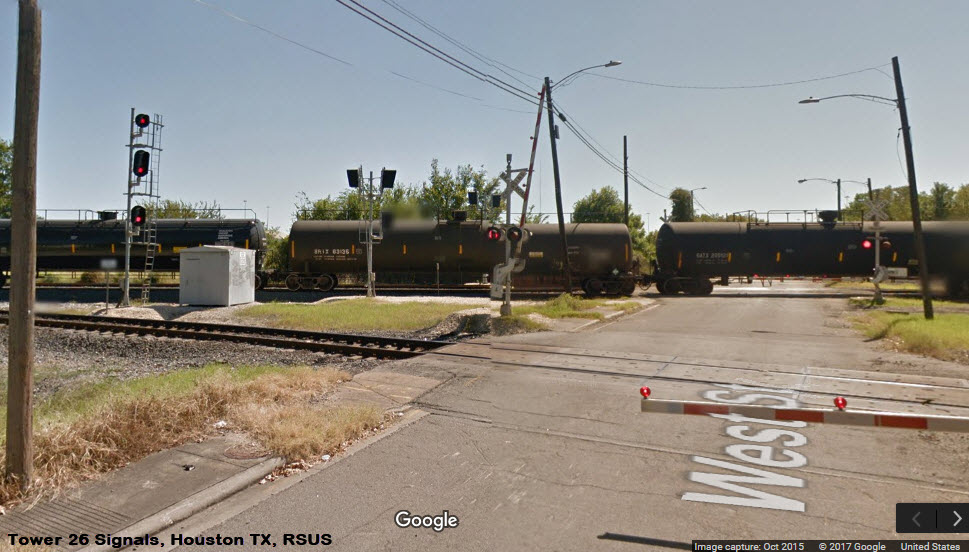

Need better pictures.....

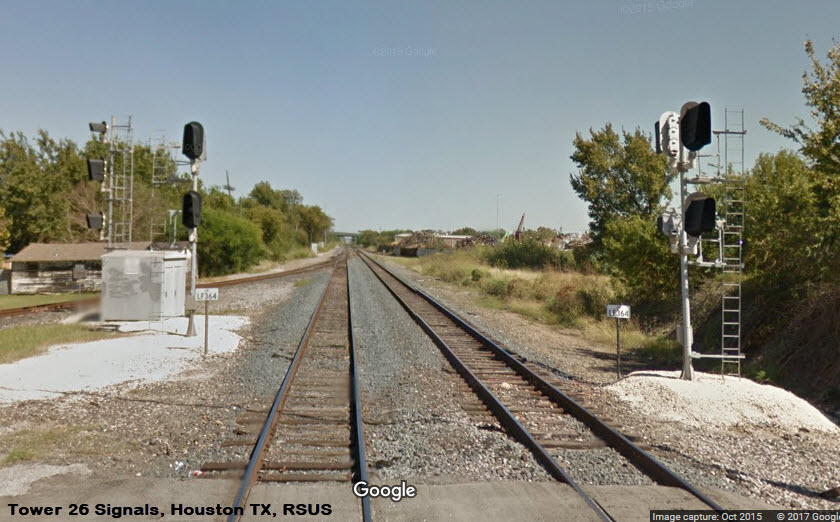

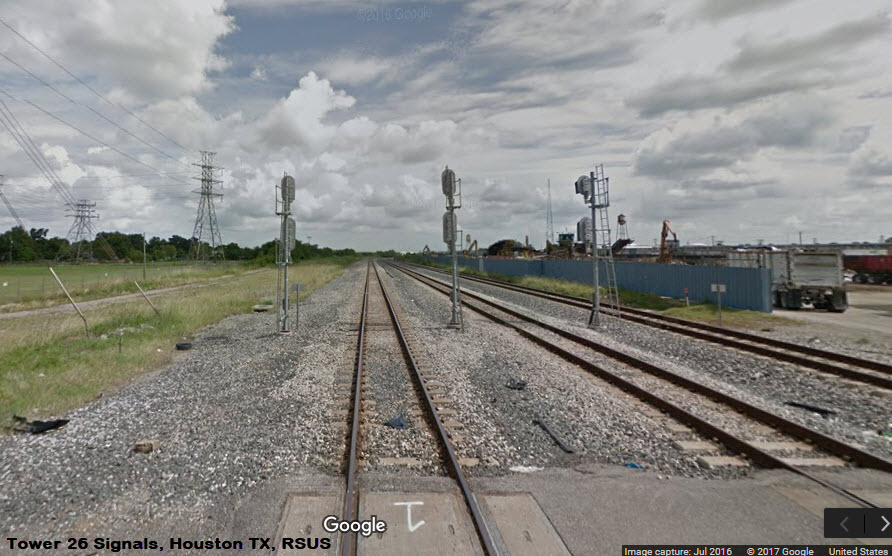

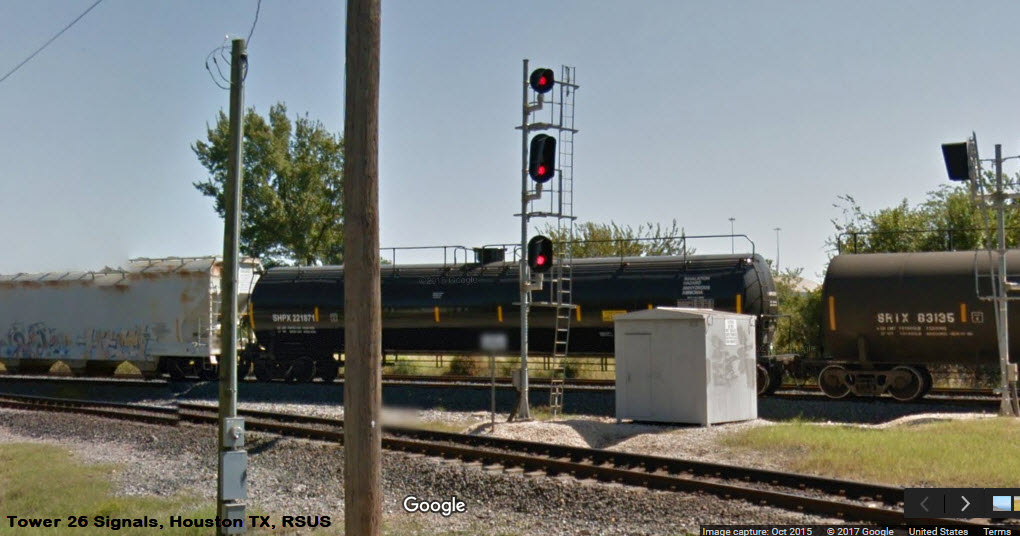

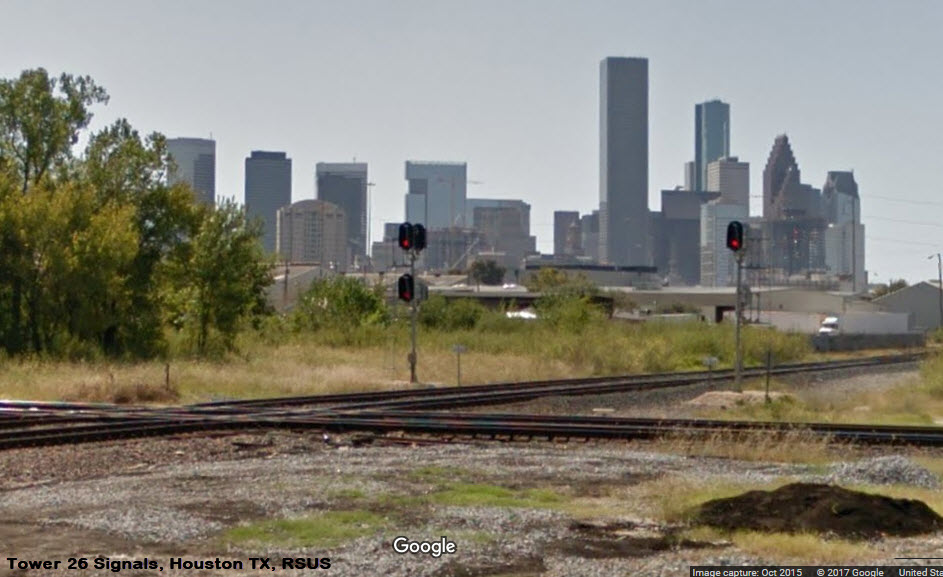

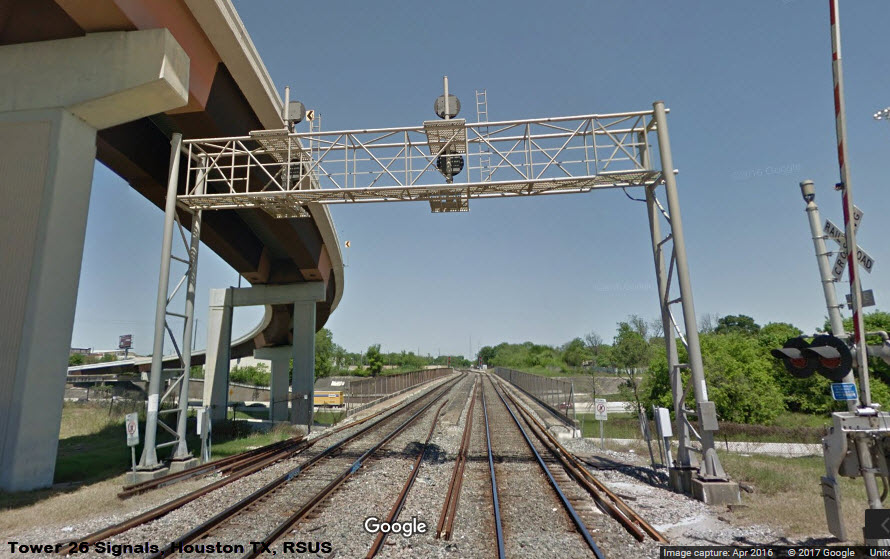

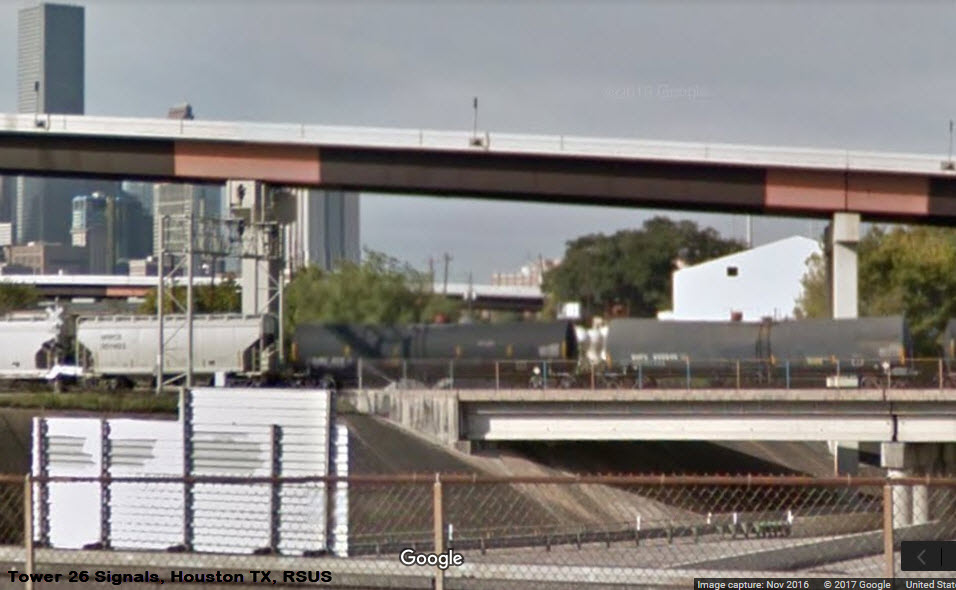

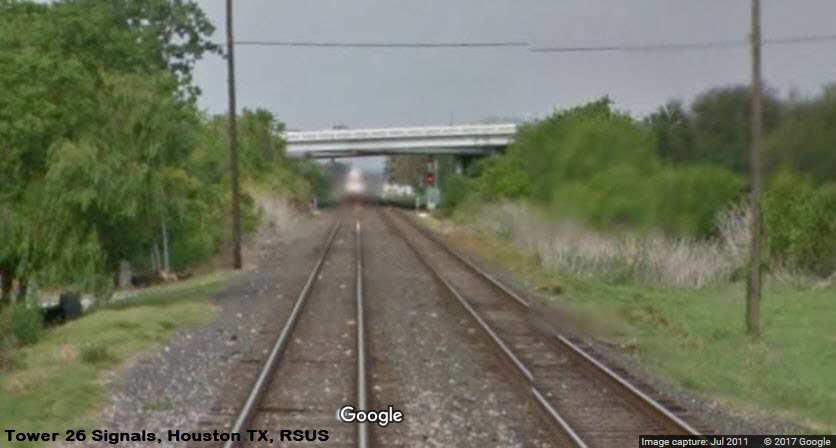

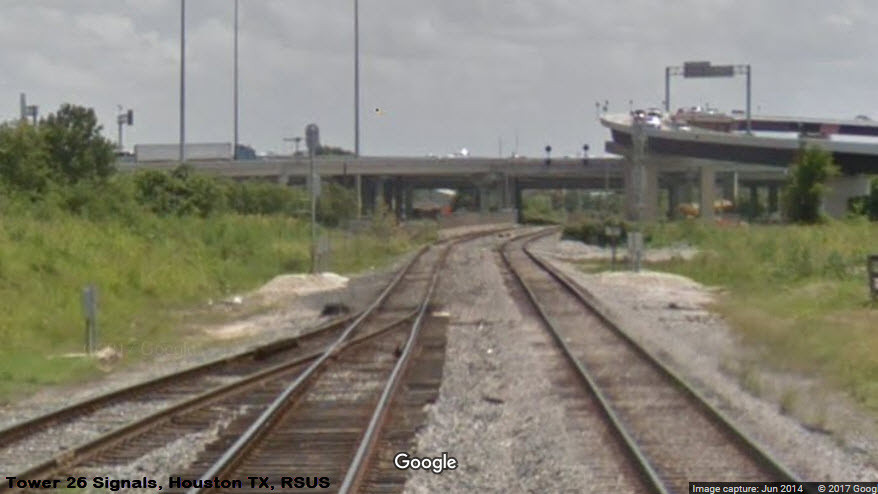

Although not on my map, these signals, 2 sets of NB "tri-lights" for the approach to the Tower 26 interlocking, can be seen from I-10.

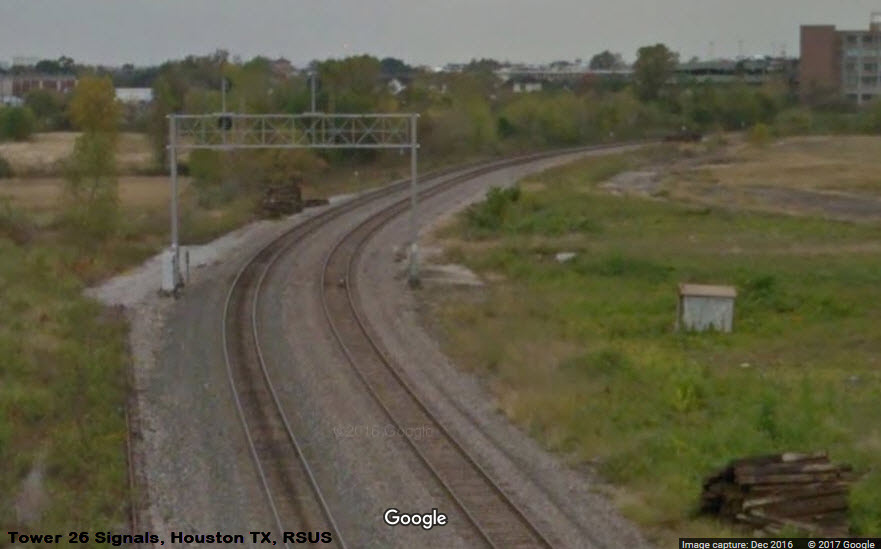

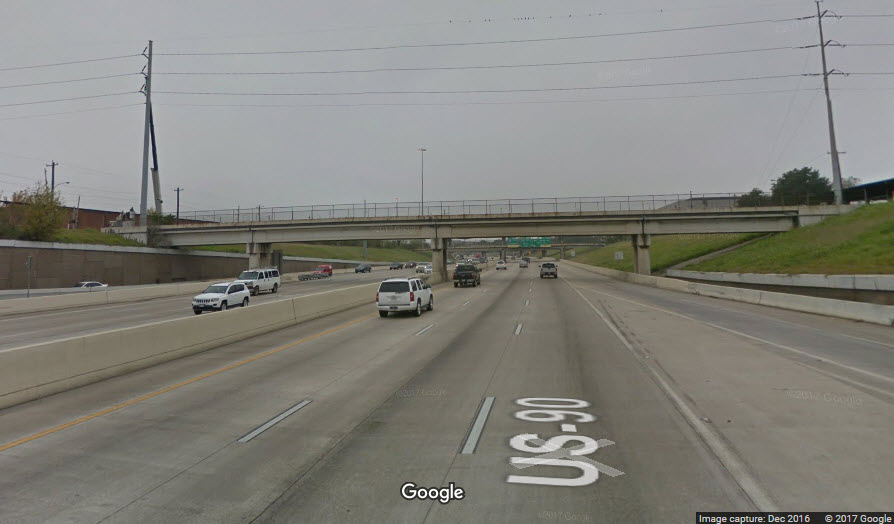

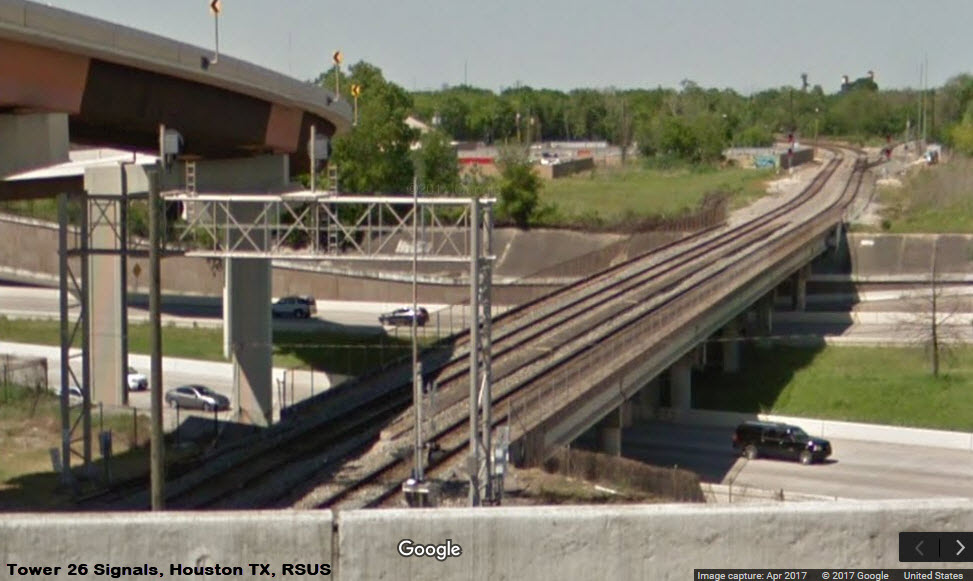

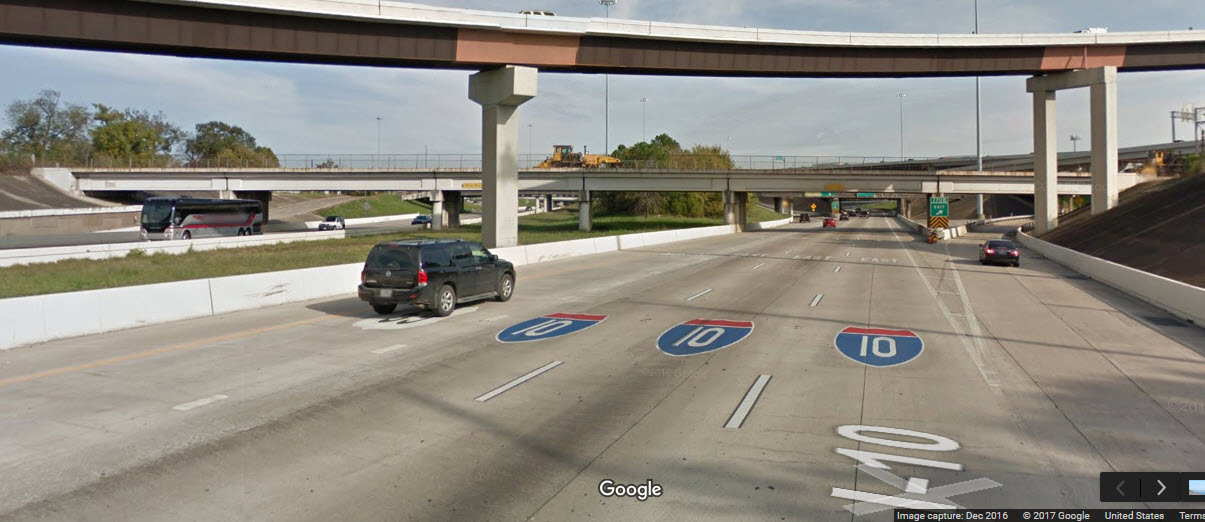

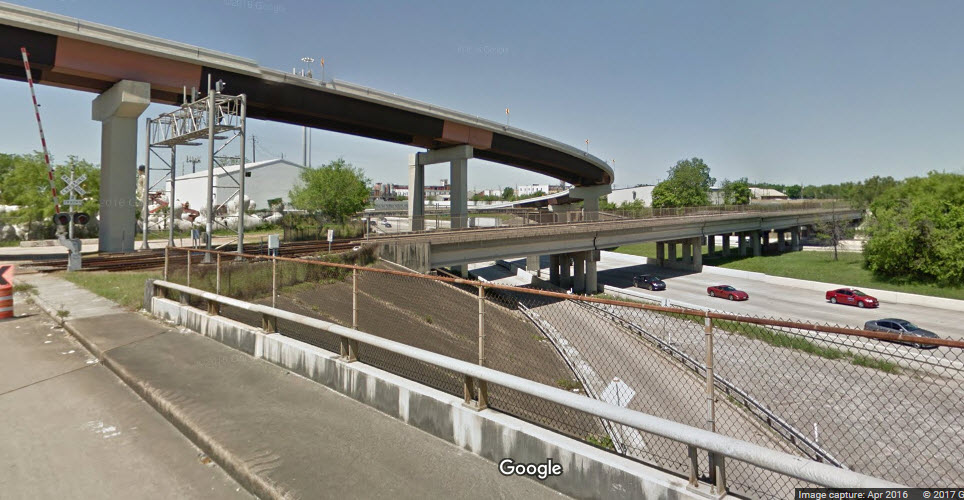

  Single Track Over I-10

  Double Track Over I-10

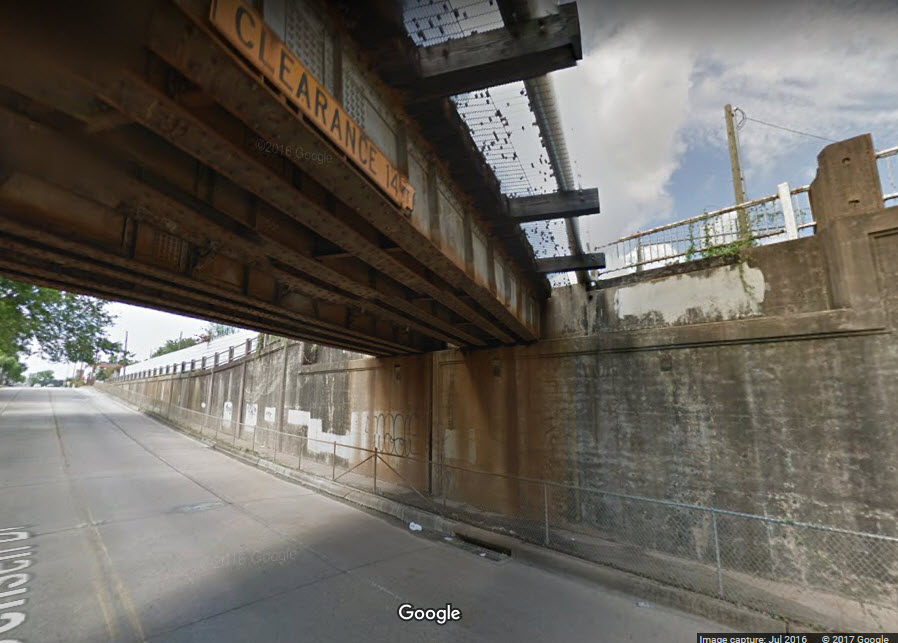

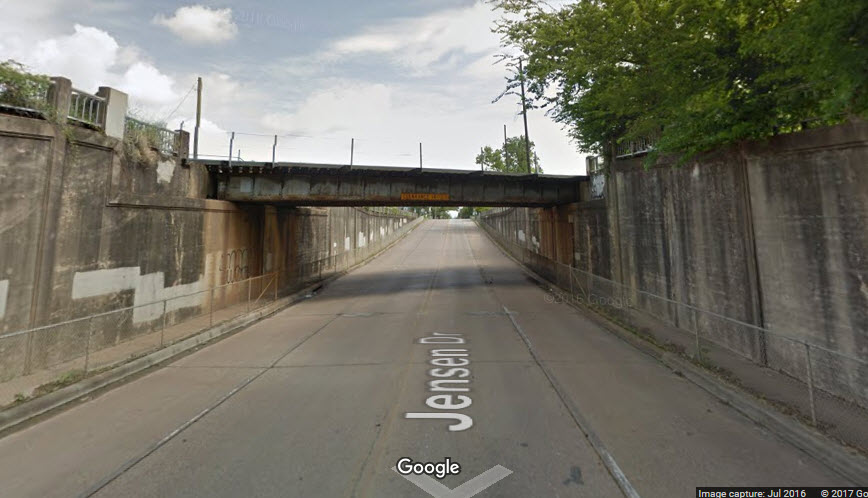

  Over Jensen Dr

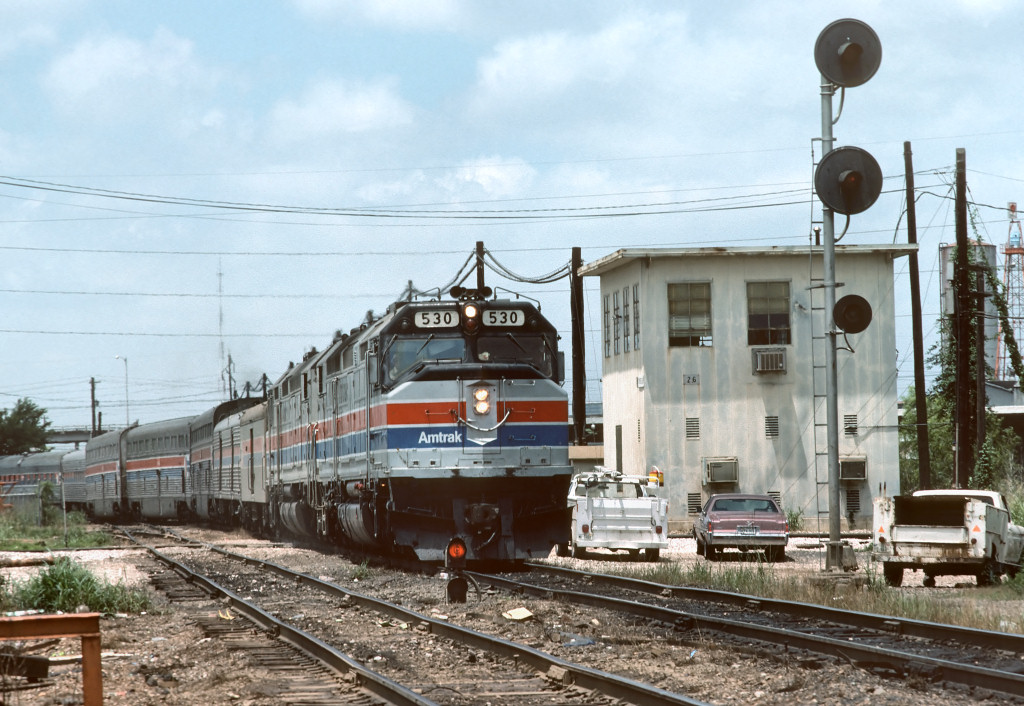

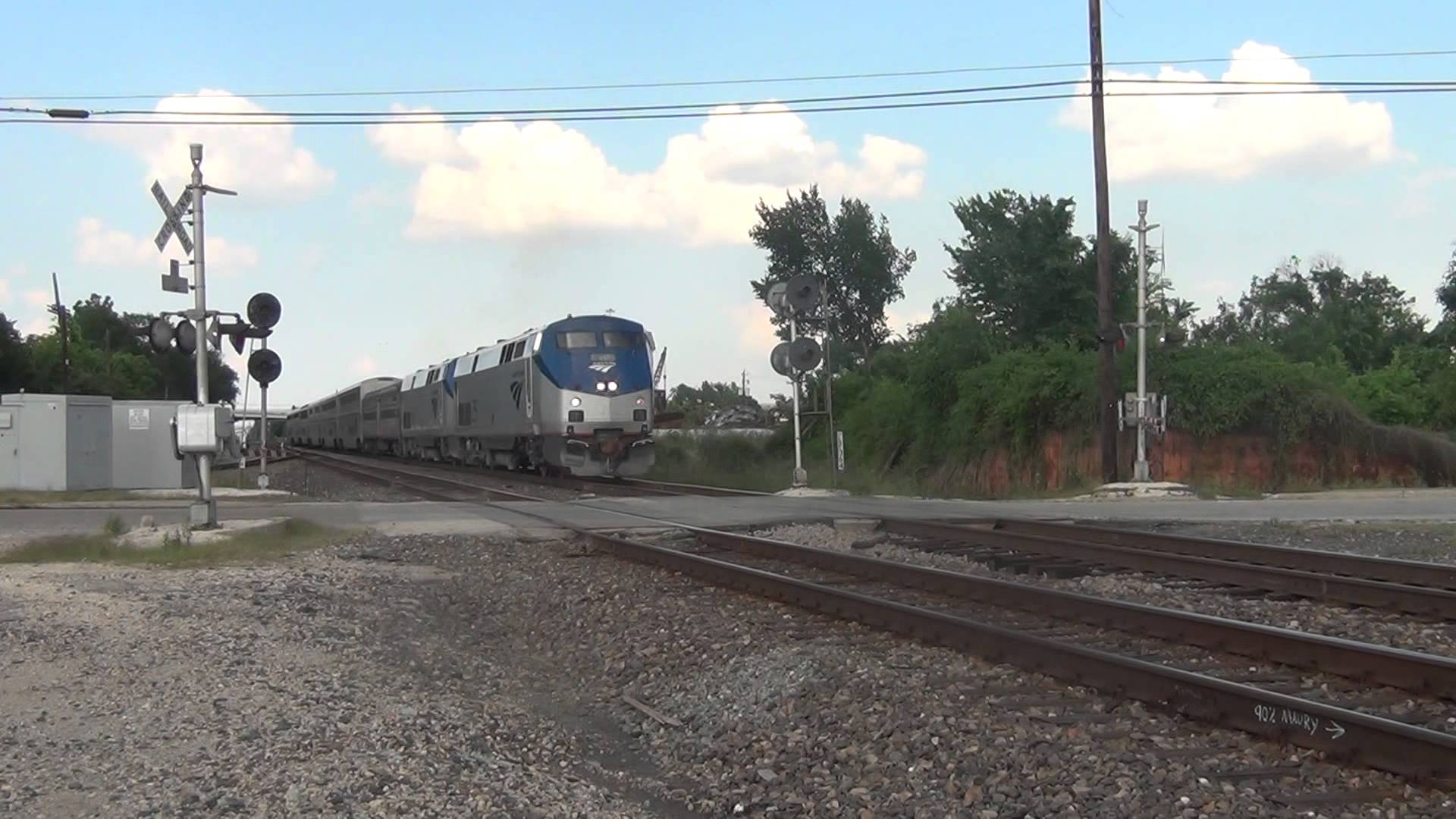

  Amtrak at Tower 26

  Amtrak at Tower 26/1978 - TxRRHistory

  Kenneth L. Anthony, circa 1986

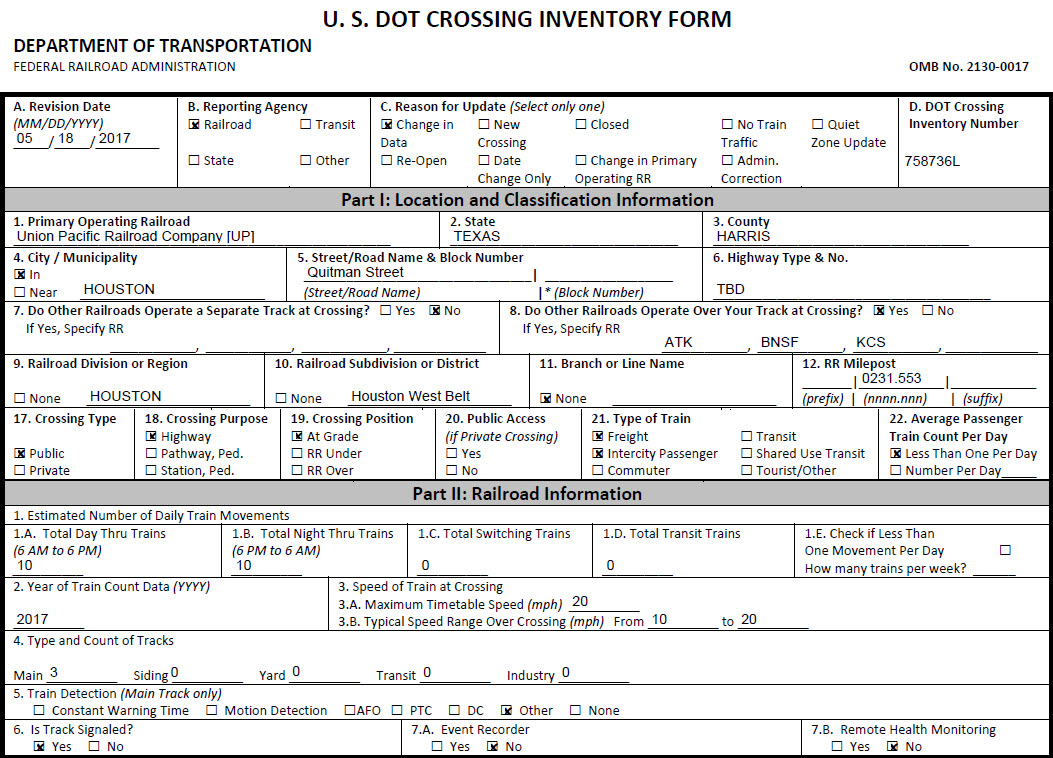

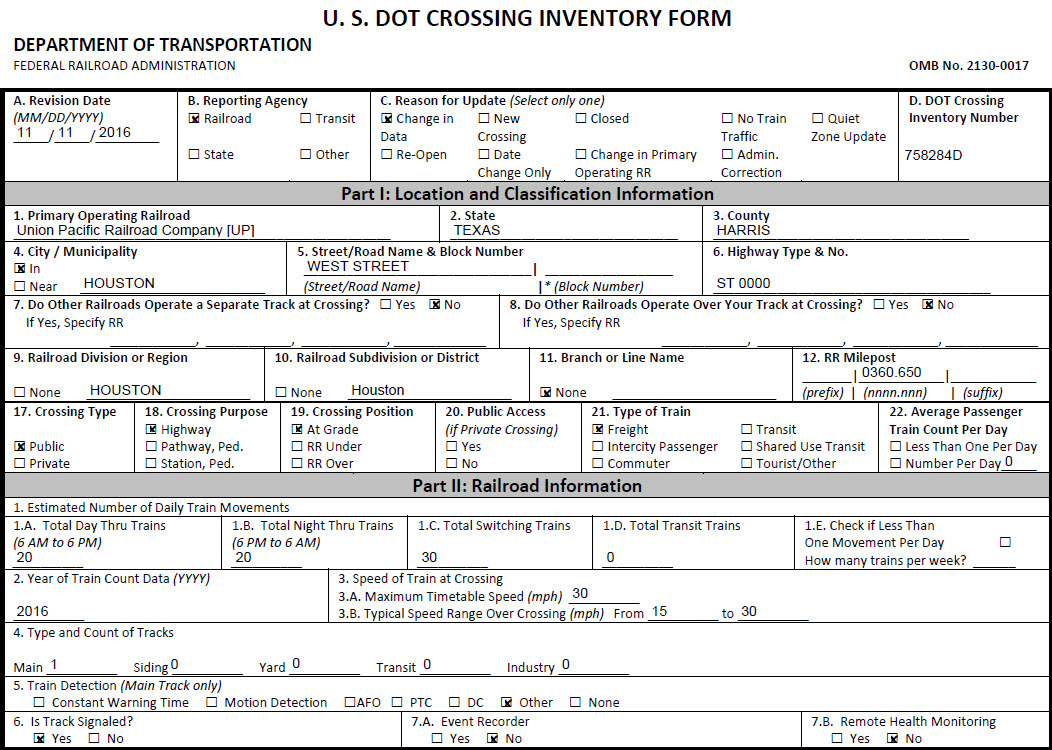

Here are shortened versions of the grade reports for two of the crossing at Tower 26.  Courtesy Denver Todd.

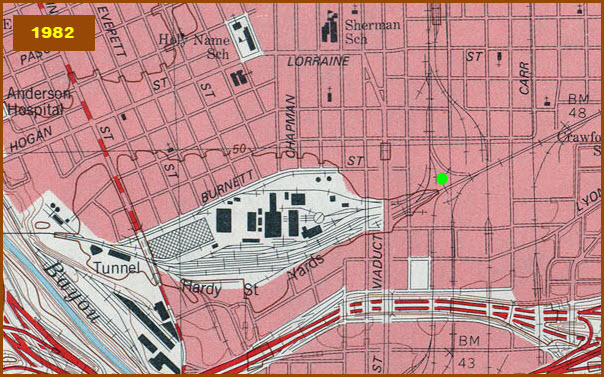

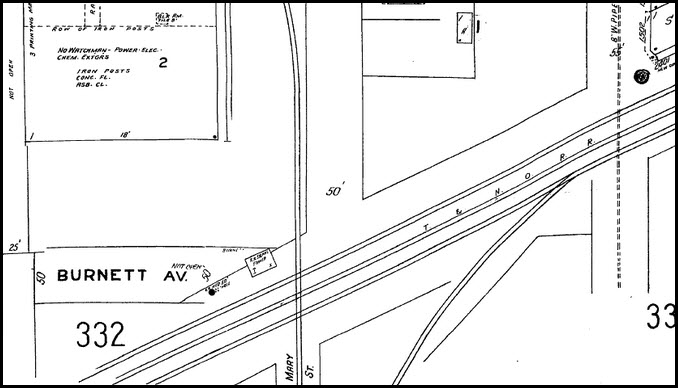

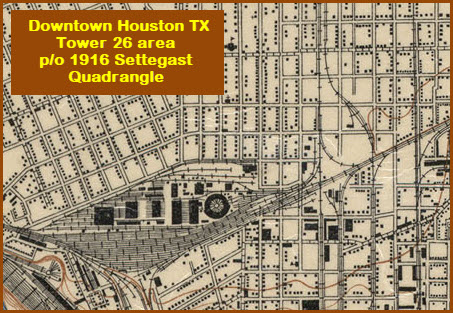

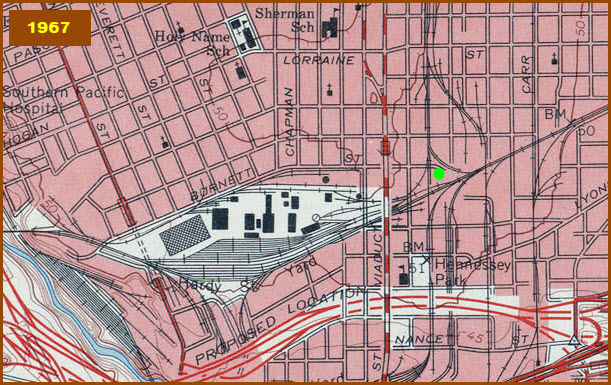

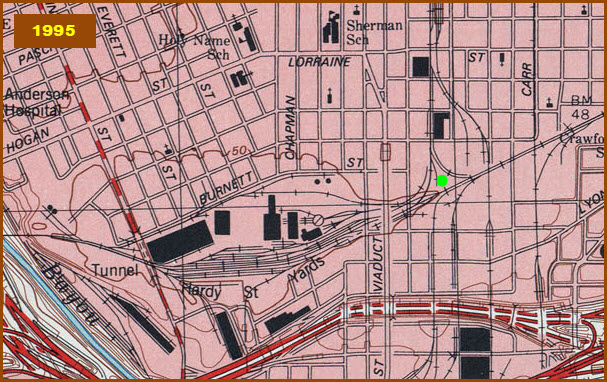

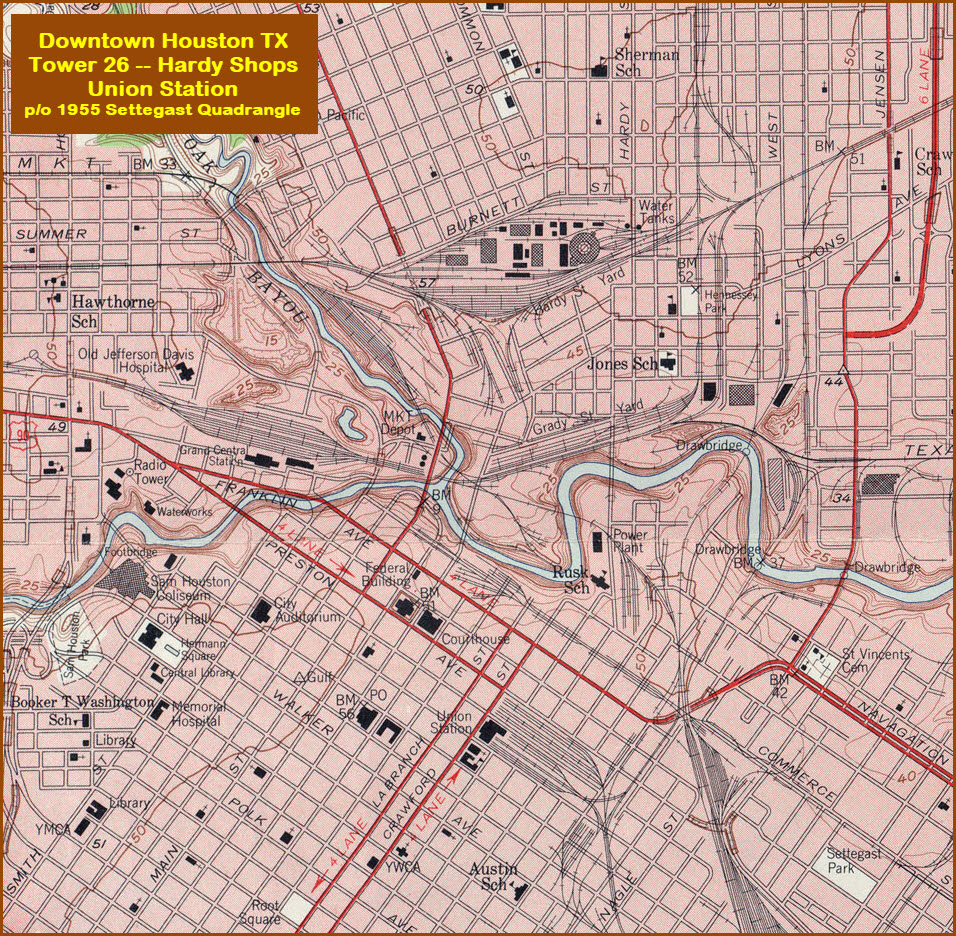

Historical USGS Maps
