In General


Location / Name:
Buffalo NY, Niagara County

What's Here:
NFTA METRO (Light Rail) System

Data:
GPS Coordinates: as needed
Phone A/C: 716
ZIP: 14202

Access by train/transit:
Buffalo Amtrak Downtown Station: about 5 blocks, or 1,700 feet to the Erie Canal/Harbor Station

The Scoop:

This page covers the Light Rail system that runs in Buffalo NY.  It is operated by NFTA, or the Niagara Frontier Transportation Authority.  Construction on the system began in 1978, and it opened in 1984.  This is a short line: 6.4 miles (10.6km) long line with only 15 stations, 5.2 miles (8.7km) of which (80%) is underground.  2.5km was done using the cut-and-cover method, and 6.2km was done with a boring machine.  The tunnel was responsible for much of the delay and cost overruns.

The line runs from the HSBC Arena in downtown, to the south campus of the University at Buffalo on the north end.  At the north end of the transit mall in the CBD (Central Business District), the line enters a tunnel, where it stays to the end of the line.  The CBD is a "fare free" zone, not requiring any money or tickets to ride.  If visiting Buffalo, it is well worth the time to visit and ride.  Trips normally take about 22 minutes from one end to the other.

Hours are 5:10am to 12:50am during the week, 7:05am to 12:50am on Saturdays, and 9:30am to 7pm on Sundays.  Trains are on roughly a 10 minute headway during the rush hour, and 20 minutes otherwise.

The fare to travel on the train is now $2 for a single trip, $4 for a round trip, and for $5 you get an unlimited one day pass, which includes both subway and buses. You can purchase tickets at any train station (cash only), and also you can purchase fare cards with the TokenTransit app on your cell phone (credit card). Plans are in place to end the practice of randomly checking passengers to make sure that they have a ticket; there are entry "turnstiles" in place at most stations, although these are not yet in operation (as of this writing, DEC2021)(PM).

The Buffalo LRV's are the only single car LRV's besides SEPTA's Norristown cars.  There are 25 of them, numbered 101-127, and they were built by Tokyu of Japan.  They were delivered in 1983, but during the delivery process, car #125 was damaged, and sold to a local guy to be used as a restaurant (and supposedly sold again).  The cars are 66'-10" long (20.3m), 8'-6 1/2" wide (2.6m), and weigh 35.5 tons empty.  Capacity is 140, including 51 seated.  The cars were refurbished and all of them were back into service by July 2010.  More on the refurb below.

The cars also have a feature coupled with VWC which is called automatic vehicle identification (AVI) which also transmits to the wayside the car number, the run number (aka block number) and the destination.  The train control system uses these to determine the schedule assigned to that particular run and tracks the consist's movement thru the system and determines if its running late or on time or early.  On the surface, the stations have loops which pick up the presence of a train so it can track train movements on the surface without the use of traditional track circuits.

Thanks to Paige Miller for the following cool tidbits of information about the system:

Cool trivia #1:  Did you know that the Buffalo subway has two stub tunnels that extend about 30 feet, just south of LaSalle, which were placed there in the expectation that a line to Tonawanda would branch off from there sometime in the future.  One stub tunnel is on the inbound tracks, and one on the outbound tracks.  If you stand at the front right of the first car of a train, and look forward out of the front of the train, you can see them.

Cool trivia #2:  If you board an outbound train and stand in the front of the first car, looking out the right side window at the front of the train, you can get a pretty good look at what the driver sees. Leaving Humboldt/Hospital heading outbound, there are two sights of interest. The first is the pocket track just north of Humboldt, the only place in the system where there are three tracks side by side. It's pretty interesting to see it first hand. During construction, and during times of single-tracking, the trains actually do use this pocket track. I am told that it can also be used for storage, as it is long enough to store a 4 car train underground in case of blizzard or zombie apocalypse.

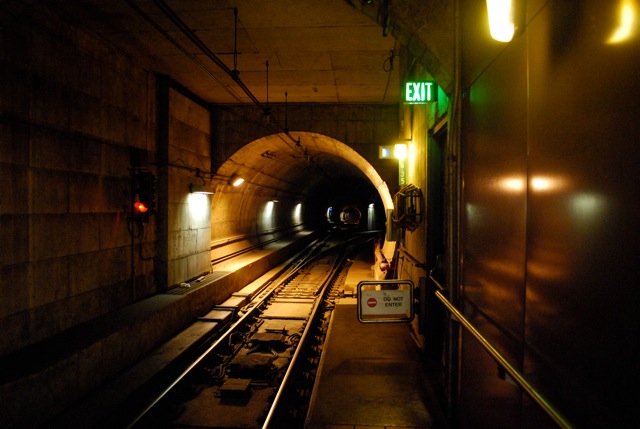

Cool trivia #3:  Heading north between Humboldt and Amherst beyond the pocket track, is a red "Exit" sign. Apparently, the designers realized that the longest stretch of track was between Humboldt and Amherst, and there was a need to place an emergency tunnel exit in that stretch. Where does it go? After a lot of questions, I found out it leads to a trap door in the sidewalk at Leroy Avenue and Main Street. I talked to a person who was a long-time dispatcher for the system, and he believes that this exit has never been used in an emergency, but every 6 months an inspector has to go in there to make sure the exit is unblocked.





Cool trivia #4:  There were crossovers between the two tracks just north of the Erie Canal Harbor, but these have been removed in the recent construction. Before they were removed, the trains could enter the "proper" track to head outbound after arriving on the inbound track; or be switched onto the outbound track when arriving. Now, the trains arriving at the Erie Canal Harbor station have to continue past the station into the maintenance yard, where the they can cross over to the outbound track and then return to the Erie Canal Harbor station.

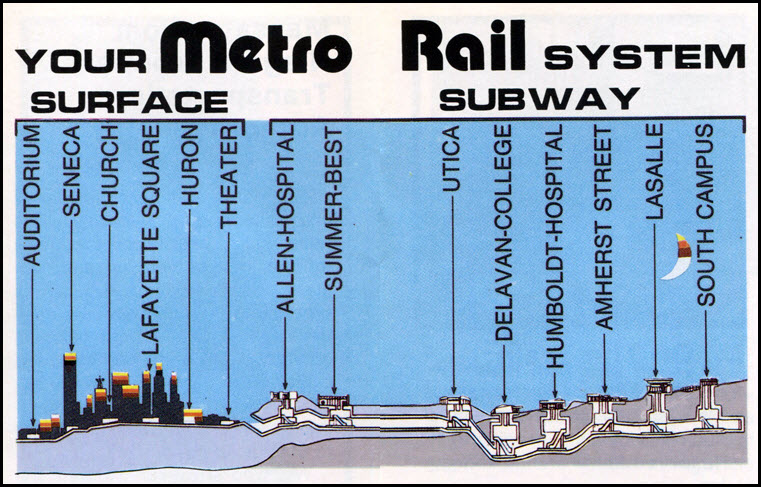

Cool trivia #5:  The subway switches from cut-and-cover to tunnel between Utica and Delavan.  By looking out the front window, you can see this transition in the side walls of the tunnel easily.  You can also see the steepest slope in the system right there, as the tunnel is quite a bit lower than the cut and cover.  You can see this either on an inbound train or an outbound train.

Theater station notes: The Theater station has a "colorful" history compared to most others.  For a while, it served as the northern terminus of the system while the other stations were under construction.  Unfortunately, NFTA decided, as of February 18th, 2013, to close and demolish the Theater station, giving in to pressure to allow cars to have better access to the theater.  Many believe that this is a step backwards and will only serve to alienate those customers who would frequent the theater area by Light Rail, especially the handicapped, who will now have to make their way about two blocks from the Fountain Plaza station.  The closing of the station had actually been in the works for some time.

On the operations side of things.... They now run 3 car consists during the day, 2 at night.  Two cars are used on weekends and Sunday service has been extended from 8:00 am to 11:00 pm..

Construction on Main Street (when I did a 2012 update).... They are only at 90% design of the first block (from Main and Chippewa to the portal and West Tupper) and they won't start construction until fall 2013 at the earliest.  As part of this, theatre station is being removed completely.  That means theatre goers who take the train to see a show will have to get off at Fountain Plaza, then walk down a block to the theatre.  This has upset many people in the community.  The theaters (particularly Shea's) wanted the station gone so people can pull limos up under the marquee and let out more affluent theatre patrons like the old glory days before that damn train ran in front of the theatre!  After they complete just this one block, they still haven't even started looking at the other blocks so it won't be anytime soon that cars will be back on the full length of the above ground section.  (From Wikipedia:) On January 23, 2015, after less than two years of construction, traffic was reintroduced to the 600 block of Main Street, between Tupper and Chippewa Streets, in the Theater District.  On December 15, 2015, traffic was reintroduced to the 500 block of Main Street, between Chippewa and Mohawk Streets, in the Central Business District.

There are currently no viable plans for expansion, partly due to the economic downturn, but also the declining city population.  Many downtown business's advocate removing the light rail system from Main St and return it to it's former "glory" in hopes of attracting more business to the downtown area, but in a compromise, the city has been working on a project so that cars can park along Main Street along with the light rail operations - the project is supposed to have been completed in 2011.  Originally, the Buffalo system was one of the few unsuccessful system in terms of bringing  new development along the corridor, however, in more recent years, property values and development along the subway corridor are increasing.  FYI, one subway website states that Buffalo's population in 1950 was around 600,000, and from another site, here are some population stats for the decline of Buffalo:
     1960     532,759     -8.2% change
     1970     462,768     -13.1% change
     1980     357,870     -22.7% change
     1990     328,123     -8.3% change
     2000     292,648     -10.8% change
     2006     257,758     -11.9% change (est)
2020 update: The population in the city of Buffalo has now gone up, according to the 2020 Census, but still quite a bit lower than previous decades. The population in the Buffalo metro area seems to be relatively flat. (PM)

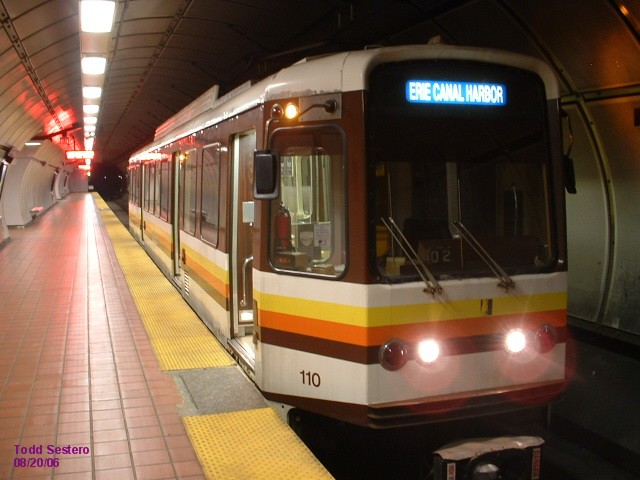

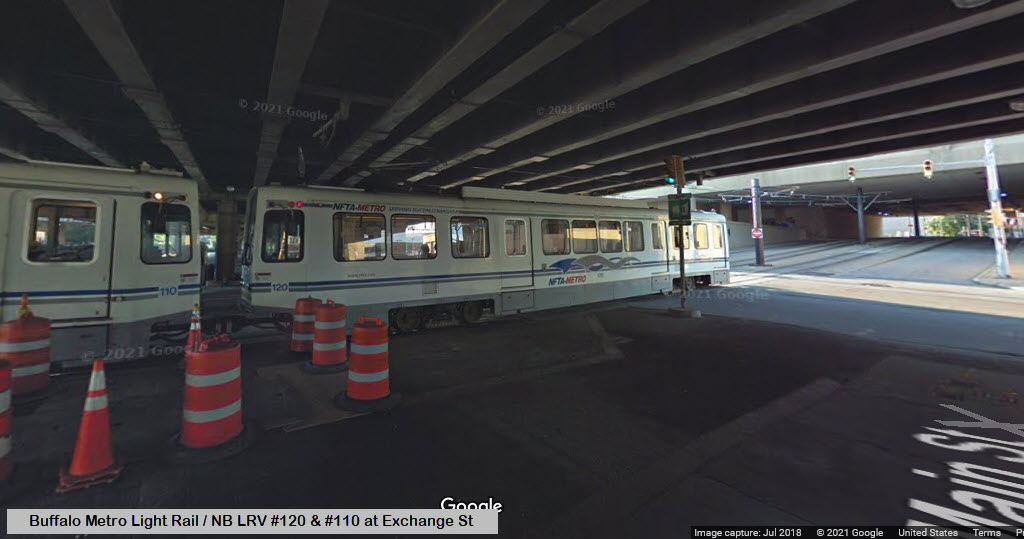

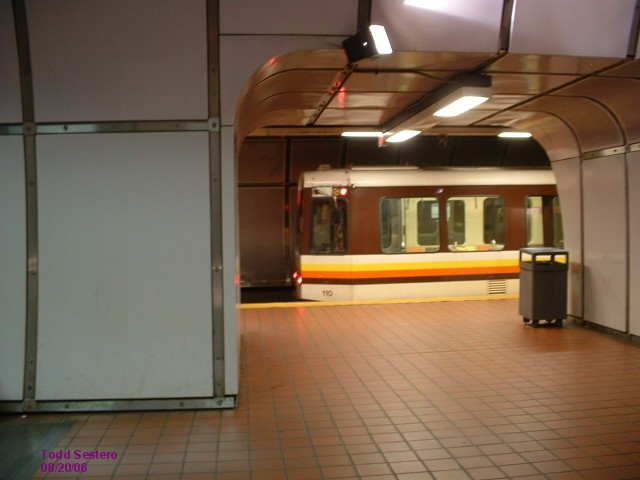

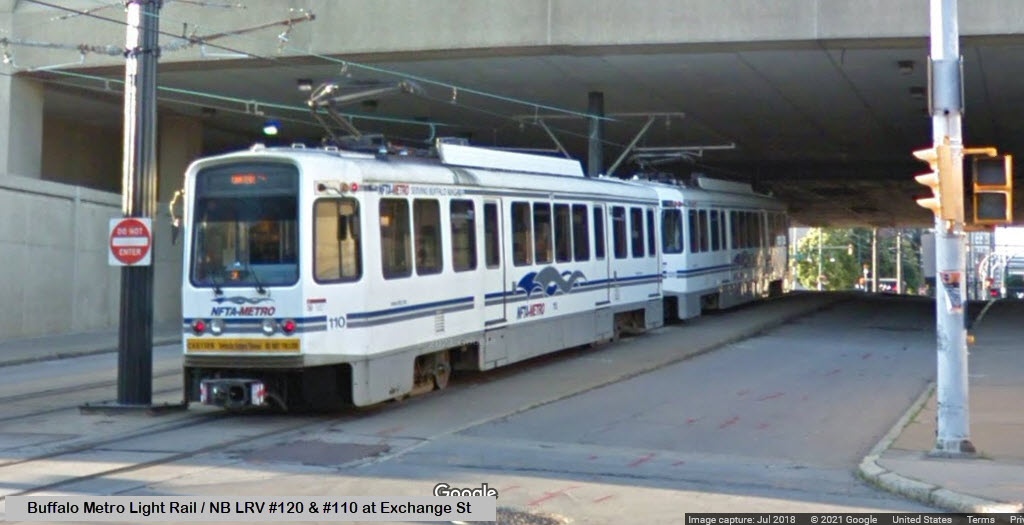

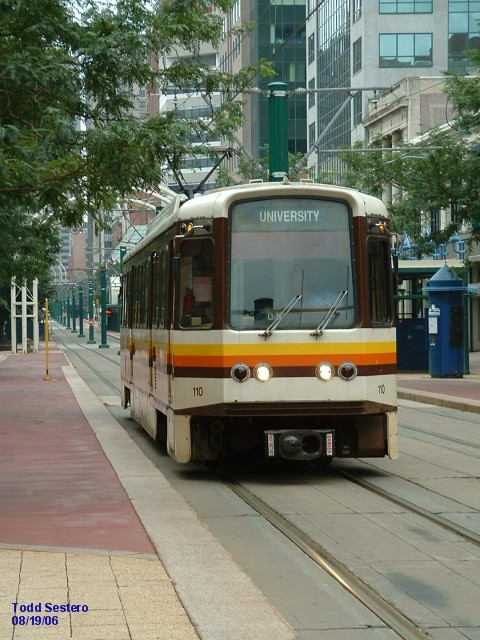

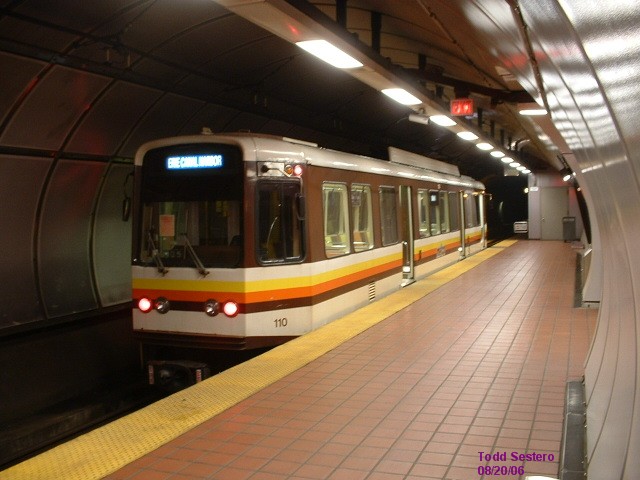

Interesting note about #110 in the photo at the top of the page.  Sometime around 2009, 110 was involved in an accident in the yard and was sent to the rebuilder to be repaired.  The train split a switch and wound up scraping alongside a pole, badly damaging the side.  The same rebuilder is also doing an overhaul of the fleet.

On rebuilding the fleet:

NFTA sent out two cars in 2009 to be upgraded and modified.  They got back #114 and #123 at the beginning of 2011.  The rebuilding effort includes:

a)  The rewinding and rebuilding of the motors, but the Westinghouse DC choppers will remain in place.  NAFTA had wanted to upgrade to AC propulsion, but can't afford it at this time... Both motors and controls would have to be replaced to move up to AC propulsion, along with re-wiring.

b)  They have new HSCB's on the power end (which I'm guessin are the high-speed circuit breakers used to open the main 750VDC line coming into the car).

c)  They changed over the air compressors from the old piston type to a newer rotary type.

d)  An AC inverter was added.

e)  The brake system remains the same with all Knorr equipment, but received a new drain and dryer system.

f)  New LED message signs were added which will display the next station, and it also gives an announcement over the PA system.  These are triggered by RFID tags on the ceiling of the tunnel and outside station covers (similar technology to the EZPass transponders we use on the highways for tolls).

g)  New "intercar" barriers were installed to prevent people from walking between cars while in the station.  These are also triggered by the RFID tags.

h)  New antennas were added to the B end roof to pick-up the RFID tags.

i)  They also changed the door controllers to get rid of the annoying beep-beep-beep  and changed it to a more smoothing ding-dong, ding-dong.

Acknowledgements:
Paige Miller (A special thanks goes to Paige for taking the time to send in all of the photos and information)
Denver Todd
Jason Paris
Adam Moss

Websites and other additional information sources of interest for the area:
https://en.wikipedia.org/wiki/Buffalo_Metro_Rail
http://metro.nfta.com/
http://metro.nfta.com/Routes/
http://mapa-metro.com/en/united-states/buffalo/buffalo-metro-rail-map.htm
https://www.wkbw.com/news/nys-budget-includes-9-million-for-buffalo-light-rail
https://www.nycsubway.org/wiki/Buffalo,_New_York
https://en.wikipedia.org/wiki/Theater_station
https://transportwiki.com/the-buffalo-metro-rail/


Maps

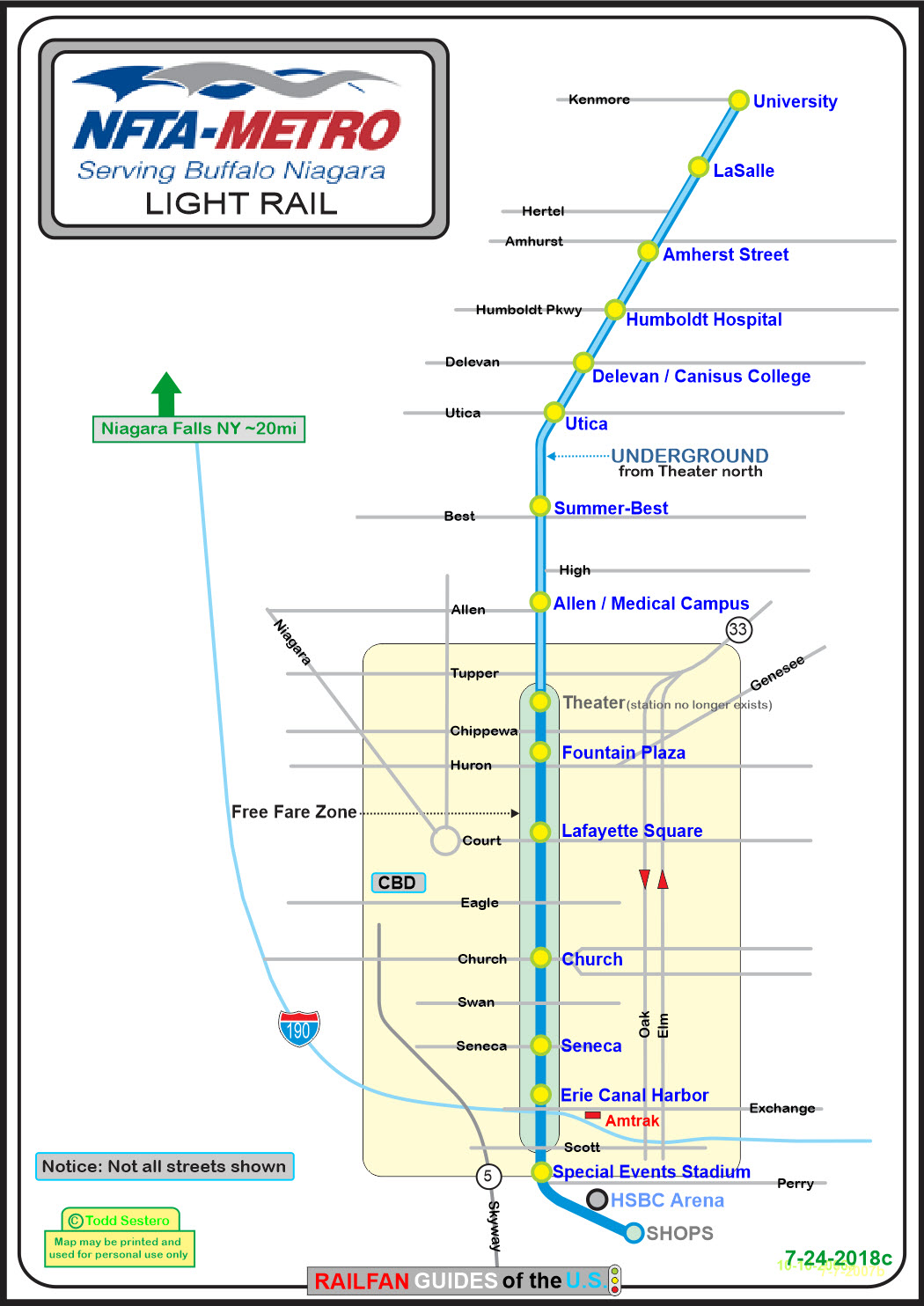

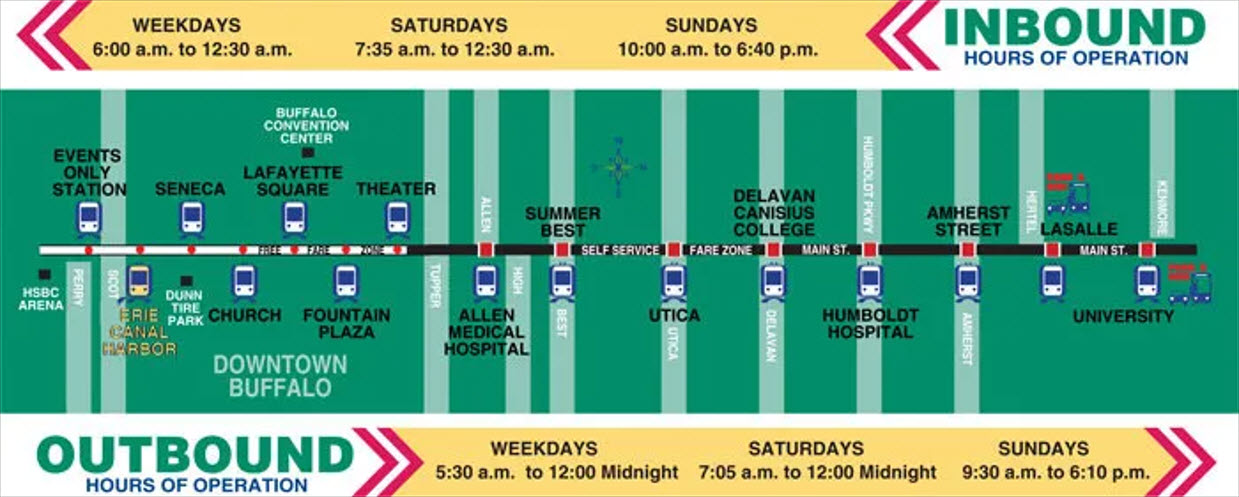

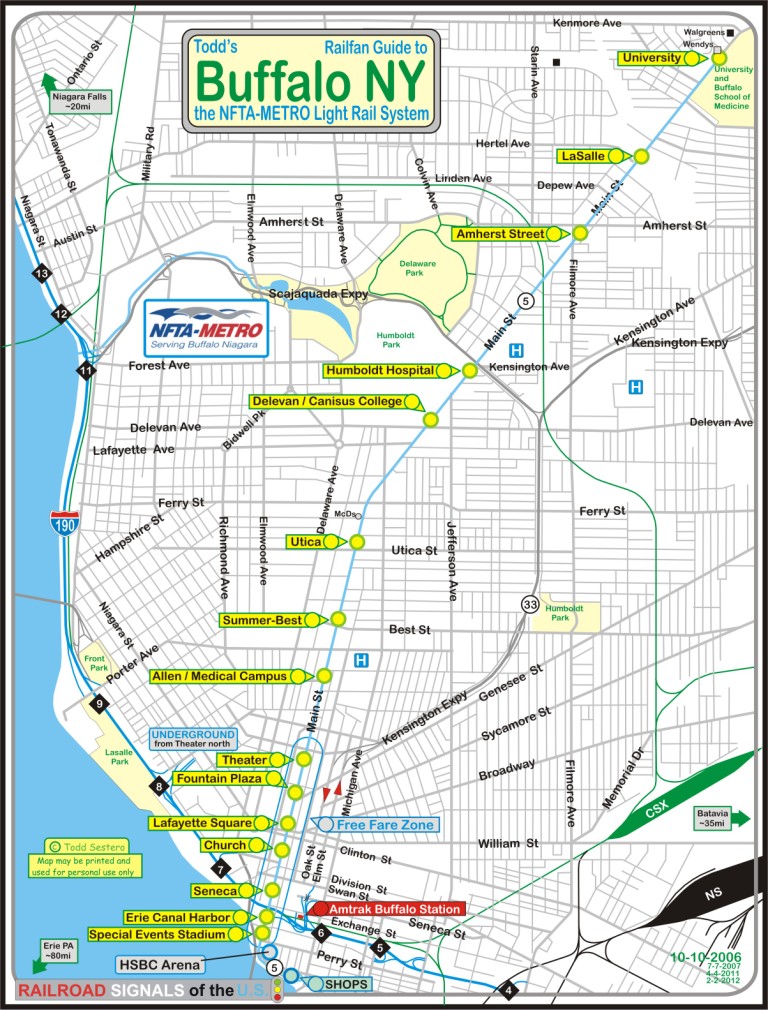

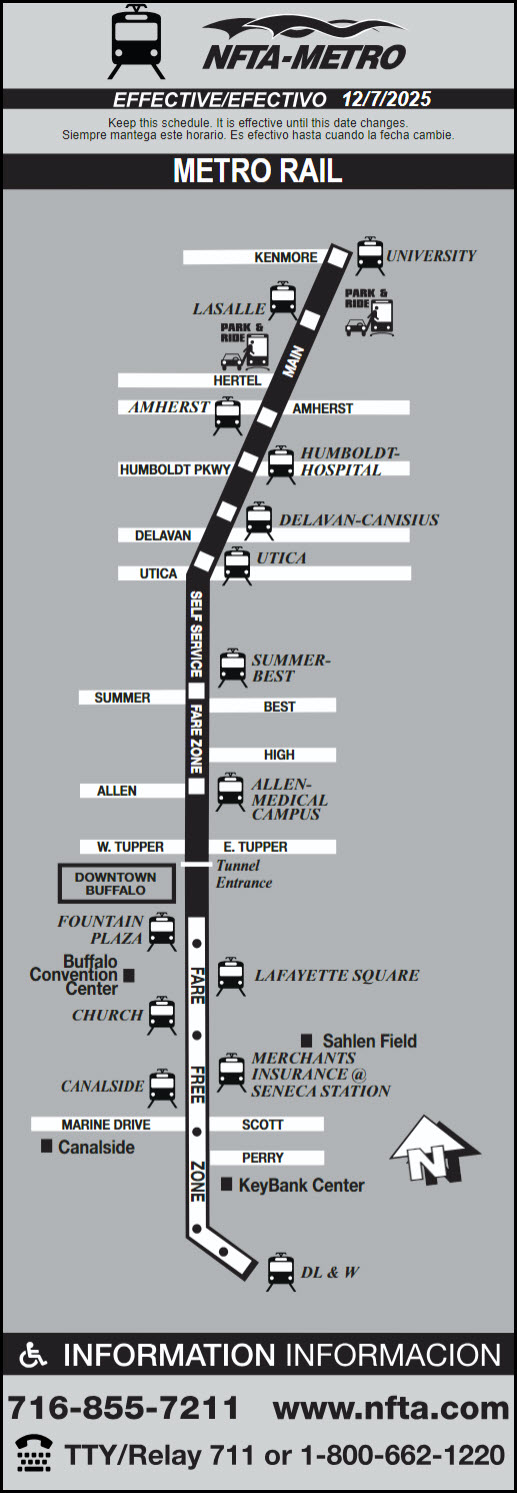

The upper map is a simplified map of the system and the environs, the lower map is a newer and more detailed version... take your pick!

The above map in PDF format here

The above map in PDF format here




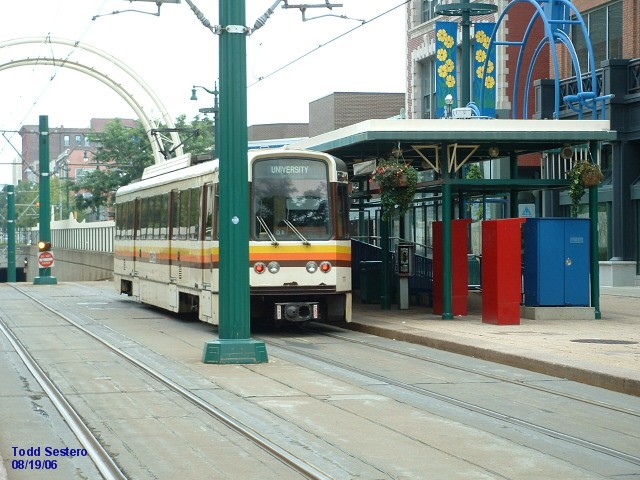

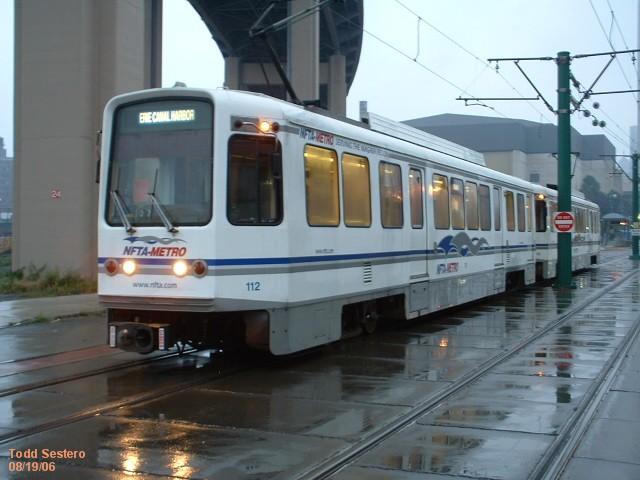

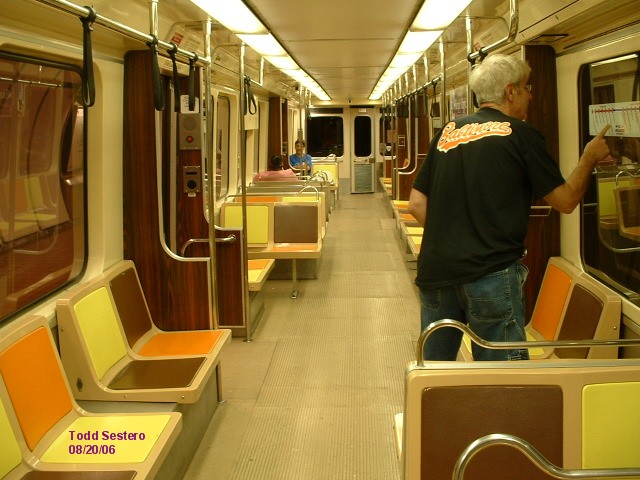

Light Rail pix from around the system

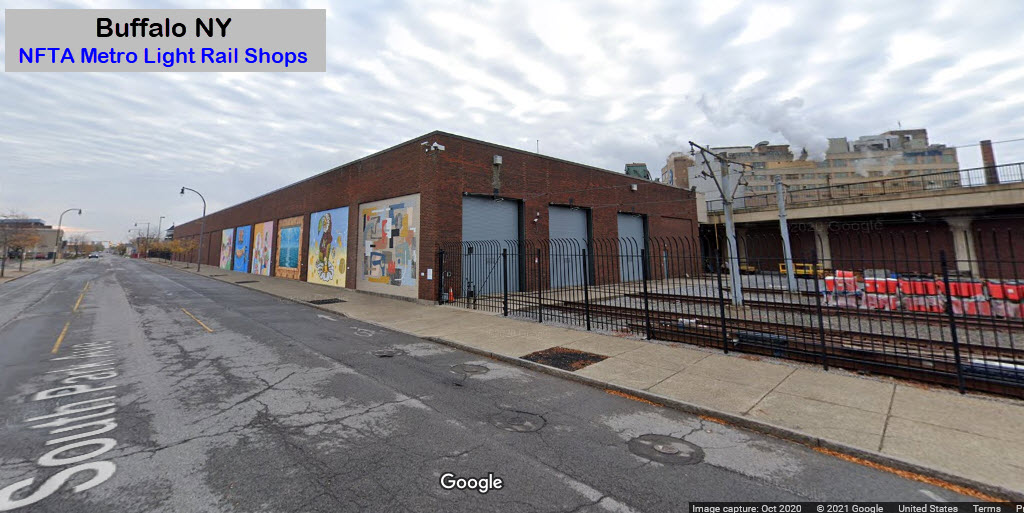

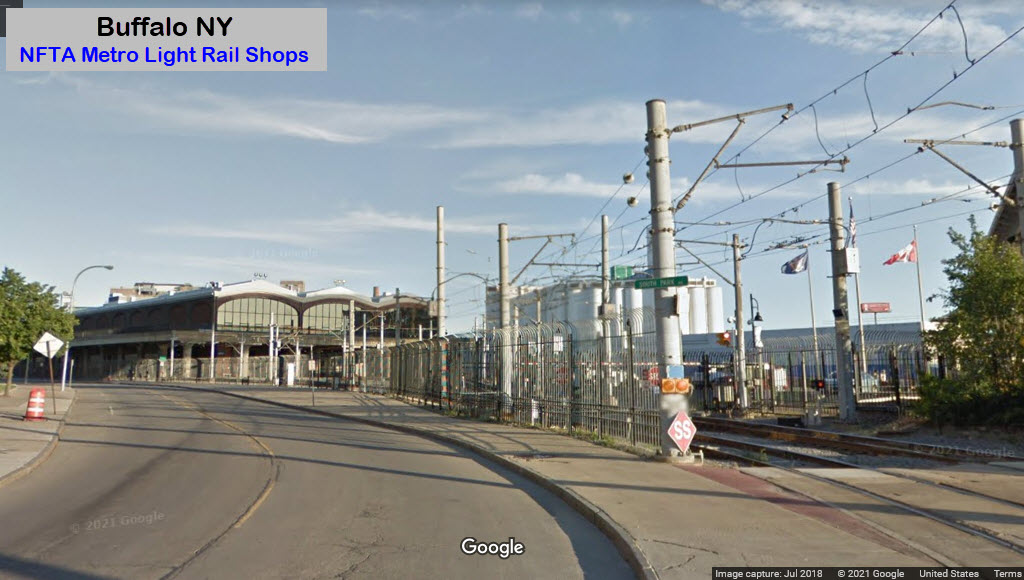

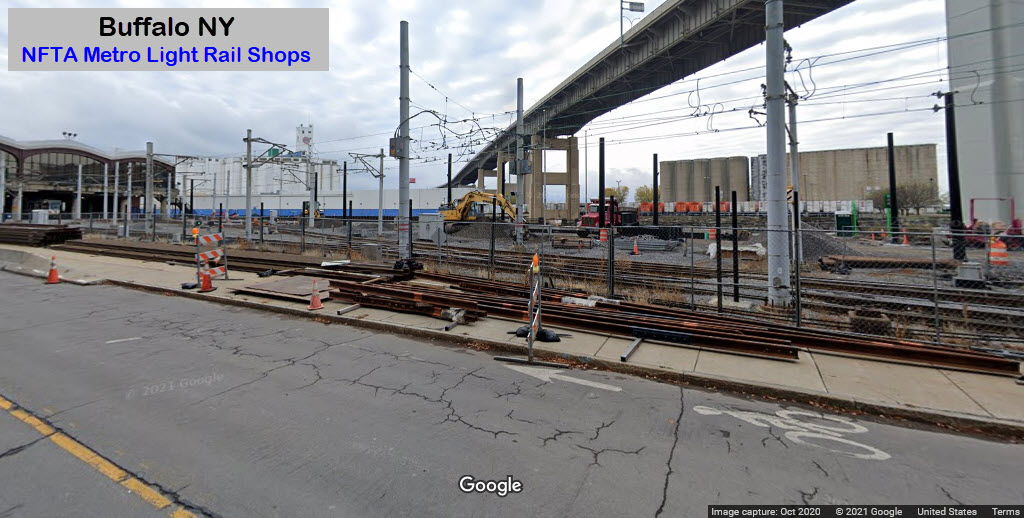

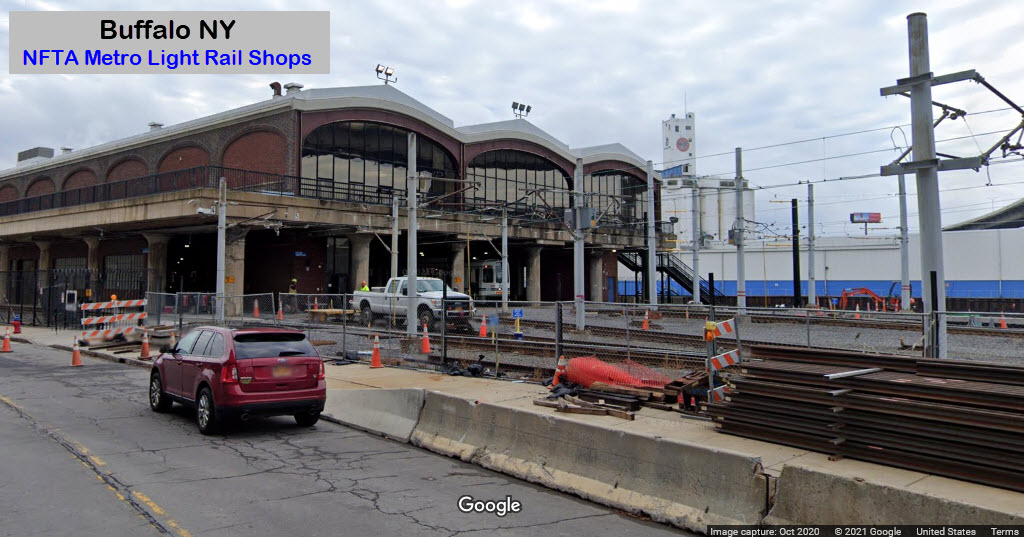

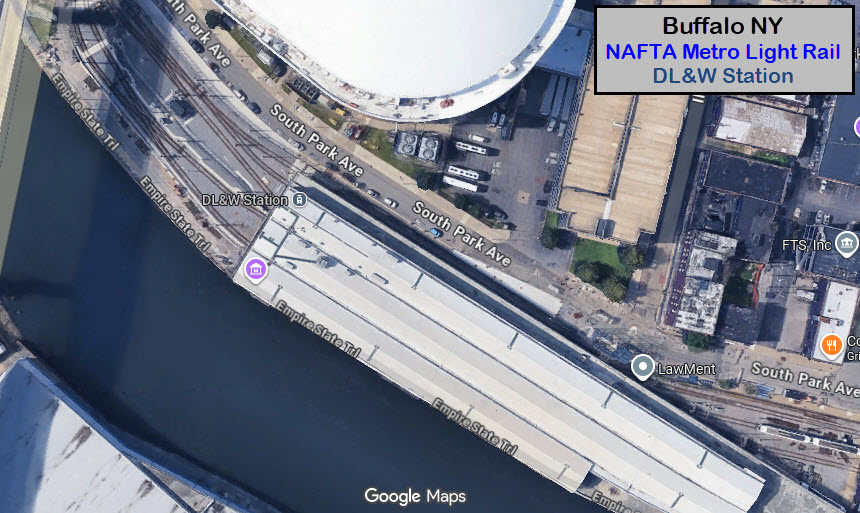

The Shops and Carbarn

GPS Coordinates: 42.87356, -78.87605

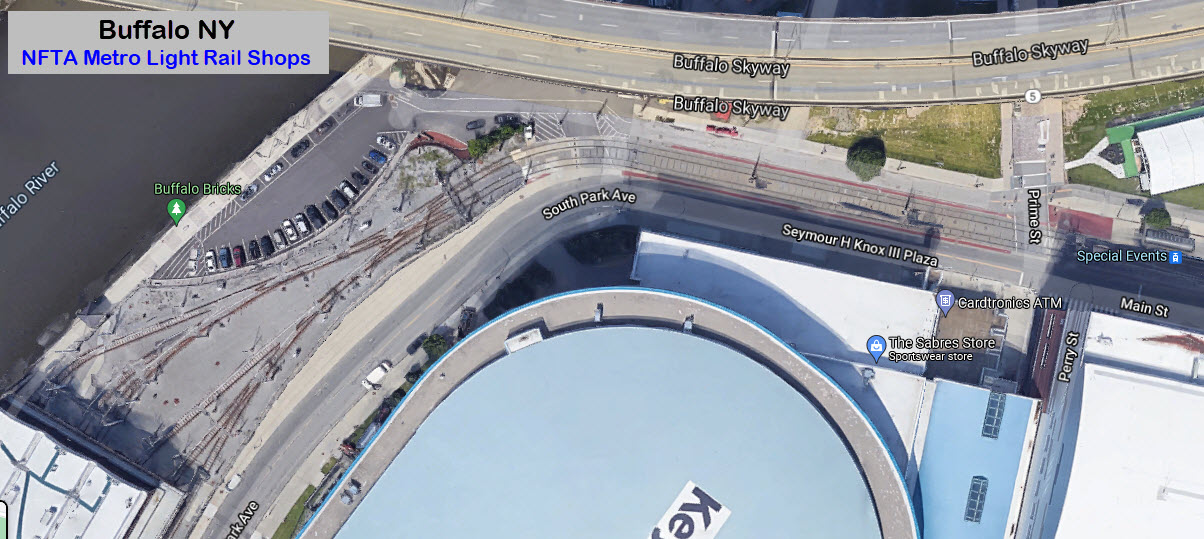

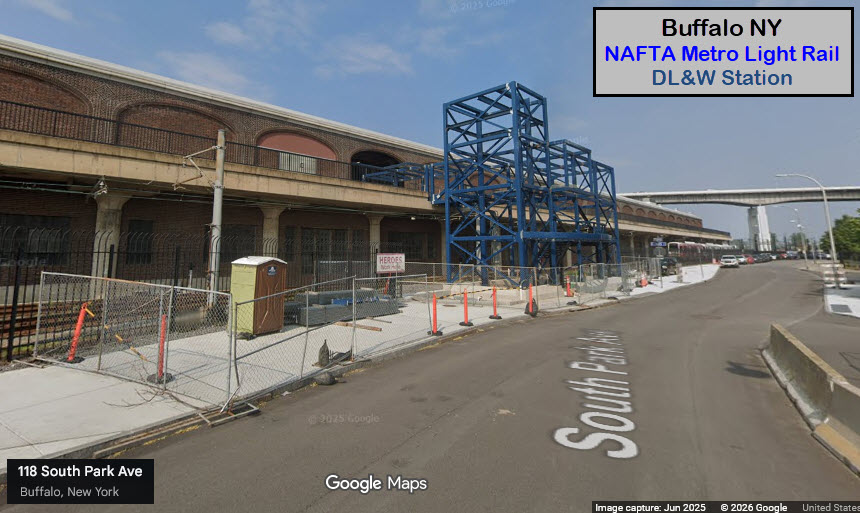

The shops are conveniently located along South Park Avenue, coming south out of the downtown area.  Looks like a little yard work was going on in 2020 when the Google Streetview cameras came thru.

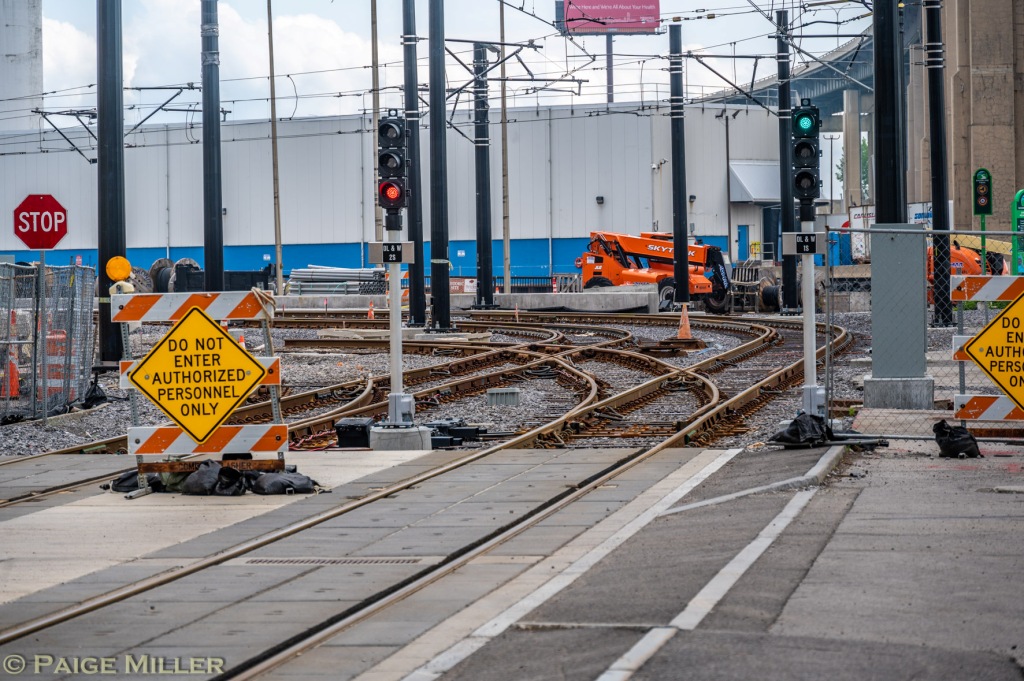

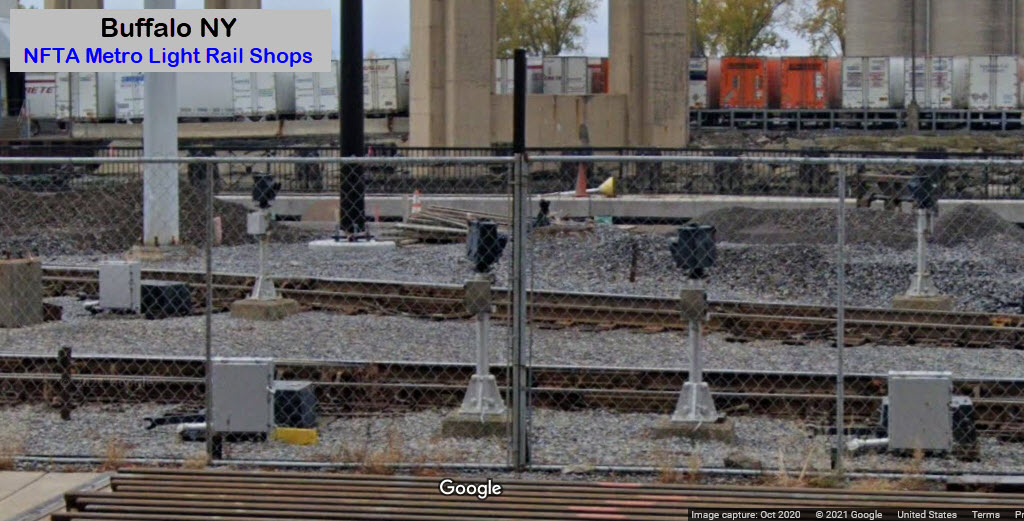

They have added a whole bunch of signals in their expanded yard....

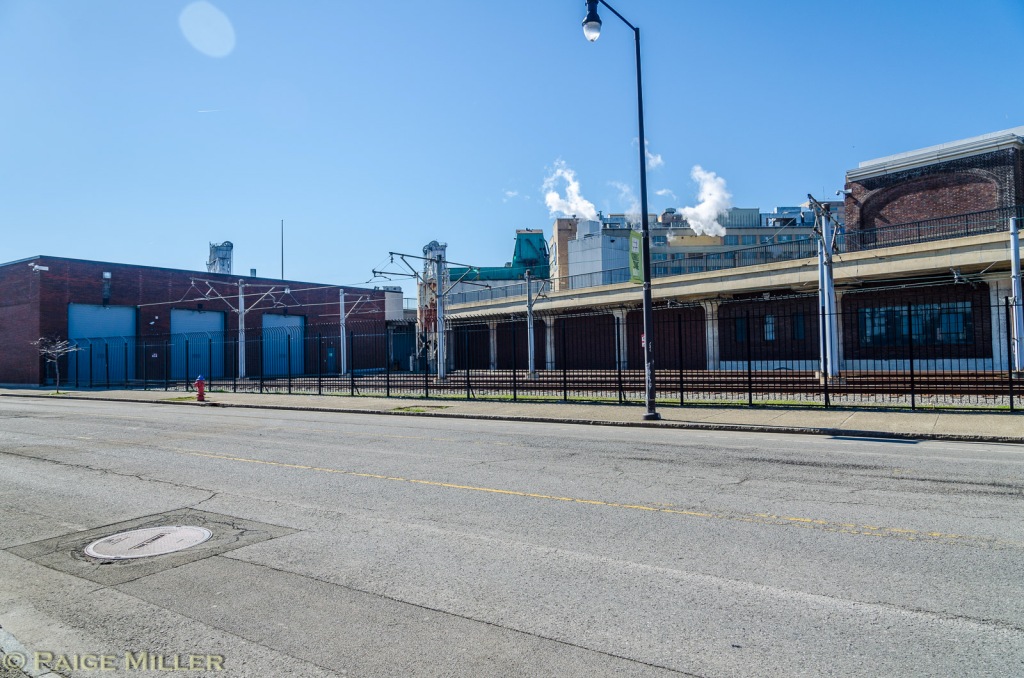

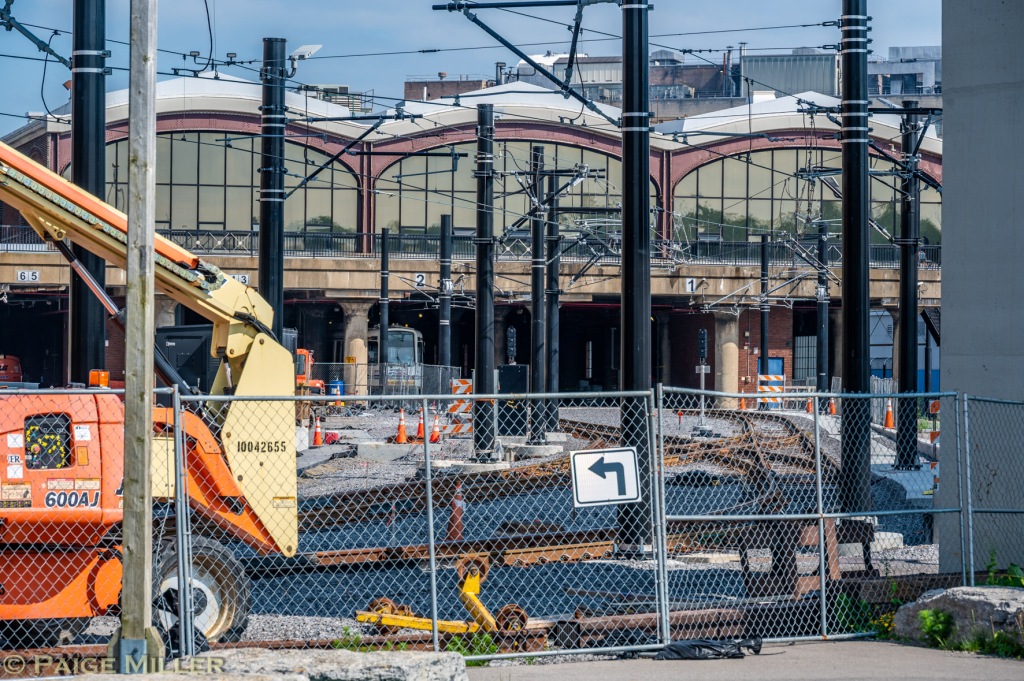

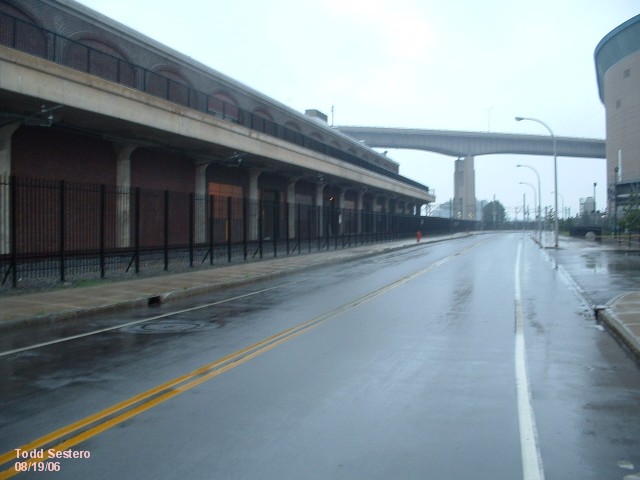

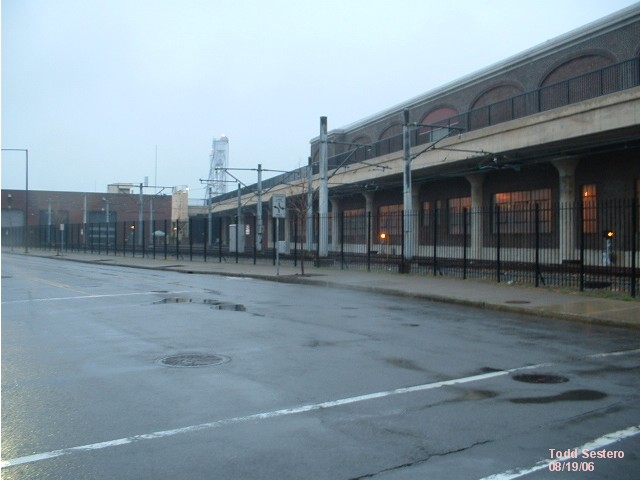

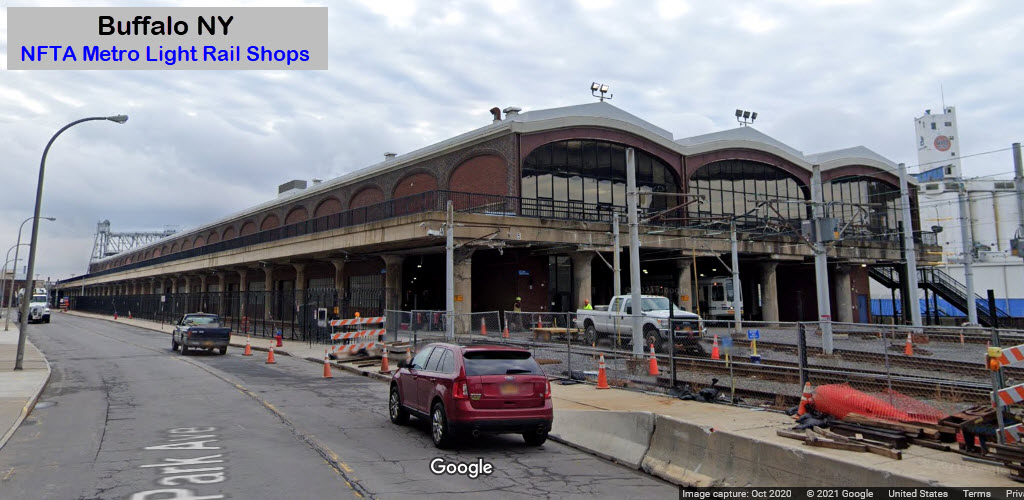

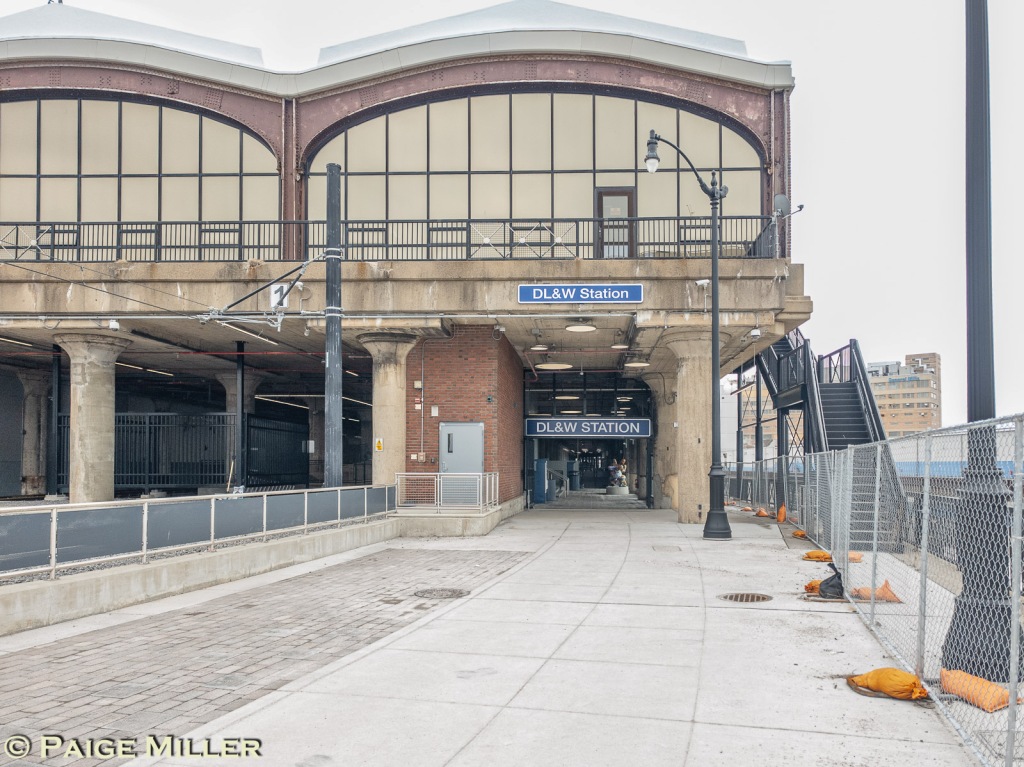

Couple of shots of the combined shops and carbarn.  This is common practice in snow country.

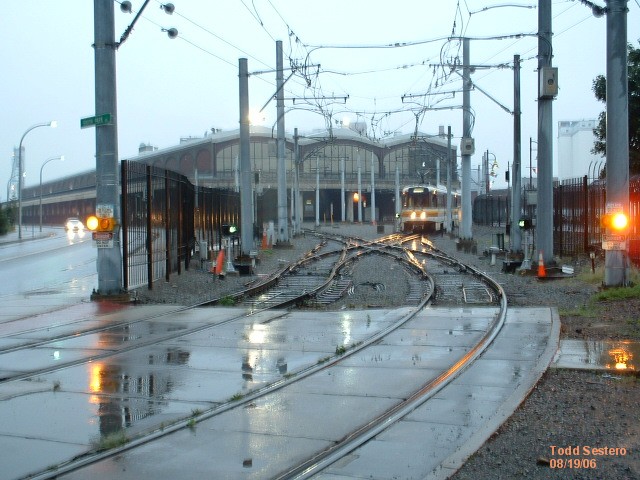

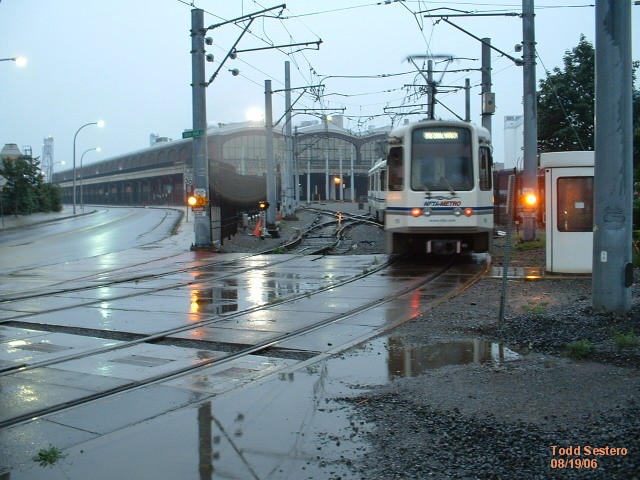

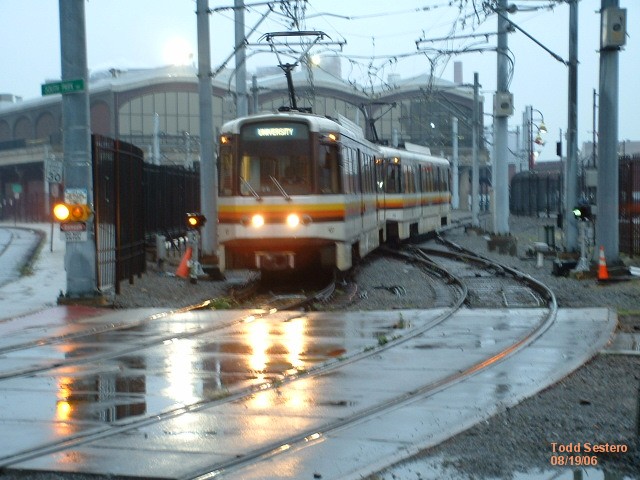

At the entrance to the yard and shops.

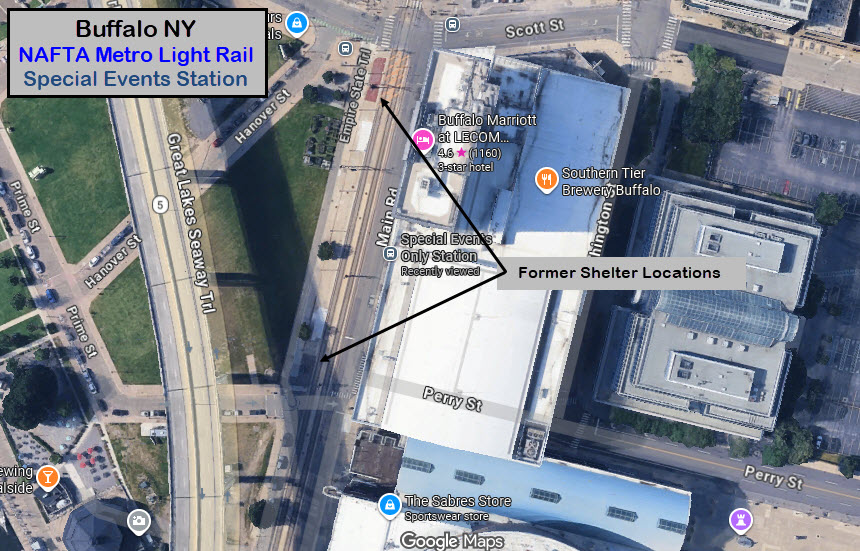

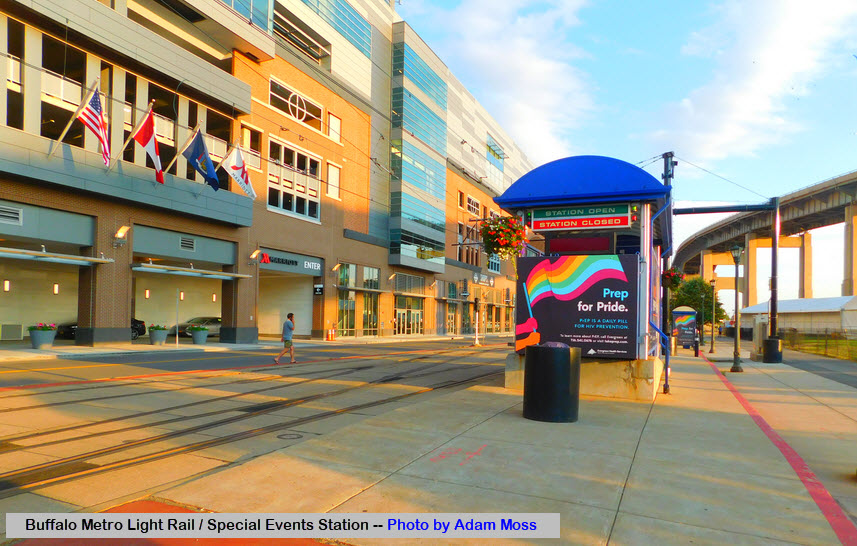

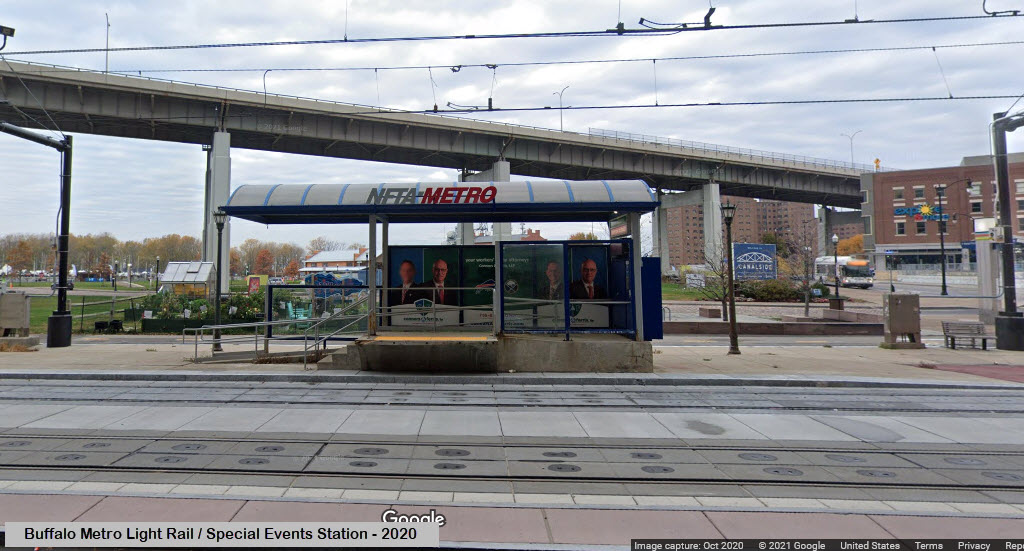

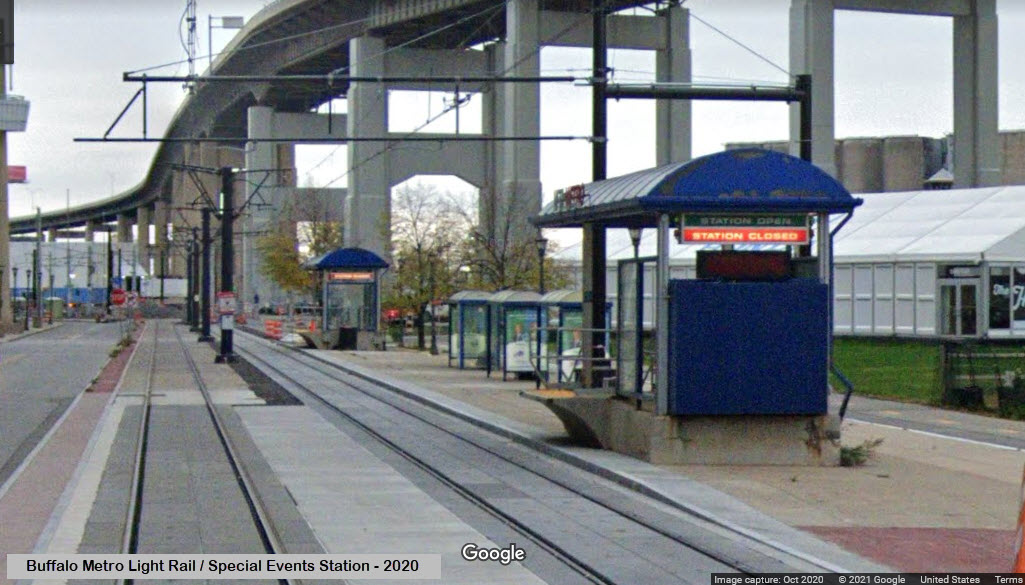

Special Events Stadium Station

GPS Coordinates: 42.87662, -78.87735







via Wikipedia

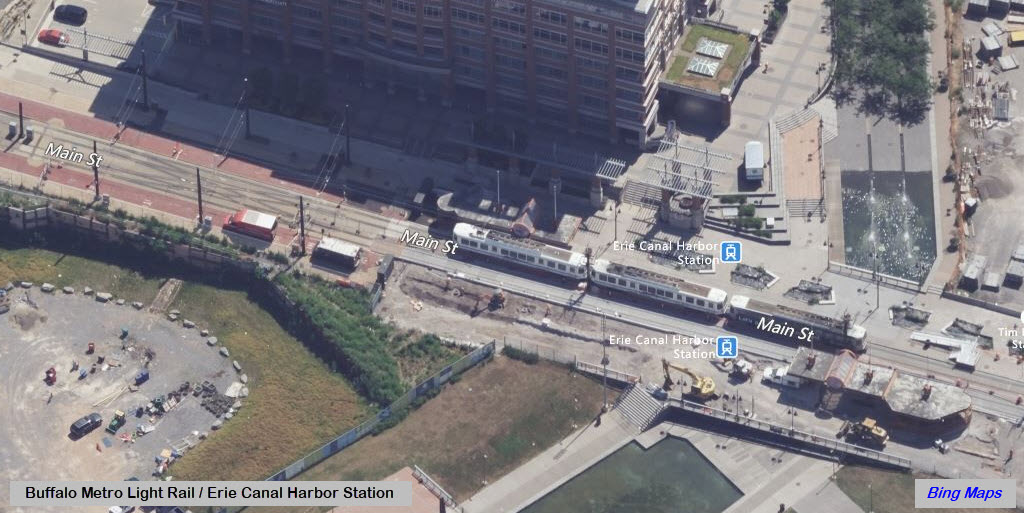

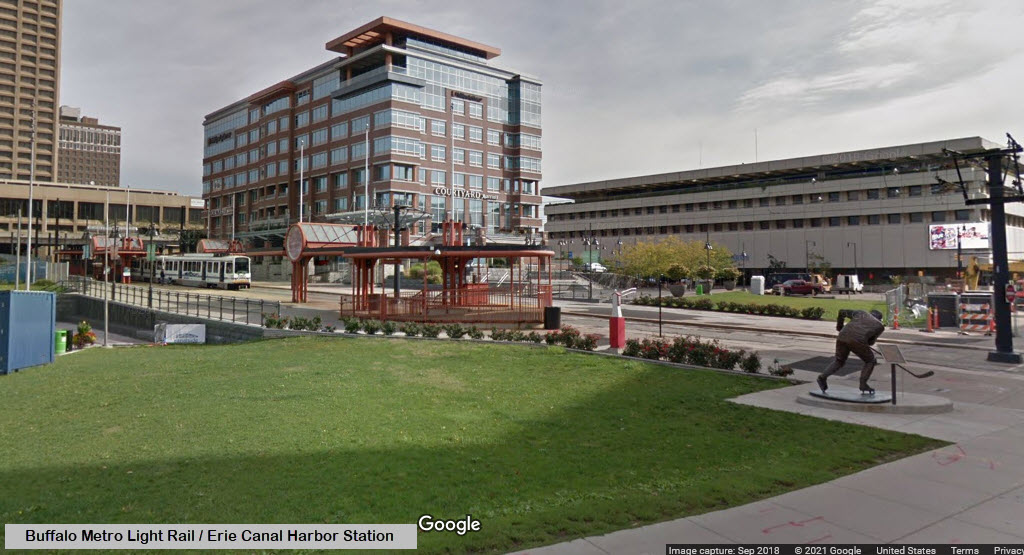

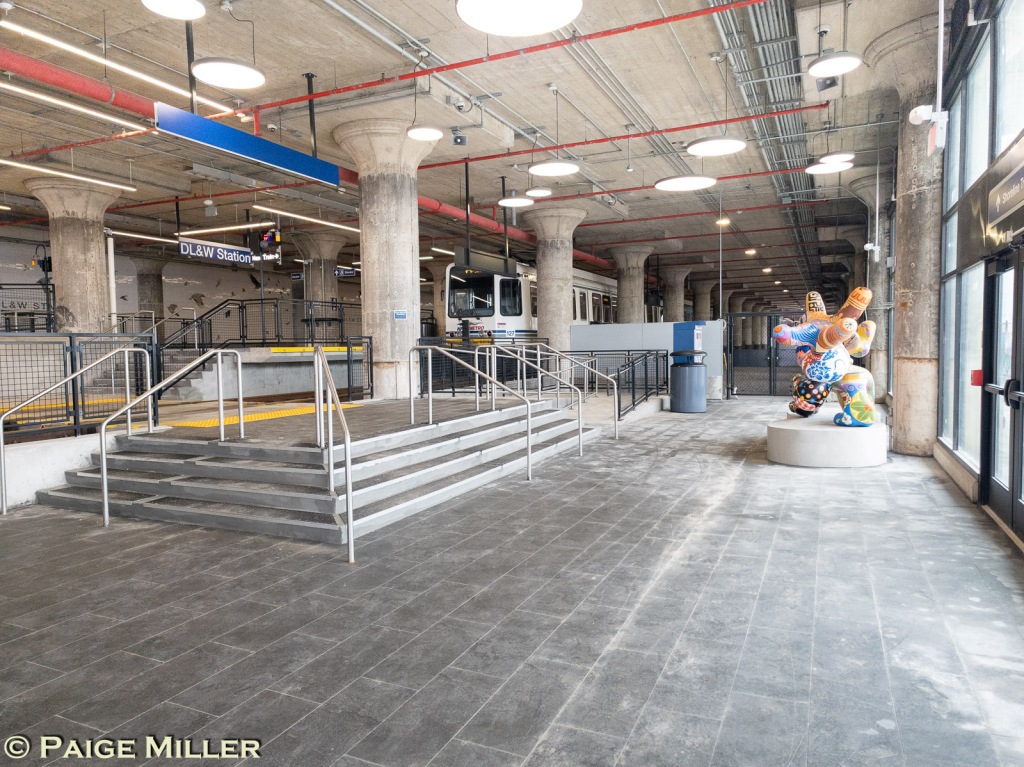

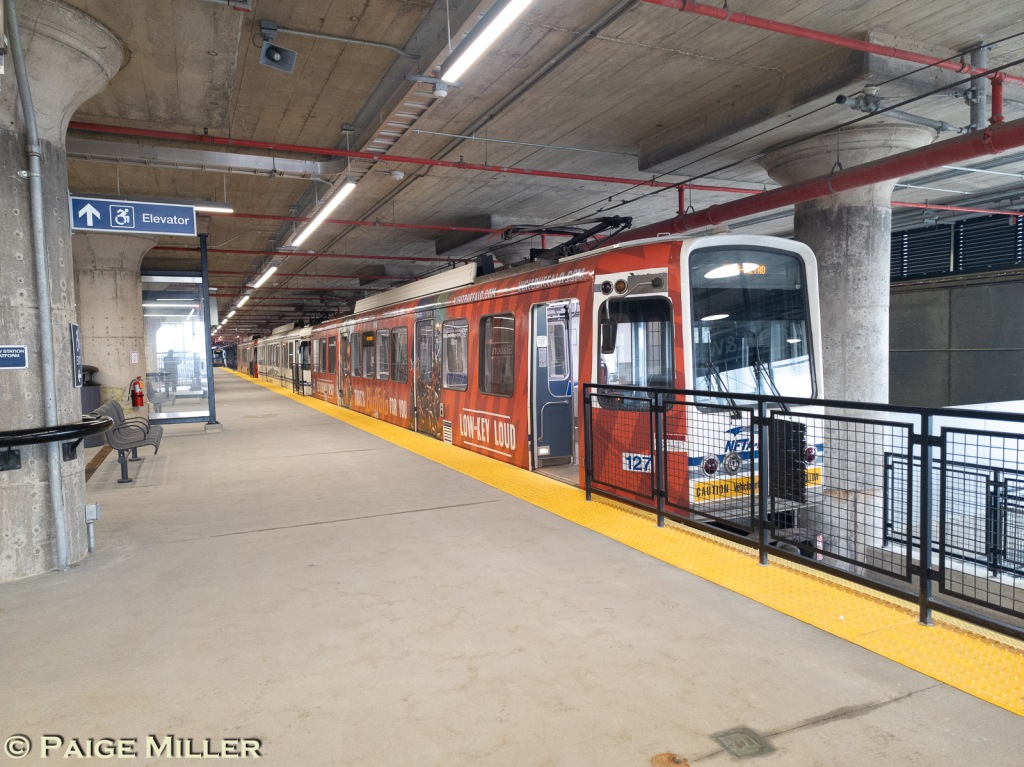

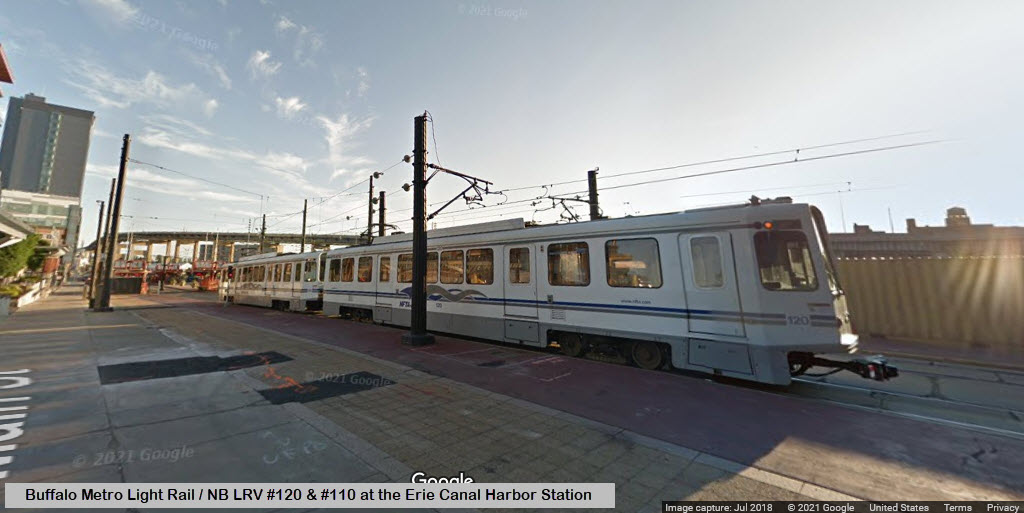

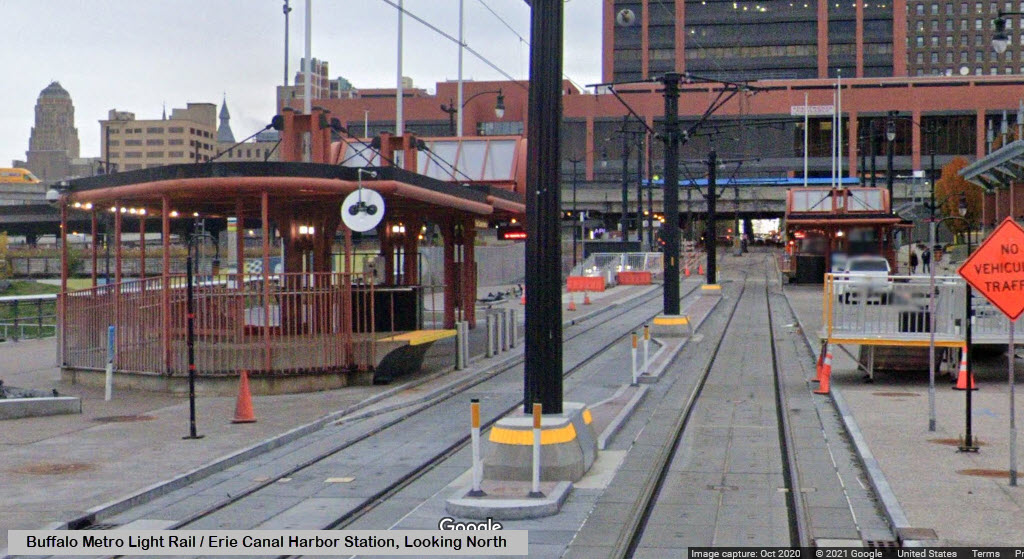

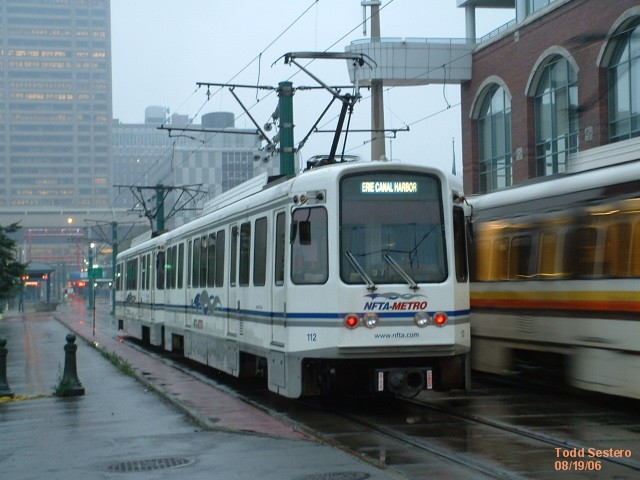

Erie Canal Harbor Station

GPS Coordinates: 42.87780, -78.87696

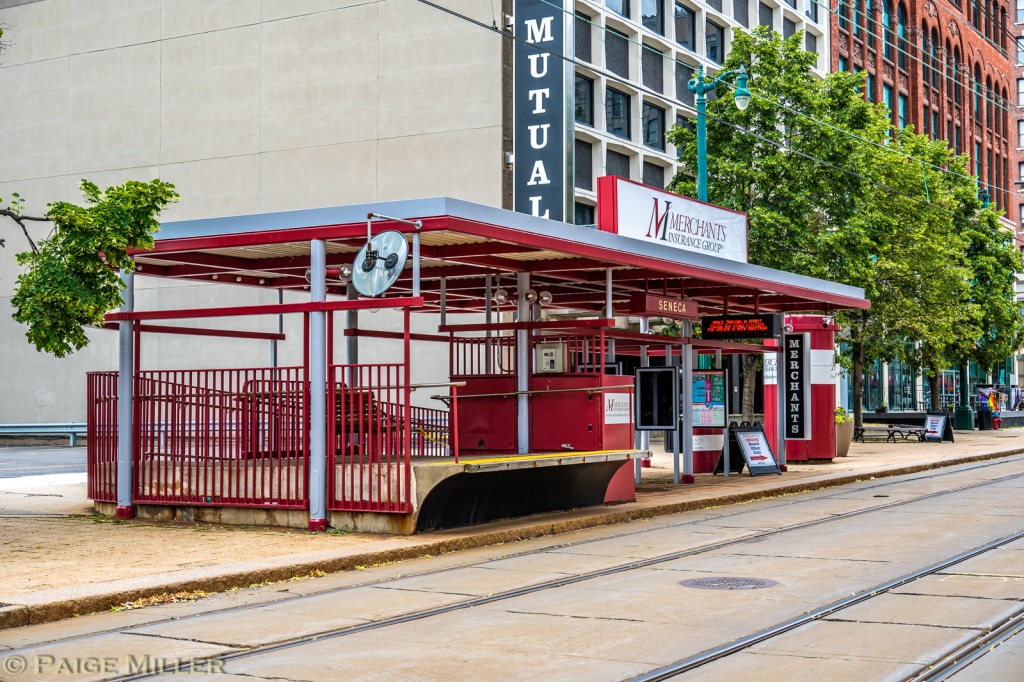

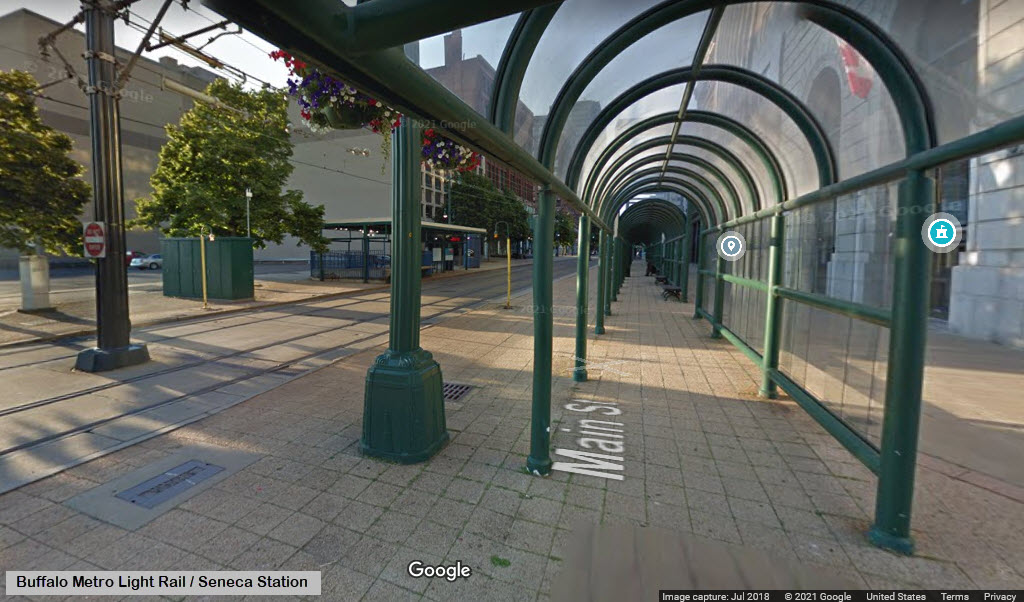

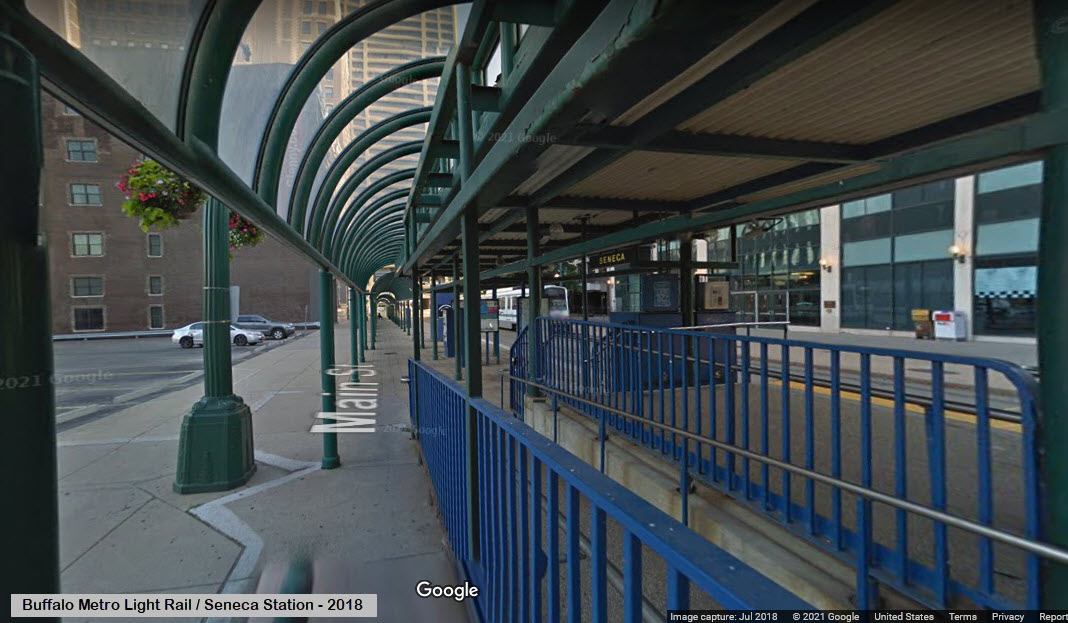

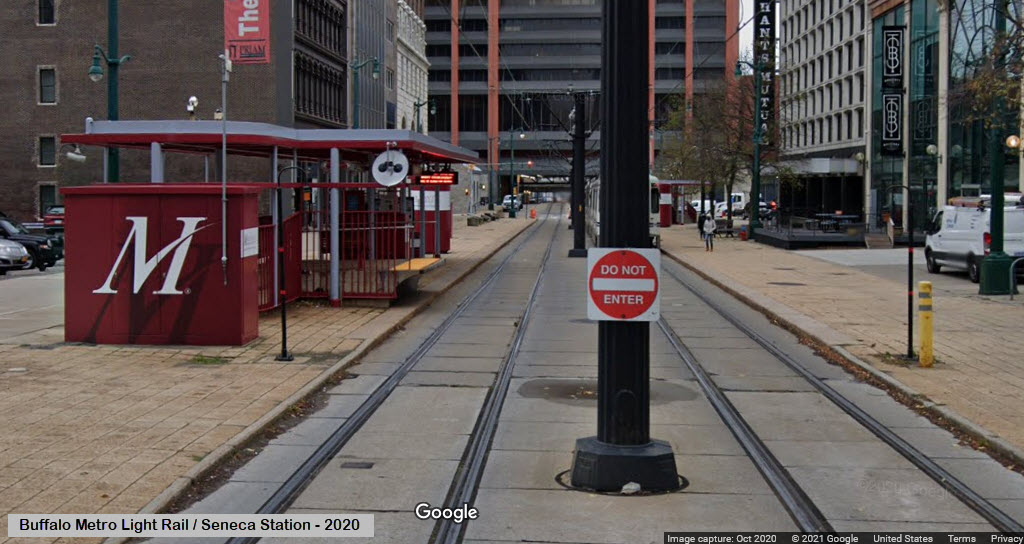

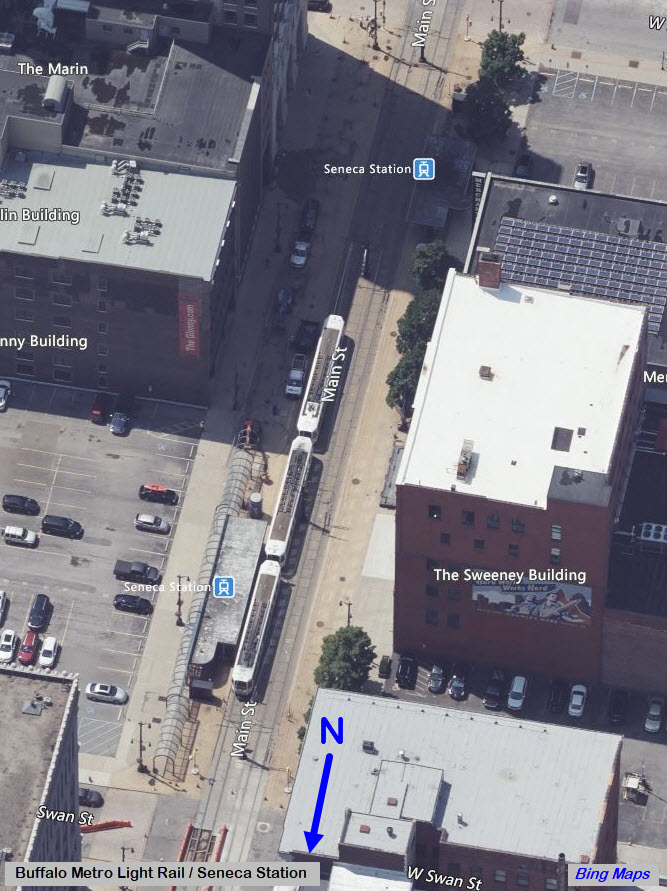

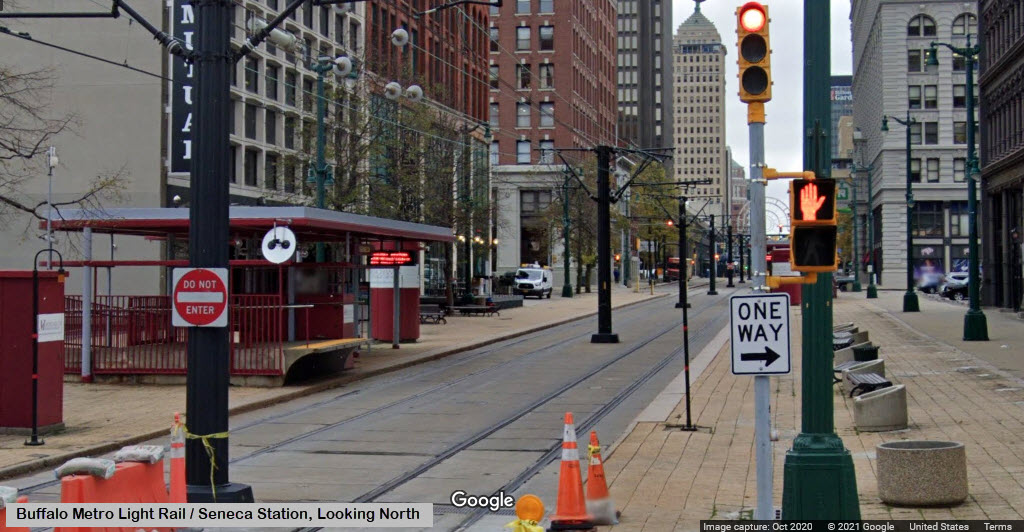

Seneca Station

GPS Coordinates: 42.88125, -78.87584

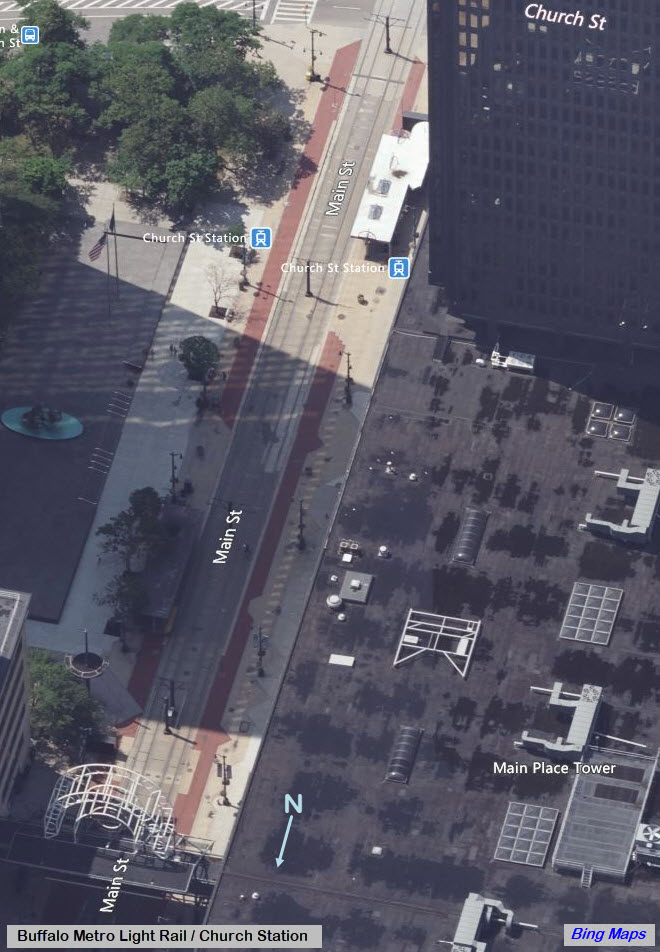

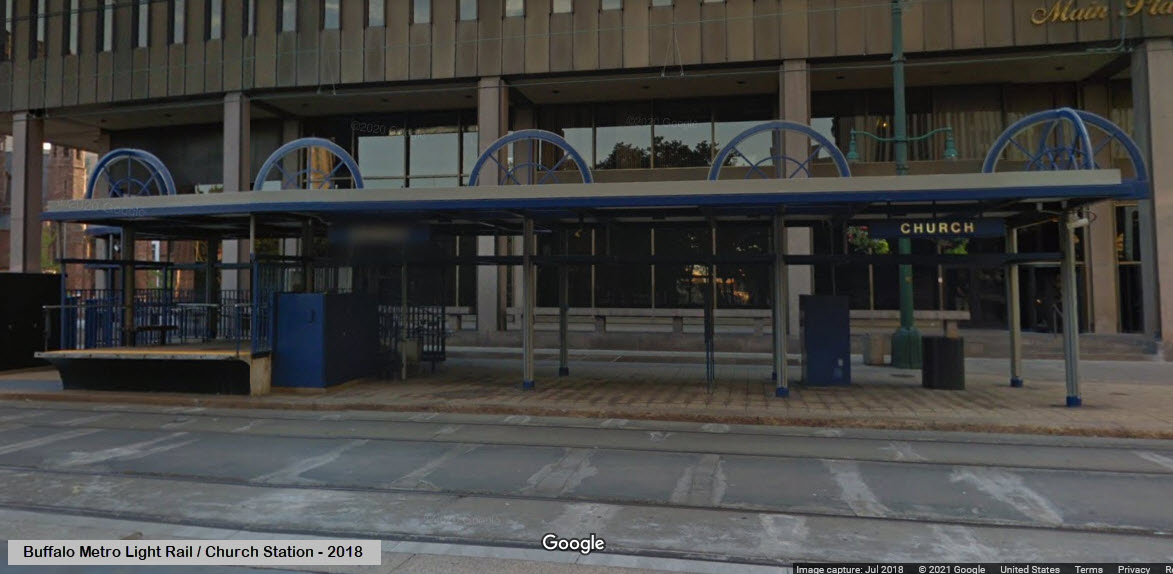

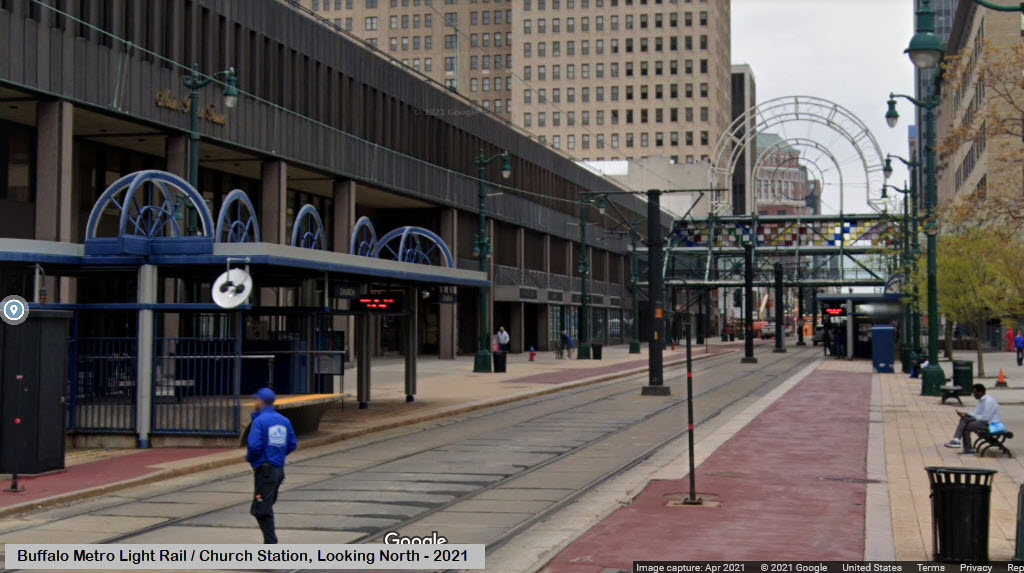

Church Station

GPS Coordinates: 42.88385, -78.87497

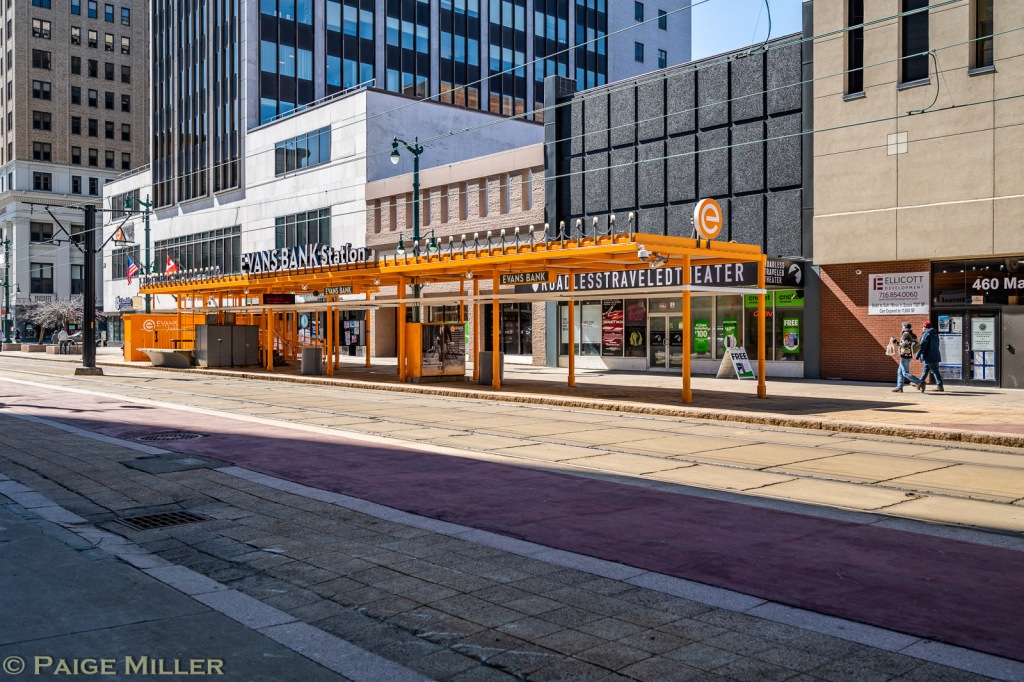

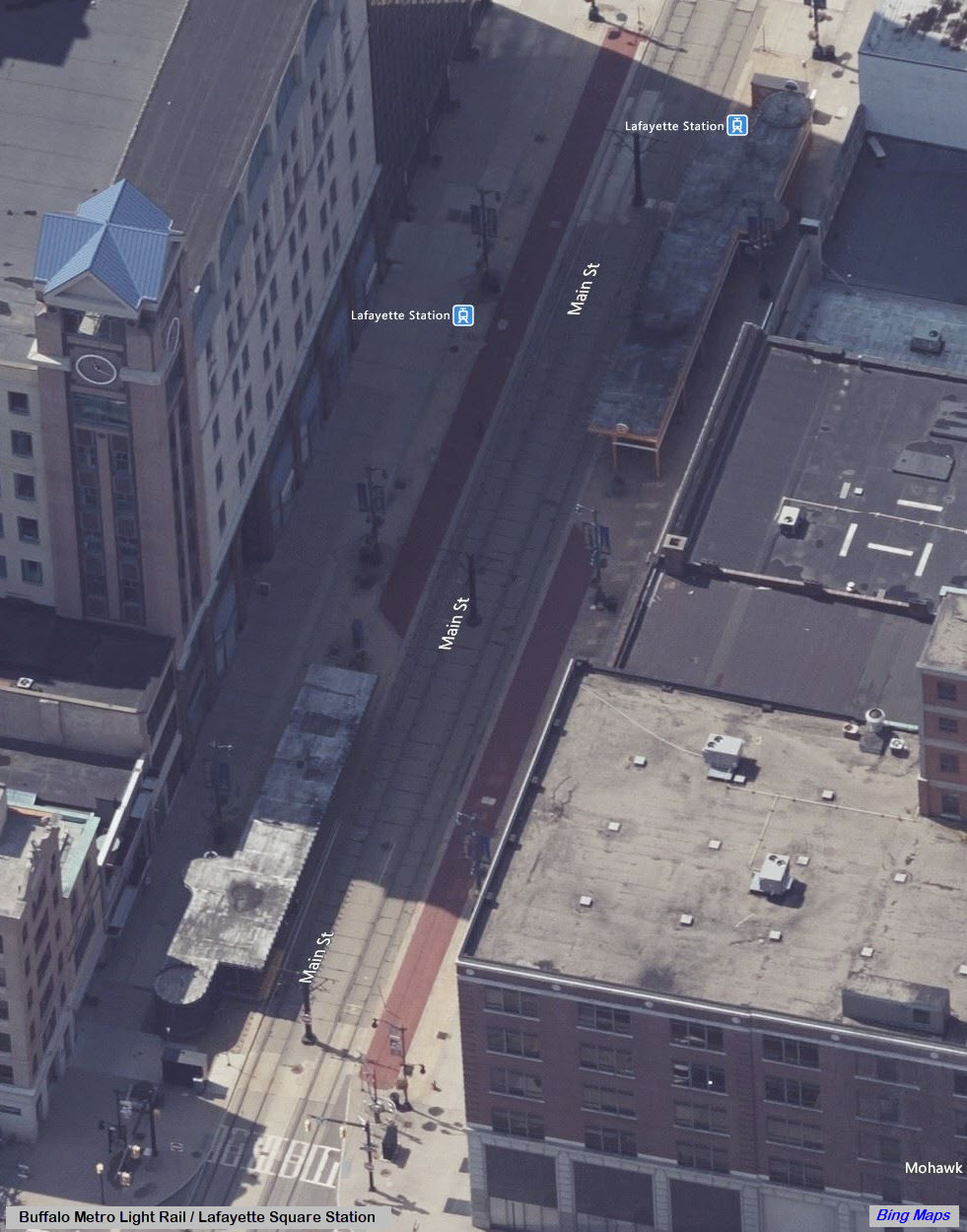

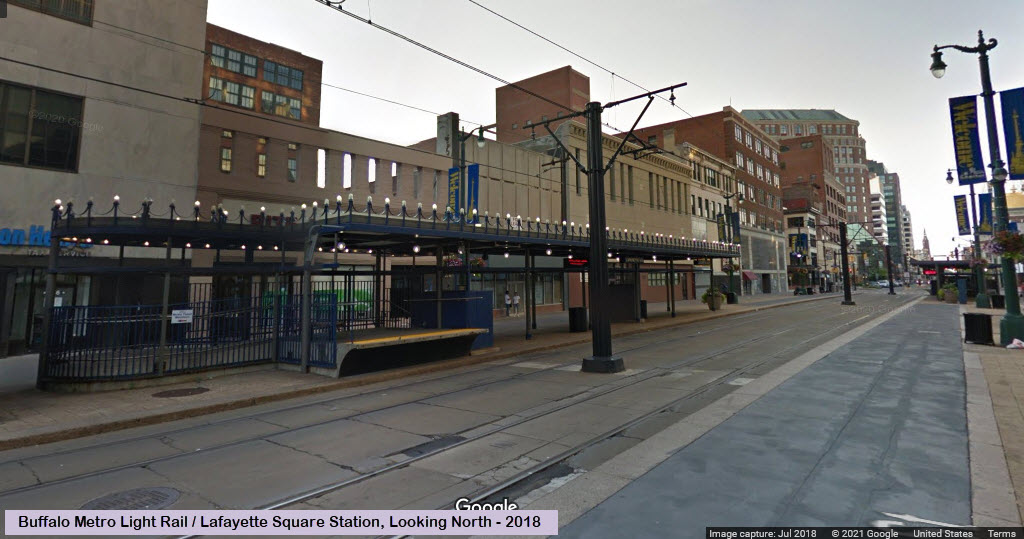

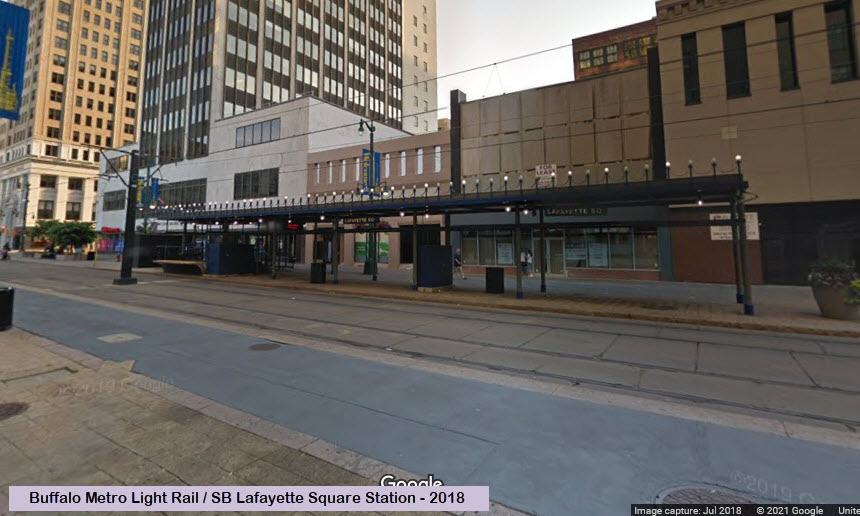

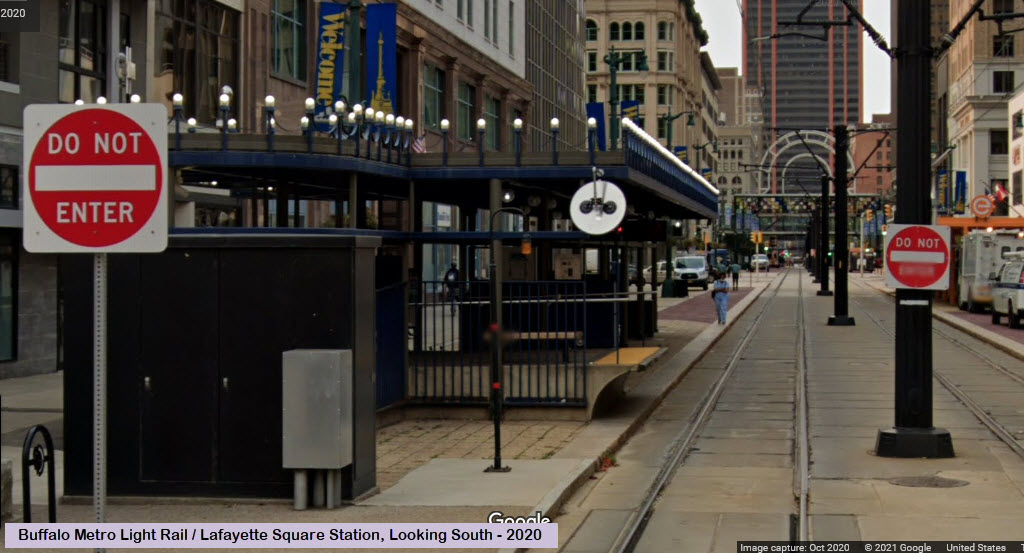

Evans Bank (Lafayette Square) Station

GPS Coordinates: 42.88469, -78.87414

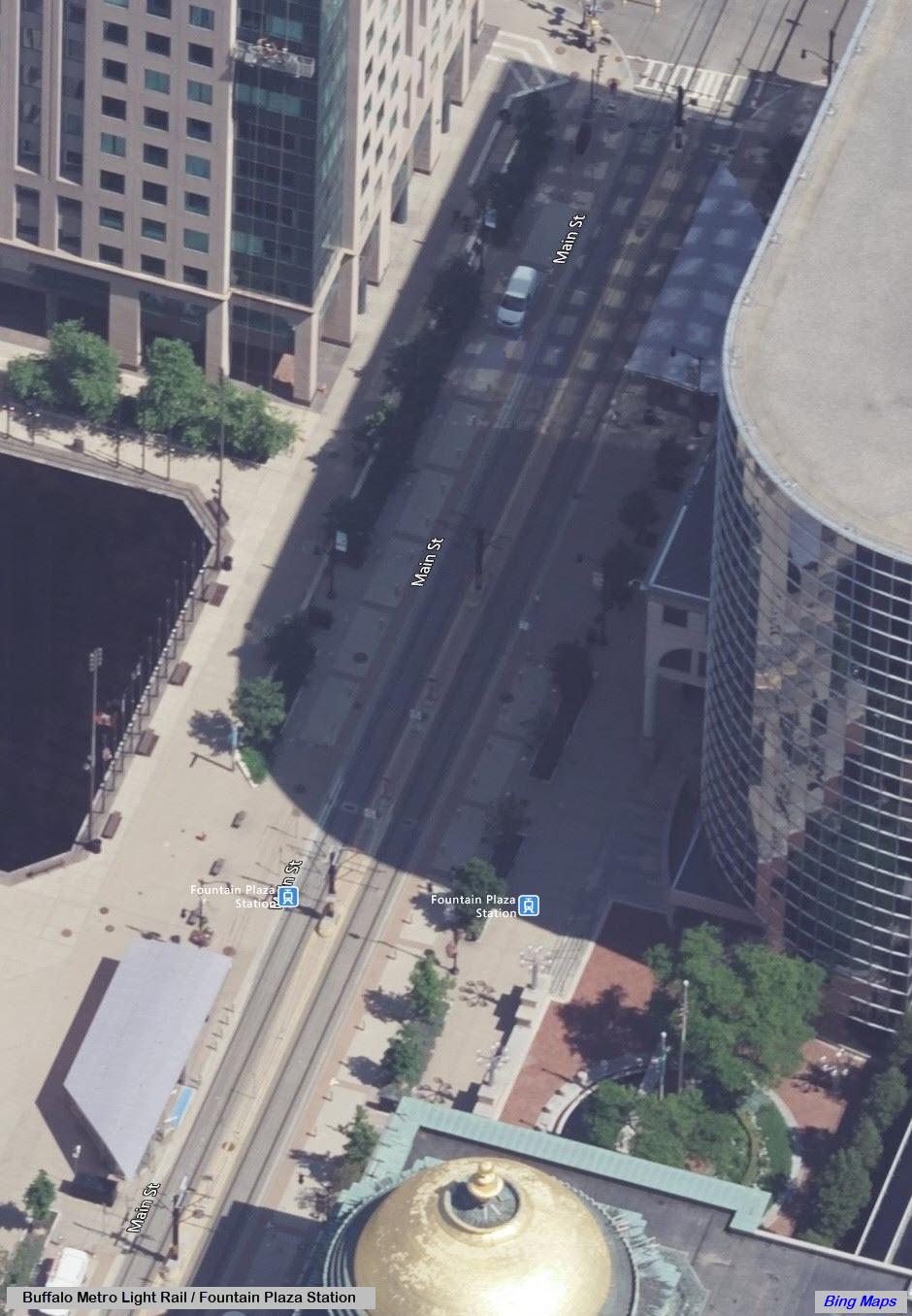

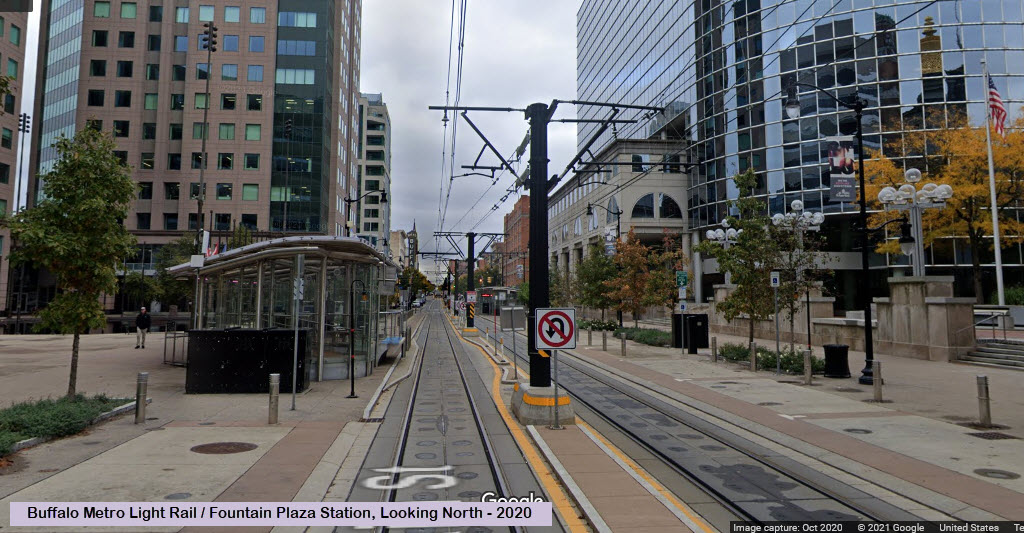

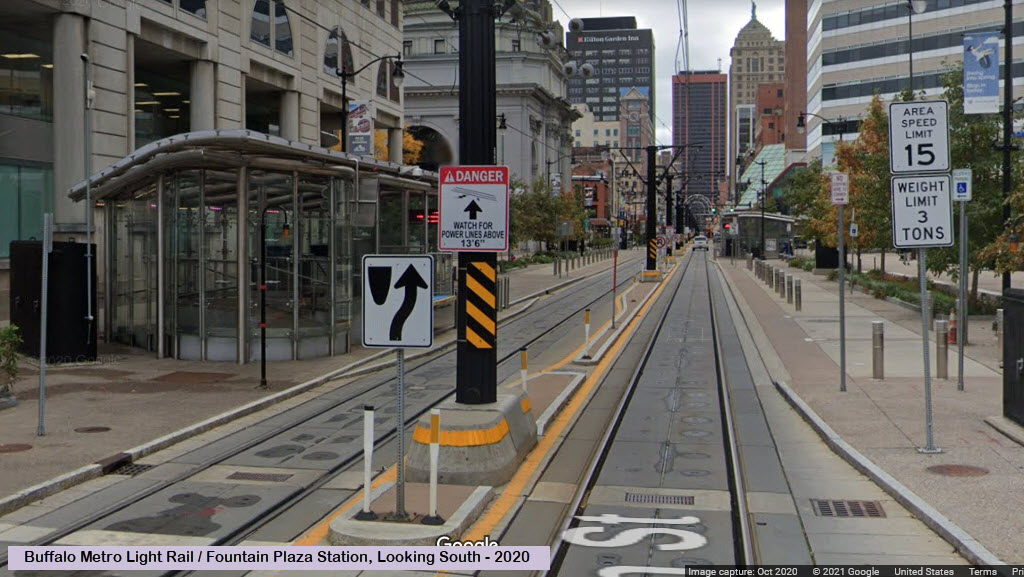

Fountain Plaza Station

GPS Coordinates: 42.88951, -78.87314







looking north, NB train on the right

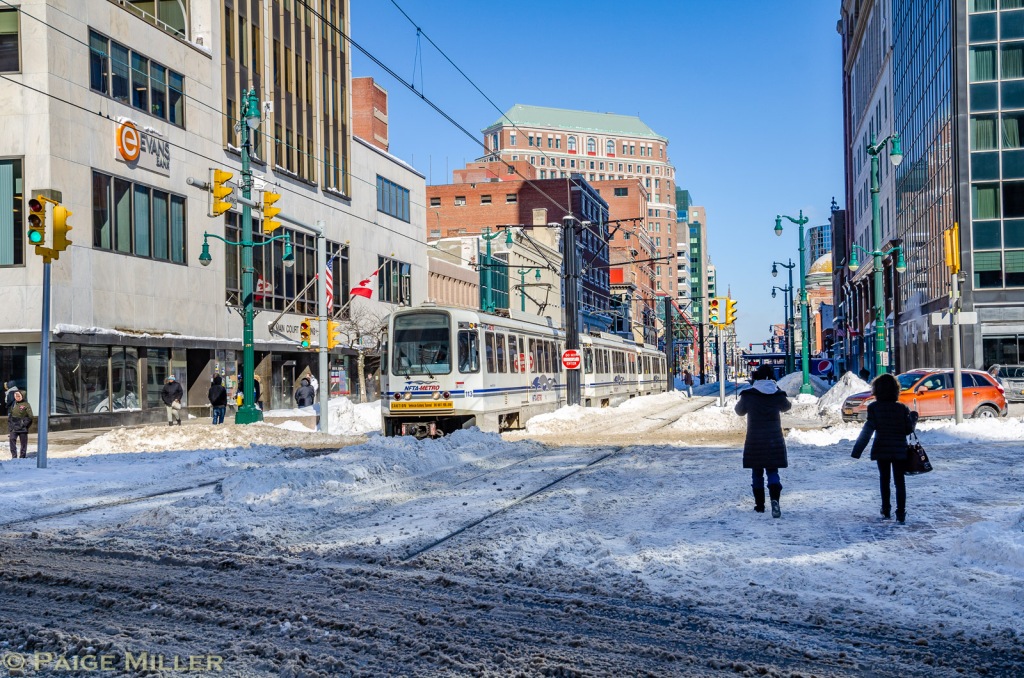

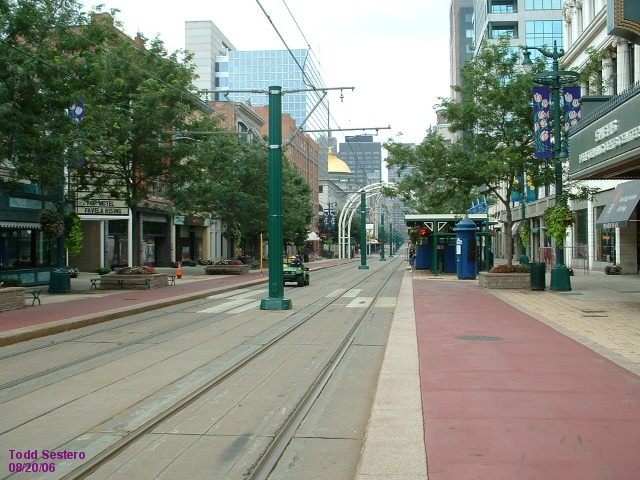

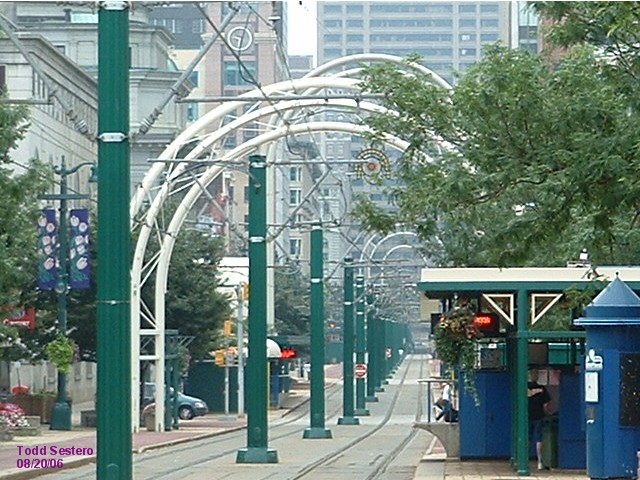

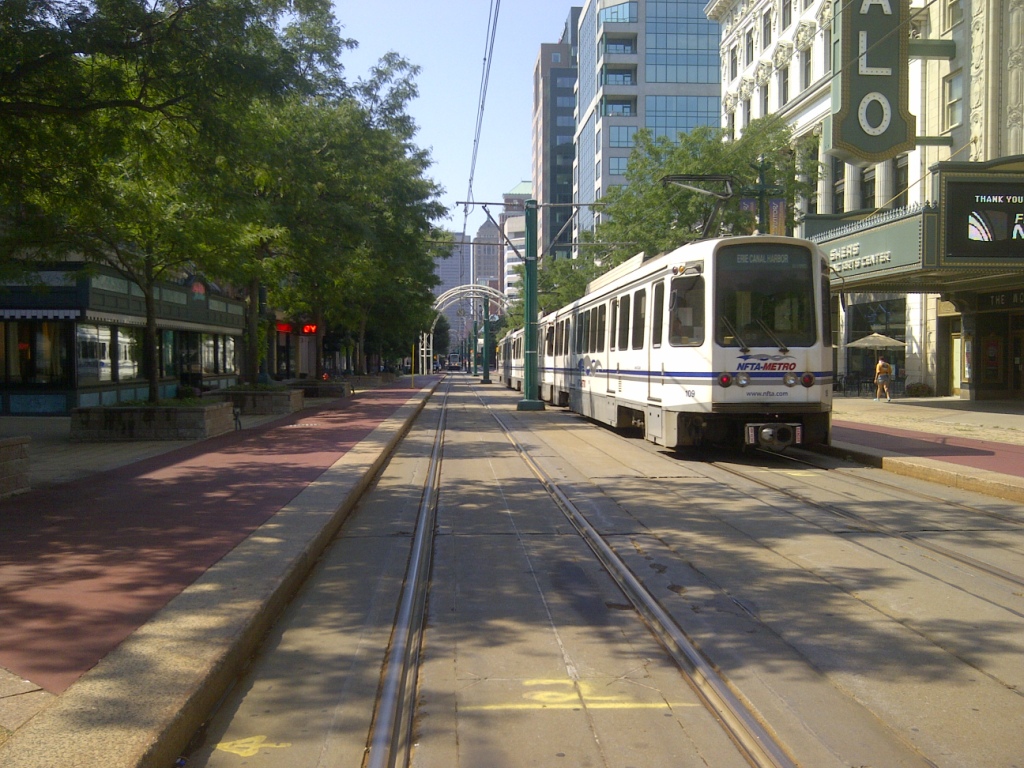

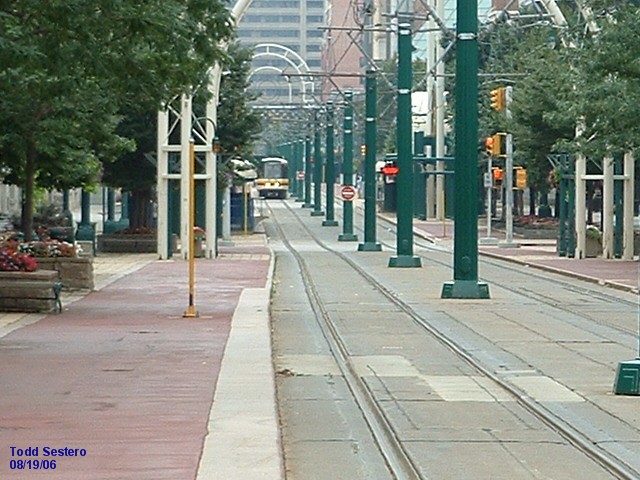

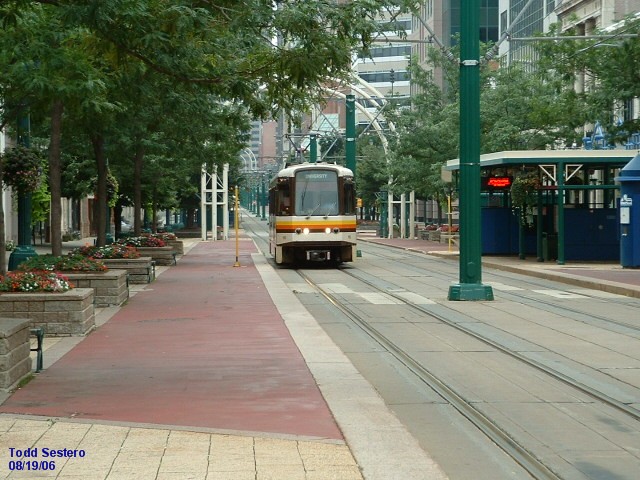

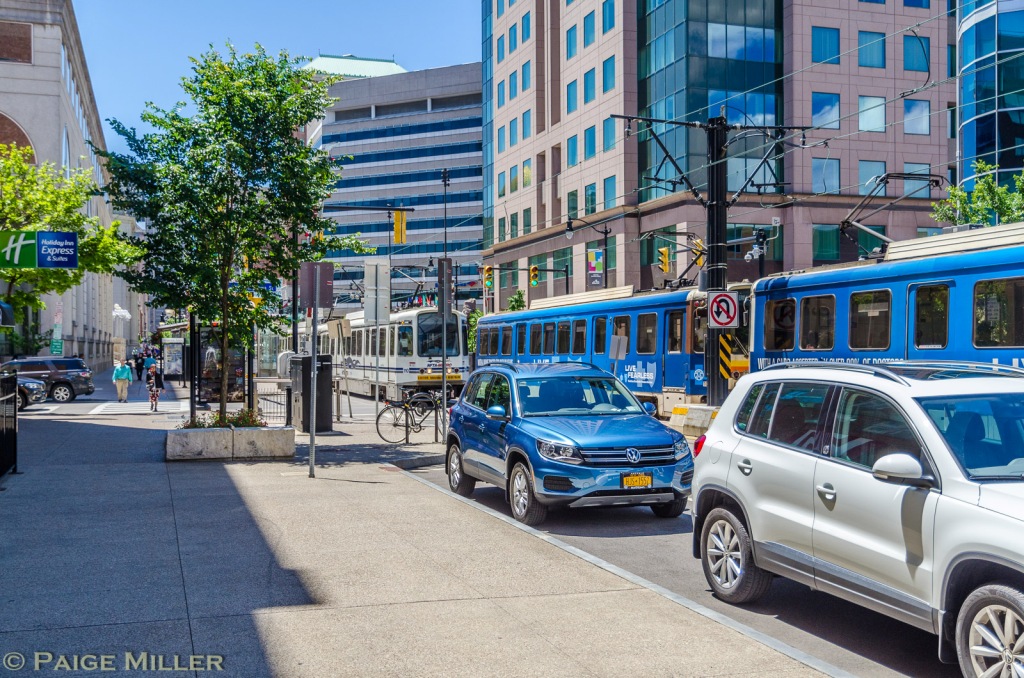

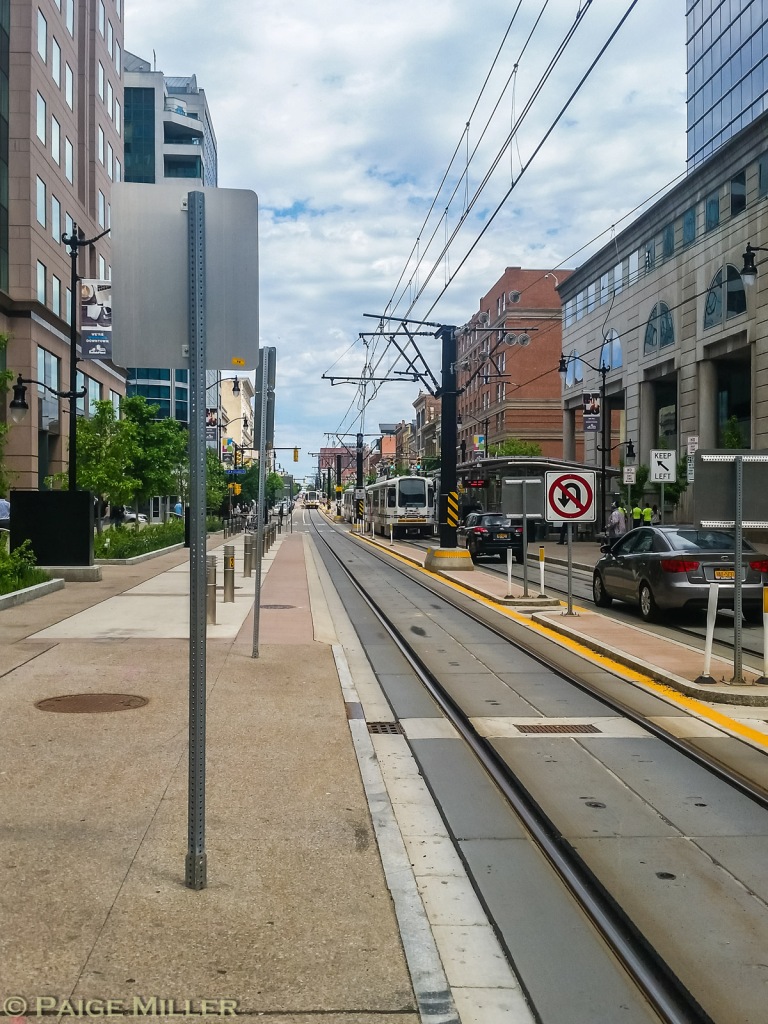

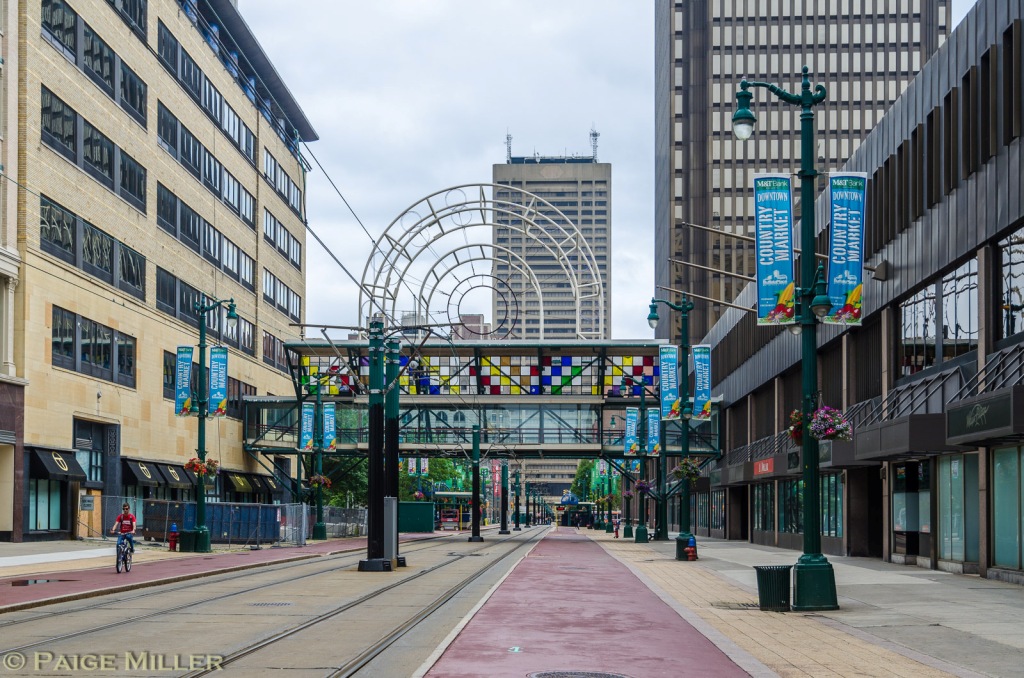

Shots down Main Street

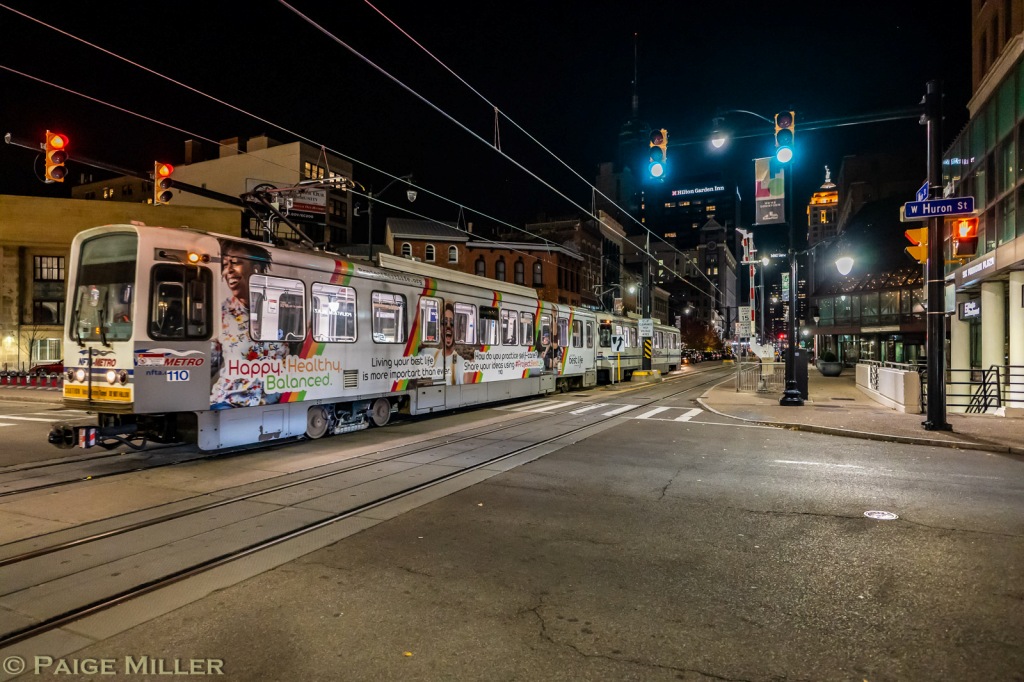

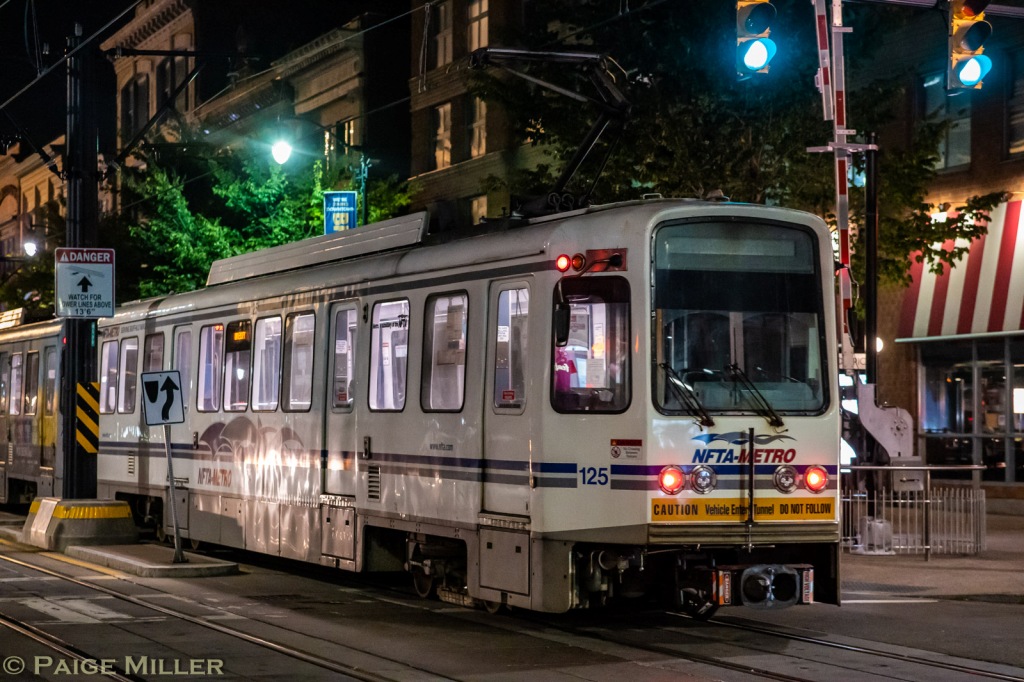

I love these night time shots from Paige:







looking south

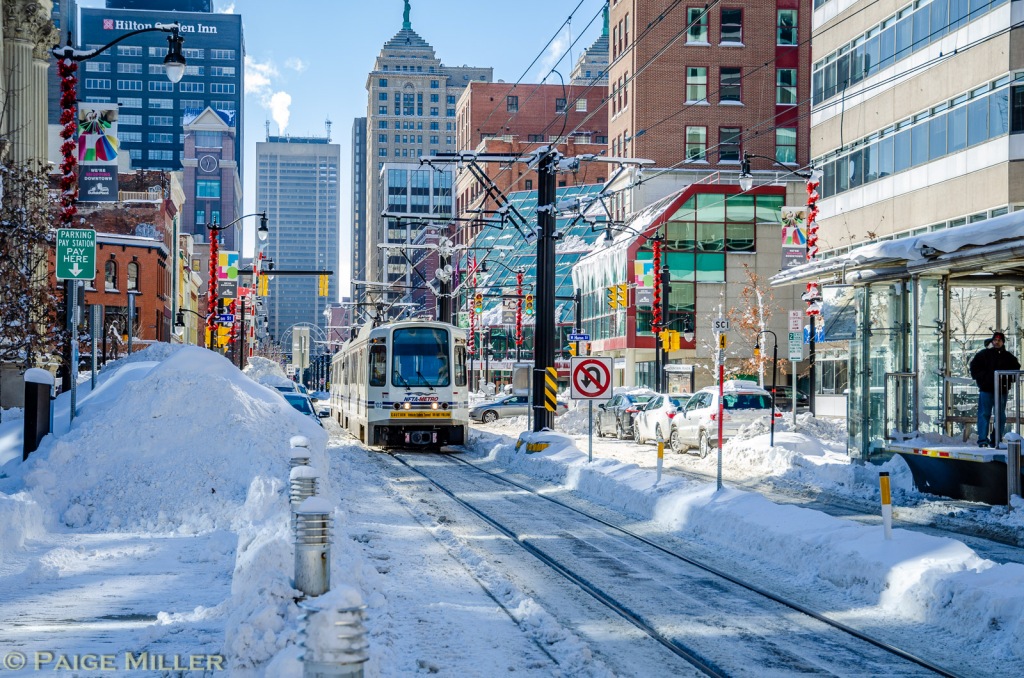

Aftermath of the 2019 blizzard, heading north at Huron Street


Another shot of the 2019 blizzard, SB train, looking north at Court Street


Found on the internet, photographer unknown....

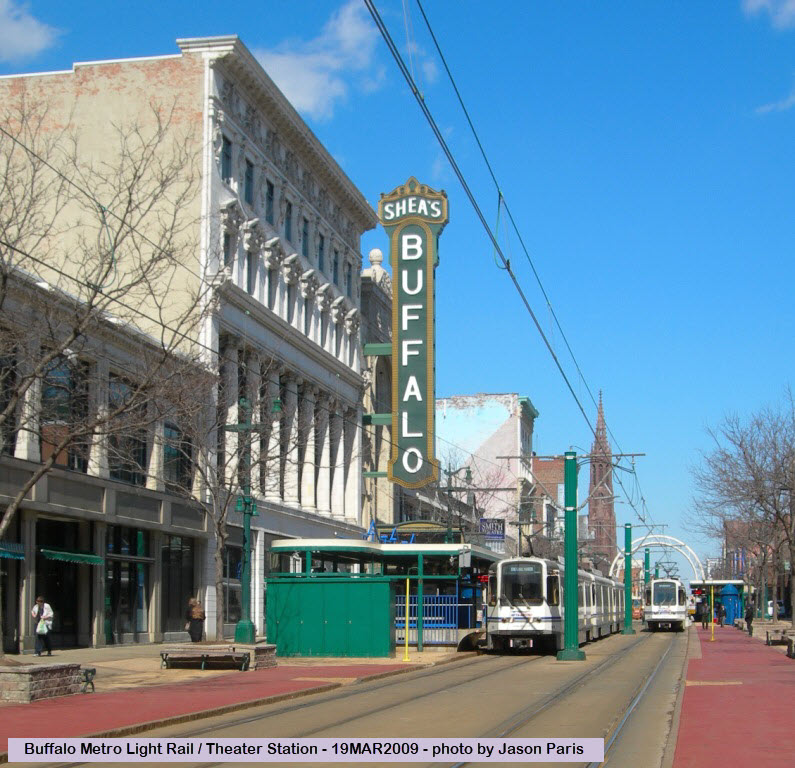

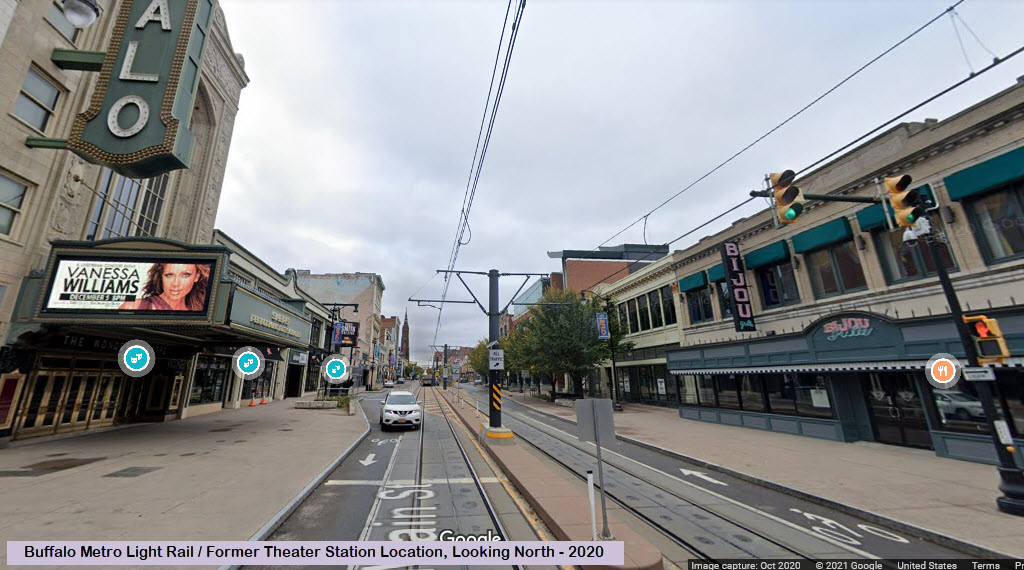

Theater Station

GPS Coordinates: 42.89193, -78.87239
https://en.wikipedia.org/wiki/Theater_station

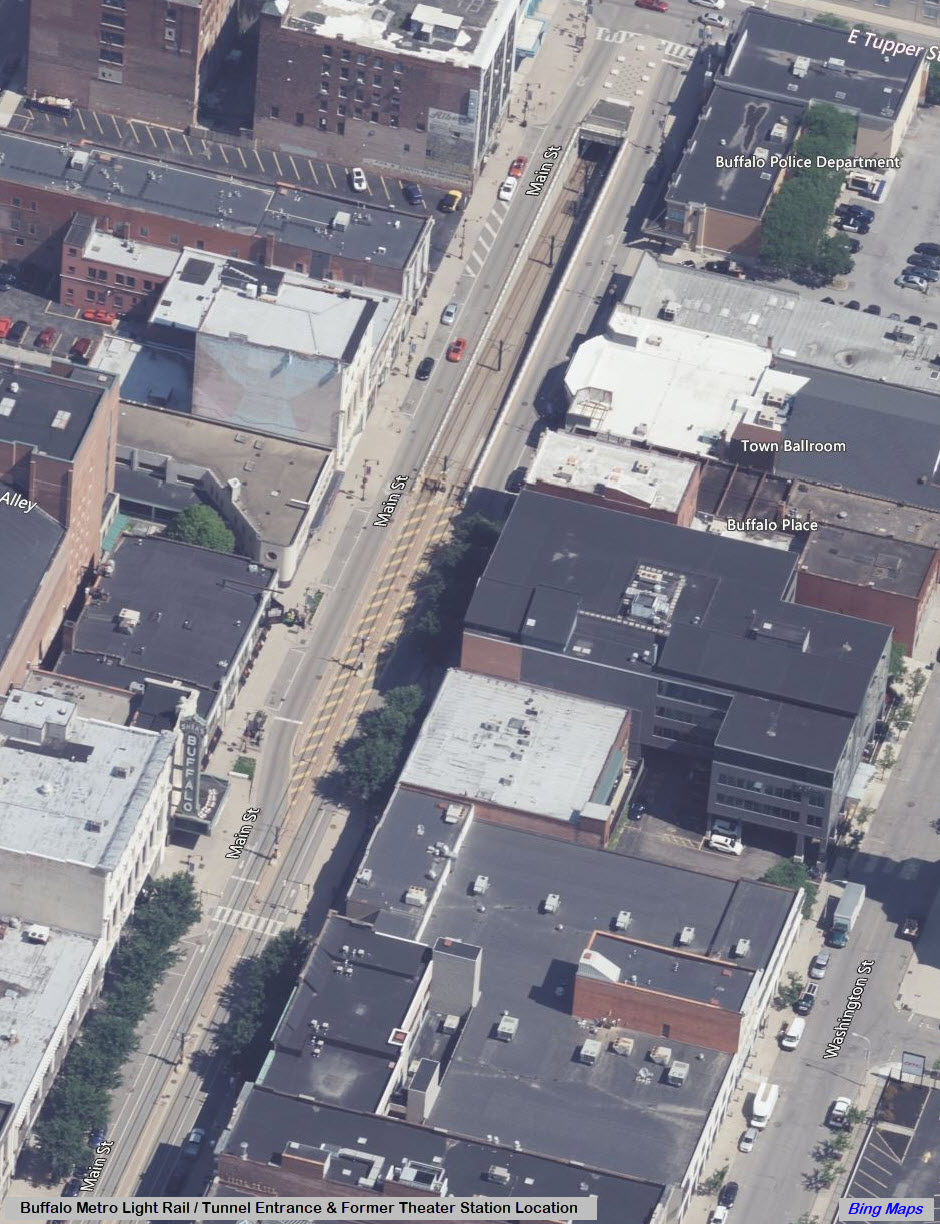

The Theater station was permanently closed on February 18, 2013 in order to be demolished to make way for the return of vehicular traffic to the 600 block of Main Street.  The Buffalo Theater District is now served by the Fountain Plaza station, located 546 feet (166 m) south.  Theater was the last above-ground station, with the subway portal directly north of the station, which caused safety issues partially leading to decision to close rather than relocate the station. (from Wikipedia)





Northbound train coming into the Theater station.

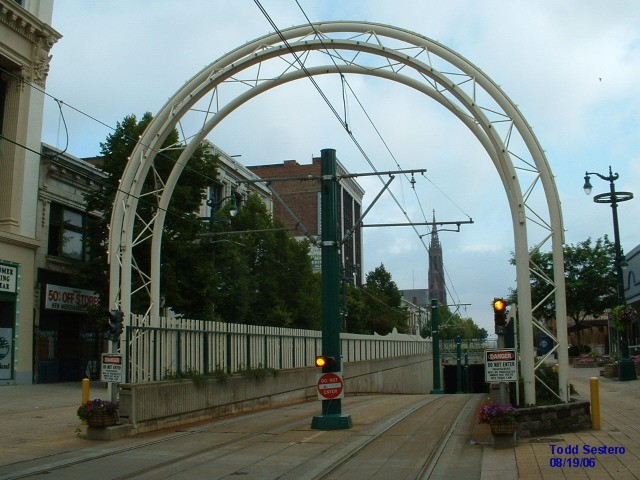

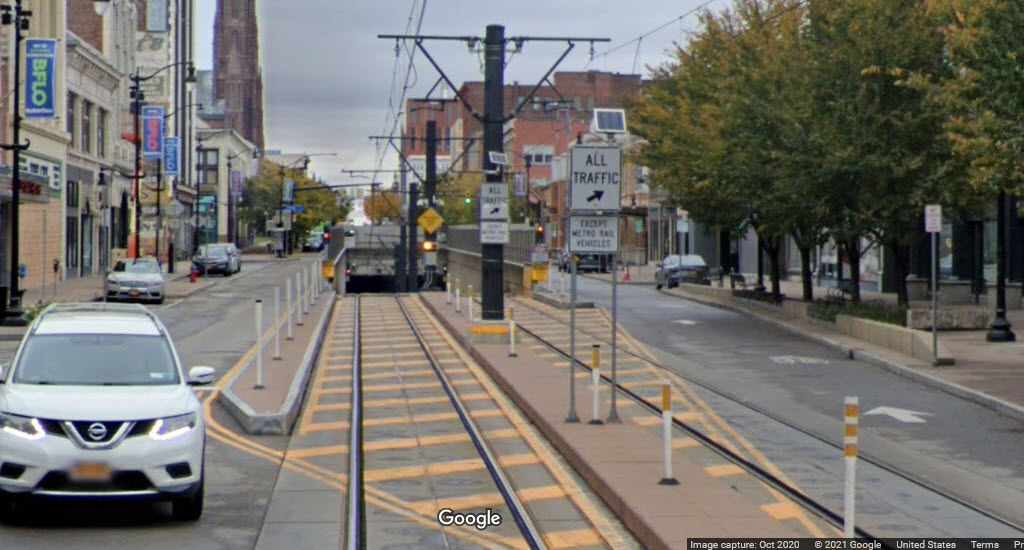

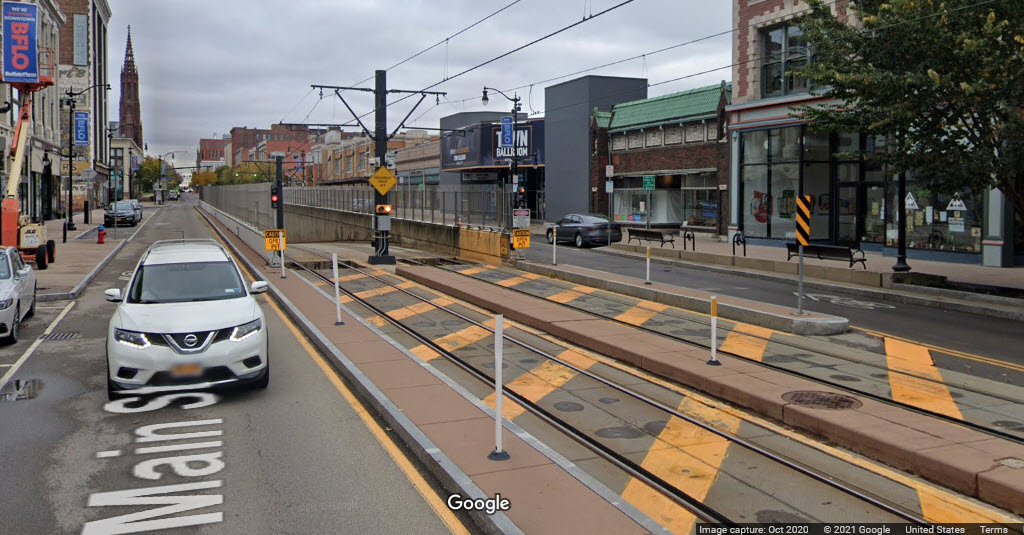

Tunnel Portal / Entrance

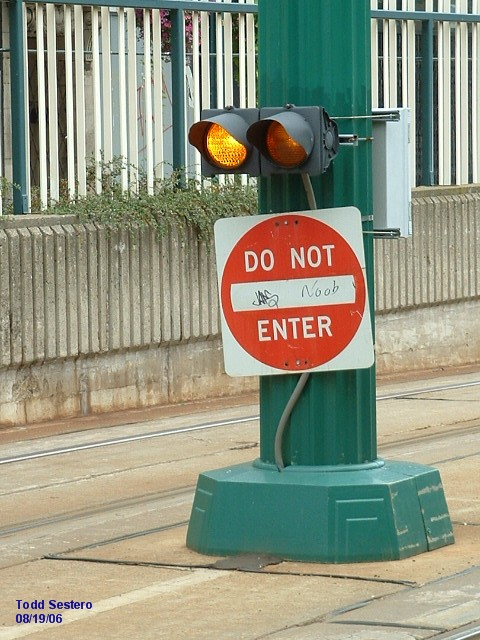

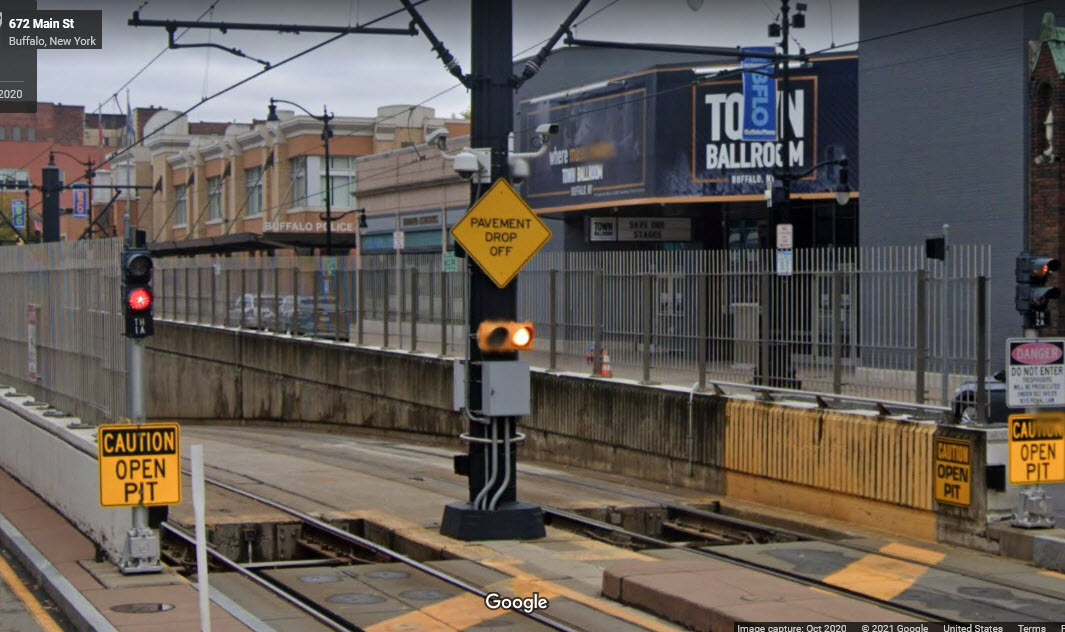

They've gone to great lengths to keep cars from entering the tunnel, but you would have thought they would have made the NB side longer, since that's the direction cars are traveling.  We've lost the cool looking arch tho in the process.... darn....

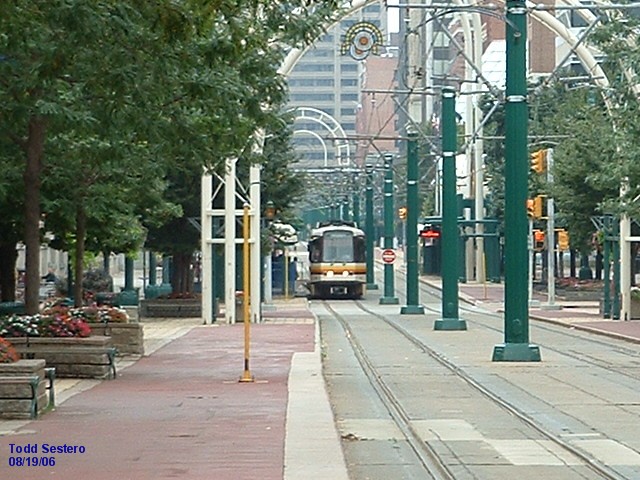

Compare the pictures above, from 2020, with those below, which are from 2006. The alternating center warning light for pedestrians, and additional views of the tunnel entrance.

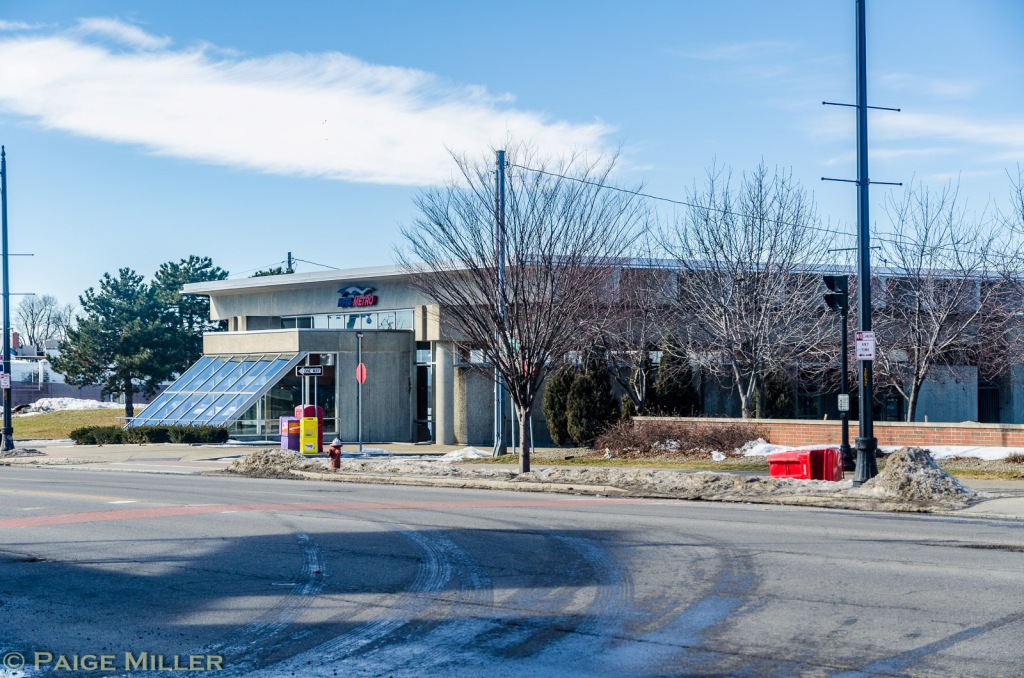

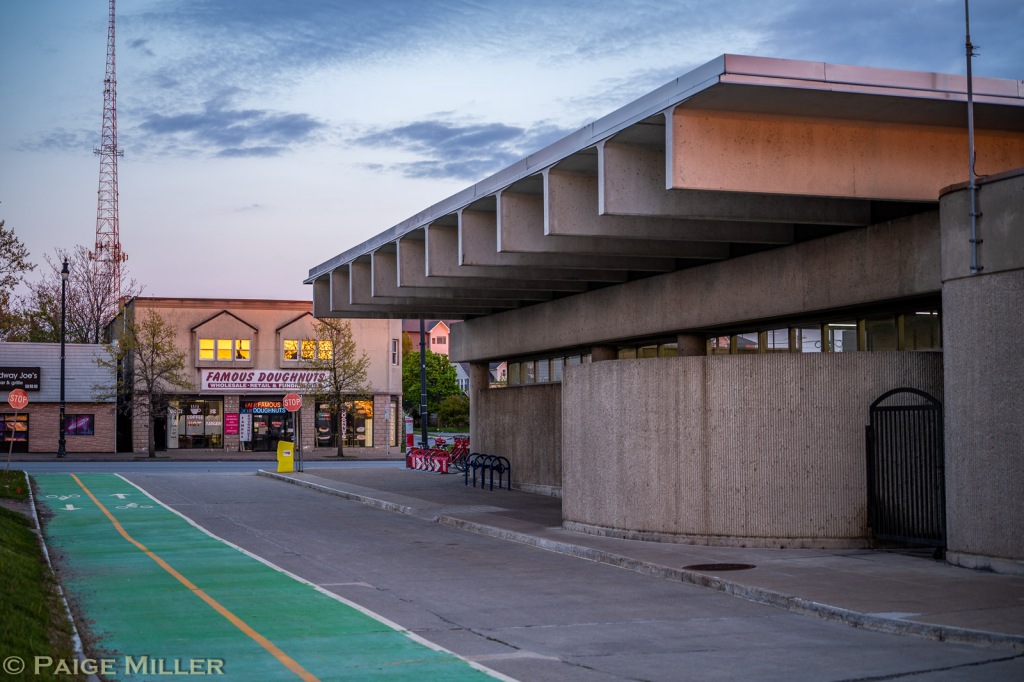

Amherst Station




LaSalle Station






University Station

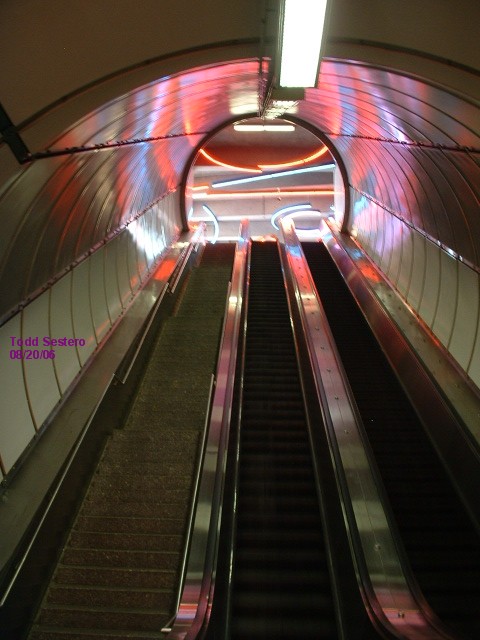

the escalator at University


I dunno who this guy is, but he shows up in my pictures no matter what town I am riding trains in! :-)


Other Stuff




Signals and Tech



GRS was selected to supply all of Buffalo's signals, switch machines, DTS systems, etc.

They use GRS type D and J relays in their vital systems.

Track circuits used for ATC, only used in the tunnels, uses a 100Hz carrier to transmit the cab signal speed commands to the LRV's.  On the surface, trains are operated by sight.

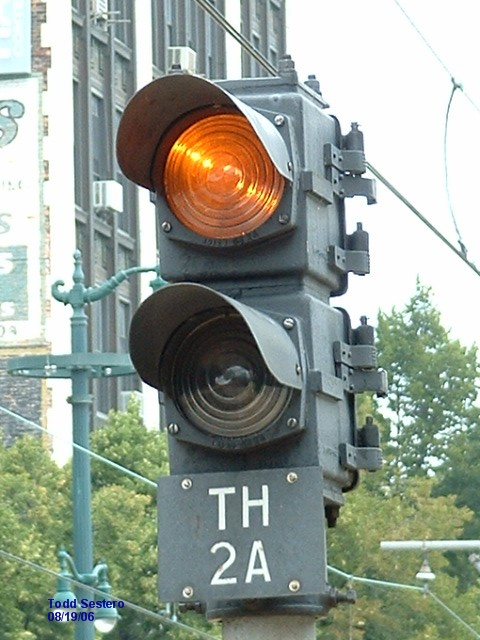

The majority of the signals are standard 3 aspect GRS heads, notable exceptions are at the tunnel portal and the type P's at the shops.

The three aspect signals used at the surface crossovers at Scott St (a single), and Erie Canal (a double) are used as routing indicators.  Red is displayed when no route has been called for, or the switch is out of correspondence.  Green indicates a normal route (the train goes straight thru the crossover on the same track), and yellow indicates a reverse route (the train crosses over to the "other" track).  An interesting "quirk" provides for flashing indications if the OCC (Operations Control Center) calls for the routing, or the automatic control system calls for the routing.  The aspects displayed would be either a flashing green or yellow over red for this case.  The signal will flash until the operator pulls the train up to a "SWPB" box, and uses the carborne VWC (vehicle-to-wayside control) to throw the switch is clear.  At that time, the signal will stop flashing when the route is clear.  The signal will also go solid if the controller or train control system has called for the route, and the switch is already aligned.  Also, below the signal, is a key-by box, which allows a supervisor or operator to manually call, or select a route and throw a switch if there is a problem with the automatic system.

On the surface, the LRV's are given priority over vehicular traffic at intersections.  In the cab of the LRV, the VWC system has a ready to depart button, and the operator pushes this button when all the doors are closed and he is ready to move on.  Upon pressing this button, a command is sent to the traffic light controllers, and once the intersection has been set up for a train move, a signal at the end of the platform lights up informing the operator it is OK to proceed.



When a train transitions in and out of signaled territory, the train operator has to either set the carborne ATP package to the surface mode, or remove the surface mode and enter the cab signal mode.  This is where the PB switch comes in.  It reminds the operator to press the appropriate button in the cab.

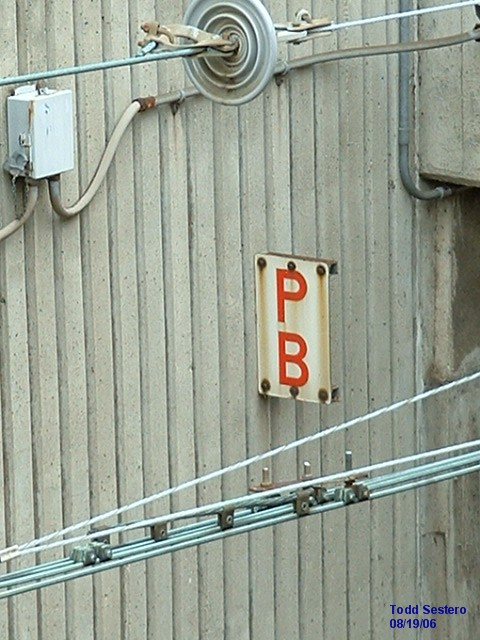

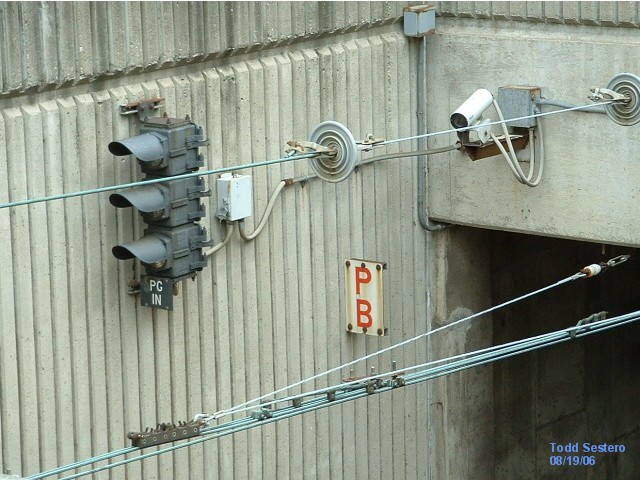

 When the operator is going into the portal, they have to push the "enter cab signal" button at the PB sign. This dumps the surface mode on the car, telling the carborne package to look for the coded track circuit and gather speed commands. It also tells the railcar to no longer deploy steps when opening doors. On the other side of the transition; on the way from Allen station to the portal, the PB sign is in the tunnel at the last track circuit on the way out which has a special code rate telling the car that its now ok for the car to go into surface mode. To acknowledge this, the operator must press the surface mode button to complete the transition.

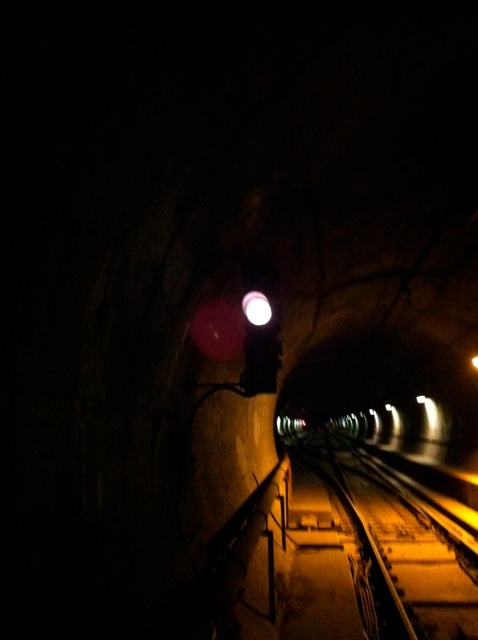

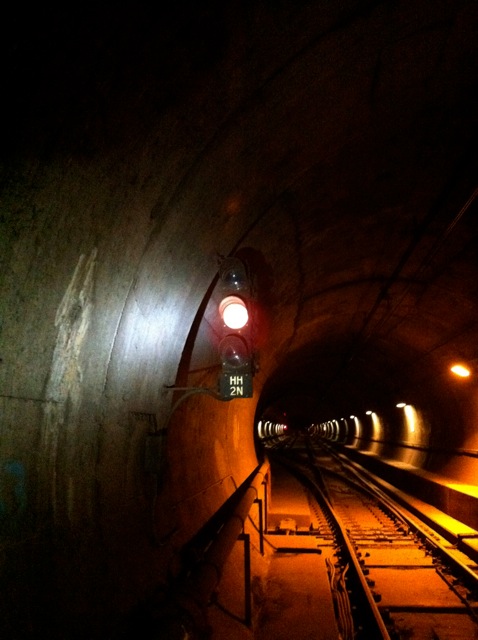

In the subsurface, signal heads are only found at interlockings. They have a lunar aspect showing that the route is clear for normal or flashing lunar for reverse, red of course for stop, and a green aspect at top which is used for absolute block signaling. This is displayed above the lunar when all circuits between the interlocking the aspect is displayed at and the next interlocking is clear. These are primarily used for high-rail vehicles since they do not pick up cab signals, or for trains if there is a failure in the normal cab signaling system.

I would like to thank an anonymous contributor for ALL OF the technical and fleet updating information presented here, and for the "inside" photos he sent me, THANKS!  Picture captions in green are from him.

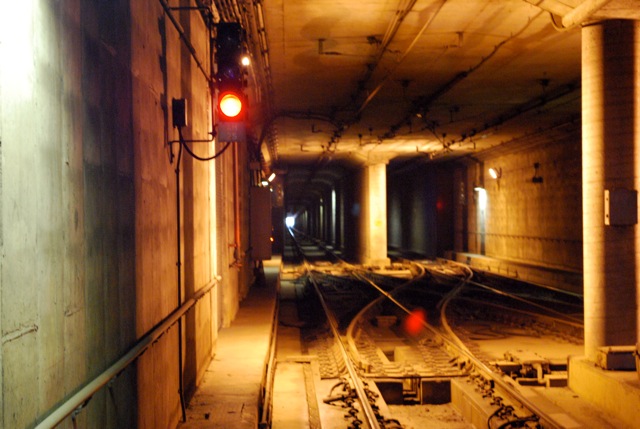

  This is looking down to the Allen crossover against traffic (red aspect).

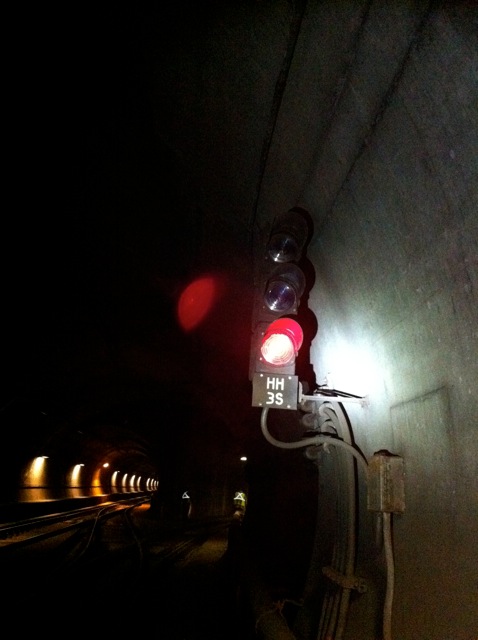

  Signal head at the pocket track in the Humboldt interlocking.

    A signal head in the Humboldt interlocking.  One with, and one without a flashlight lighting up the signal.

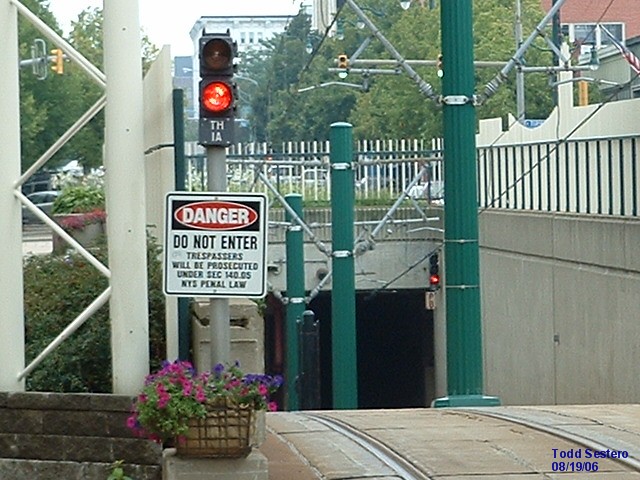

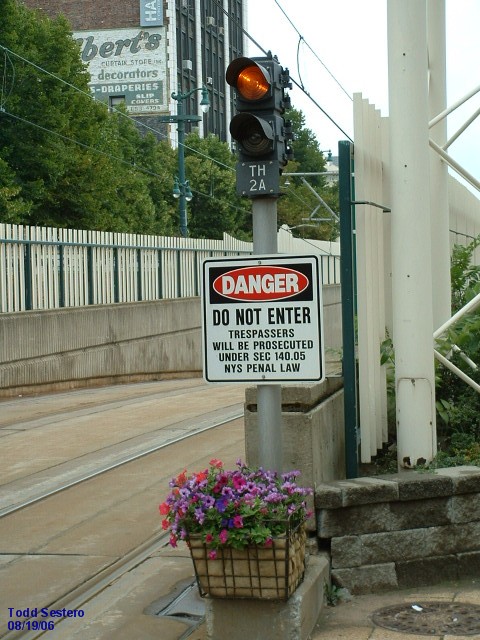

Northbound color light signal on the southbound track, at the tunnel entrance.

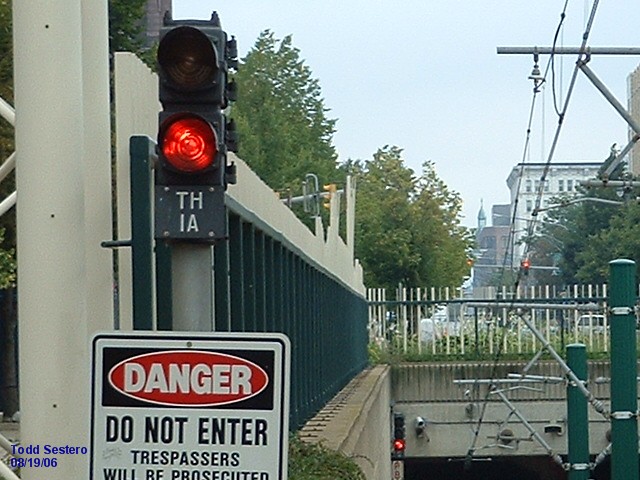

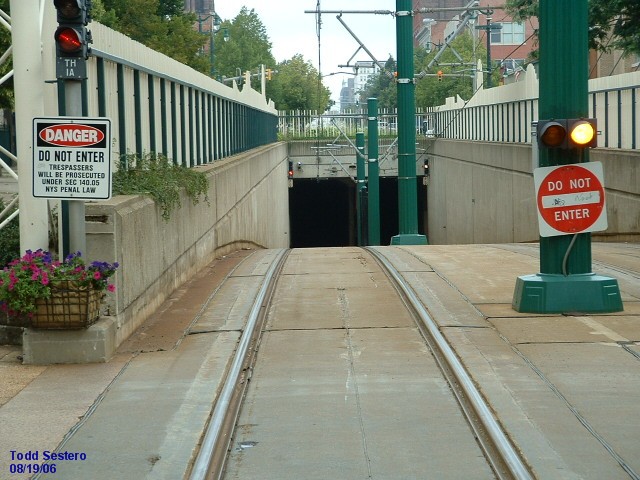

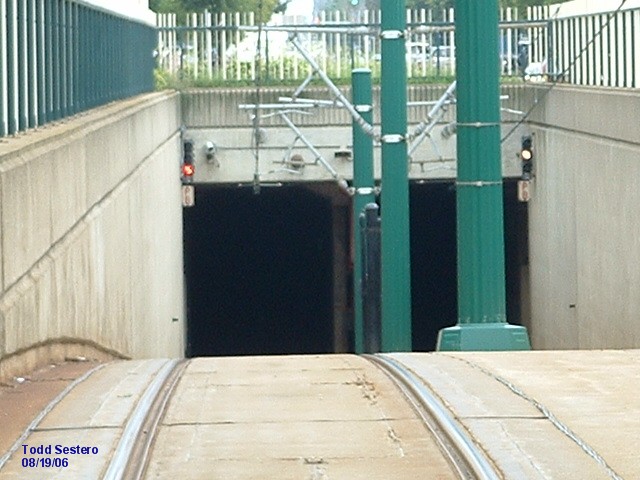

2 aspect color light signals guard the portal into the tunnel. NB side on the top (5 pix), SB below (3 pix).  These signals give the operator two pieces of information.  One is that the gate at the bottom of the grade is open (I guess it is closed during non-revenue hours).  The other info it tells the operator is that the track ahead to Allen is clear.  As soon as the train passes this signal, it goes to red, when it gets to Allen, it returns to yellow.  It will also display a red if the gate is closed.  There are GRS 7J controllers attached to the gate to determine if the gate is indeed open.

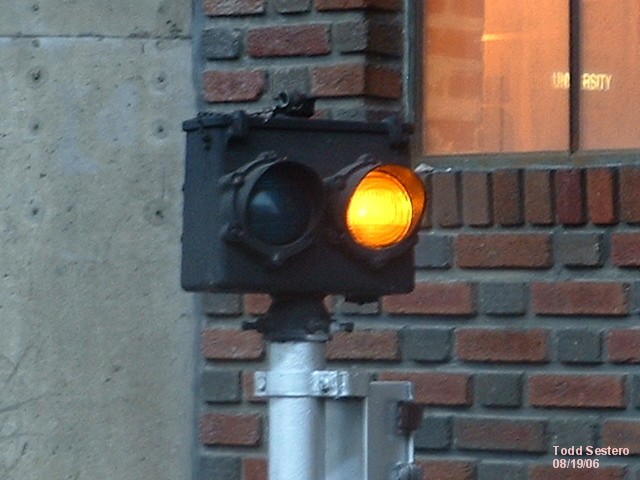

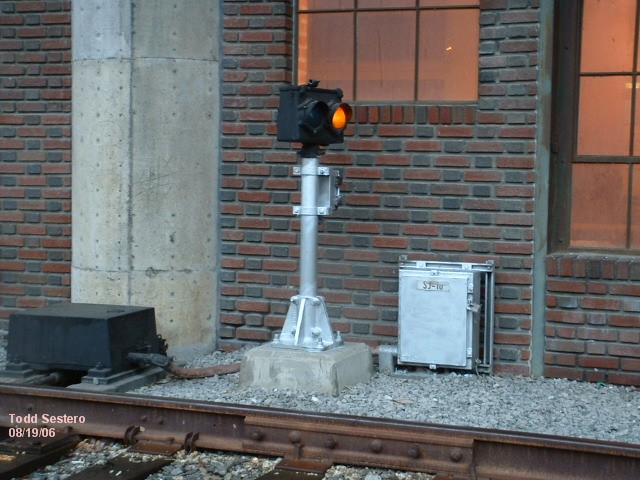

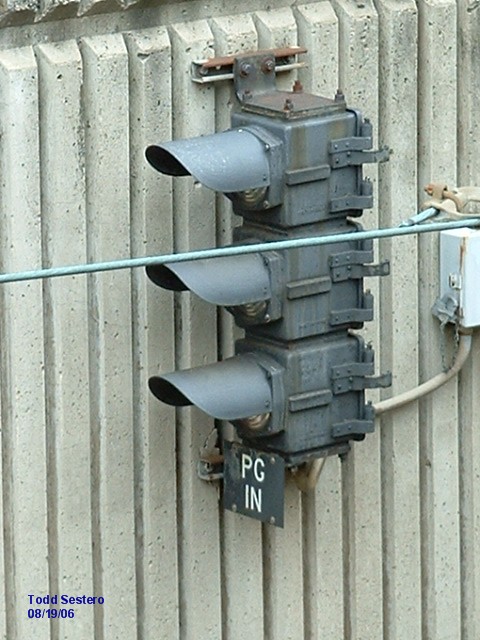

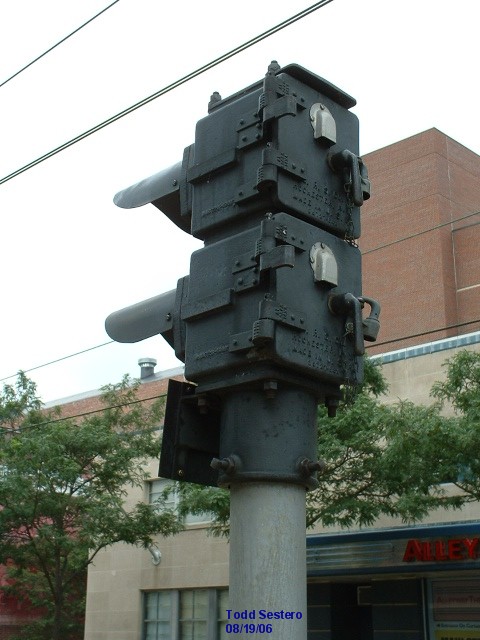

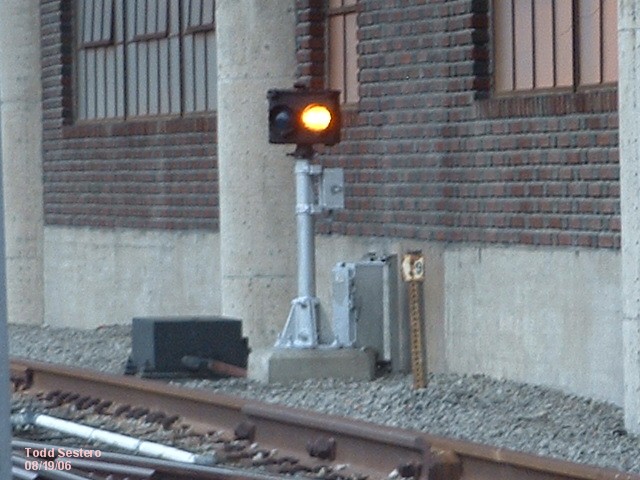

Switch position indicator signals.  They are GRS type P signals, and are the same signals used a few miles away in the old NYC (now CSX) yard.

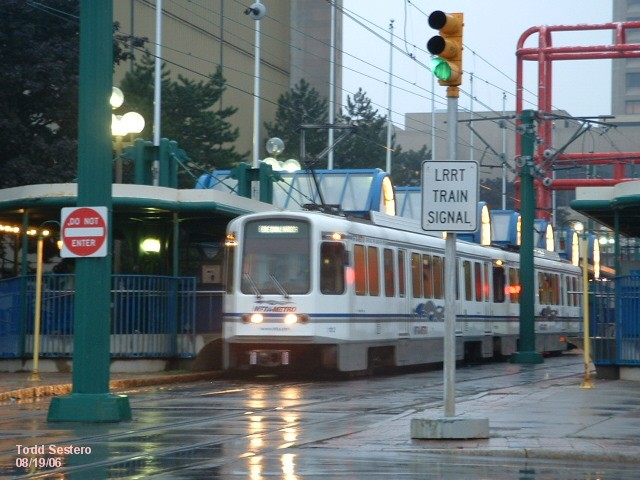

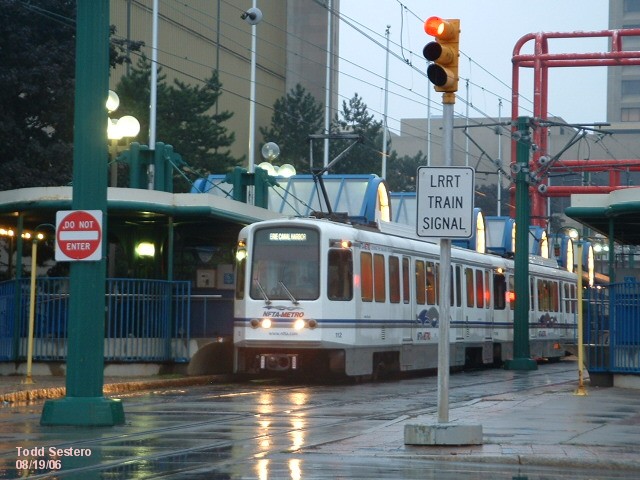

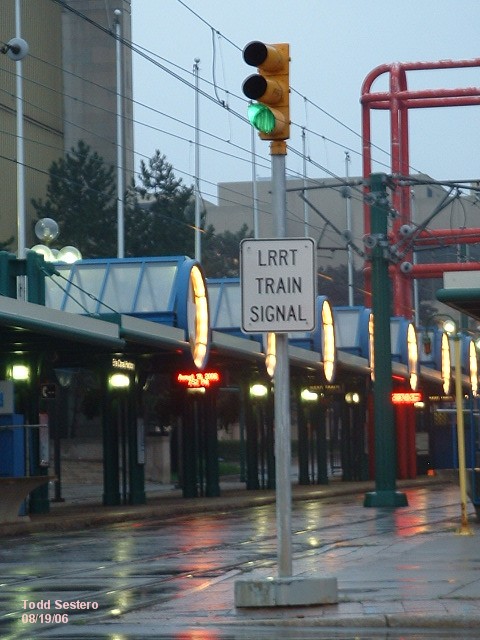

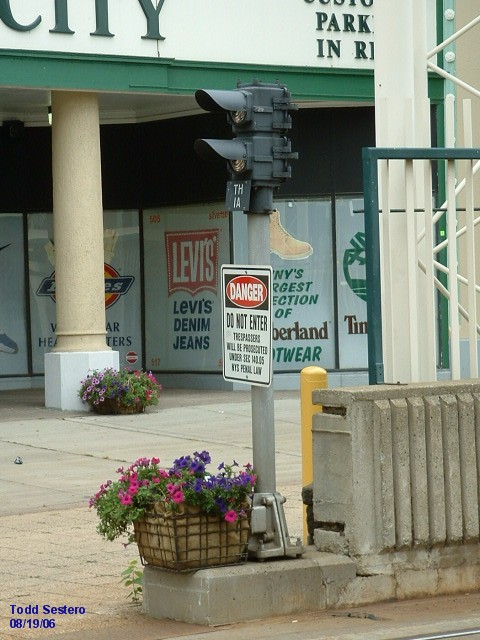

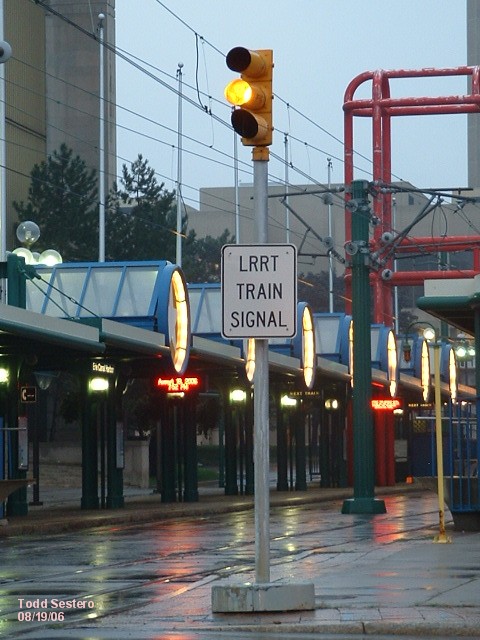

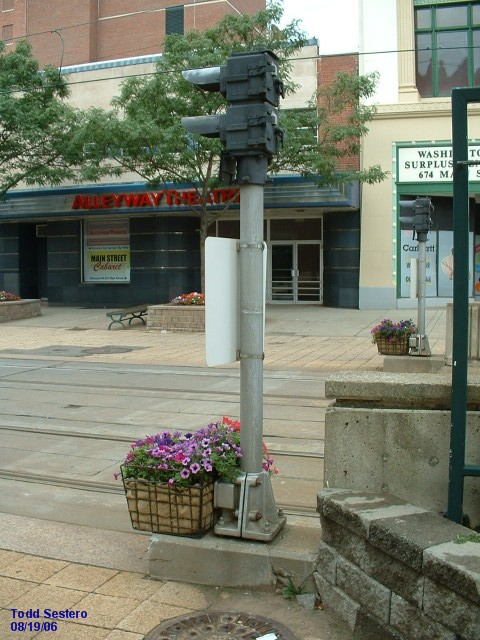

They decided to use a standard traffic signal, with green on the bottom (in contrast to the remainder of the signals on the system), for train control out on the streets.


Pictures of switches, catenary, signs, and other stuff

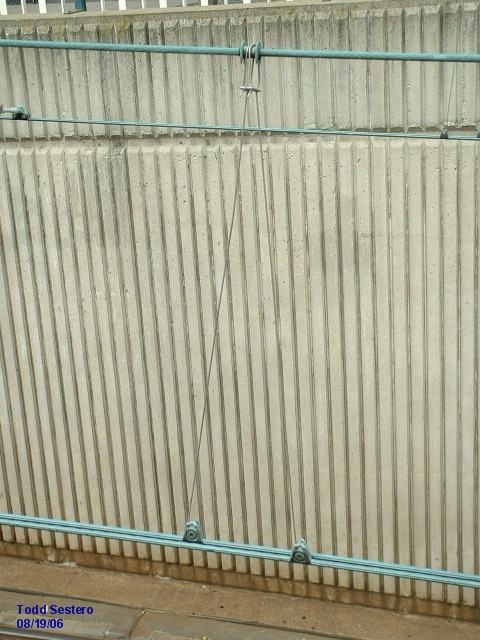

Catenary

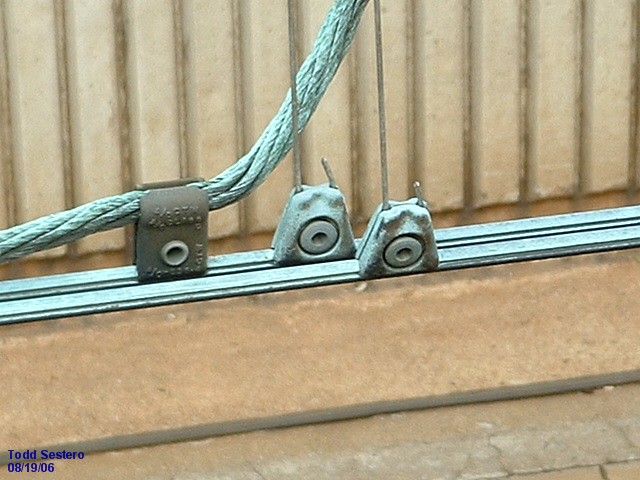

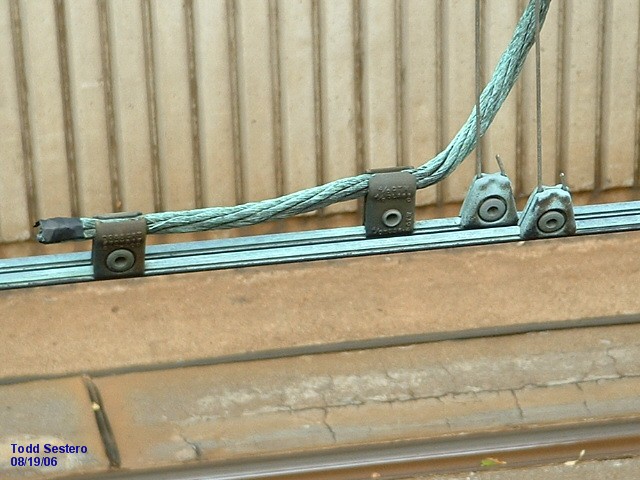

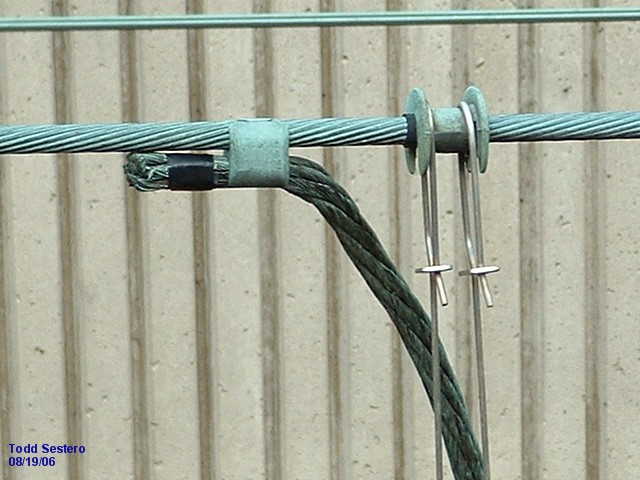

  A sectionalizing insulator in the traction power system.
(some systems call them IJ's, for insulated joints (like Baltimore)).

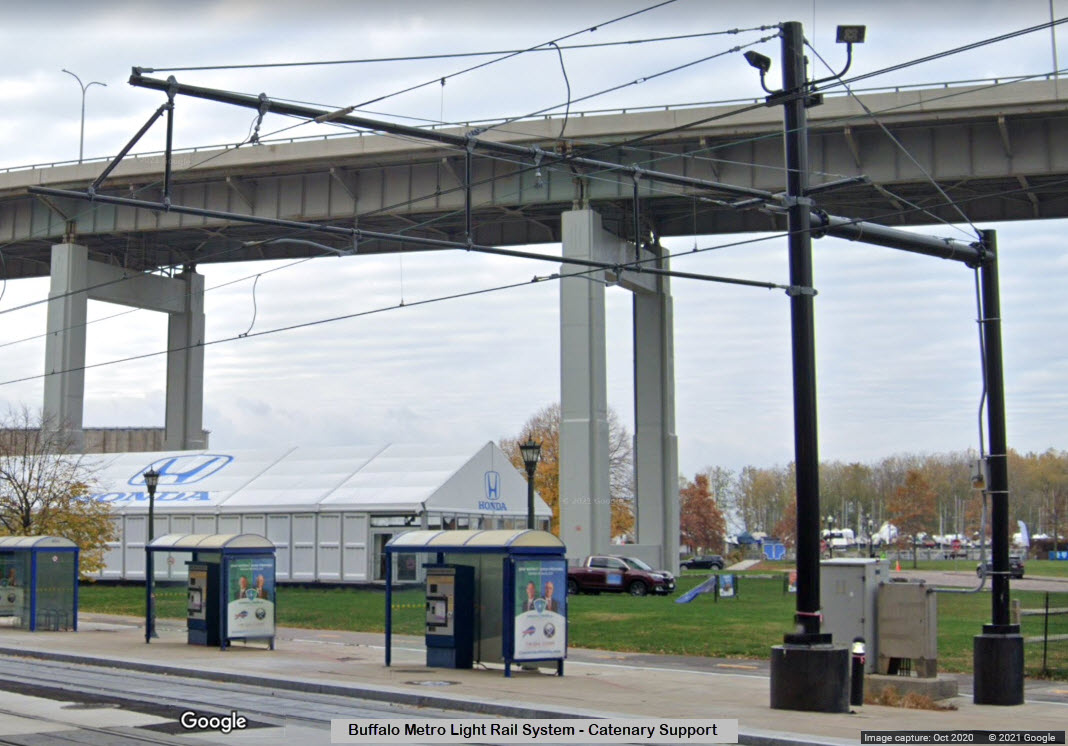

This is a catenary support at the Special Events Station.  This is what can happen when the poles are not placed in the middle of the two tracks.


Other Support Equipment

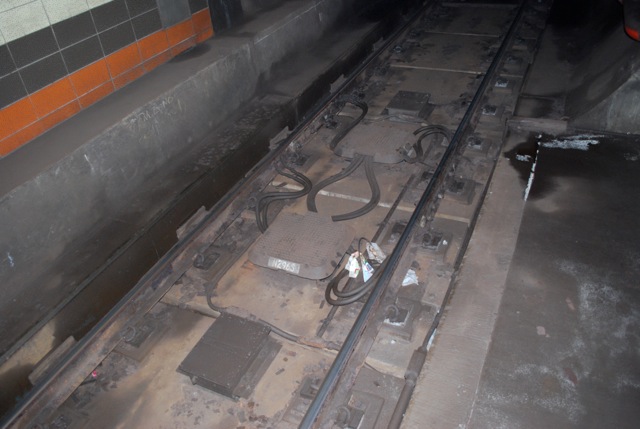

  Impedance bonds used for our track circuits.
Impedance bonds allow DC traction power to pass between adjoining signal blocks, while they block the AC track circuits from going thru.

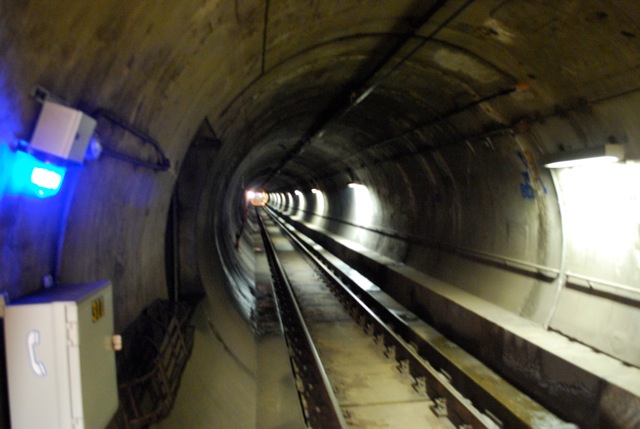

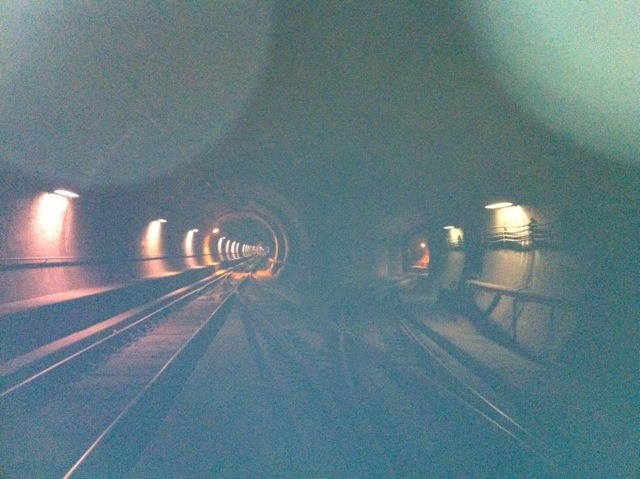

  Picture of the rock tunnel.

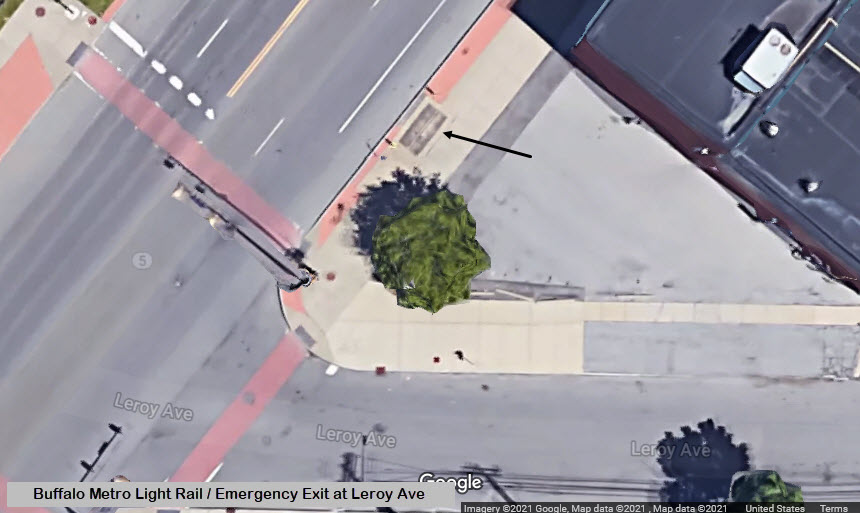

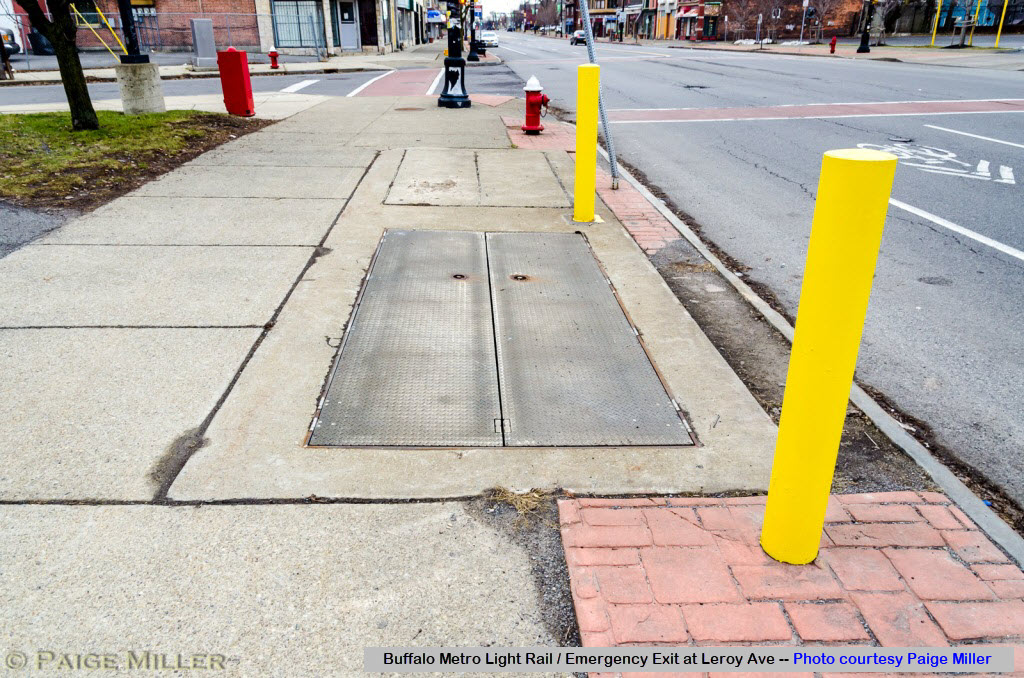

  University interlocking, and the exit Paige was referring to earlier, which leads up to Main St by Leroy Ave.

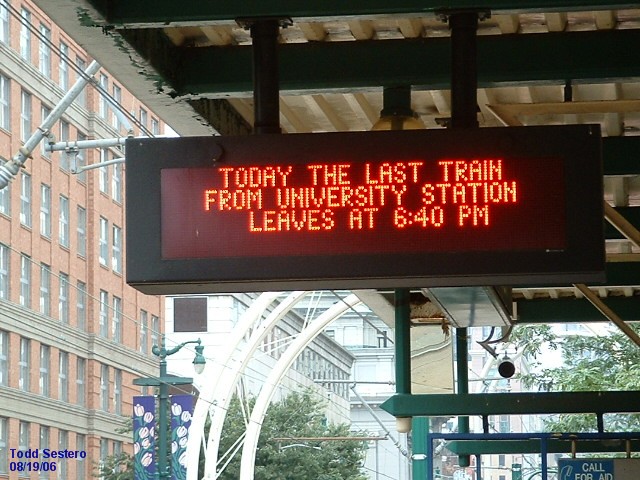

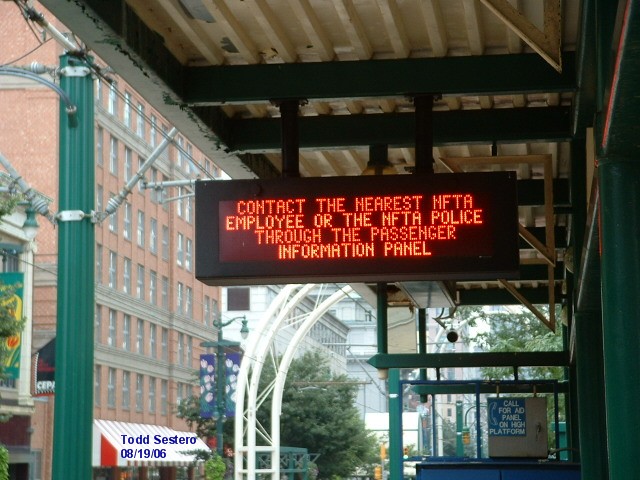

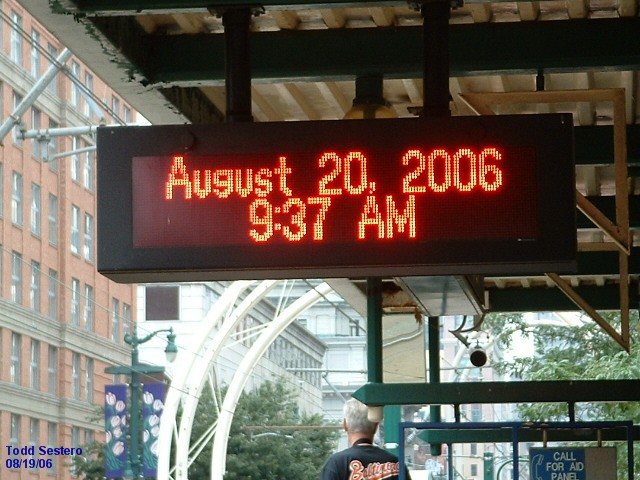

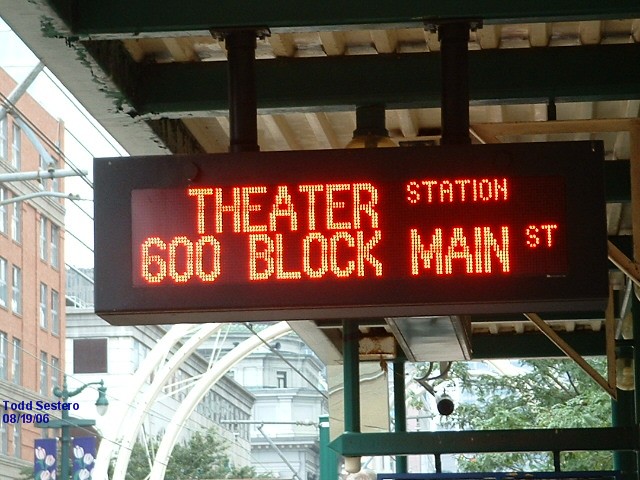

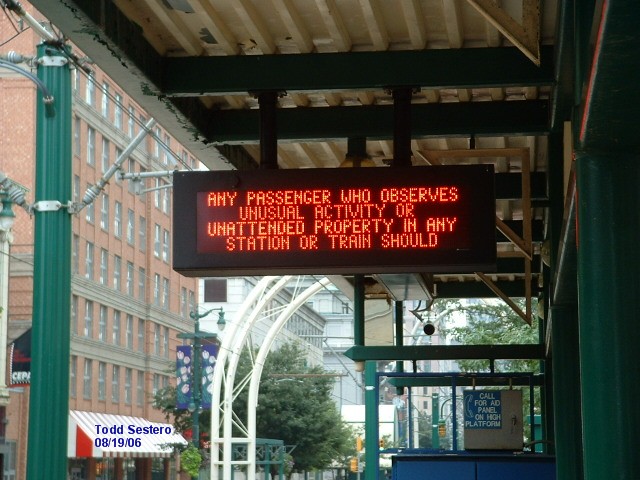

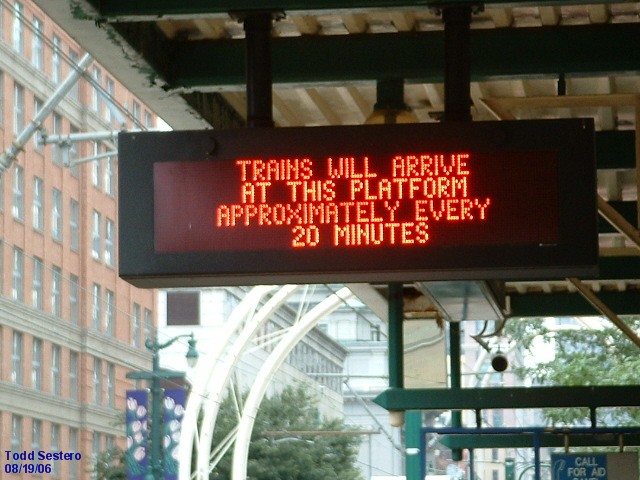

Station Message Boards



The one on the left empowers regular citizens to act as the eyes and ears of the law, it's no wonder we get ragged on all the time for taking pictures.

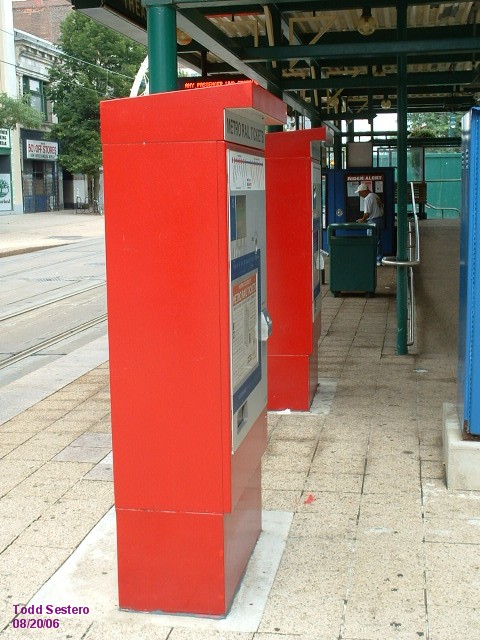

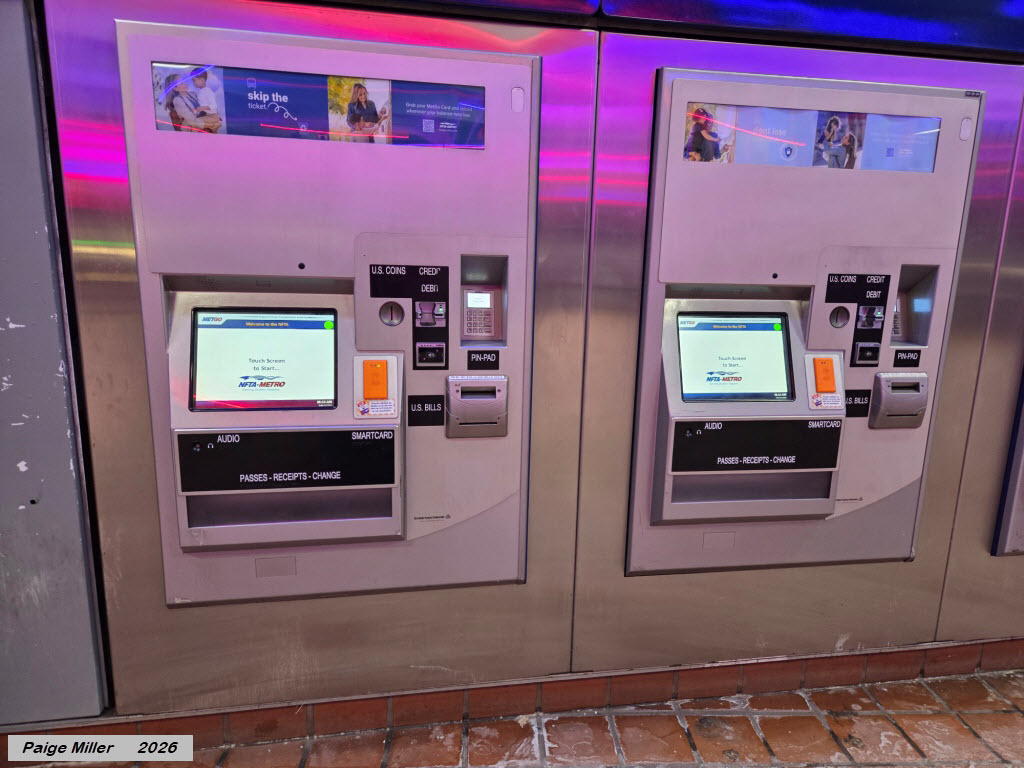

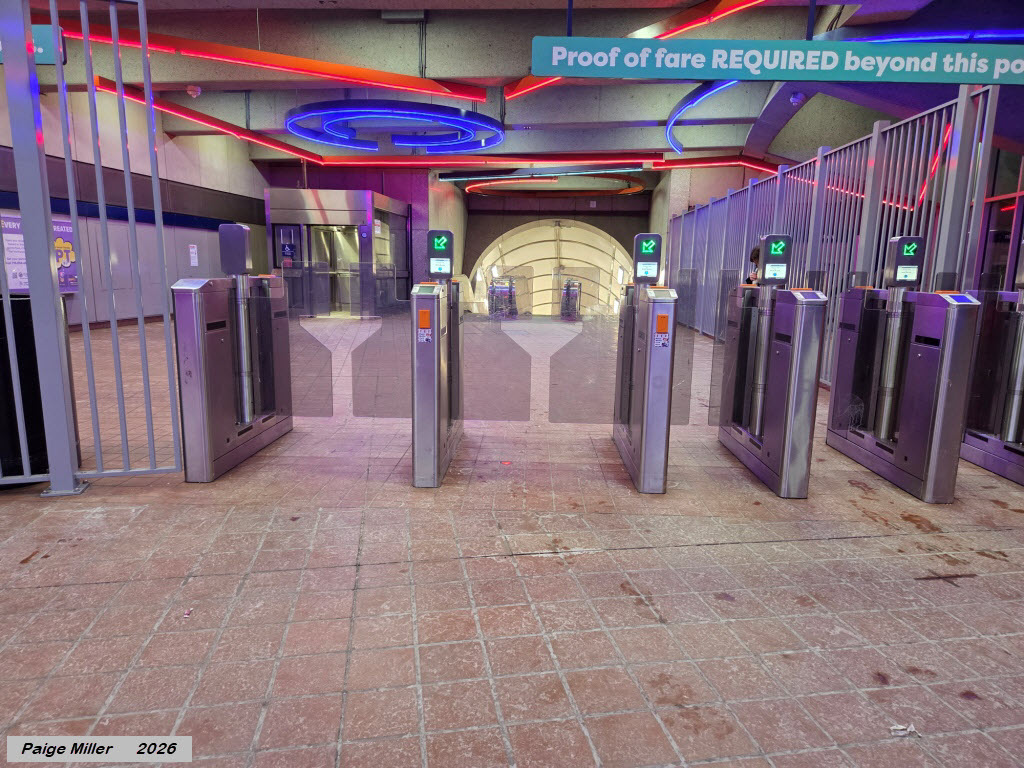

Ticket Vending Machine's (TVM's)

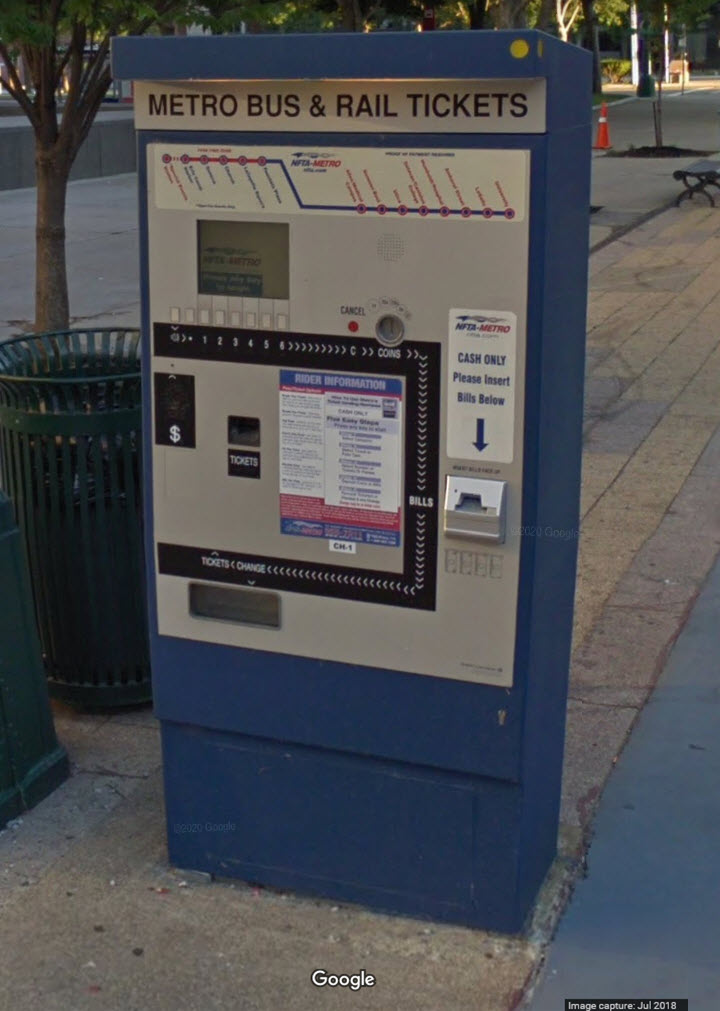

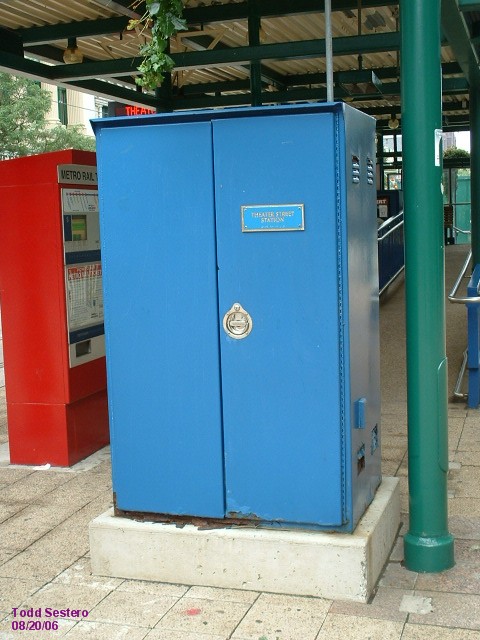

      TVM's and an equipment locker.

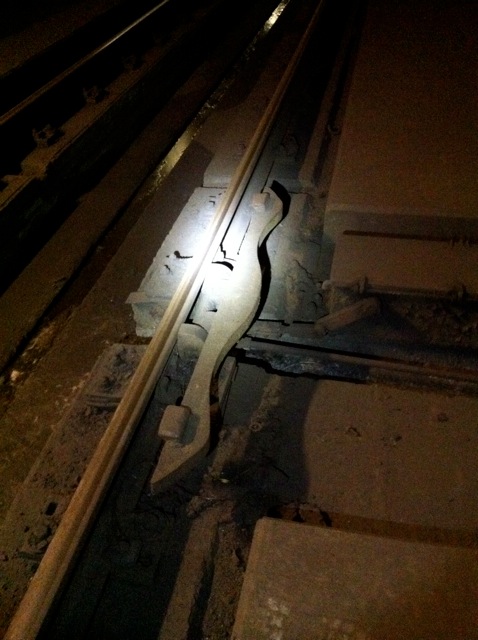

Track and Switches

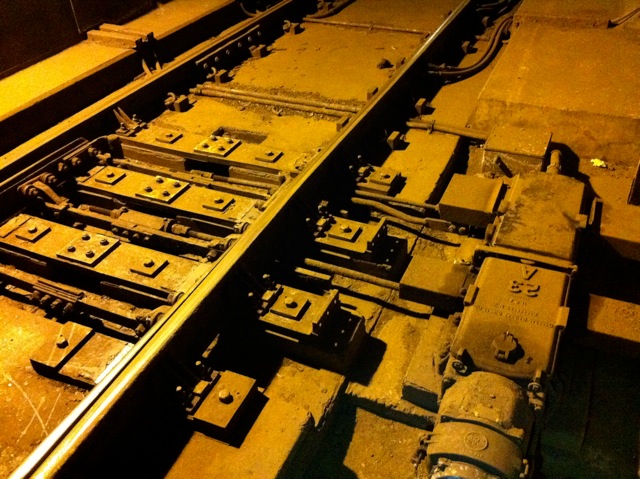

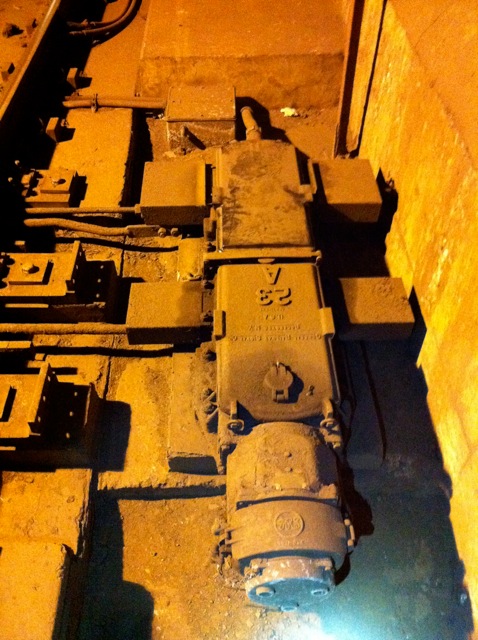

    Our GRS 5E switch machine subsurface.

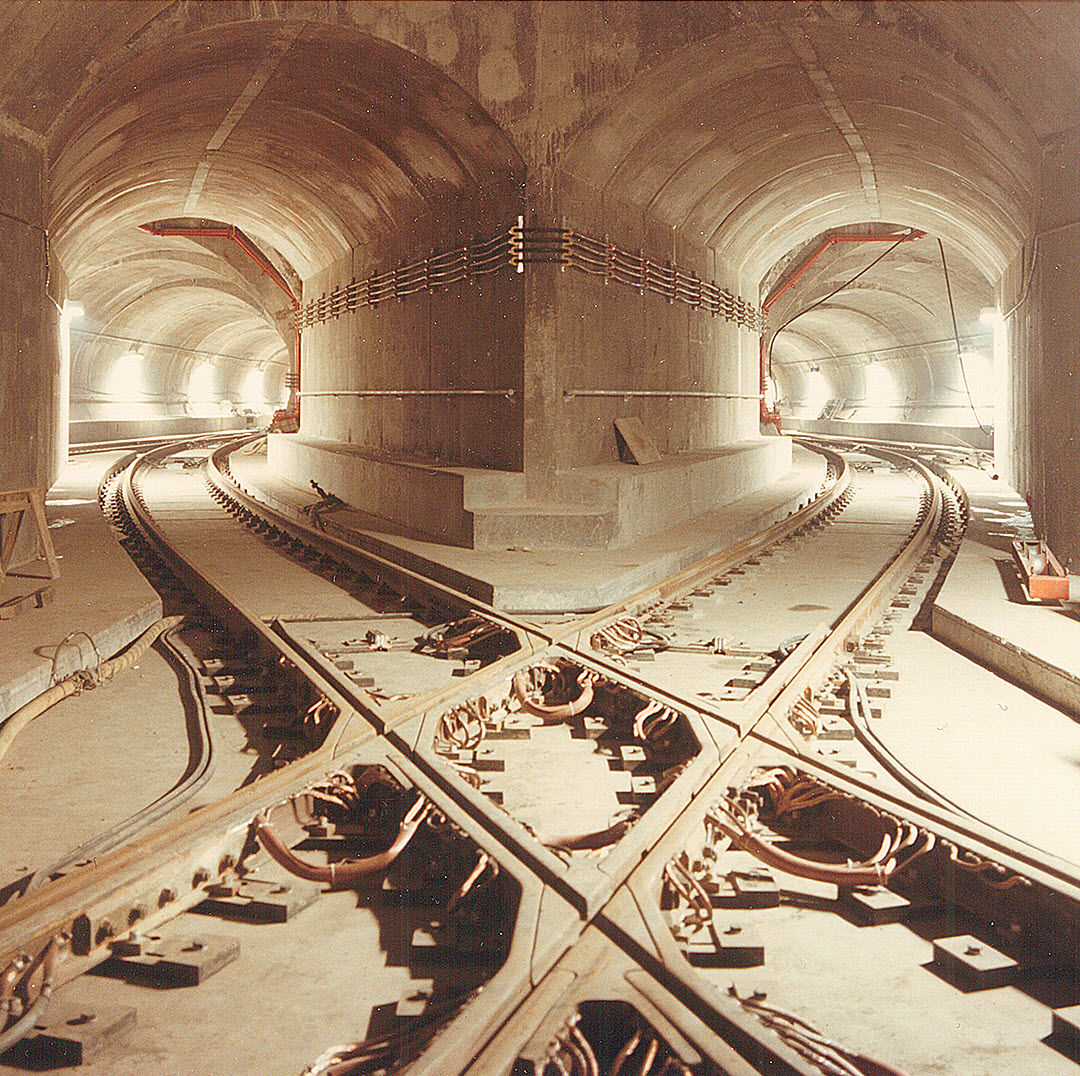

Underground crossover during construction, notice there is no catenary....


Media and Articles

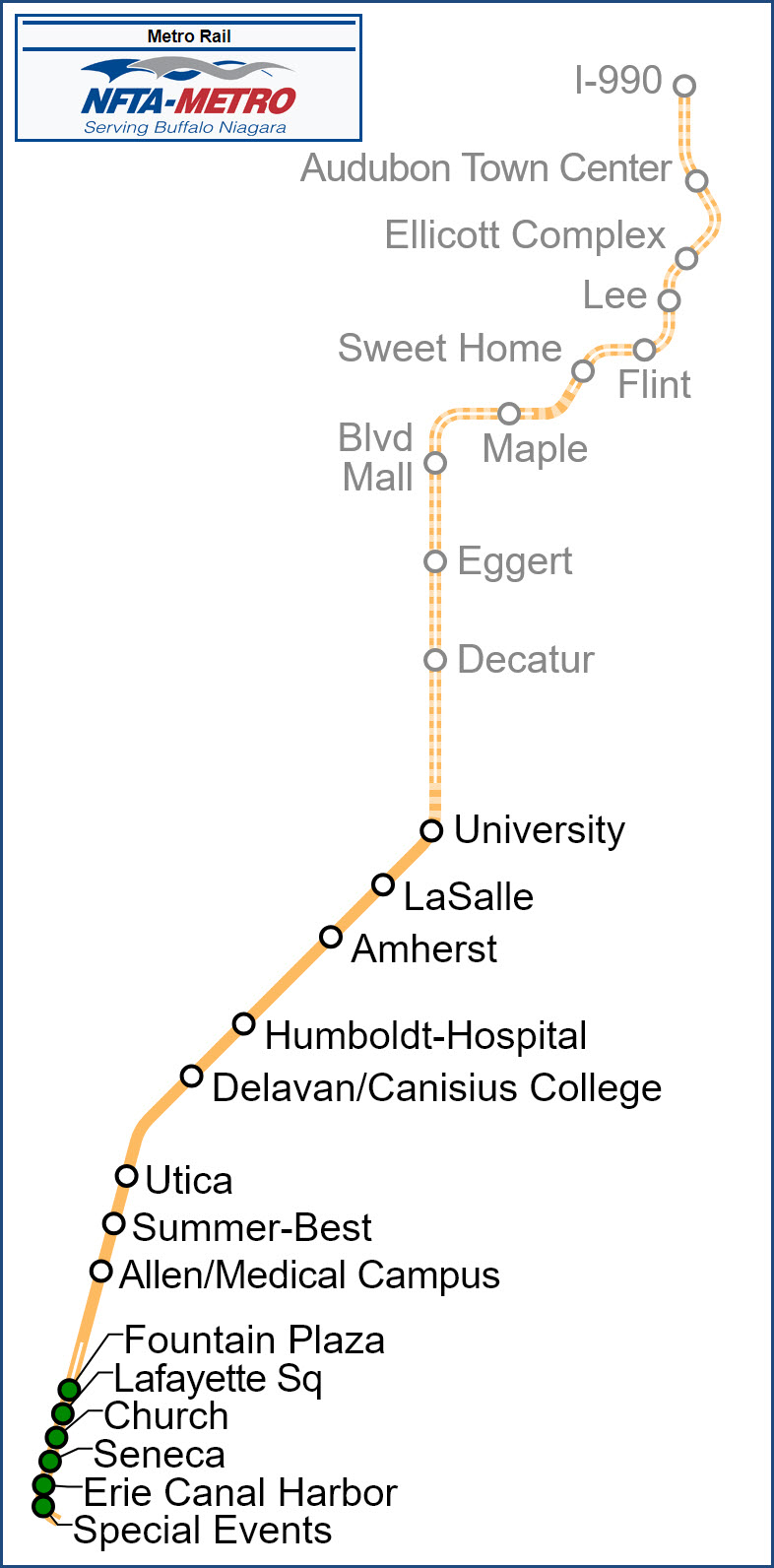

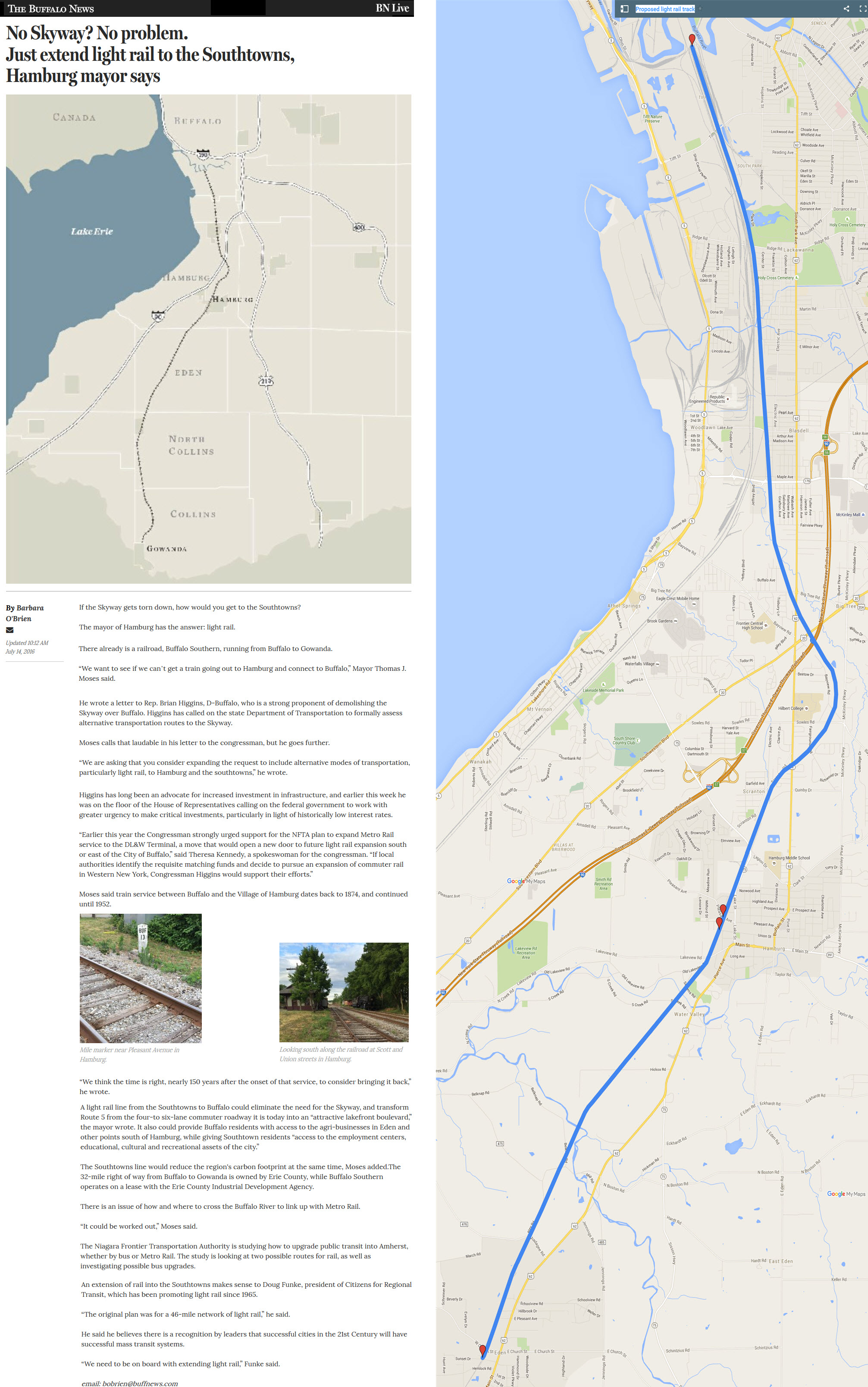

The Buffalo system doesn't seem to get a lot of press.  I haven't been following the story behind wanting to tear down the Skyway, but why would you want to?

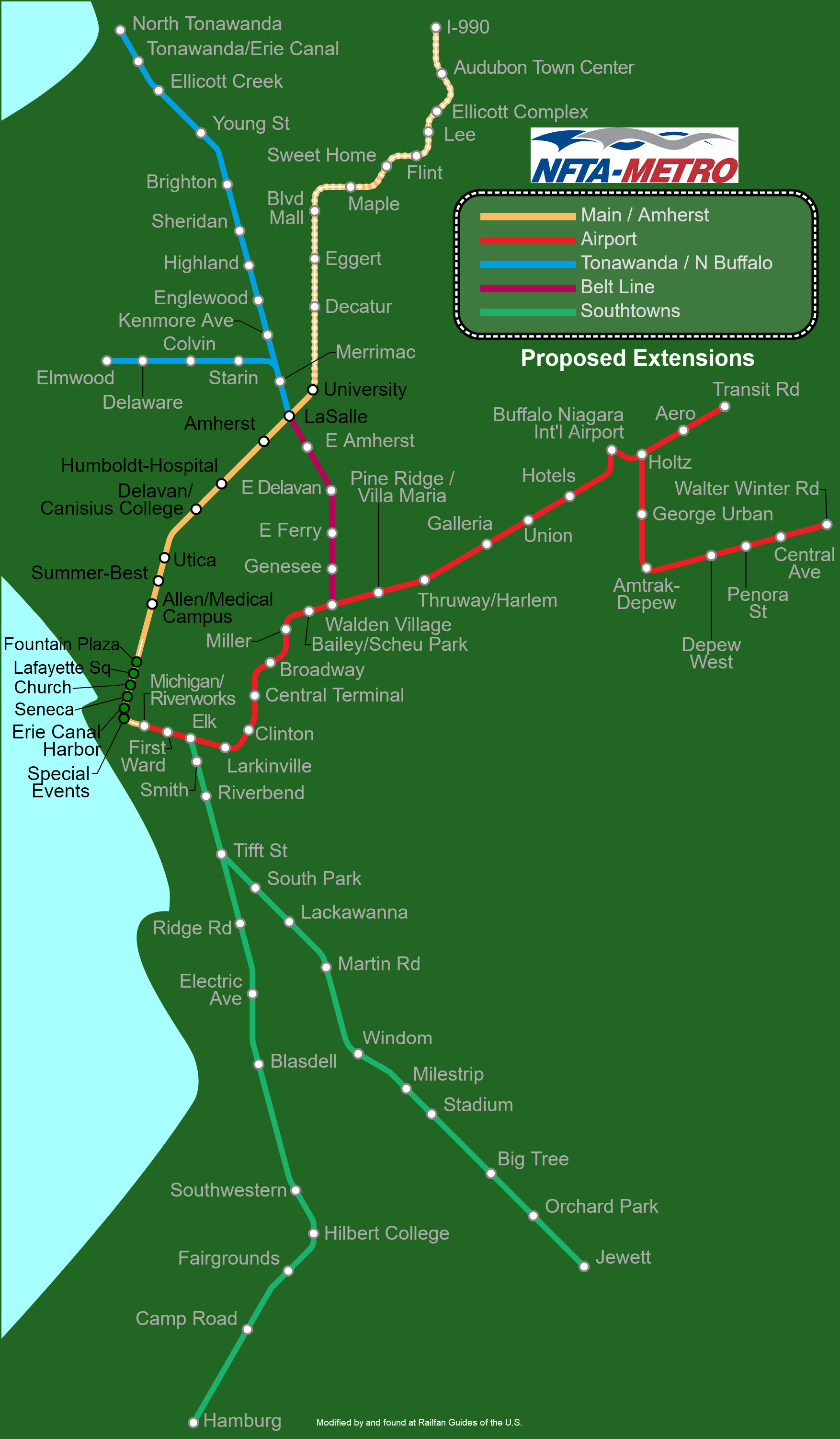

And, in case you're wondering, no, you can't view all of the map at once as I have depicted here, it was pieced together.
If this extension does come to pass, please someone, make sure the mile marker(s) are given to a museum somewhere!

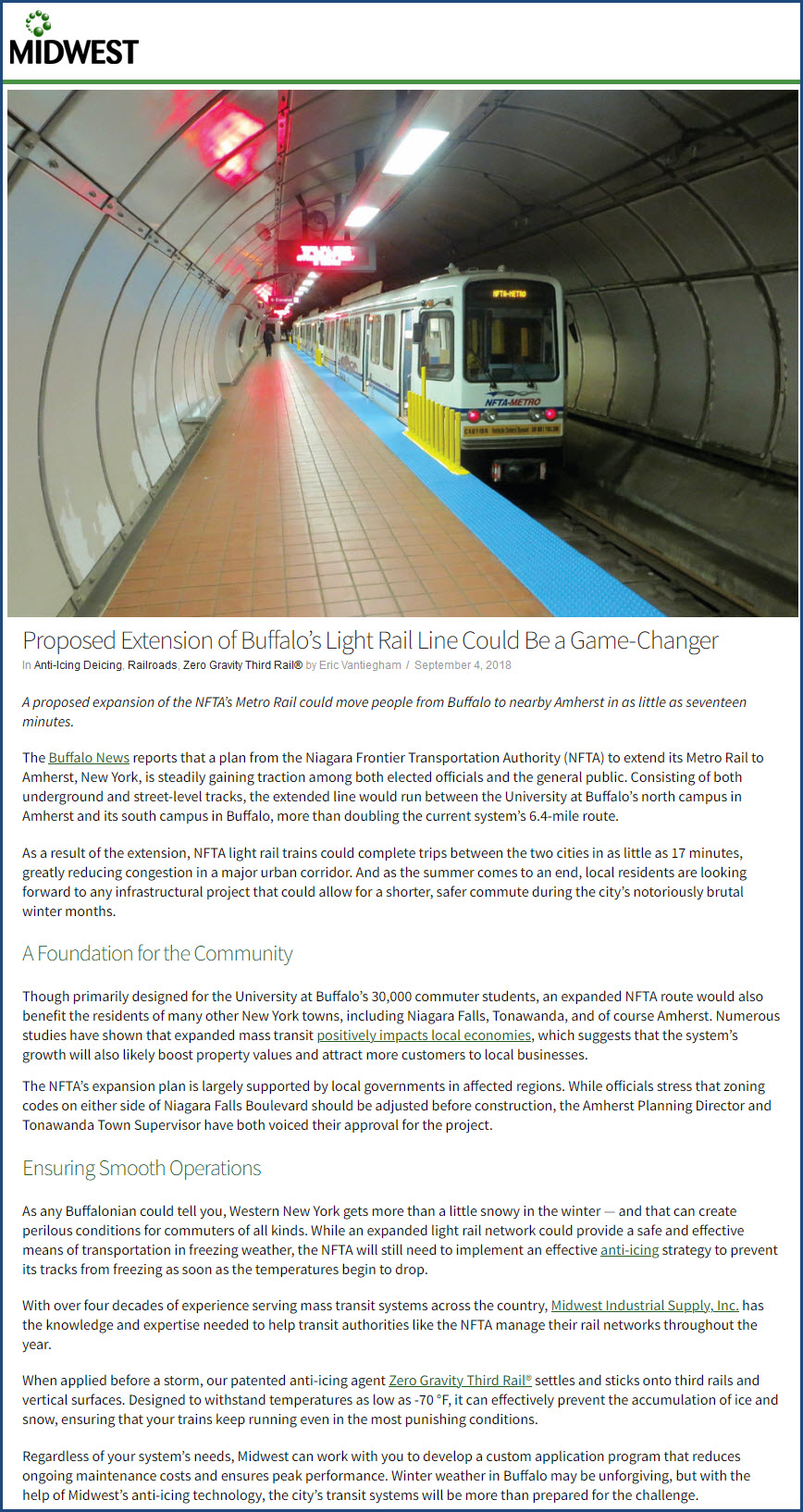

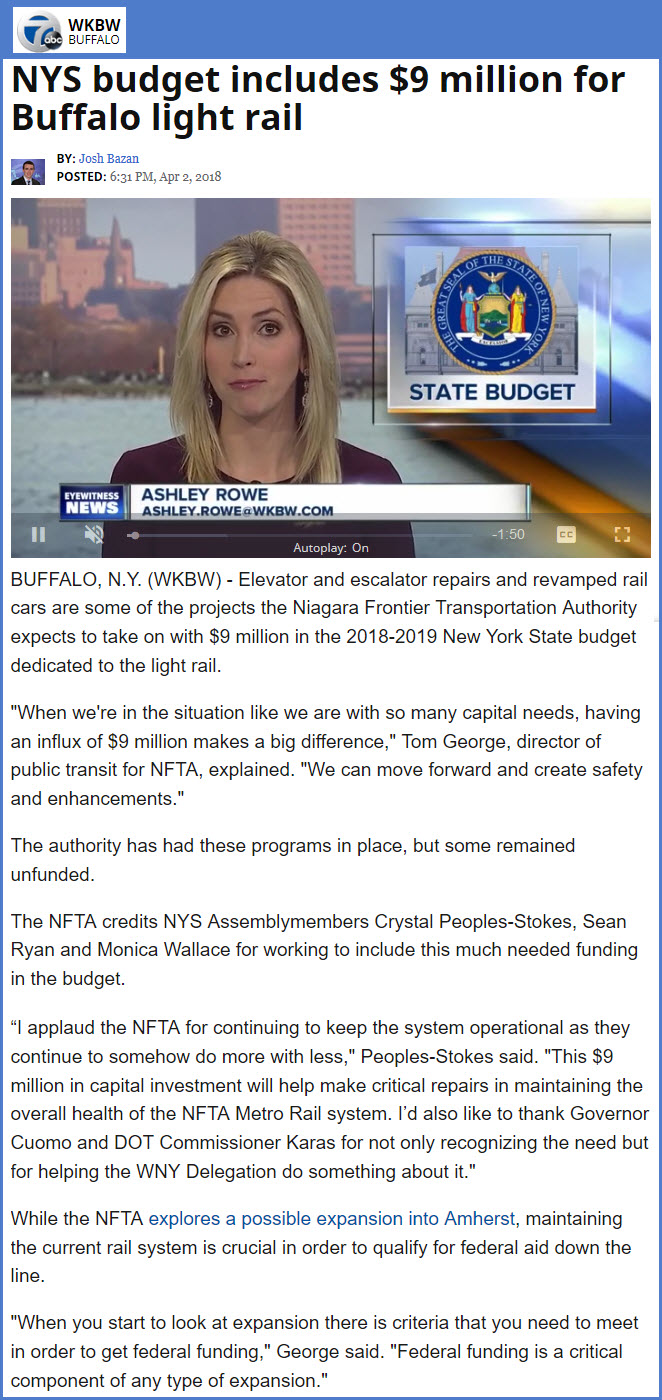

Here is one article from a recent posting:








Disclaimers:

I love trains, and I love signals.  I am not an expert.  My webpages reflect what I find on the topic of the page.  This is something I have fun with while trying to help others.

Please Note:  Since the main focus of my two websites is railroad signals, the railfan guides are oriented towards the signal fan being able to locate them.  For those of you into the modeling aspect of our hobby, my indexa page has a list of almost everything railroad oriented I can think of to provide you with at least a few pictures to help you detail your pike.

If this is a railfan page, every effort has been made to make sure that the information contained on this map and in this railfan guide is correct.  Once in a while, an error may creep in :-)

My philosophy: Pictures and maps are worth a thousand words, especially for railfanning.  Text descriptions only get you so far, especially if you get lost or disoriented.  Take along good maps.... a GPS is OK to get somewhere, but maps are still better if you get lost!  I belong to AAA, which allows you to get local maps for free when you visit the local branches.  ADC puts out a nice series of county maps for the Washington DC area, but their state maps do not have the railroads on them.  If you can find em, I like the National Geographic map book of the U.S..... good, clear, and concise graphics, and they do a really good job of showing you where tourist type attractions are, although they too lack the railroads.  Other notes about specific areas will show up on that page if known.

Aerial shots were taken from either Google or Bing Maps as noted.  Screen captures are made with Snagit, a Techsmith product... a great tool if you have never used it!

By the way, floobydust is a term I picked up 30-40 years ago from a National Semiconductor data book, and means miscellaneous and/or other stuff.

Pictures and additional information is always needed if anyone feels inclined to take 'em, send 'em, and share 'em, or if you have something to add or correct.... credit is always given!  Please be NICE!!!  Contact info is here

Beware: If used as a source, ANYTHING from Wikipedia must be treated as being possibly being inaccurate, wrong, or not true.
