This section covers signals of the Baltimore Light Rail system.

The Baltimore Light Rail System uses a variety of signal styles to convey information to the operators.  Depending on the type of information they are trying to convey, and where they are, they might use "standard" 3 color light signal, a position bar signal (modified "hand/man" type signal with semaphore bars), or Pennsy style dwarf position lights.  Also in use are horn, bell, and hand signals.  All references come from an 8/18/94 manual given to me when I came onboard in January of 1995.

Comments I have added to what is in the manual are in GREEN.

Steve Okonski

Websites and other additional information sources of interest for the area: Extremely detailed and well done railfan tours of (mostly) former B&O routes in and around Maryland

Standard Mainline Color Light Signals

The standard three color light signals are used in ABS territory, generally, north of the North Avenue station, and south of Camden station.  You have to notice the departure from standard railroad practice, with green being on the bottom, like standard auto traffic signals.  When I worked at the MTA, the reason I heard for this was, "It's what the operators are used to, and we don't want to confuse them".  After all, the light and heavy rail operators are bus drivers who have enough seniority to "pick" into those divisions, and they are generally not the brightest.  With that said, only two signals convey any sort of speed information: clear and restricting.

Now that the Light Rail runs with ATC, the clear aspect doesn't have a whole lot of meaning, since the train automatically limits itself to the MAS.

What follows are scans from the Light Rail rulebook and safety guide I was given when I went to work for them in 1995.

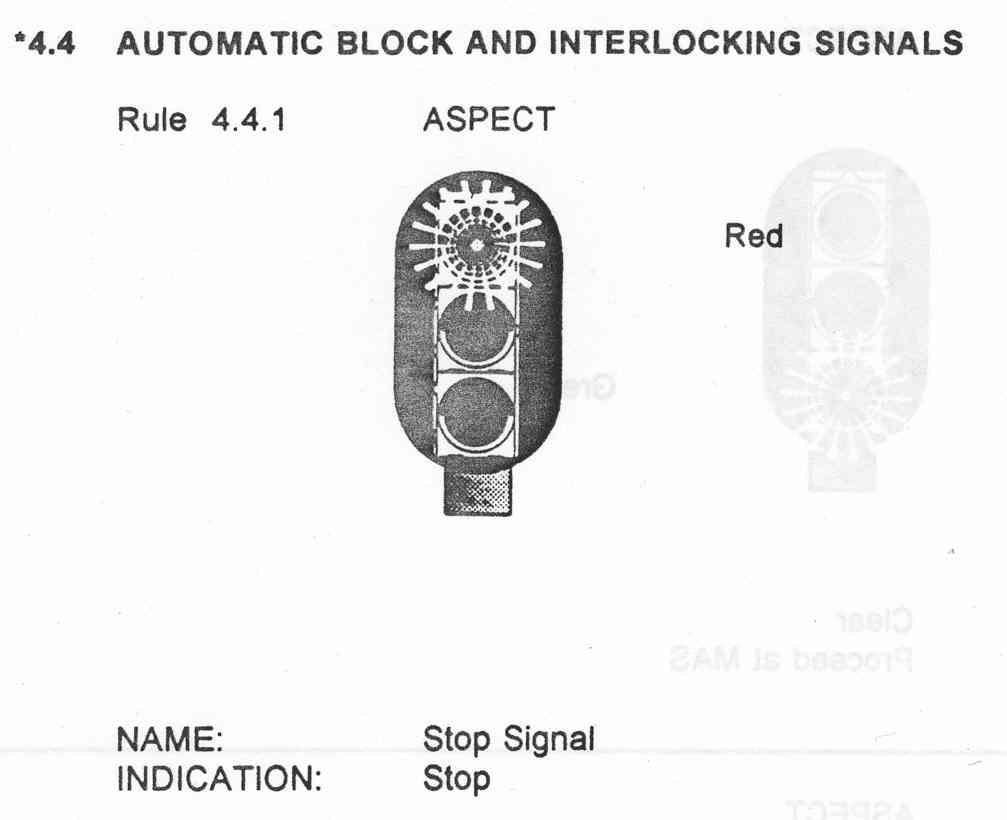

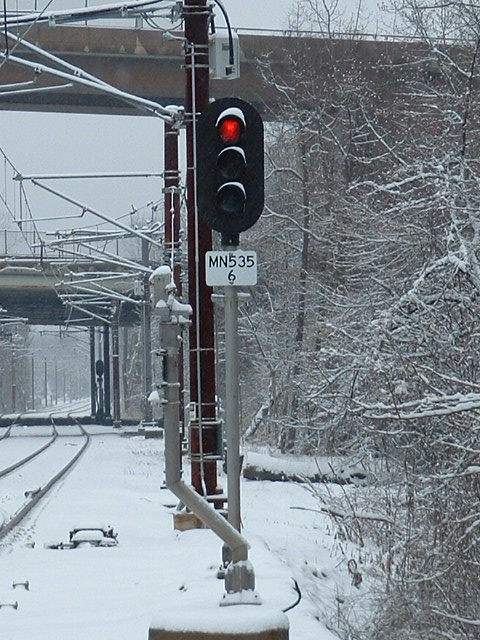

Rule 4.4.1 - Stop Signal

Aspect:          Red
Name:           Stop Signal
Indication:    Stop

This spot is where the track used to go to double track in Riderwood, kinda under the 695 Beltway - looking in the direction of the picture, north.  During the winter, I can see the two signals at this location from my house.  There is also a crossover here, that's why there is a call button box in front of the signal.  The sister crossover is on the other side of the highway overpass.  A sub-station is also at this location, on the other side of the R-O-W.


Rule 4.4.2 - Approach

Aspect:         Yellow
Name:           Approach
Indication:    Proceed, prepared to stop at the next signal

With the advent of Automatic Train Control that came along with the double tracking projects in the north and south sections, I have noticed that this aspect appears rarely unless a crossover is aligned for that operation.  Currently, when a train passes an automatic signal, it will stay red until the route is cleared by the system logic with an approaching train.

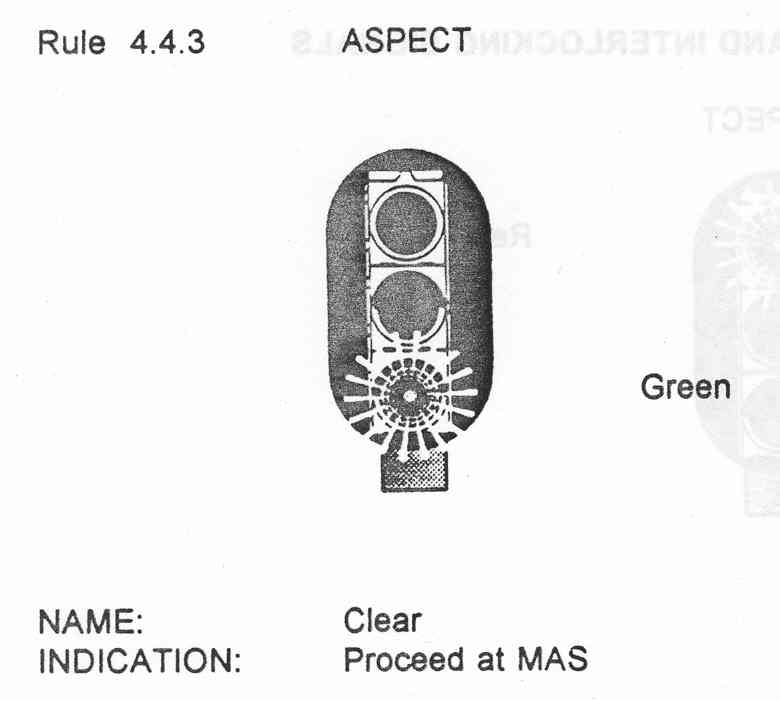

Rule 4.4.3 - Clear

Aspect:         Green
Name:          Clear
Indication:    Proceed at MAS


Rule 4.4.4 - Restricting

Aspect:          Red over Yellow
Name:           Restricting
Indication:    Proceed at Restricted Speed until entire train has passed a signal displaying a more favorable aspect.

Note:  There were two signals at the North Avenue Shops that conveyed Restricting, both were southbound signals located next to the shops.  The signals are for traffic going into North Avenue.

On a visit to the shops over the summer of 2005, I noticed the southbound signal on the northbound side was gone, probably as a result of the double tracking project, where trains would only have to be on "the other side" in the event of an emergency.

This is the lone signal remaining at the shops that displays Restricting.  Notice how the signal is mounted to the top of the wall because of the tight clearance thru this section.... the shops are behind us to the right.

The only other signal I am aware of that displays restricting is down at the Hamburg St station, now the Federal Hill station.  Thanks to Steve Okonski for pointing this out to me, for some reason, I never noticed the indication going thru the station.


Looking south at Hamburg St, photo courtesy Steve Okonski.

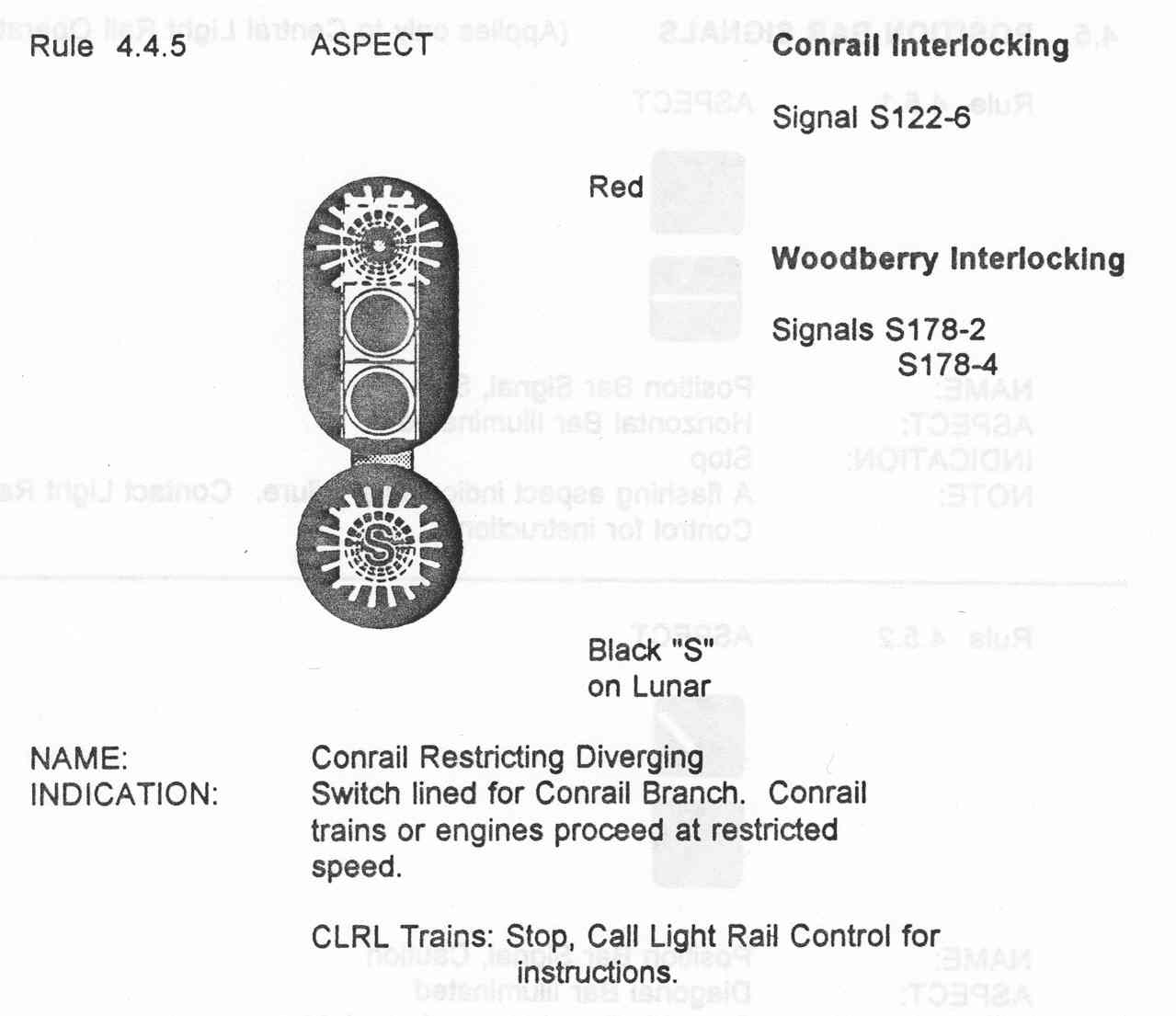

Rule 4.4.5 - Conrail Restricting Diverging

Aspect:         Red over Lunar "S" (Lunar signal with a black "S")
Name:          Conrail Restricting Diverging
Indication:   Switch lined for Conrail Branch.  Conrail trains or engines proceed at restricted speed.  CLRL Trains: Stop, call Light Rail Control for instructions.

(Note:  these signals were supposed to be at Conrail interlocking at signal S122-6, and Woodberry Interlocking signals S178-2 and S178-4).  I never did see them in use.

Train Control
(excerpt from the above mentioned manual)

Automatic Block Signals (ABS) limits on the North Line are between a point about 700 feet north of the North Avenue station and the Timonium station.  South Line limits are between Camden station and the Dorsey Terminal.  Limits are identified by wayside signs on the right-of-way and listed in the schedule.  Each interlocking in ABS territory has a home signal for each track and approach signals for the normal direction of traffic.  There are intermediate signals at the block boundaries on the single track and on the normal direction of traffic in the double track.  The signals are three-color lighted mainline railroad signals mounted on masts with concrete foundations.

The signal aspects are controlled by (1) track circuits providing continuous train detection, (2) route setups at the power operated interlocking, (3) electric locks and switch point controllers on freight sidings and hand-throw point controllers on freight sidings and hand-throw cross-overs, and (4) derails, installed on selected freight sidings.  Safe train movements are assured by vital relay logic in the wayside signal equipment housings.  Trip stops are installed at the normal approaches to interlocking which will invoke a non-retrievable emergency stop should a train run past the red home signal.

My notes to the above:

Needless to say, those familiar with the system will note that the above description is dated.  In the late 90's before I left, they had completed the extension to Hunt Valley, and the braches to the airport and Penn Station.  In 2004, double tracking of the south section was completed, and by November 1st, 2005, double tracking was complete on the north end to Timonium.

Because of two accidents of trains coming into BWI Airport during 2002, the MTA put into place a really dumb method of speed control, using a series of switches the operators had to actuate as they crawled into the station.  If one of the switches was missed, or they were sequenced to quickly, the trip stops would be activated, bringing the train to a halt. This system was replaced by ATP when the line was double-tracked.

With the double tracking project, came ATP (automatic train protection), which has done away with the trip stops at interlocking points (crossovers and single to double track points).  I haven't been down to BWI Airport lately to see if they have replaced the manual train control with ATP.

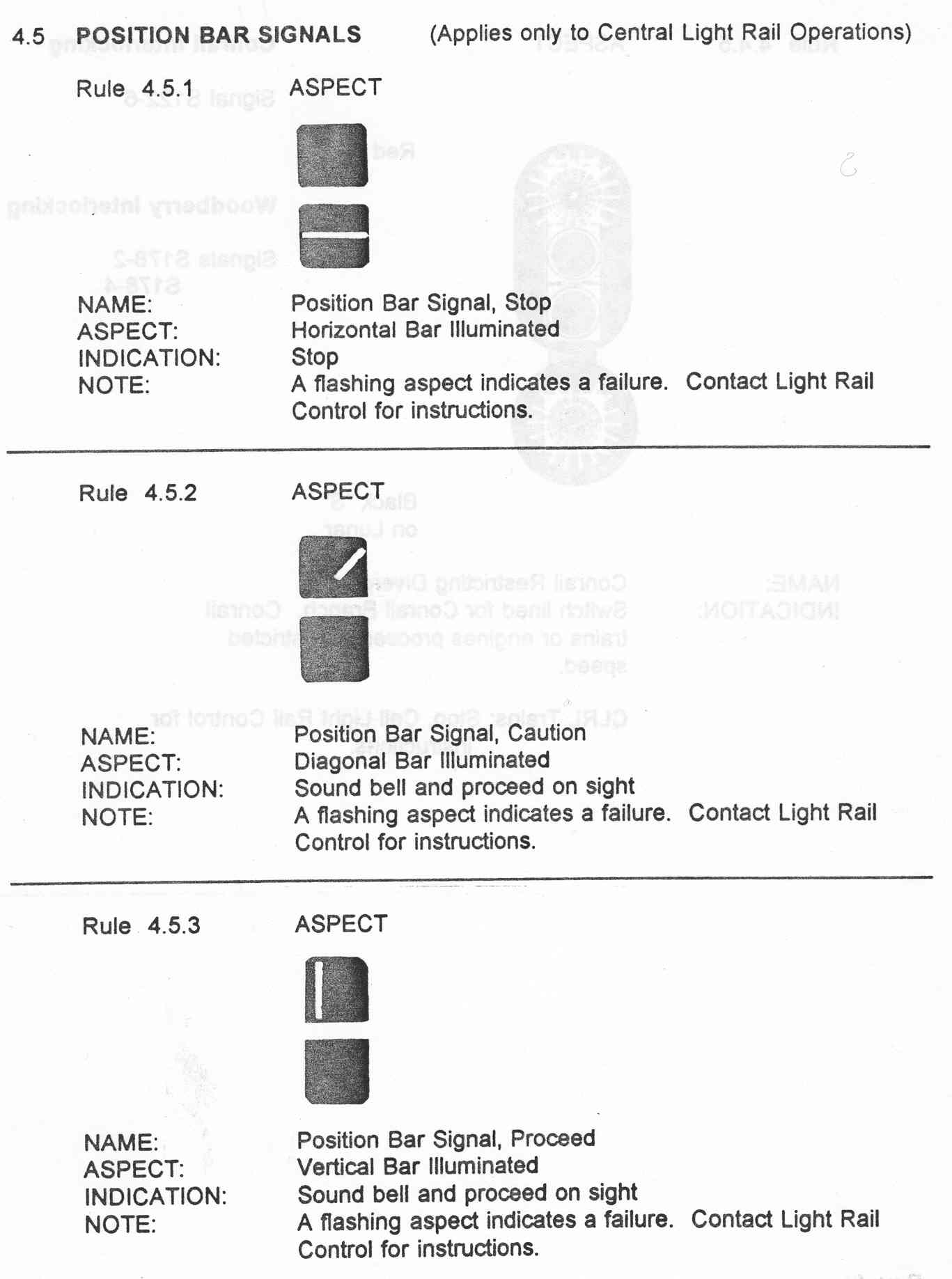

Position Bar Signals

Position bar signals are used mostly where there is the possibility of conflict with vehicular traffic, where, if they used their standard train signals in the streets, it would confuse the heck out of everybody; especially considering the fact that the MTA decided to use the same orientation as traffic light signals with green on the bottom.

In contrast to the signals used on private right-of-way, the bar signals operate just like the traffic lights, where they go from "green" to "yellow" to "red".

I have noticed in one of my pictures that there is also a bar signal just south of the North Avenue station, on the far side of the North Avenue overpass.

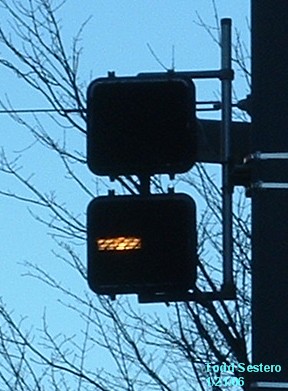

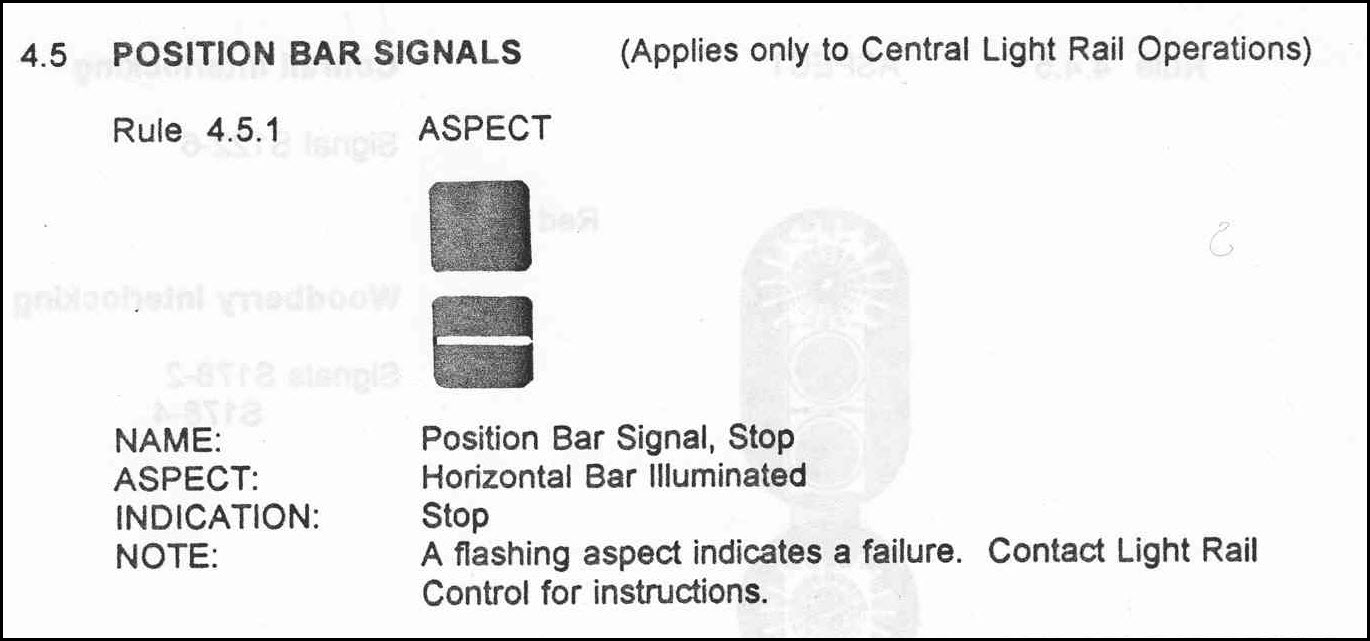

Rule 4.5.1 - Stop

Aspect:         Horizontal bar illuminated
Name:           Stop
Indication:    Stop

(Left picture shows what happens when one of the bulbs burn out)

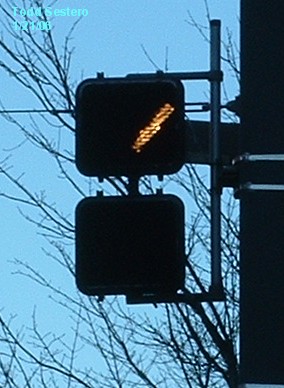

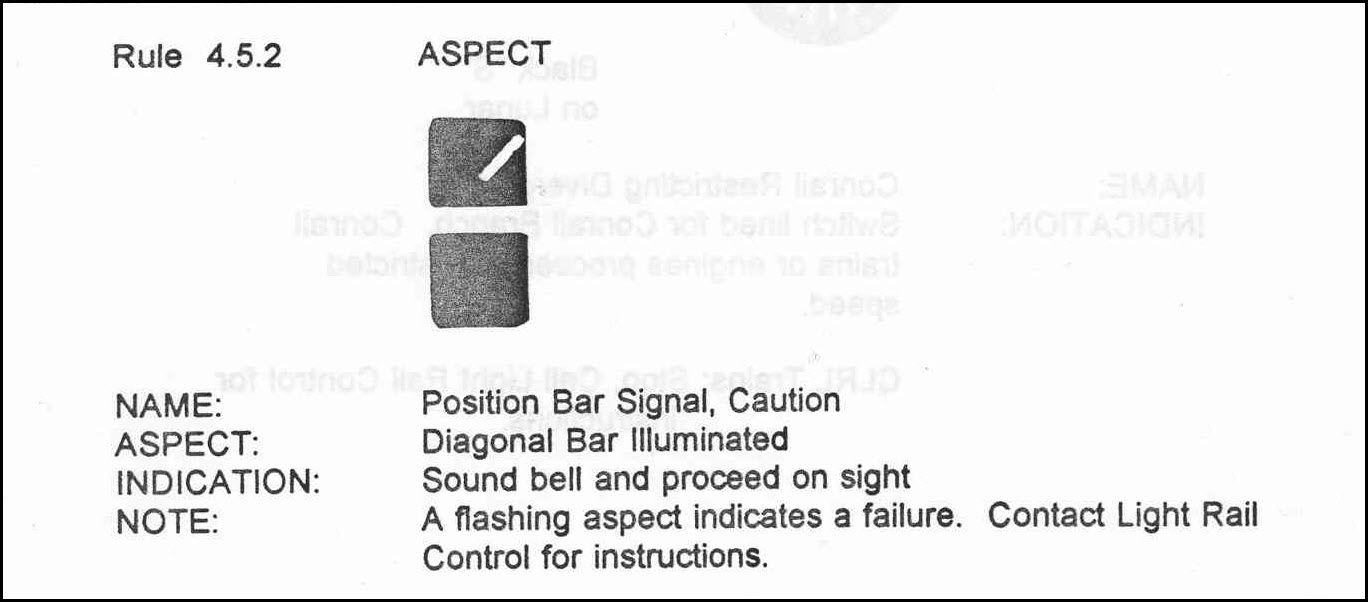

Rule 4.5.2 - Caution

Aspect:         Diagonal bar illuminated
Name:           Caution
Indication:    Sound bell and proceed on sight

Not too many operators will proceed with this aspect, as it is the same as a yellow traffic light, indicating to the operator that the signal is getting ready to change to red.

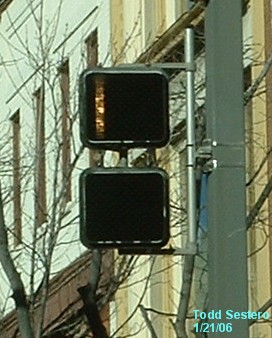

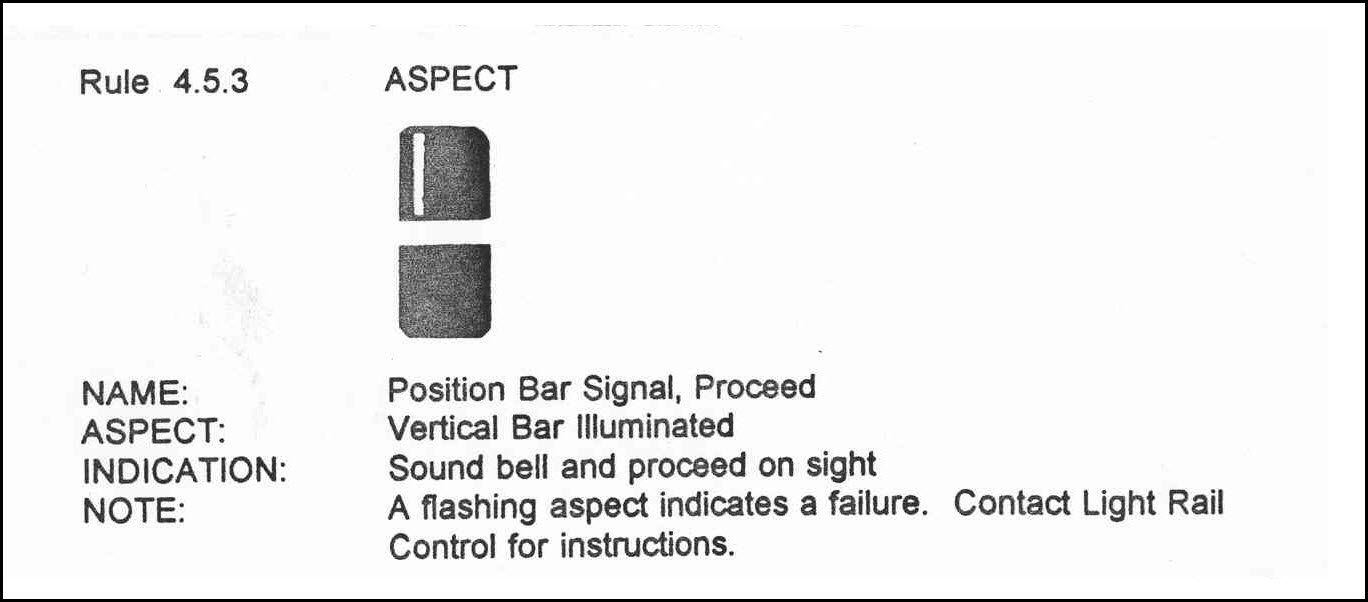

Rule 4.5.3 - Proceed

Aspect:         Vertical bar illuminated
Name:           Proceed
Indication:    Sound bell and proceed on sight

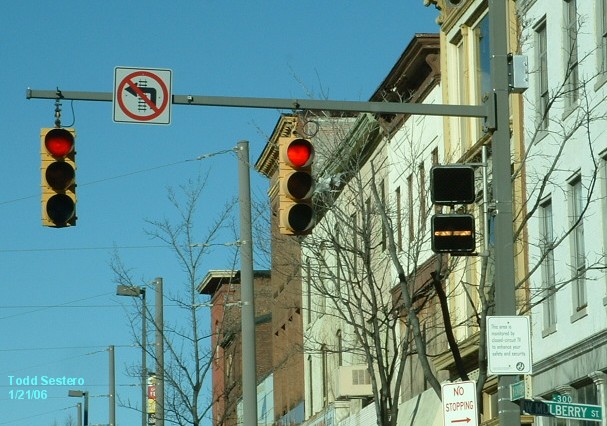

All pictures taken at Howard St. and Mulberry St.

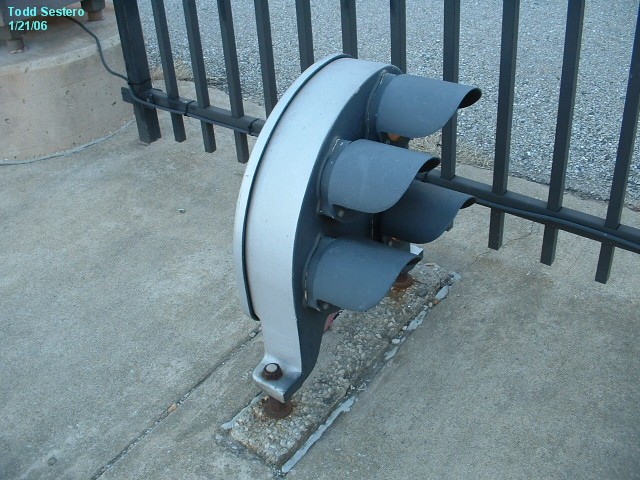

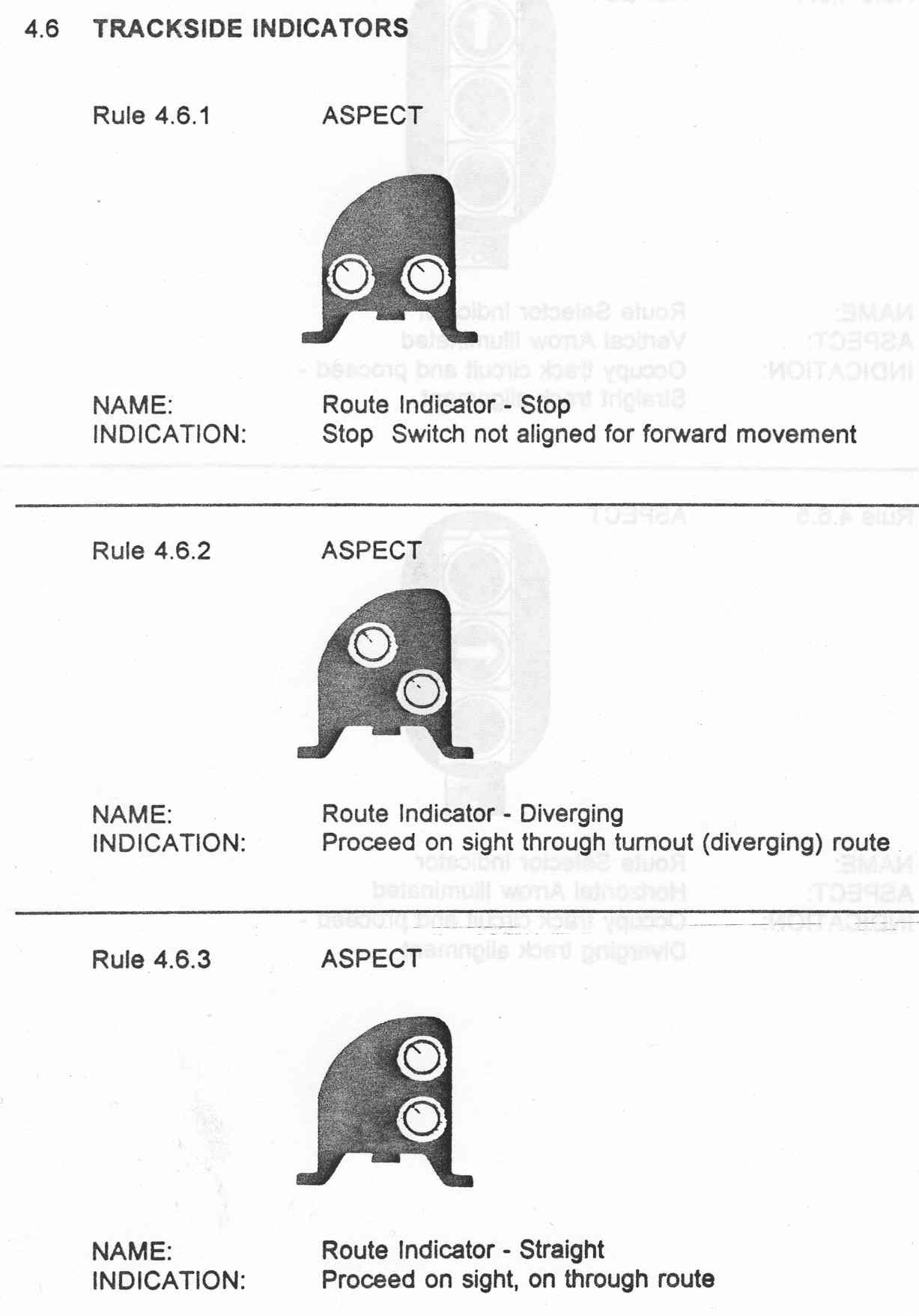

Pennsy Style Dwarf Position Lights

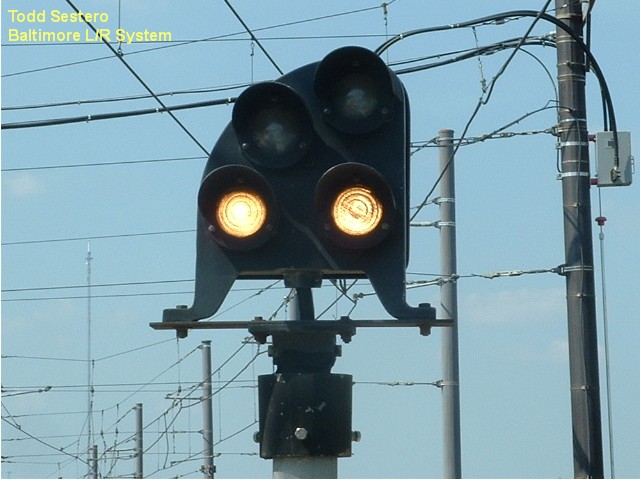

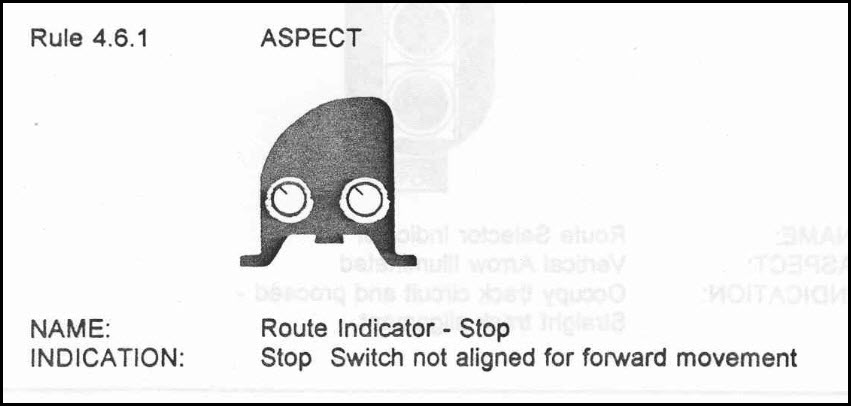

Rule 4.6.1 - Stop

Aspect:         2 Horizontal lights illuminated
Name:           Route Indicator - Stop
Indication:    Stop, Switch not aligned for forward movement

This signal is at North Avenue, on the northbound track.  Sitting high atop a pole, it's purpose is to inform the operator if the switch ahead is aligned to go straight or diverge into the yard.  This signal indicates the operator can not proceed, either because the switch is "in between", or, in the case of the northbound signal at Mt. Royal, a southbound train is coming "out of the hole" at Penn Station, which will be crossing the northbound track to get into Mt Royal.

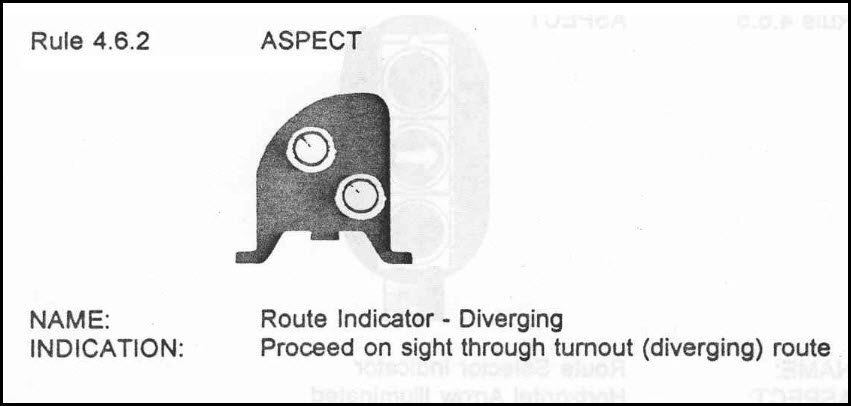

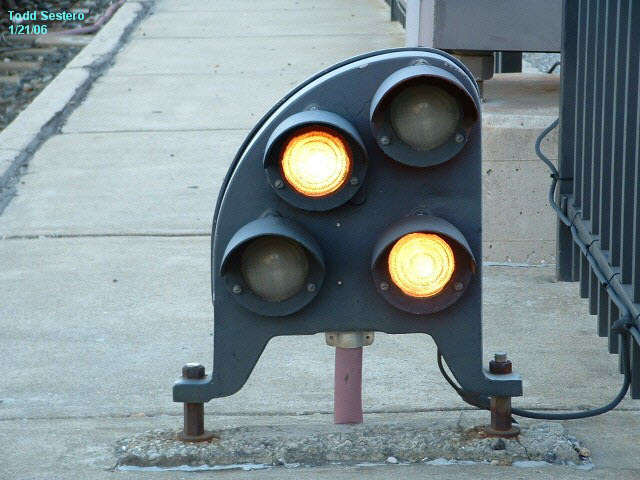

Rule 4.6.2 - Route Diverging

Aspect:         2 Diagonal lights illuminated
Name:           Route Indicator - Diverging
Indication:    Proceed on sight through turnout (diverging) route

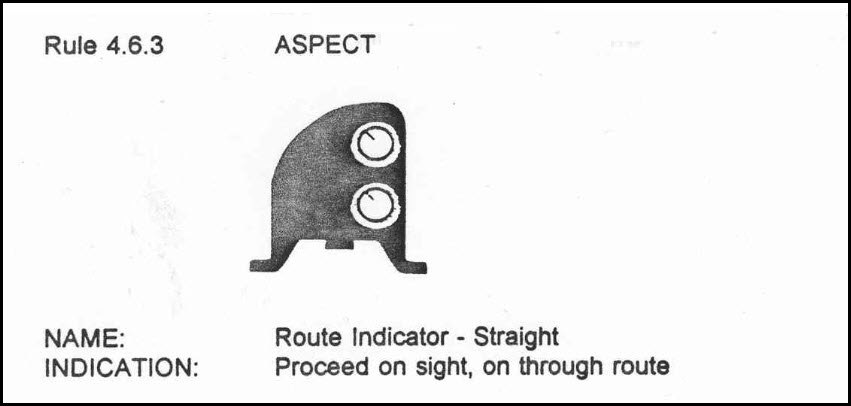

Rule 4.6.3 - Route Straight

Aspect:         2 Vertical lights illuminated
Name:           Route Indicator - Straight
Indication:    Proceed on sight, on through route

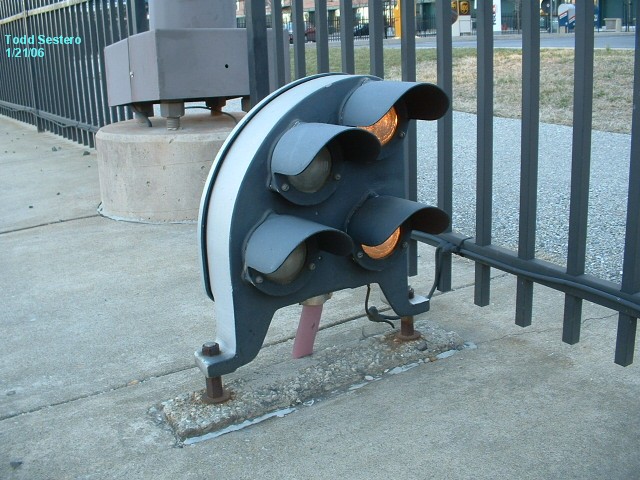

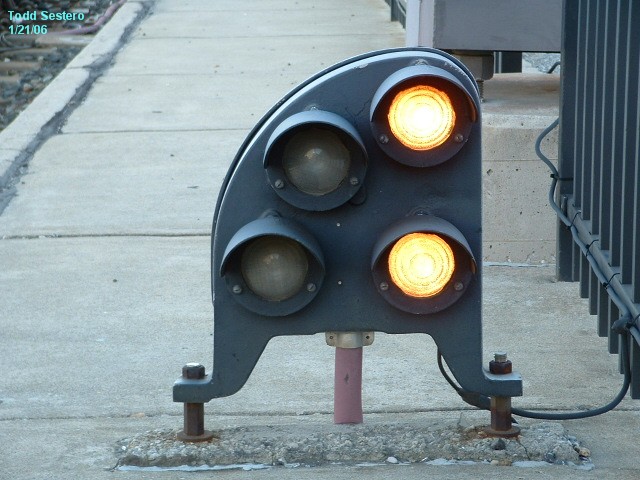

This signal is at Camden Yards, on the southbound track, prior to coming into the station.  The signal indicates the switch is aligned for a straight move.  If it was on the diagonal, the switch would be aligned for the pocket track.

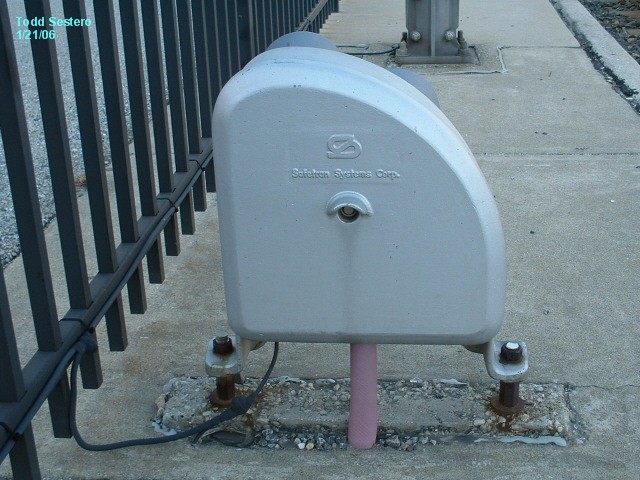

The dwarf signals are manufactured by Safetran.

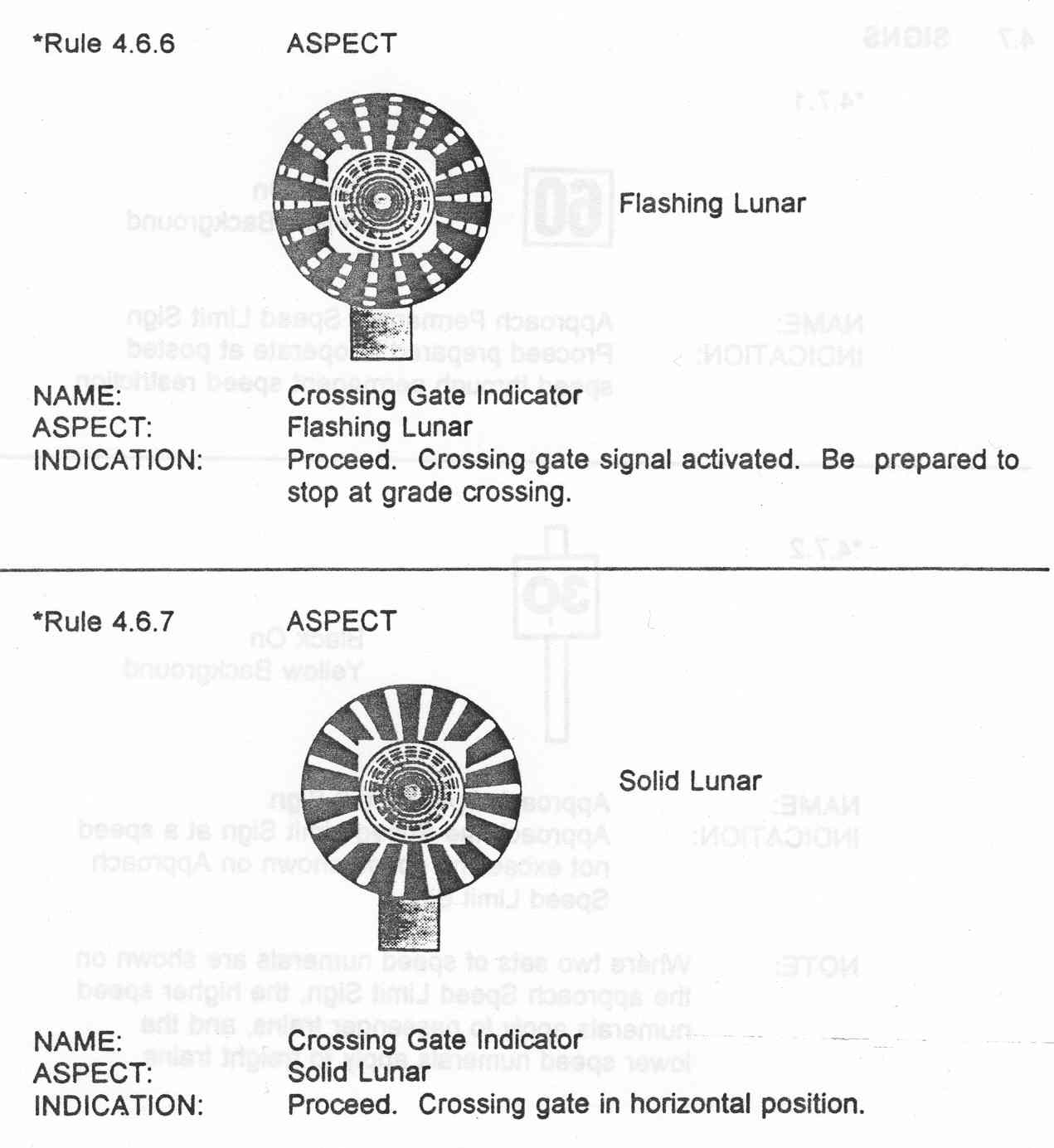

Crossing Gate Indicator Lights

These signals are placed prior to a grade crossing.  When the crossing gate circuit is activated, the signal will start flashing, indicating to the operator that the crossing gate circuit is working and the gate is in the process of coming down.  When the gates get to their "full down" position, the light will stop flashing and be on "steadily".  Operators are supposed to stop the train if the signal is not steady by the time they get to the grade crossing, but I don't know if this has ever happened, or if the operator is paying attention enough to carry out the rule in time.

Rule 4.6.6

Aspect:         Flashing Lunar
Name:           Crossing Gate Indicator
Indication:    Proceed.  Crossing gate activated.  Be prepared to stop at grade crossing.
(To me, "Proceed" and "Be Prepared to Stop" convey different meanings, I think this was an oversight by whomever wrote the rules :-).

Rule 4.6.7

Aspect:         Solid Lunar
Name:           Crossing Gate Indicator
Indication:    Proceed.  Crossing gate in horizontal position.

Route Selector Indicator

  To my knowledge, this signal was never used.

Rule 4.6.4

Aspect:         Vertical Arrow illuminated
Name:           Route Selector Indicator
Indication:    Occupy track circuit and proceed - Straight track alignment

Rule 4.6.5

Aspect:         Horizontal Arrow illuminated
Name:           Route Selector Indicator
Indication:    Occupy track circuit and proceed - Diverging track alignment

Horn Signals


a.  ooooo
(a succession of short sounds).  To be used when an emergency exists, warning to persons on or about the track, or approaching a train stopped on adjacent track.

b.  o
Approaching highway grade crossings unless otherwise designated (used mostly at the yard entrance crossing).

c.  -- -- o --
Approaching designated grade crossings. (most of them).

d.  oo
Answer to any hand signal.  Before moving forward in yard or within yard limits.

e.  ooo
Before moving backward.


Unnecessary or excessive use of the horn is prohibited.

(Note:  When I worked there (1995-1998), some modifications were made to the above rules.  Because of neighborhood pressure, they only blow the horn once at Bellona Ave. in Lutherville (freights still blow normally).  The horn was not used in the yard unless an emergency was imminent (like when an MOW truck didn't see me coming out of the shop from 4N and almost hit me).

Bell Signals


Vehicle bell shall be used:

a. To acknowledge a hand signal (this rule was never enforced).

b. Before moving forward (as above in 4.1.1.d).

c. When reversing (as above in 4.1.1.e).

d. When passing through stations (keep bell ringing till you leave the station).

e. When approaching persons on or about the track.

f. At locations where vision is obscured. (This rule came into play especially when you were shunting a car thru the yard, and you were going down a track that had cars on both sides of you, thereby preventing someone walking cross the tracks from seeing you coming.)


In the absence of a warning bell on the lead car of a train, horn signals should be used.

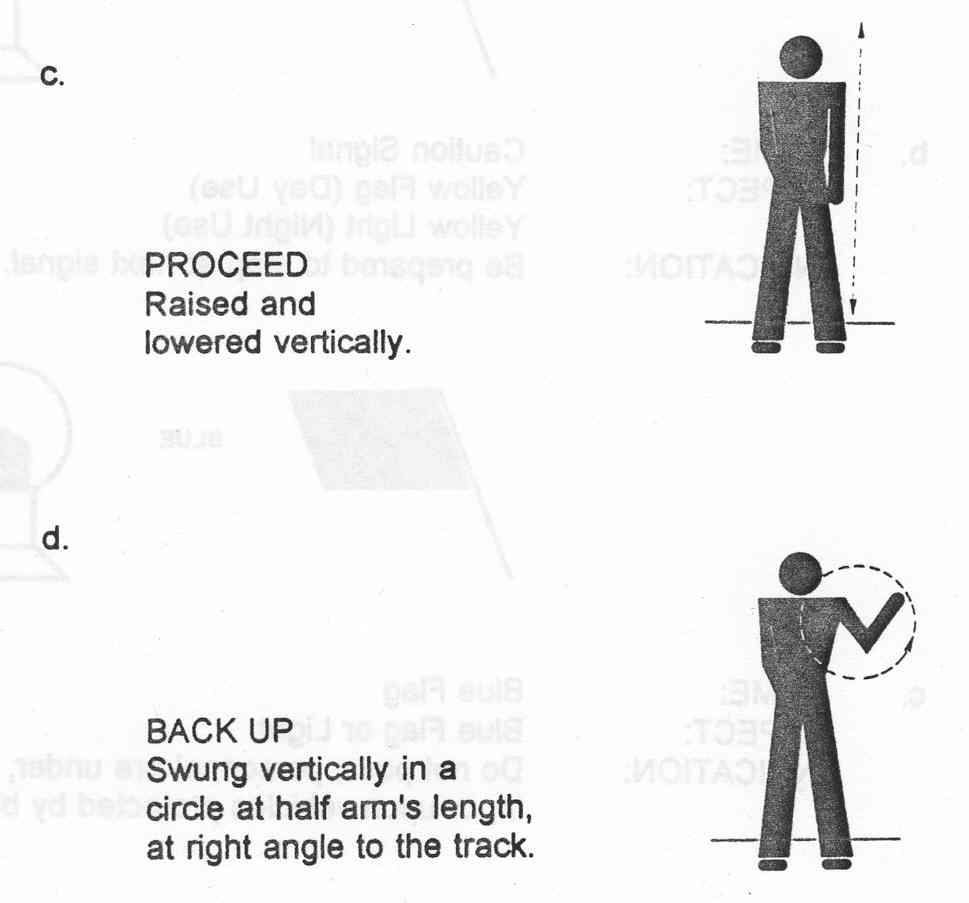

Hand Signals

Hand signals used by Light Rail are standard railroad hand signals.

A note about backing up:  Only in rare instances would the MTA allow a vehicle to be backed up.  The shop was one place, but you needed someone to watch and flag for you.  In the yard or out on mainline, the rules stated you needed to go to the far end of the train and do your "backing up" as a forward movement, so you could see what's in front of and around you.

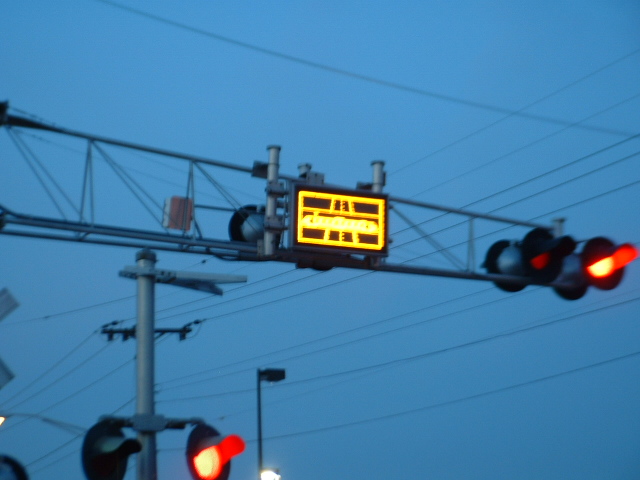

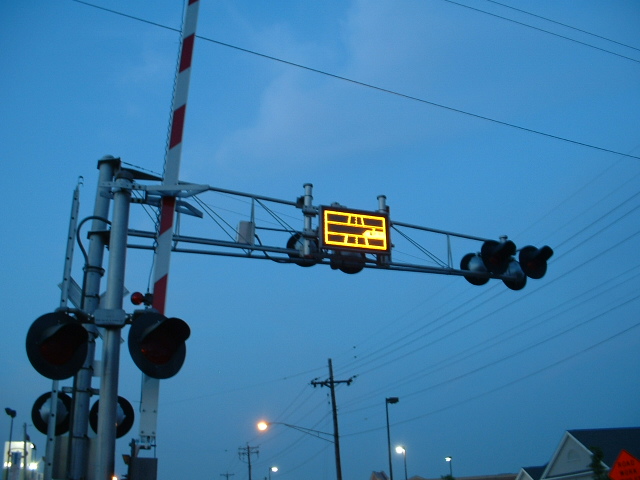

The Timonium Rd Two-Train Sign

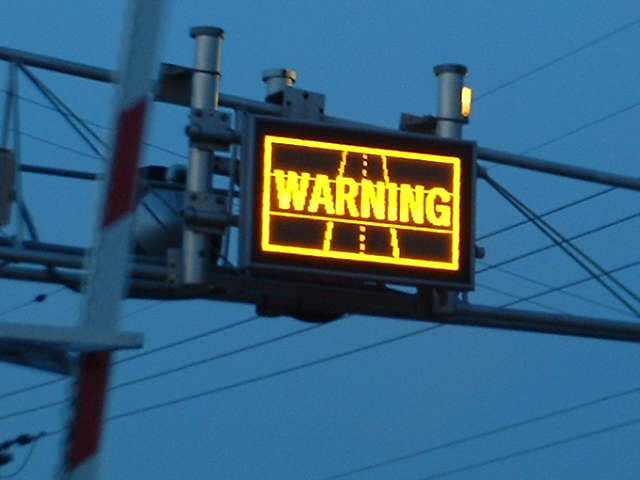

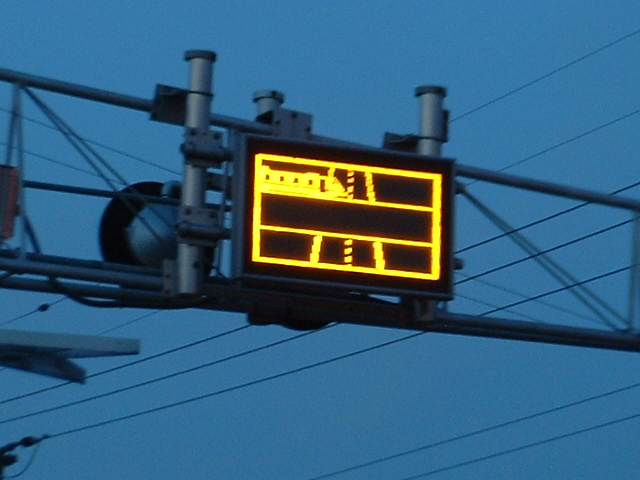

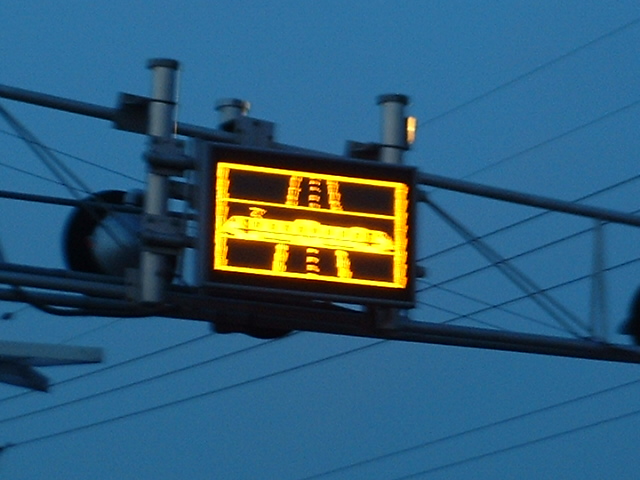

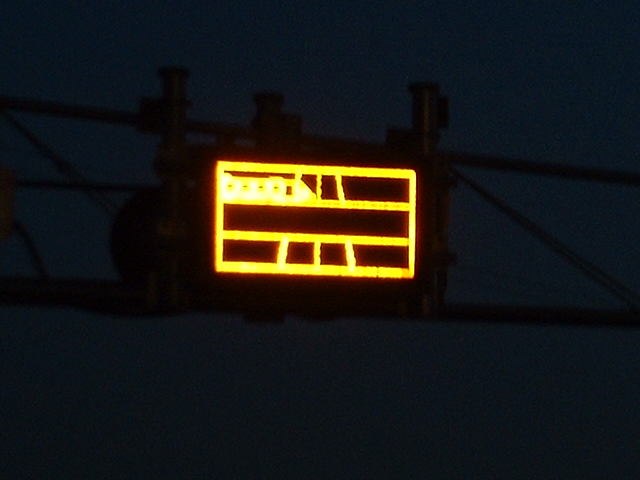

At the grade crossing in Timonium, is this unique "second train coming" sign.  It was designed way back in the early 90's, by then Systems foreman Vern Hartsock.  If the crossing gate circuits detect a second train within its limits, it will activate the sign, hopefully, to keep people from going around the crossing gates after the first train has come by, and the gates remain down (and people think the gates should be going up).

As of 2021, the signal/sign is still in operation.... I guess I should go get some newer (and better) pictures, huh?



Misc Signals

The Fancy LED No-Turn Signals/Signs

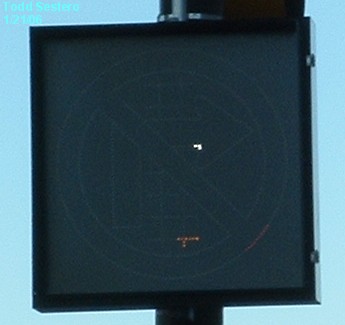

The Baltimore Light Rail System has designed some pretty fancy NO-TURN signals, where they don't want you making a turn, even tho the main traffic signal is displaying PROCEED (a green light).  I'm not sure if it uses fiber-optics or LEDS, as many of the pictures I took show the signal in various stages of "lighting-up" -- in the right photo, you can see the tracks are not illuminated, and in the center photo, there are still a few bits of light showing.  The missing segment in the white arrow, and the "hotspot" on the red circle probably indicate these are LED type signs.

The use of this type of signal/sign is now commonplace on the entire system.

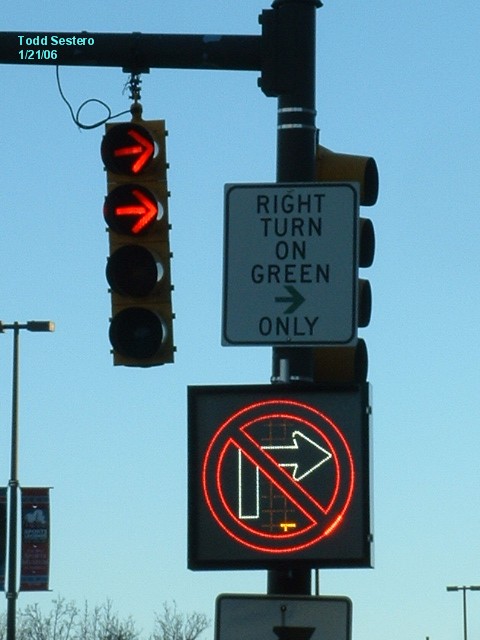

The first set of pictures is of the signal used at the entrance to Camden Yards for southbound vehicular traffic on Howard St.

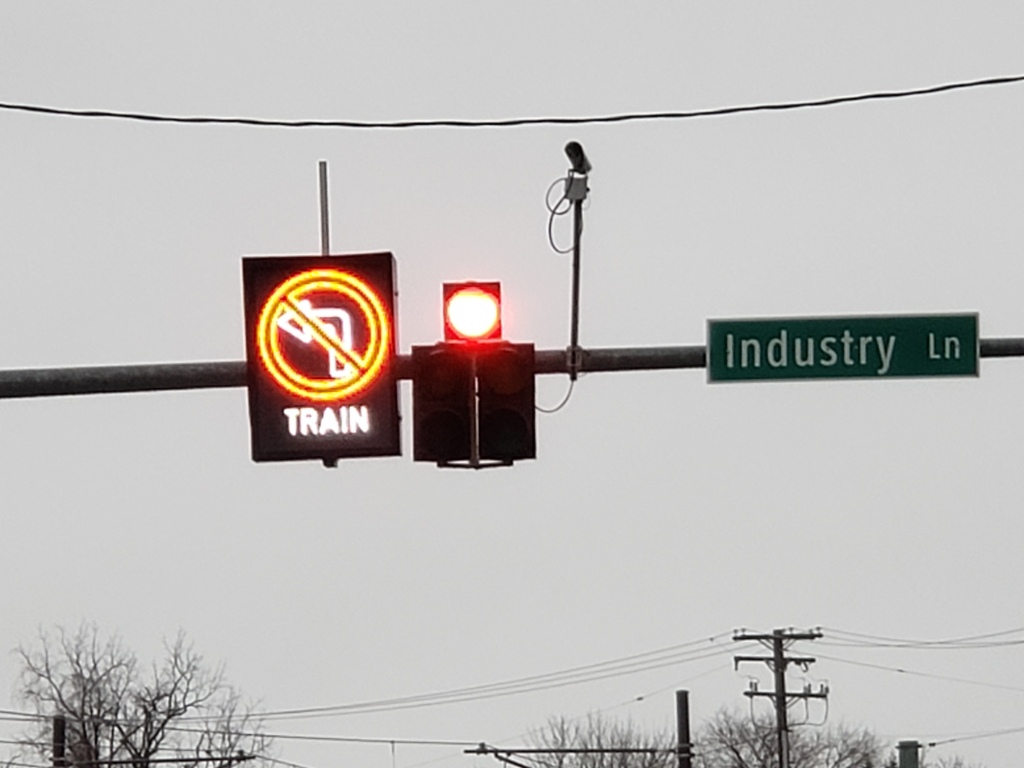

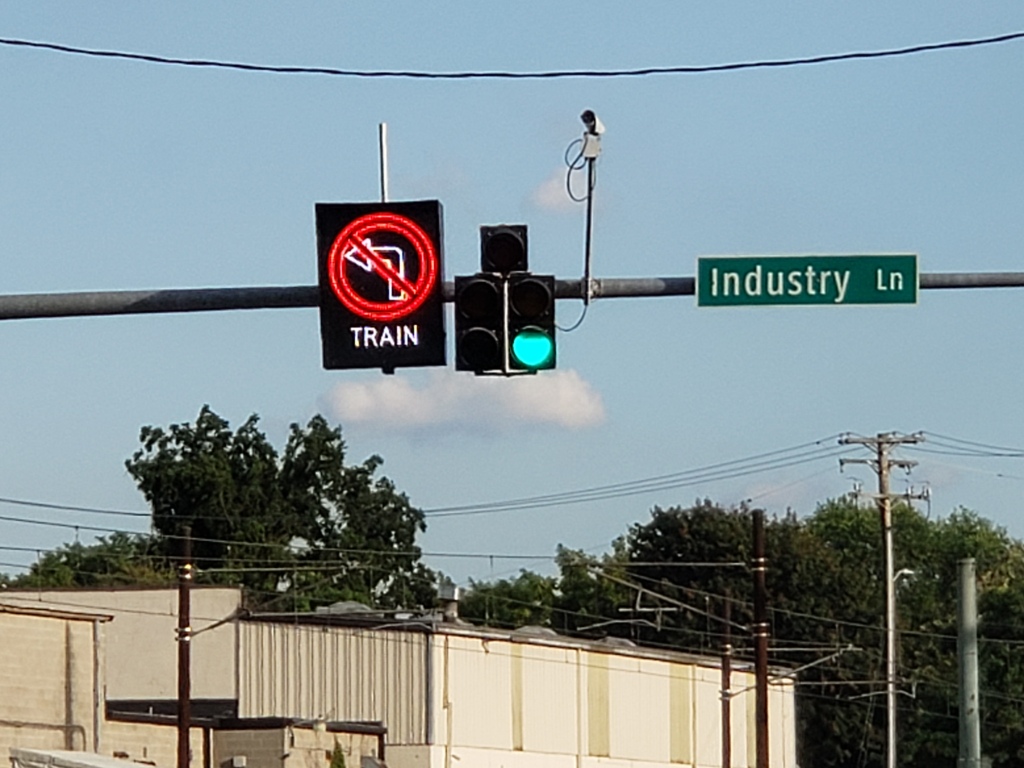

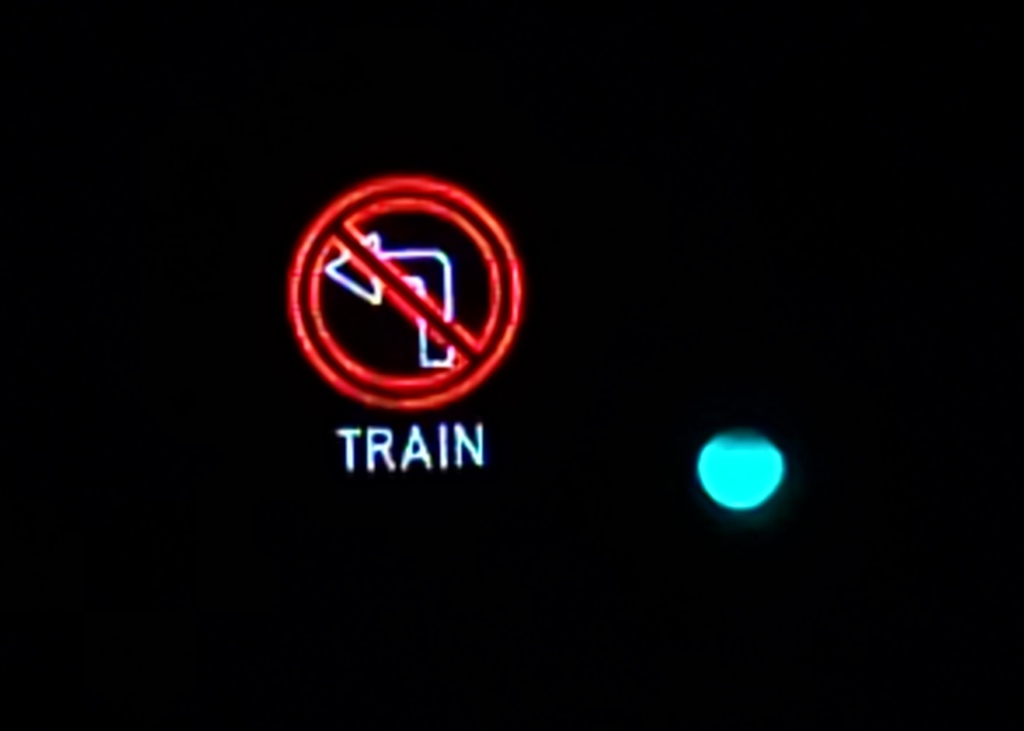

Pictures of the "no left turn" signal at Industry Lane in Cockeysville, there's a matching no right turn sign on the other side of the intersection,
Notice they re a little simpler, and do not have the yellow track in the sign!:

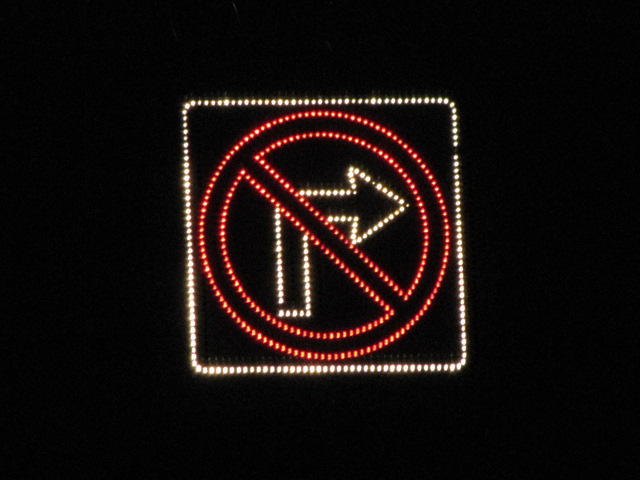

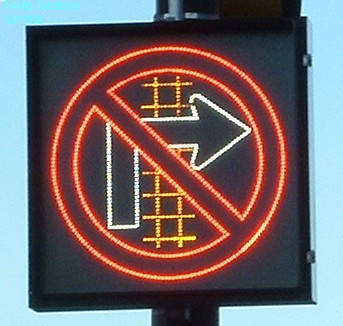

Here we have some pictures of the one at WB Warren Rd as you approach Beaver Dam Rd, looks like they have replaced the sign at least once:
