Los Angeles and the area at one time had one of the largest transit systems around, with the Pacific Electric running their Red Cars, and the Los Angles Railway and their Yellow Cars.  After WWII, the systems were systematically taken apart until 1963 when nothing was left.

Then, on July 14th, 1990, the Los Angeles County Metropolitan Transportation Authority, AKA the Metro, opened it's first Light Rail line, 27 years after the end of streetcar service.

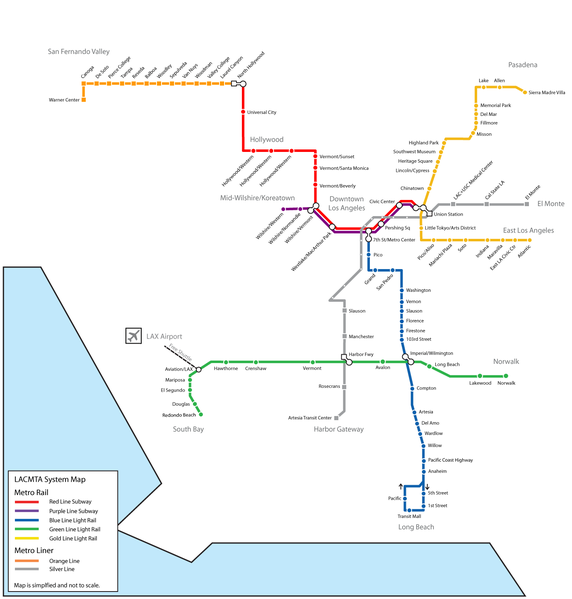

The current (2011) Metro rail system comprises 5 lines with 70 stations, with 23 under construction, for a total line length of 79.1 miles.  The five lines are the Blue, Green, Gold, Red, and Purple.

The Blue Line was the first of the 5 lines.  It runs from downtown LA in the financial district to downtown Long Beach.  The line runs entirely on the surface.

The Green Line runs from Redondo Beach to Norwalk, and is fully elevated.

The all surface Gold Line runs from East Los Angeles east to Pasadena.

Both Heavy Rail Lines, the Red and Purple, are underground.  The Red Line connects downtown LA with North Hollywood.  The Purple Line also runs from downtown to Koreatown/Mid-Wilshire.

Three of those lines are light rail lines: The Blue, Green, and Gold.  History of the lines is as follows:
● July 14, 1990 - First segment of the blue line opened Pico to Anaheim St
● Sep 1, 1990 - Blue line Long Beach Loop, Anaheim St to Pacific
● Feb 15, 1991 - Blue Line to the Financial District, Pico to 7th St/Metro Center
● Jan 30, 1993 - Red Line MOS-1, the Red & Purple line go from Union Station to Westlake/MacArthur Park
● Aug 12, 1995 - Green Line, Redondo Beach to Norwalk
● May 26, 1996 - Red Line MOS-2 West, Red & Purple Line Westlake/MacArthur Park to Wilshire/Western
● Jun 12, 1999 -  Red Line MOS-2 North, Red Line Wilshire/Vermont to Hollywood/Vine
● Jun 24, 2000 - Red Line MOS-3, Red Line Hollywood & Vine to North Hollywood
● July 17, 2003 - Gold Line to Pasadena, Union Station to Sierra Madre Villa
● Nov 15, 2009 - Gold Line Eastside Extension, Union Station to Atlantic
● Nov 2011 - Expo line from downtown to Santa Monica opens

Each light rail line has it's own yard.  The Green and Blue lines can share cars and other services, for they share an interchange at the Rosa Park station.  The Gold Line is on it's own, for it does not interchange with any of the other lines.

The Red and Purple line shops is kind of "around the corner" from Union Station, along the river, with the shop buildings themselves on the north side of East 4th Street.  Nice shops, I had a tour of it back in 1996 or so.

The Gold Line at Highland Park.... Photo from Wikipedia, by the Port of Authority.

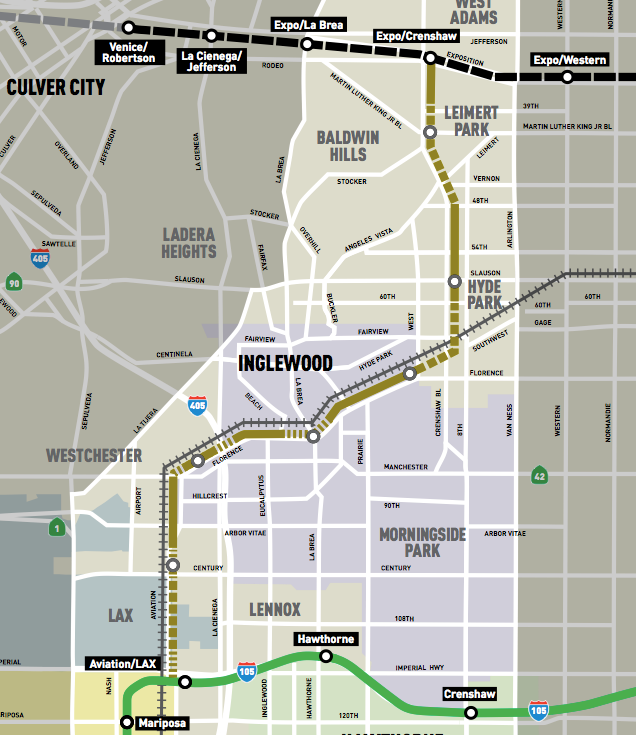

Proposed Crenshaw Light Rail Line.  The route has many local residents angry because the Leimert Park stop may not become a reality due to budget restrictions.  NOV2012

New 10/28/2011
