This page will covers the two stations of the BWI branch, and the lone station of the Penn Station branch.  I will also cover the grade crossings and anything else of interest along the way!

The Penn Station "Branch"

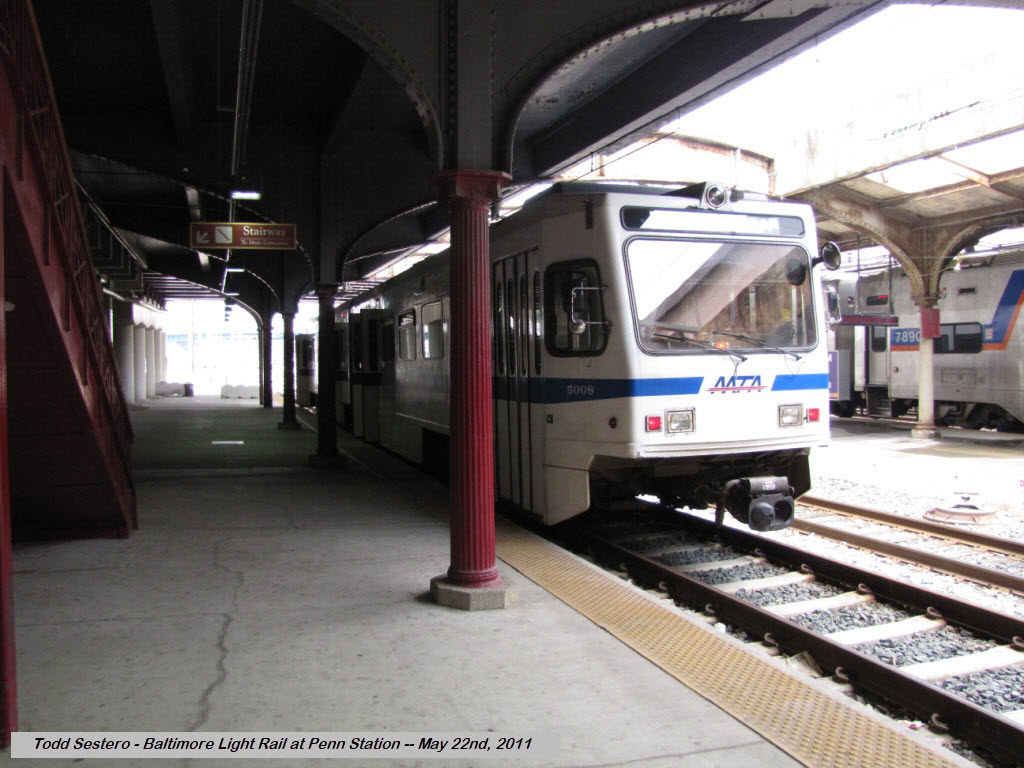

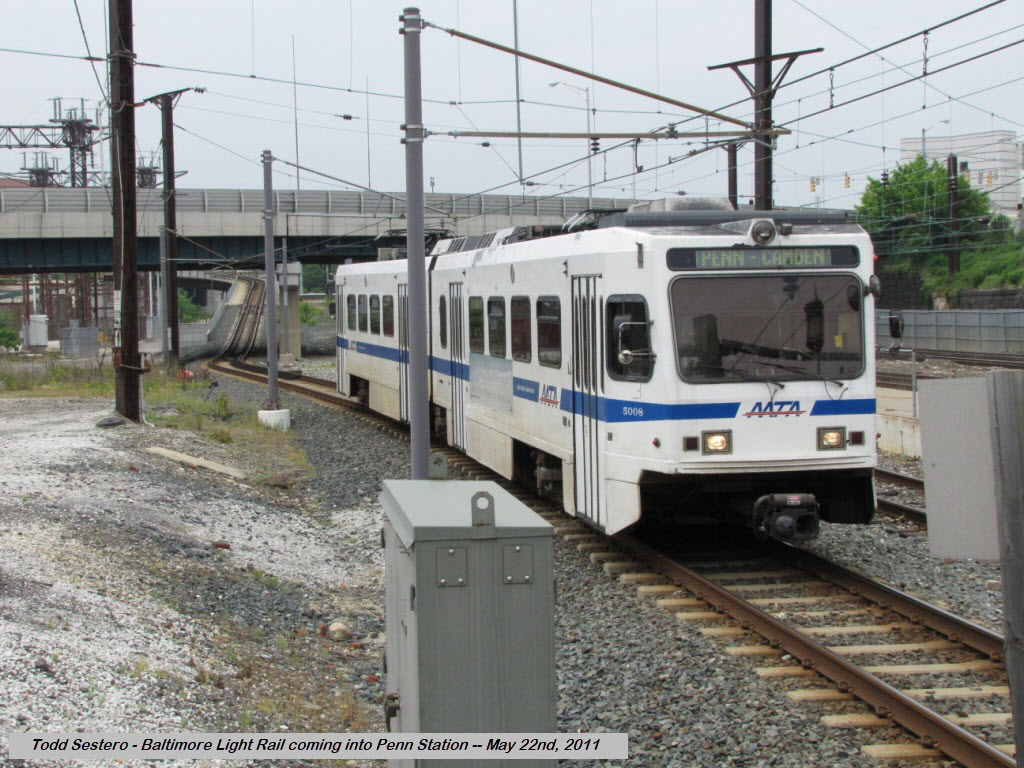

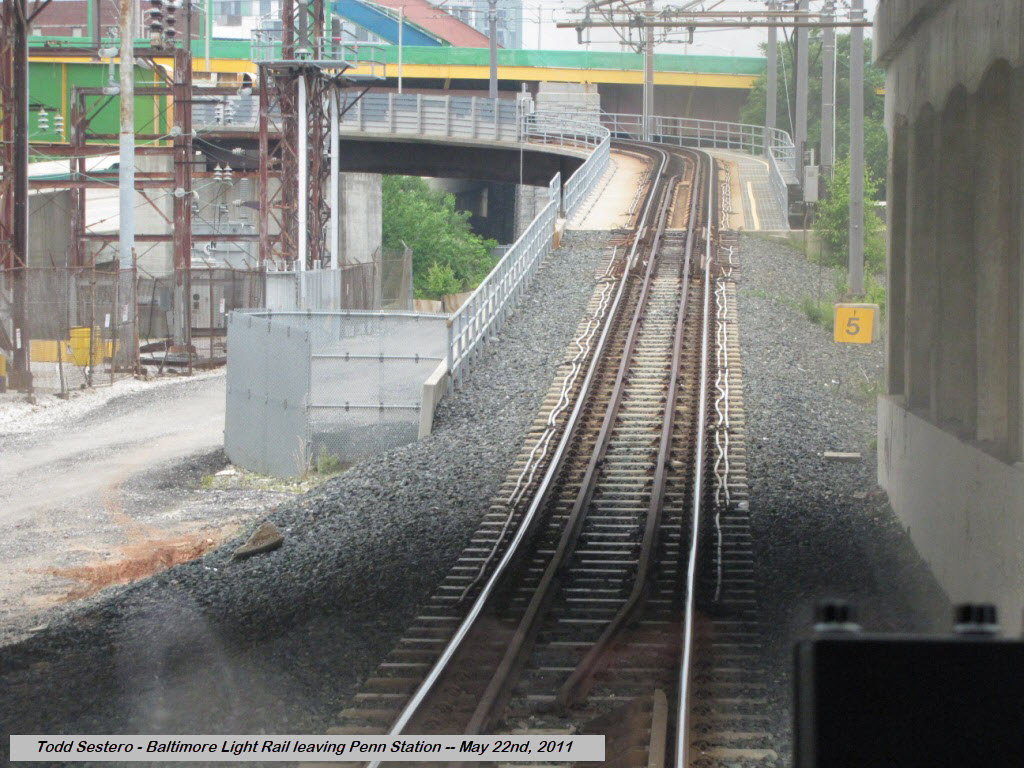

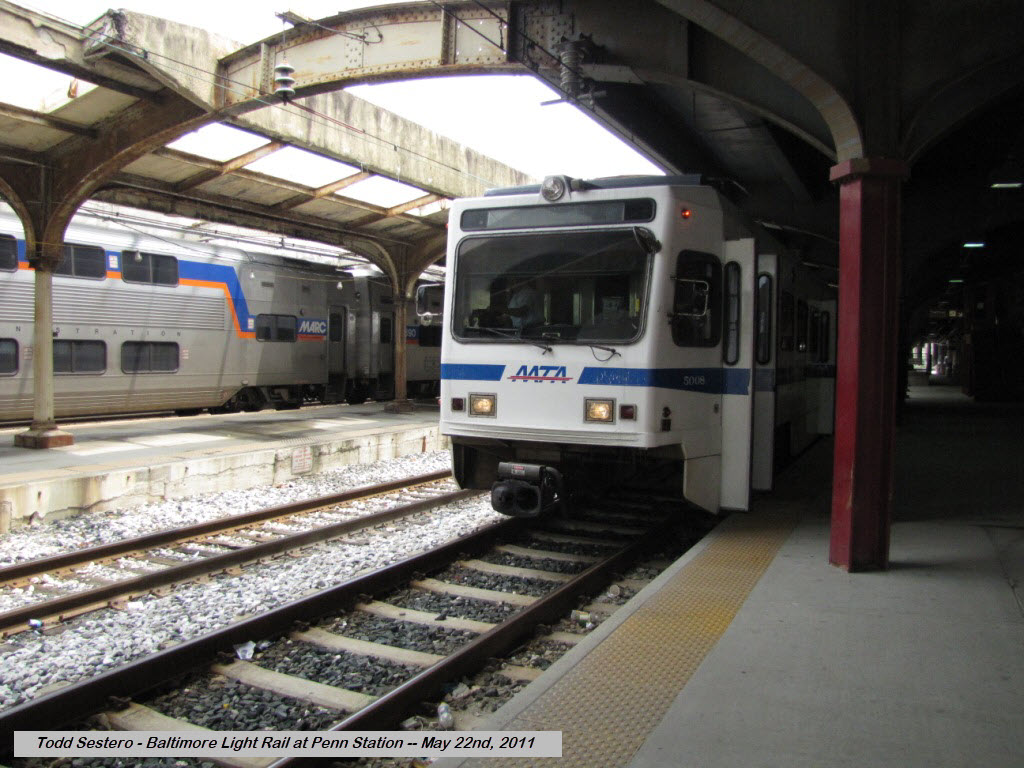

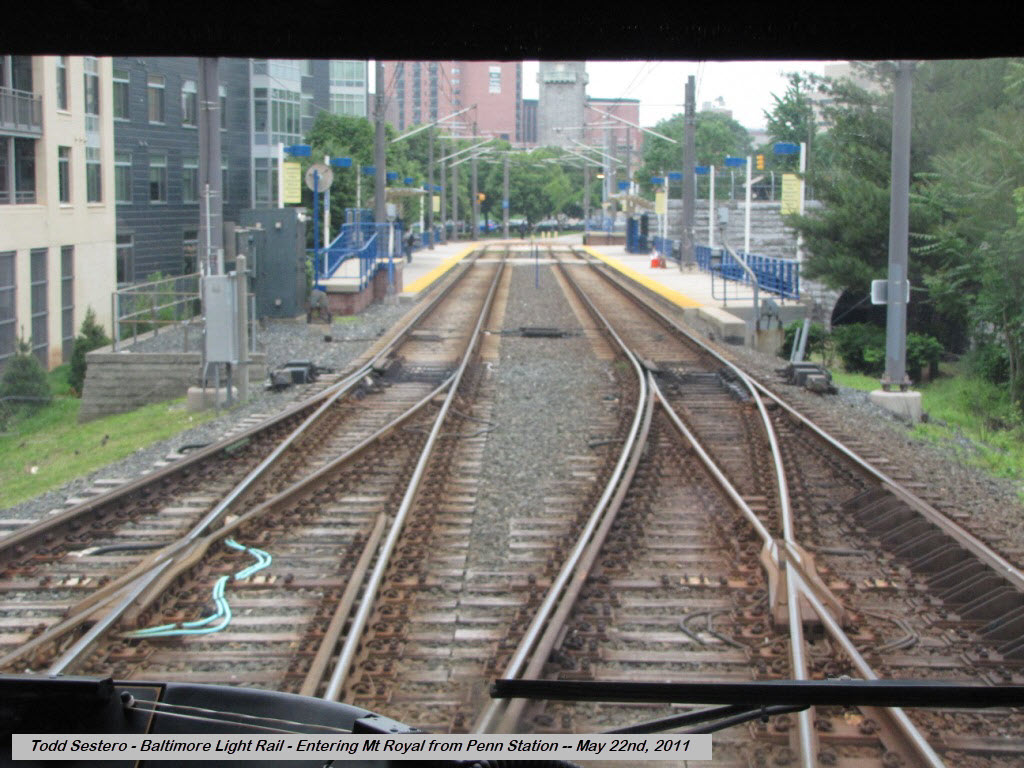

Penn Station

GPS Coordinates: 39.496289, -76.654300

Pictures at Penn Station are a challenge because of the crummy lighting conditions - one side of the train is dark, and the other is sunlit....

Trains run every 30 minutes, and not well patronized, every time I have ridden the train into or out of here, there is usually only one other person on the train.  They should have kept the bus bridge from Mt Royal in place for what it cost and the ridership it receives.... sorry (yes, I know I shouldn't put my personal opinions in here :-).

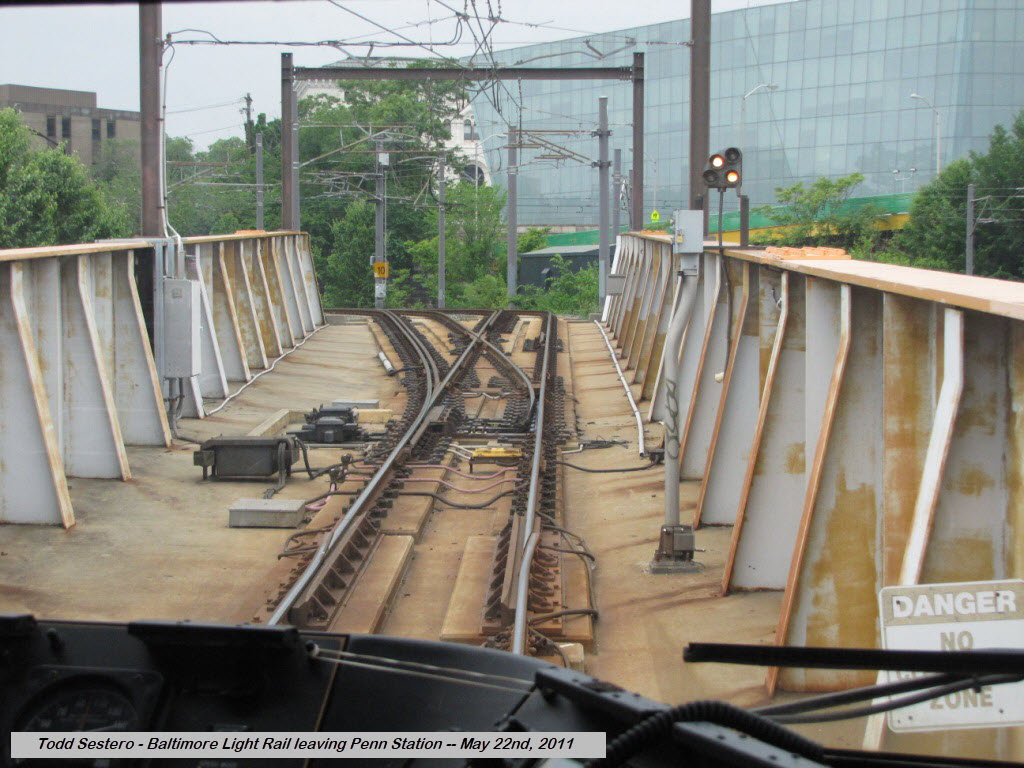

I actually worked at the Light Rail in a pretty "exciting time", as all three of the extensions were opened during my tenure 1995-1998: Hunt Valley, BWI, and Penn Station.  I volunteered to be the ride-along ET when both Hunt Valley and BWI opened (in case the train broke down and something needed to be done right away without calling for help), and when they were doing test runs into Penn Station, we did the runs with the doors open - talk about overhang from the tracks! - It seemed like we were hanging in mid-air when you went around that curved bridge section over the Jones Falls!!!

The BWI Airport Branch

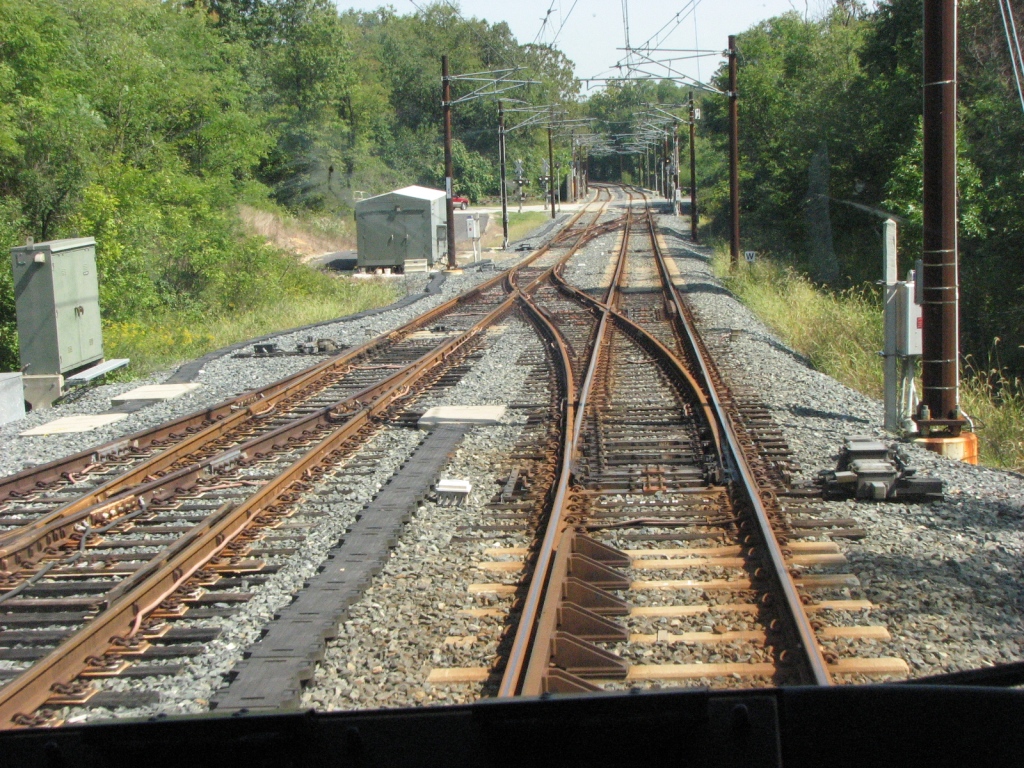

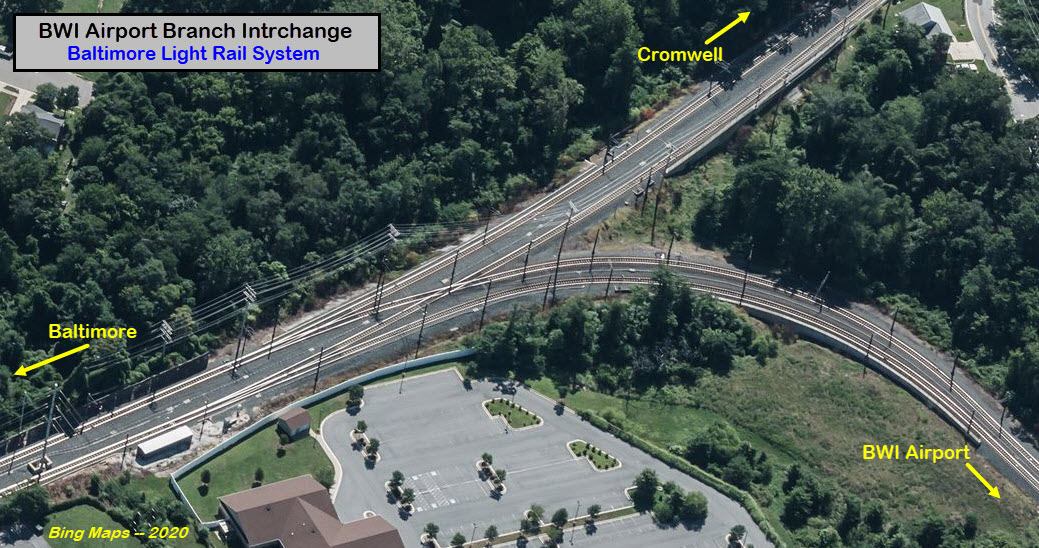

The Interchange

GPS Coordinates: 39.196751, -76.653844

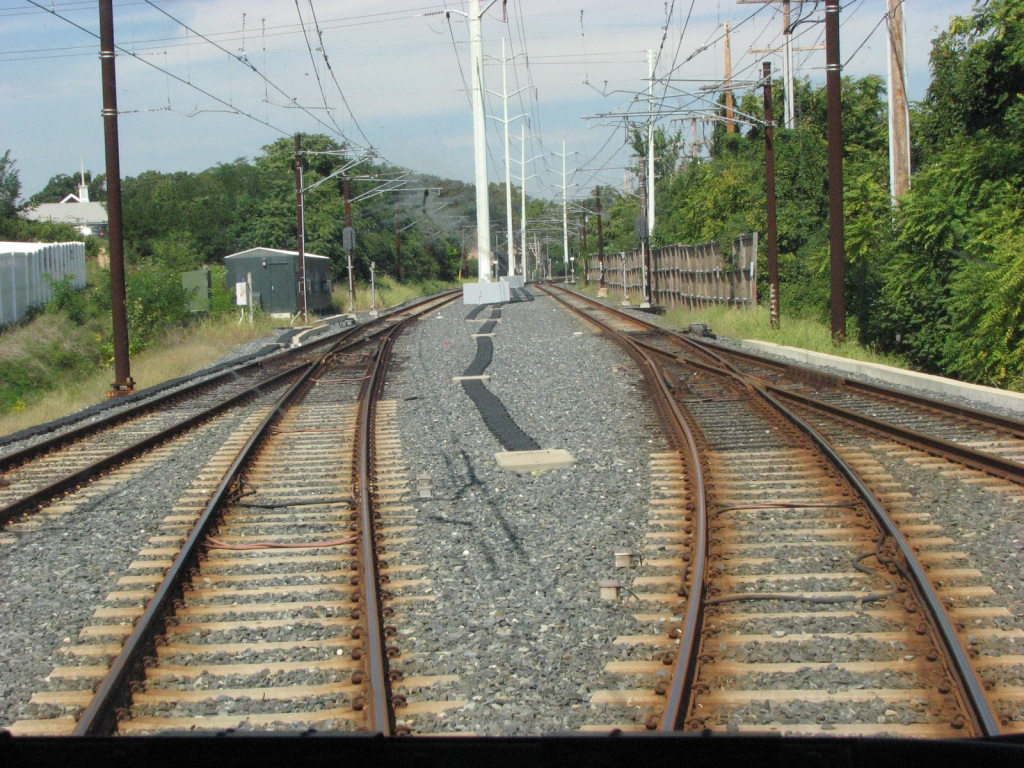

Taken out the front window of a train heading north.

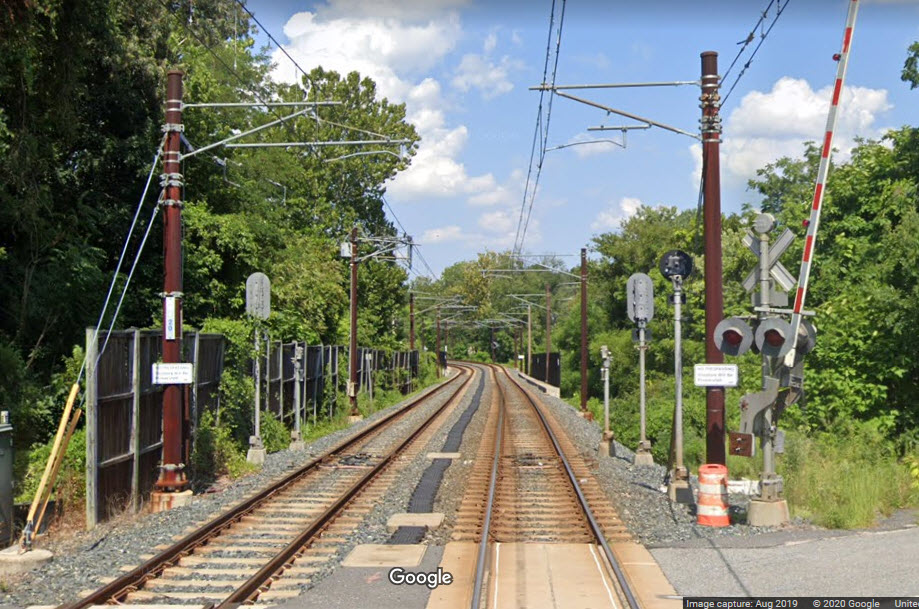

Andover Road

We're west of the grade crossing, adjacent to the short siding.

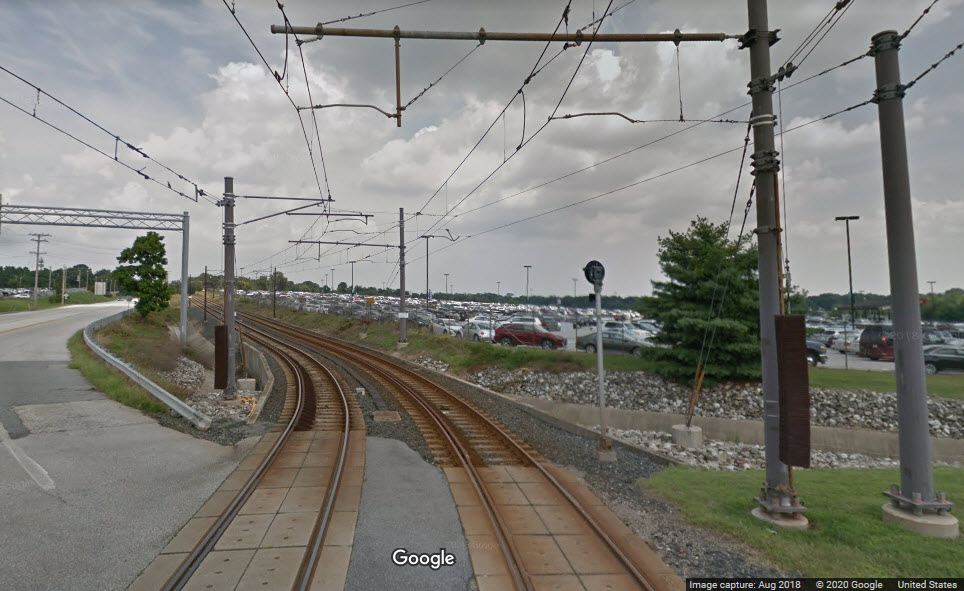

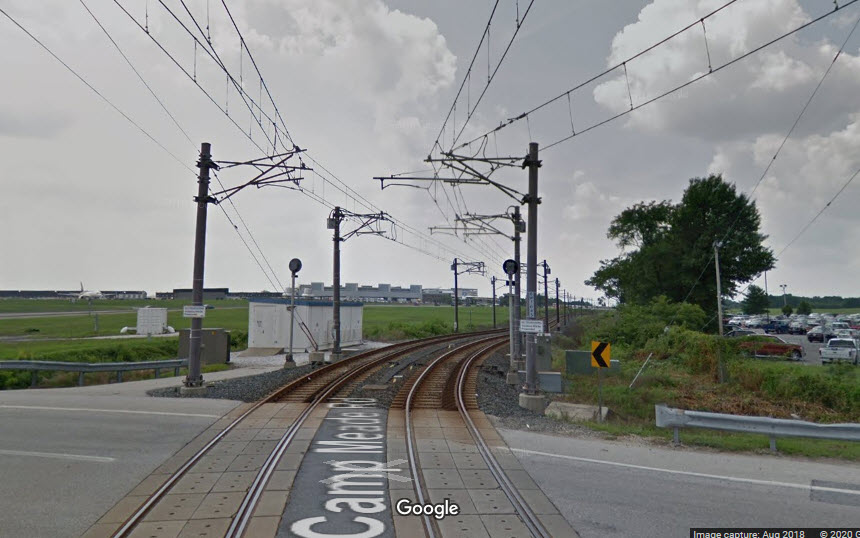

South Camp Meade Road / MD 170

Elkridge Landing Road

BWI Business Park Station

GPS Coordinates: 39.191415, -76.673209

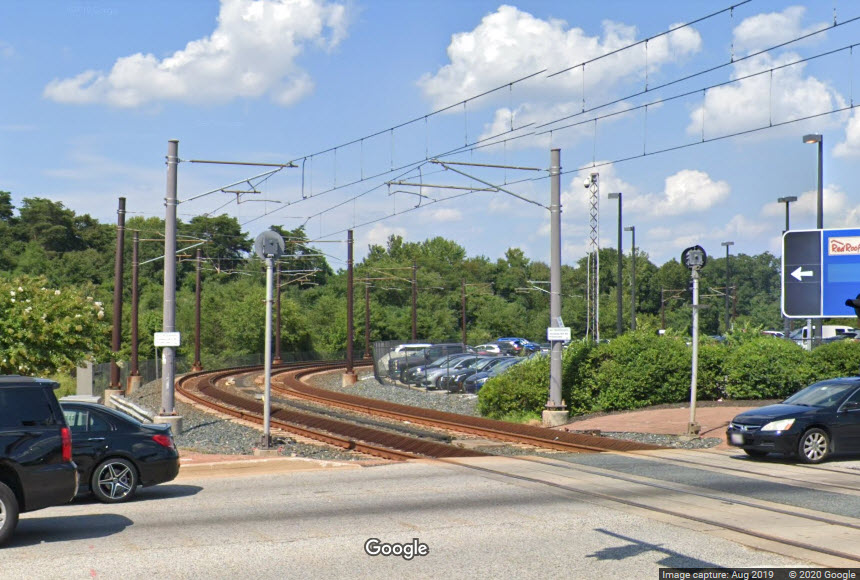

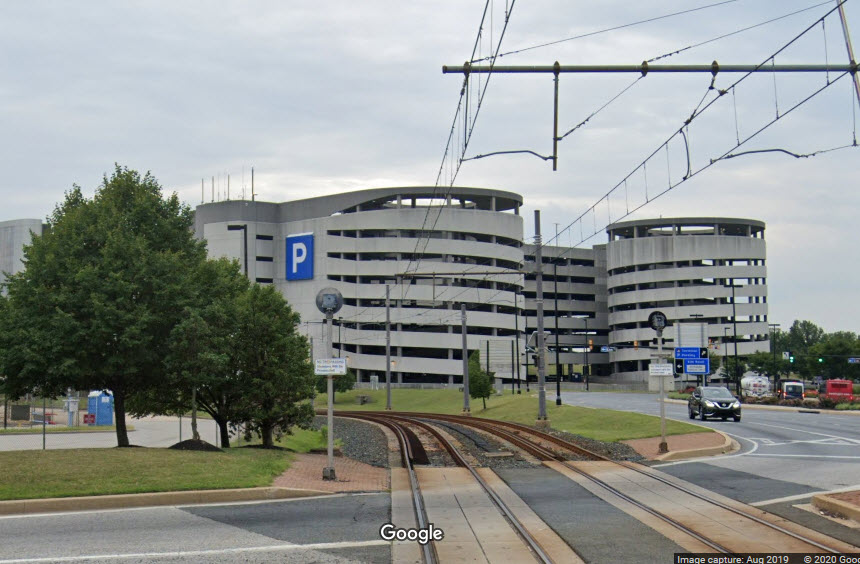

Aviation Blvd / MD 170

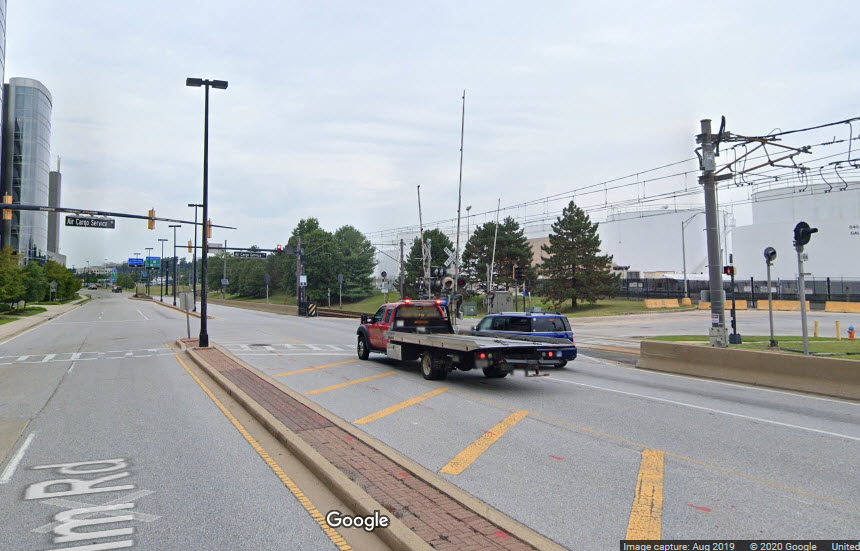

Along Elm Road

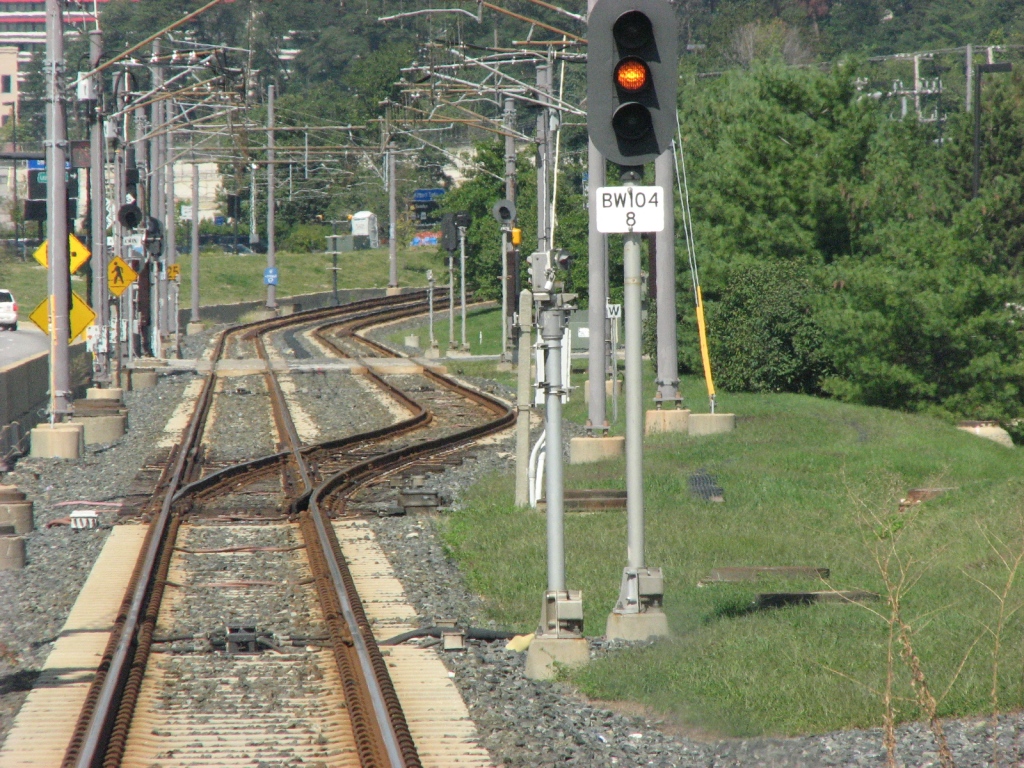

The BWI Airport branch is all double tracked except for a short section along Elm Road leading up to the airport station.  This is the outbound interlocking signal for going from the single track back to two.

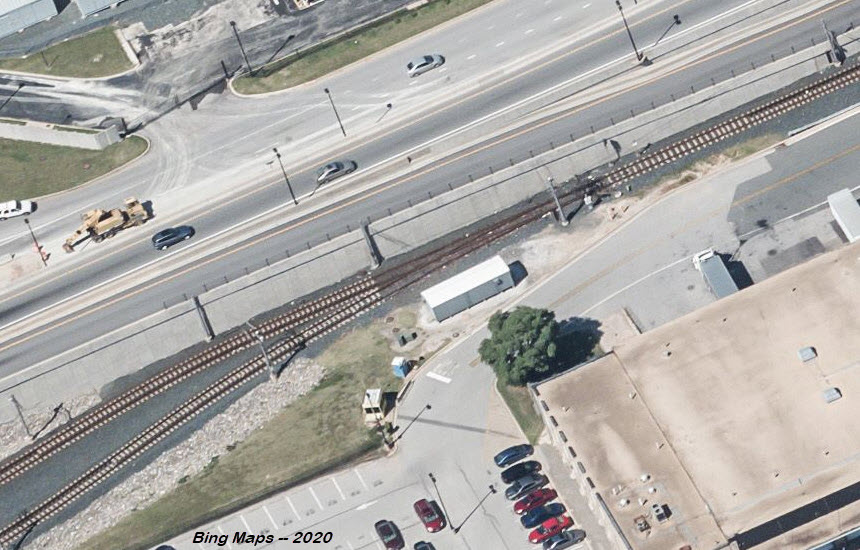

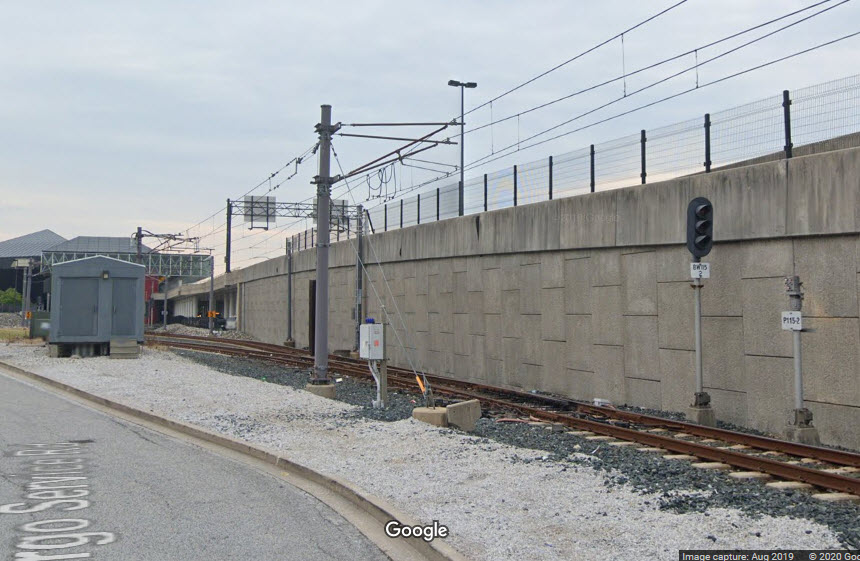

At the other end of the single track is signal BW115.2...

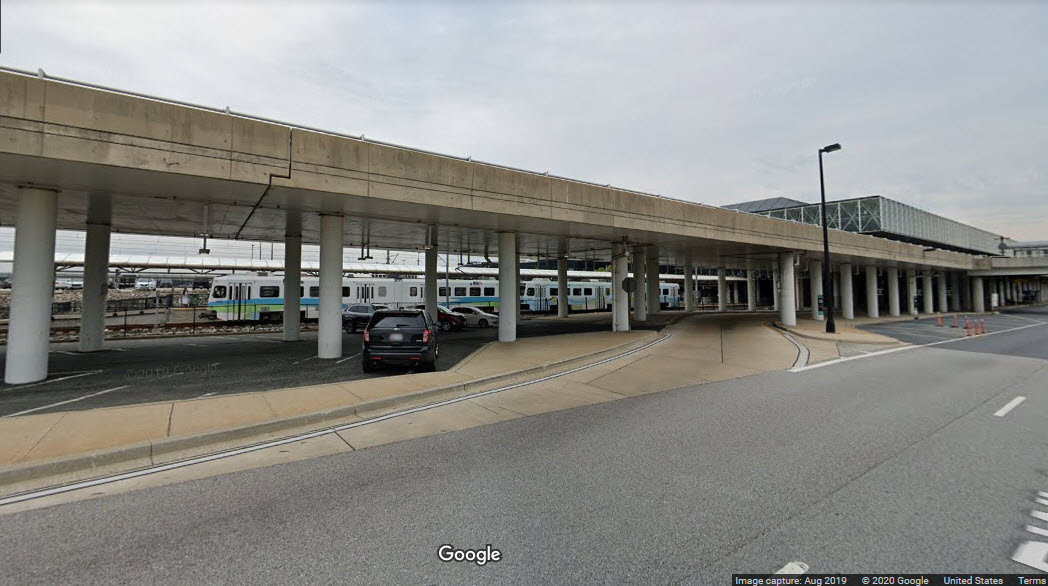

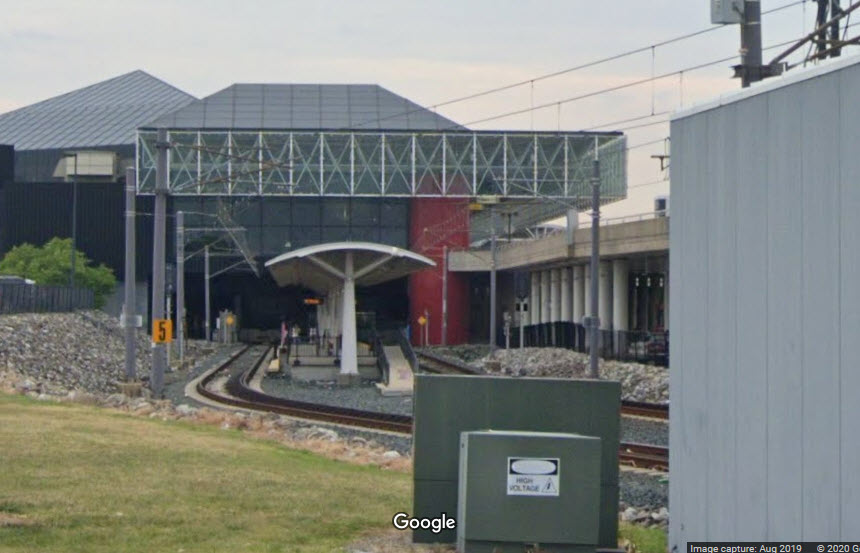

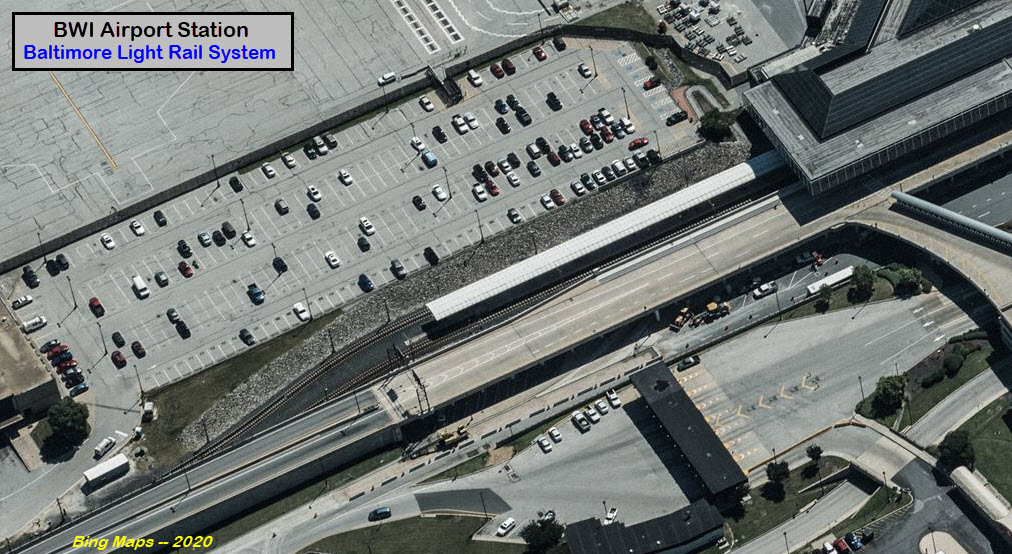

BWI Airport Station

GPS Coordinates: 39.182836, -76.669846
